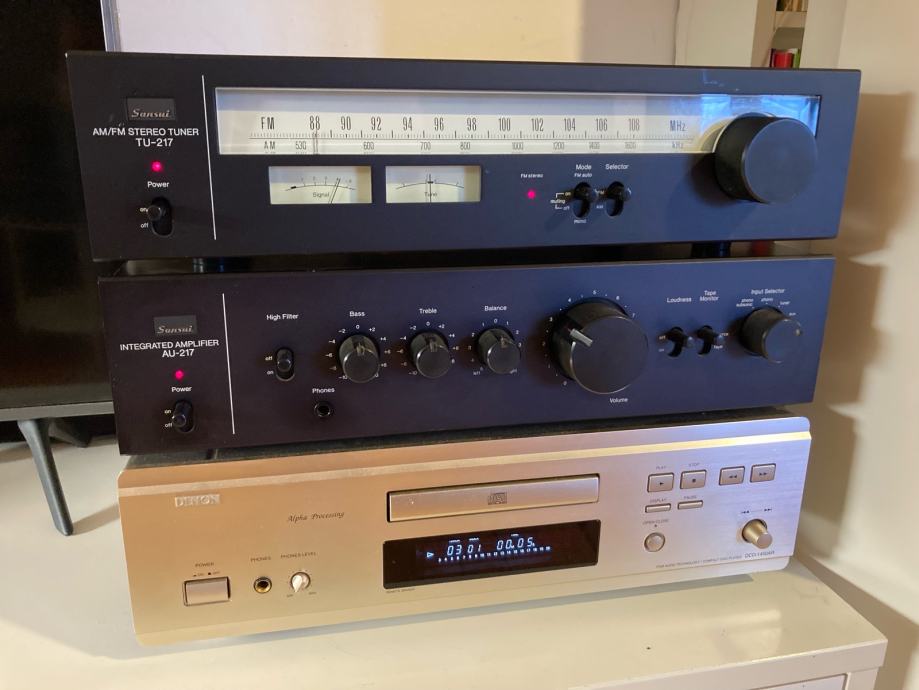

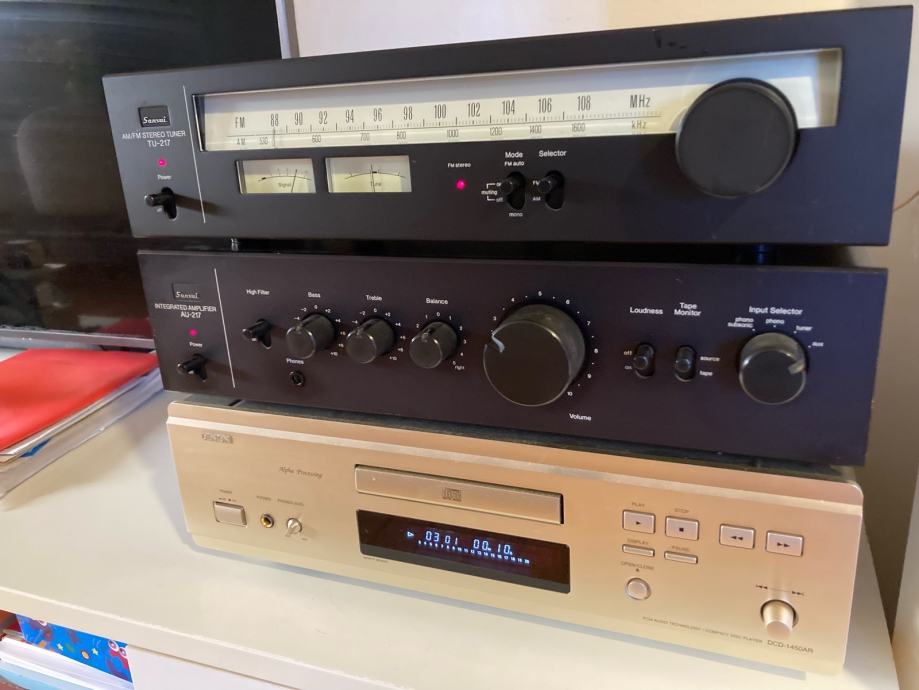

Sansui pojačalo AU 217 + tuner TU 217 ♦️Vintage♦️

Zvati isključivo na 0989389909 , No Pay protect


Navedena cijena je konačna

Sansui iz najboljeg razdoblja kompanije

Zamjene nisu opcije , hvala

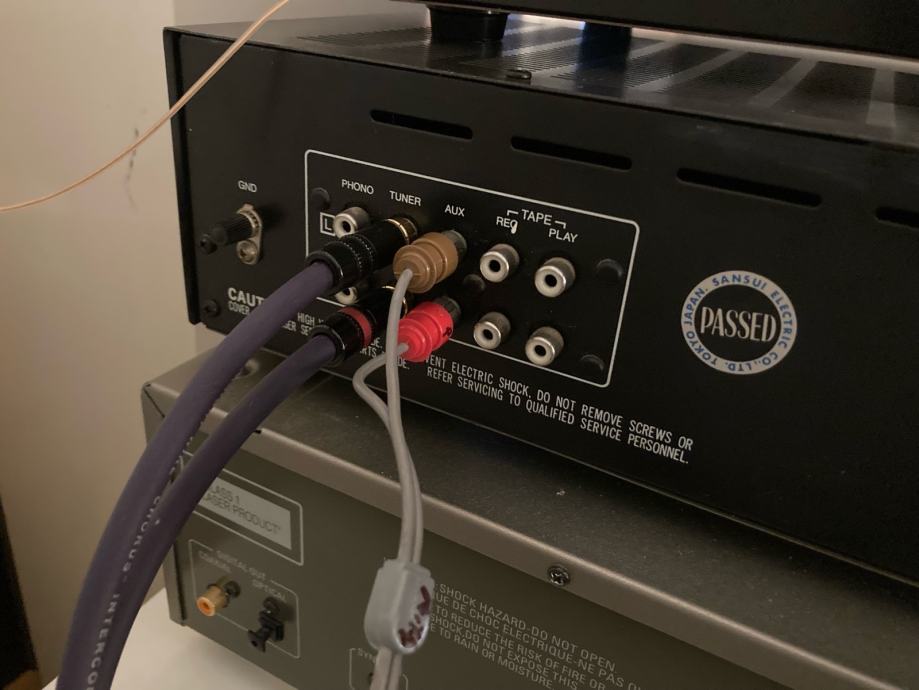

Specifications Sansui AU-217 amplifier:
- Aux, Phono, Tuner, Tape, Tone Control, Speaker A + B
- Power output: 30 watts per channel into 8 (stereo)
- Frequency response: 10Hz to 50kHz
- Total harmonic distortion: 0.06%
- Damping factor: 80
- Input sensitivity: 2.5mV (MM), 150mV (line)
- Signal to noise ratio: 76dB (MM), 94dB (line)
- Channel separation: 65dB (MM), 68dB (line)
- Output: 150mV (line)
- Speaker load impedance: 8 (minimum)
- Semiconductors: 30 x transistors, 21 x diodes
- Dimensions (W x H x D): 430 x 110 x 340 mm
- Weight: 8.4 kg

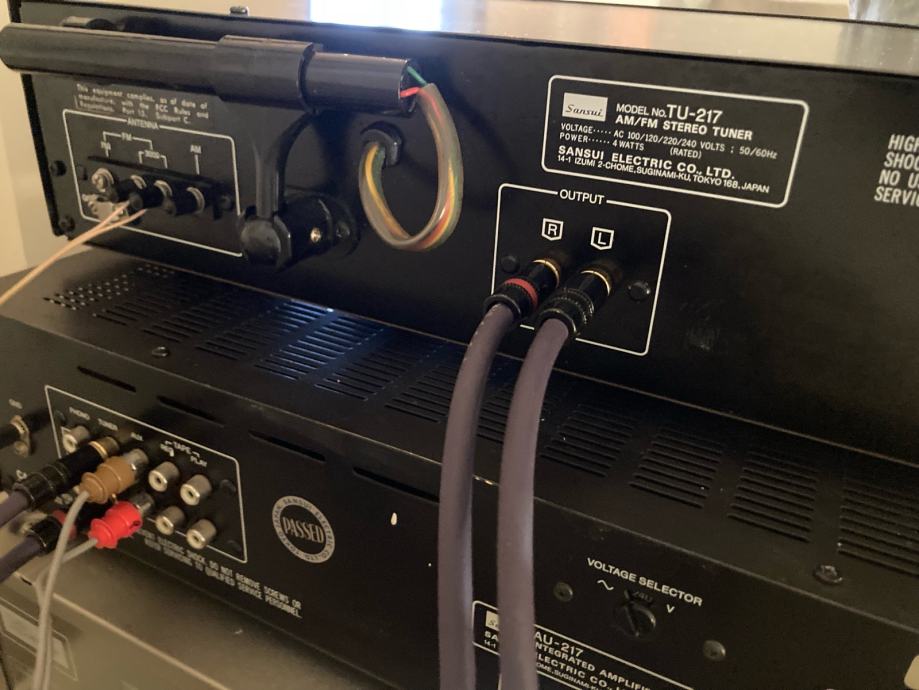

Sansui TU-217
NamespacesPageDiscussionPage actionsView sourceHistoryMore
Data
General

Manufacturer: Sansui
Model: TU-217
Years of manufacture: 1978 - 1981
Made in: Japan
Color: Black
Remote control:
Power consumption: 4 W
Dimensions (WxHxD): 430 x 110 x 316 mm (width 482 mm with rack handles)
Weight: 4.7 kg
Original price approx.: 550 DM

Connections

Number of outputs:
Line Out: 0.4 V
Number of inputs:
Antenna: 75 Ohm, 300 Ohm

Technical Data

Reception: VHF
Frequencies:
VHF: 88-108 MHz
MW: 535-1605 KHz
Frequency response: 30 - 15,000 Hz, + 0.5 dB / - 1 dB
Input sensitivity
IHF, mono: 1.8µV DIN, Mono: 1,0µV

AM suppression: 80 dB
IF attenuation: 90 dB
Channel separation: 50 dB (1 kHz)
Distortion factor
Mono: 0.07 % (Wide) 1 kHz
Stereo: 0.09 % (Narrow) 1 kHz

Mirror frequency: 110 dB
Selectivity:
Wide: 55 dB
Narrow: >90 dB

Selectivity: 50 dB
Signal-to-noise ratio:
Mono: 79 dB
Stereo: 73 dB
Equal wave selection:
Wide: 1.5 dB
Narrow: 3.0 dB
MW section
Input sensitivity: 15 EV
Spurious voltage spacing: 55 dB
Distortion factor: 0.8

Selectivity: 70 dB
