Sonus Faber Guarneri Evolution

SYSTEM
2 way, low spurious vibration optimized suspension, stealth reflex para-aperiodic loading, compact monitor on a dedicated stand loudspeaker system.
CABINET
Lute shape design, multilayer, constrained-mode damping, enclosure formed using hand selected wood layers, quality graded and oriented for carefully optimized resonances control. Sub-structural ribs are strategically placed for absolute rejection of spurious vibrations. “New Era” avional (from “The” experience) exo-squeleton clamp structure with “The” Tuned Mass Damper inhibiting the residual resonances of the wooden structure.

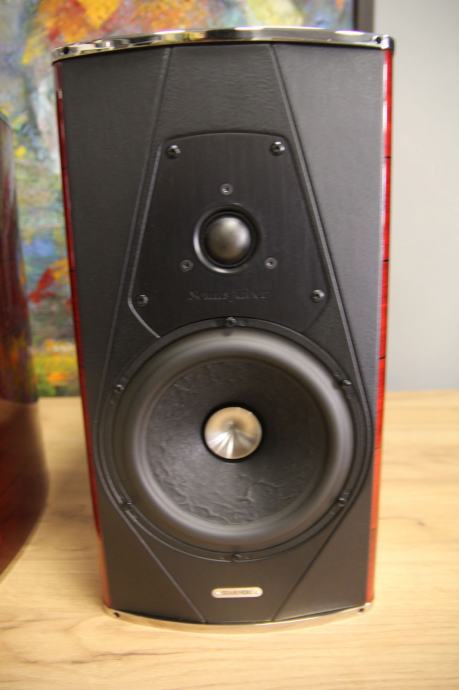

TWEETER
29 mm ultra dynamic linearity classic Ragnar Lian moving coil driver, Sonus faber vibration optimized mechanical interface.
MIDRANGE/WOOFER
179 mm, ultra dynamic linearity driver. CCAW/Kapton “eddy current free” voice coil. Dynamically linear magnetic field motor incorporating triple Kellog/Goeller rings. Real time air dried and non pressed cellulose fiber cone. Designed synergistically with its optimized “acoustic chamber”. A special coaxial anti-compressor are used, designed to remove cavity resonance and distortions.
CROSS-OVER
Non-resonant “progressive slope” design, optimized amplitude/phase response for optimal space/time performance. “Paracross topology” topology on the tweeter hi-pass. The response at low frequencies is controlled for a clear amplifier friendly performance. Highest quality is used in terms of the components: Mundorf “Supreme” capacitors, Jantzen inductors. Cross-over: 2800Hz.
FREQUENCY RESPONSE
40 Hz – 30.000 Hz, Stealth reflex included.
SENSITIVITY
86 db SPL (2.83V/1 m).
NOMINAL IMPEDENCE
4 ohm.
POWER HANDLING
25W – 200W, without clipping.
DIMENSIONS
410 x 235 x 412 mm (HxWxD).
WEIGHT
37 Kg per pair – net weight / 43.5 Kg per pair – shipping weight.
INCL. DEDICATED STAND
Dimensions: 795 x 320 x 423 mm (HxWxD).
Weight: 72 Kg per pair – net weight / 86 Kg per pair – shipping weight.
TOTAL DIMENSIONS
1205 x 320 x 510 mm (HxWxD).
