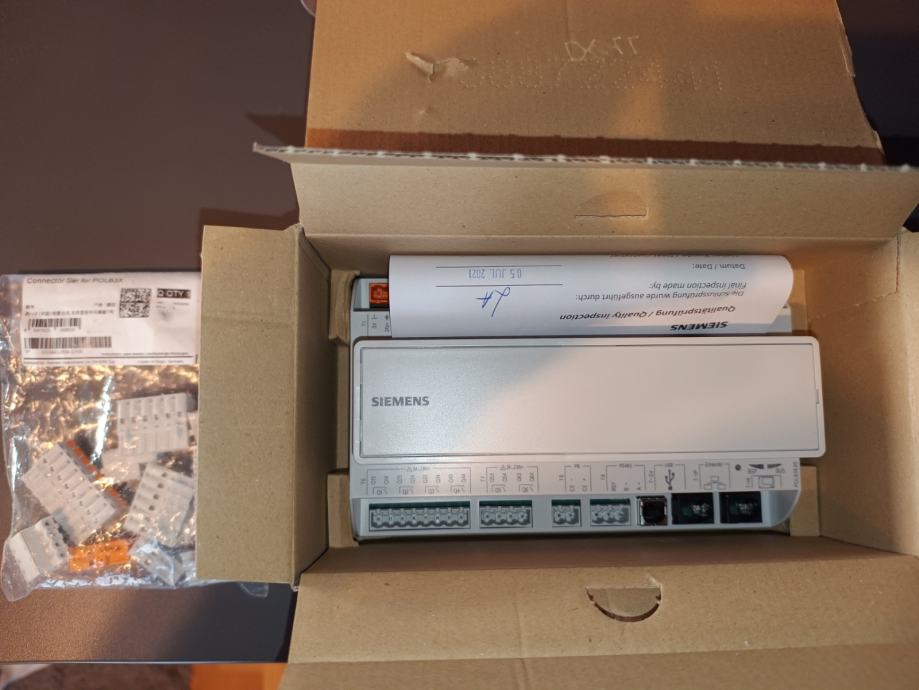

PLC SIEMENS POL638.00/STD
- Cijena
- 350 €
Šifra oglasa: 48970919
Osnovne informacije
- Stanje
- novo
Opis oglasa
Novi, dolazi sa konektorima.
Type: Programmable Controller
Family: Climatix Controllers
Model: POL638
MRN: POL638.00/STD
Climatix freely programmable controller can be connected to Climatix extension I/O modules or Climatix communication modules
Power supply: 24 V AC, 24 V DC
Frequency: 45… 65 Hz
Current:
without extension: 1.8 A @ 24 VAC, 1.0 A @ 24 VDC
for extension modules: max. 2,2 A @ 24 VAC / 3.0 A @ 24 VDC
Digital Inputs: 24 V DC / 8 mA
Input delay: 10 ms
Analog outputs resolution: 11 mV
Output current: 1 mA with short circuit proof
Digital output switching: 24 V DC, max. 25 mA capacity
Digital Inputs Voltage: 24 V DC
Digital Inputs Current: 8 mA
Digital Inputs Delay: 10 ms
Pulse frequency: max. 30 Hz
Analog output resolution: 11 mV
Analog output current: 2 mA (short circuit proof
Protection: IP20 to EN 60529 with RJ45 jack at the top right/ IP10 to EN 60529 without RJ45 jack at top right
Weight: approx. 0.4 kg
Type: Programmable Controller
Family: Climatix Controllers
Model: POL638
MRN: POL638.00/STD
Climatix freely programmable controller can be connected to Climatix extension I/O modules or Climatix communication modules
Power supply: 24 V AC, 24 V DC
Frequency: 45… 65 Hz
Current:
without extension: 1.8 A @ 24 VAC, 1.0 A @ 24 VDC
for extension modules: max. 2,2 A @ 24 VAC / 3.0 A @ 24 VDC
Digital Inputs: 24 V DC / 8 mA
Input delay: 10 ms
Analog outputs resolution: 11 mV
Output current: 1 mA with short circuit proof
Digital output switching: 24 V DC, max. 25 mA capacity
Digital Inputs Voltage: 24 V DC
Digital Inputs Current: 8 mA
Digital Inputs Delay: 10 ms
Pulse frequency: max. 30 Hz
Analog output resolution: 11 mV
Analog output current: 2 mA (short circuit proof
Protection: IP20 to EN 60529 with RJ45 jack at the top right/ IP10 to EN 60529 without RJ45 jack at top right
Weight: approx. 0.4 kg
