Prodajem F4 V3S PLUS Flight Controller stack esc45A 4u1 6S

Prodajem F4 V3S PLUS Flight Controller stack esc45A 4u1 6S

NEW F4 V3S PLUS Flight Control FC Support BetaFlight/INAV BLS-45A/
60A 4in1 ESC Stack For RC FPV Drone Plane Quadcopt
F4 V3S PLUS FC Flight Controller Board Support BetaFlight Built-in
Barometer OSD 5V 9V Dual Output with 4in1 45A 60A Brushless ESC for
RC QAV/ZMR 210 230 250MM RC Drone FPV Racing Quadcopter
Features:
1. Betaflight F4 V3S PLUS FC flight controller board for RC FPV drone.
2. Size: 36x36mm, Mounting Holes: 30.5x30.5mm.
3. We updated the FC with high-quality BMI270 gyro. Built-in barometer
for accurate height calculation.
4. F4 V3S PLUS also has onboard 5V and 9V BEC output, which supports
DJI sky end power supply and provides stable power supply voltage for
external devices such as receivers, faxes and cameras.
5. The function of the flight control is to control the drone through the
gyroscope on the flight control board.
Descriptions:
Flight control using the most common on the market F4V3 series of
flight control F4V3S PLUS, all interfaces and solder joints have been
re-arranged to optimize the layout, more convenient to install the welding line, more practical. On-board filtering of the flight control, OSD output image ripple reduction, the picture is pure and clear.
Specification:

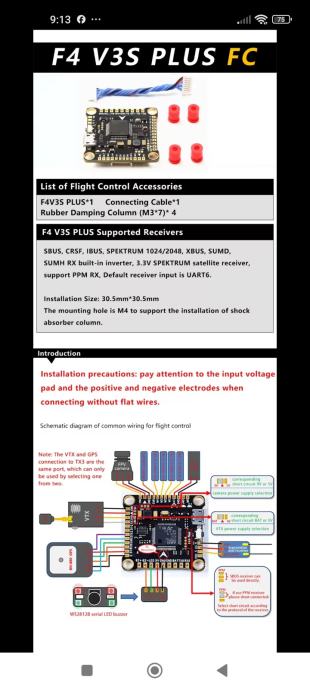

F4 V3S PLUS FC
Item name: F4 V3 PLUS Flight Controller
Size: 36x36mm
Mounting holes: 30.5x30.5mm
STM32 F405 MCU
Dshot support
Drag and Drop OSD configured via Betaflight
Gyro:lCM-42688-P
SBUS/PPMAND Spketrum DSMX ports
Memory card black box
Baro (BMP280)
BEC:5V3.1A 9V3.1A
On-board video filters (only 5V to VTX and camera)

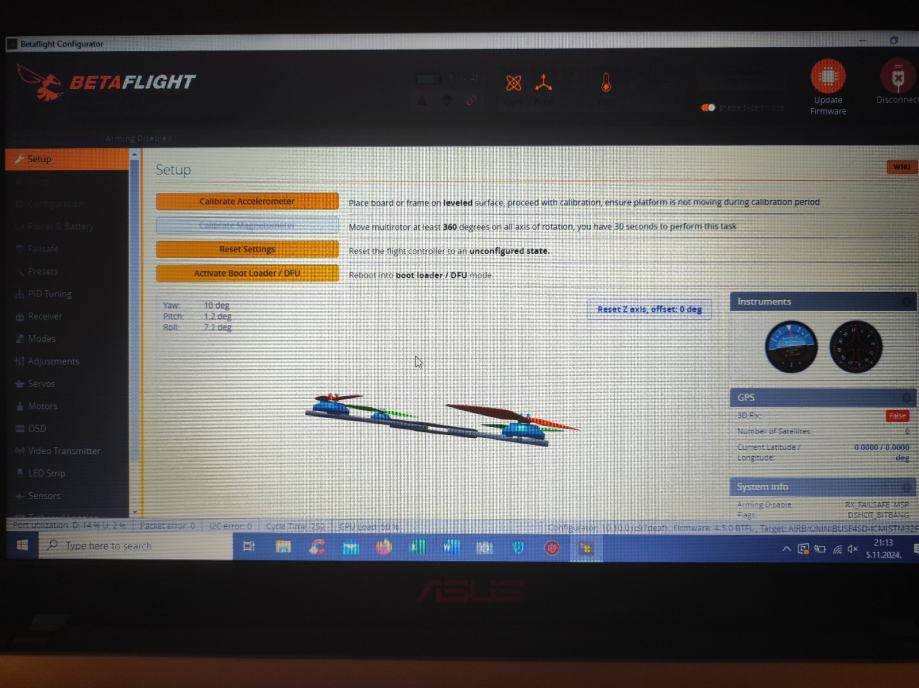

Please note: The F4 V3S Plus Flight Controller only support Betaflight
software

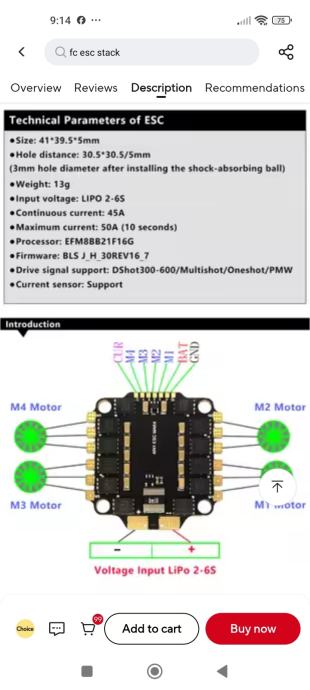

45A 4-in-1 ESC
Size: 41*39.5*5mm
Hole distance: 30.5*30.5/5mm (3mm hole diameter after installing the
shock-absorbing ball)
Weight: 13g
Input voltage: LIPO 2-6S
Continuous current: 45A
Maximum current: 50A (10 seconds)
Processor: EFM8BB21F16G
Firmware: BLS J_H_30_REV16_7
Drive signal support: DShot300-600/Multishot/Oneshot/PMW
Current sensor: Support

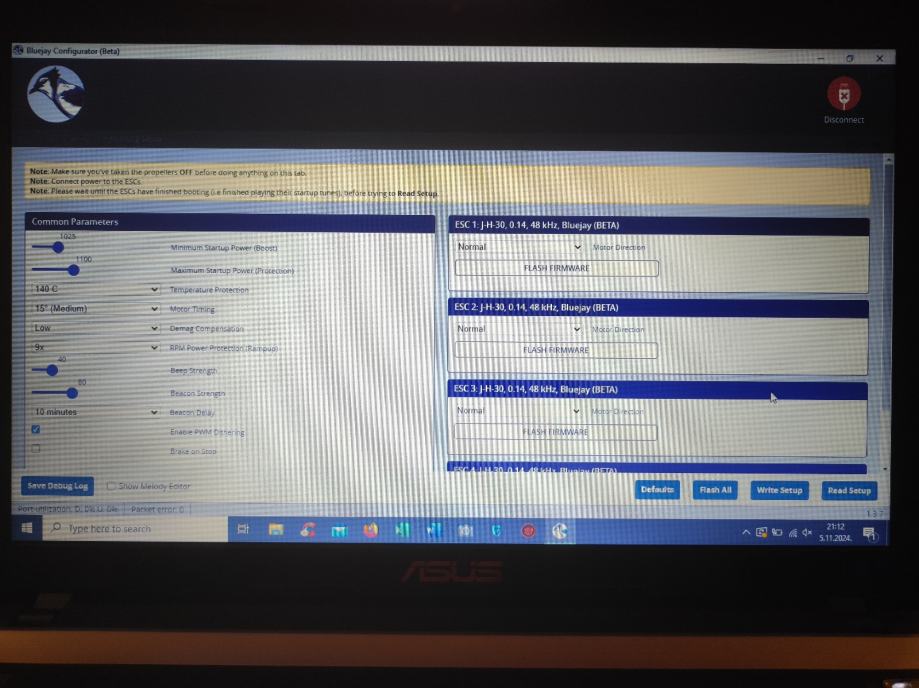

Flesan gore bluejay firmware
