Kingston Fury Renegade Pro memorija (RAM), DDR5 RDIMM, 16GB, 4800,

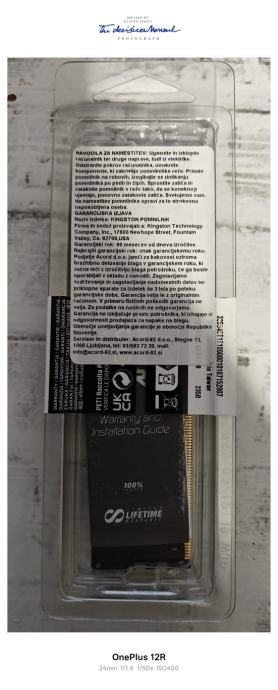

Prodajem Kingston Fury Renegade Pro memorija (RAM), DDR5 RDIMM, 16GB, 4800, CL36, ECC ( KF548R36RB-16 ).

Nova, zapakirana, račun, HR garancija 5 godina. Pro memorija za workstations i servere. Ne mogu garantirati da će raditi na klasičim desktop računalima. Kupac neka provjeri QVL listu svoje matične ploče

Cijena - 149 eura. *0*9*5*5*0*9*5*8*1*6*

KF548R36RB-16
16GB 1Rx8 2G x 80-Bit
PC5-4800 CL36 Registered EC8 288-Pin DIMM

Kingston FURY Renegade Pro KF548R36RB-16 is a high-performance 16GB DDR5 ECC Registered DIMM (RDIMM) memory module, designed for workstations, servers, and compatible desktop systems that support ECC registered memory.
Here are the key specifications:

Capacity: 16GB (1 x 16GB module)
Memory Type: DDR5 SDRAM
Speed: 4800 MT/s (PC5-38400)
CAS Latency (CL): 36
Timings: 36-38-38 (primary timings at rated speed)
Voltage: 1.1V
ECC: Yes (Error-Correcting Code), with on-die ECC support
Registered: Yes (buffered/registered for better stability in high-capacity or multi-module configurations)
Rank: 1Rx8 (single rank, x8 organization)
Form Factor: 288-pin DIMM
Architecture: Based on ten 2G x 8-bit FBGA components (2G x 80-bit module organization)
Features: Plug-and-Play (PnP) for automatic configuration at rated speeds; overclockable in supported systems; part of the FURY Renegade Pro series optimized for professional/workstation use

This module is particularly suited for systems requiring reliable, error-corrected memory (e.g., AMD Threadripper, Intel Xeon, or compatible platforms with DDR5 RDIMM support).
For the full official datasheet, check Kingston's site: https://www.kingston.com/datasheets/KF548R36RB-16.pdf

Kingston FURY KF548R36RB-16 is a 2G x 80-bit (16GB)
DDR5-4800 CL36 SDRAM (Synchronous DRAM) 1Rx8, ECC
memory module, based on ten 2G x 8-bit FBGA components per
module. The module supports Intel® Extreme Memory
Profiles (Intel® XMP) 3.0. Each module has been tested to run
at DDR5-4800 at a low latency timing of 36-38-38 at 1.1V.
Additional timing parameters are shown in the Plug-N-Play
(PnP) Timing Parameters section below. Each 288-pin DIMM
uses gold contact fingers. The JEDEC standard electrical
and mechanical specifications are as follows:

DEFAULT SPECIFICATIONS
KF548R36RB-16
16GB 1Rx8 2G x 80-Bit
PC5-4800 CL36 Registered EC8 288-Pin DIMM
Continued >>
DEFAULT FEATURES
CL(IDD)
Row Cycle Time (tRCmin)
Refresh to Active/Refresh
Command Time (tRFCmin)
Row Active Time (tRASmin)
Row Precharge Time (tRPmin)
UL Rating
Operating Temperature
Storage Temperature
36 cycles
48ns(min.)
295ns(min.)
29.12ns(min.)
15.80ns(min
