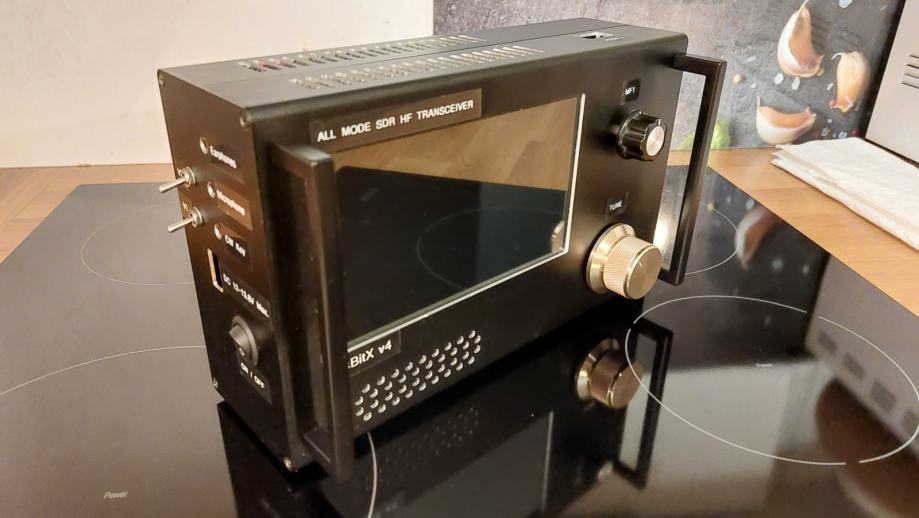

sBit-x v5.0, 64-bit high performance Hybrid SDR, 20W All-mode RTX

sBit-x v5.0, 64-bit high performance Hybrid SDR, 20W All-mode RTX
Kao now, bez tragova korištenja, isporuka uključuje kabel za napajanje, USB-boot stick, mikrofon.
Veliki 7 inch display!

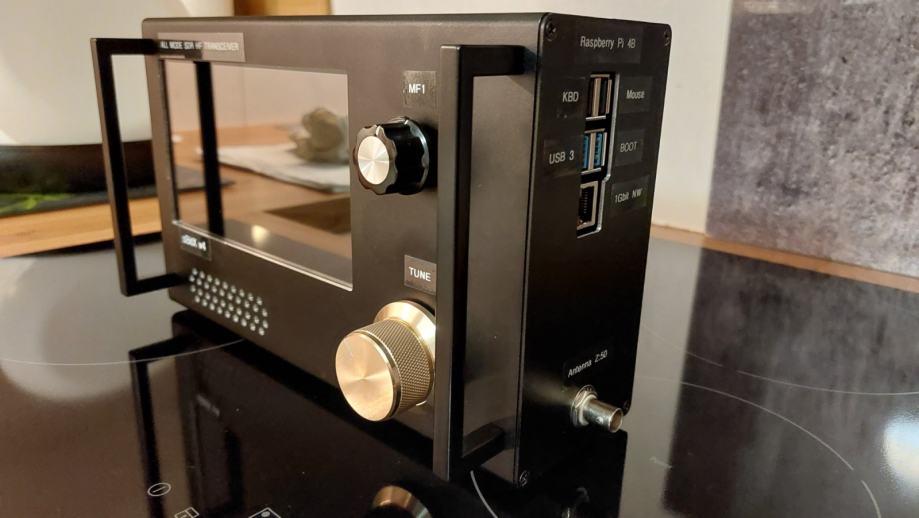

The sBitx is an open source, 64-bit high performance Hybrid SDR for the 21st century radio amateurs. It is powered by an internal Raspberry Pi 4, it has CW/FT8/etc, logging software, macros, spotting – all preconfigured and working out of the box.

https://www.vu2ese.com/index.php/2022/07/20/the-sbitx-the-sdr-for-the-homebrewer/

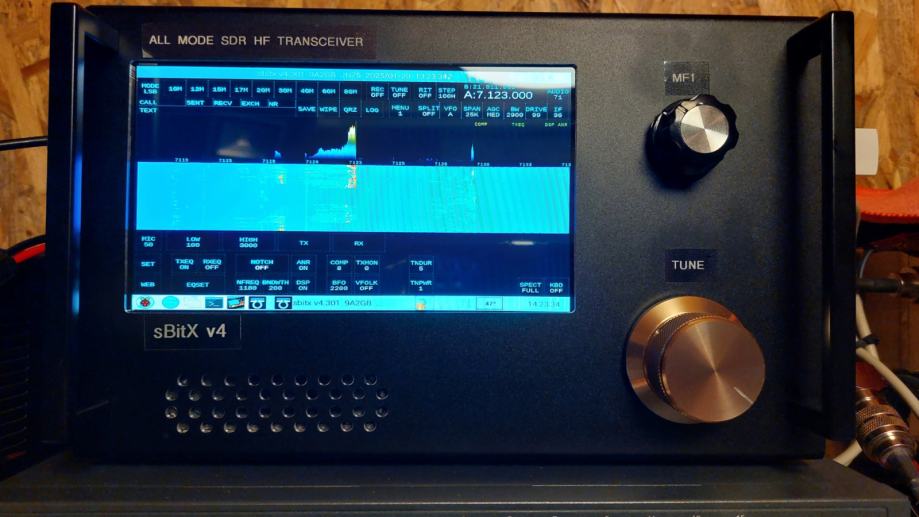

7 inch display: The largest display shipped with a transceiver
Integrated Modes: CW, logging is integrated into the radio, no setup and wires to deal with.
Noiseless performance from it’s all electronic T/R switching, fanless power amplifier and electronically selected filters.

Temperature Compensated Crystal Oscillator to provide rock solid, low phase noise operation.
Band-stacking VFOs with 4 memories on each of the 8 bands, Audio Tracking Filter variable from 50 Hz to 4000 Hz

High performance electronics with a passive-FET front end, 8 crystals’ filter and a low phase noise, temperature compensated crystal oscillator.

Editable macros that make it a breeze to work DX or compete in contests.

High Accuracy Real Time Clock for accurate logging and FT8 timings
Web-based Remote Operation from your PC/tablet/phone. Works without any downloads, just use your browser.
Add a second screen with the HDMI port

FT8 that works out of the box.
One touch operation. Touch to call CQ or start the contact
Automatically logs all the QSOs into the built-in logbook
In-built, high accuracy, real-tme clock

Totally noiseless, fast electronic T/R without noisy relays
In-built N1MM style Macros support Running and S&P
Sensitive decoder
Raised cosine cw keying with perfect shaping
Continuously variable filter from 3 KHz to 50 Hz
Use the onscreen touch keyboard or add a USB/wireless keyboard for effortless CW sending

Bulletproof hybrid superhet with passive-FET KISS mixer
Brickwall crystal filter with 8 crystals
80 db close-in dynamic range, 90 dB wide dynamic range
Low phase noise, temperature compensated reference oscillator
25-10 watts output on all bands from 80 M to 10 M
transmit IMDR of30 dB (from PEP levels)
Silent, fanless operation
Noiseless electronic T/R and band switching.
In-built 2-tone transmitter to tune the antenna and measure IMD

Brief Specifications
Frequency Receive; 500 KHz to 30 MHz,
Transmit: 3500-4000, 7000-7300,10000-10150, 14000-14350, 18000-18200, 21000-21450, 24800-25000, 28000-29700 (KHz)

Power Output 25 watts on 80M – 20M, 10 watts higher bands
Receiver Noise Figure: 15 dB, IIP3 : +28 dBm
Transmitter Up to 25 watts of variable output power
Better than -43 dBc suppression of spurious signals
Telnet Connects to RBN and DX clusters from the radio
