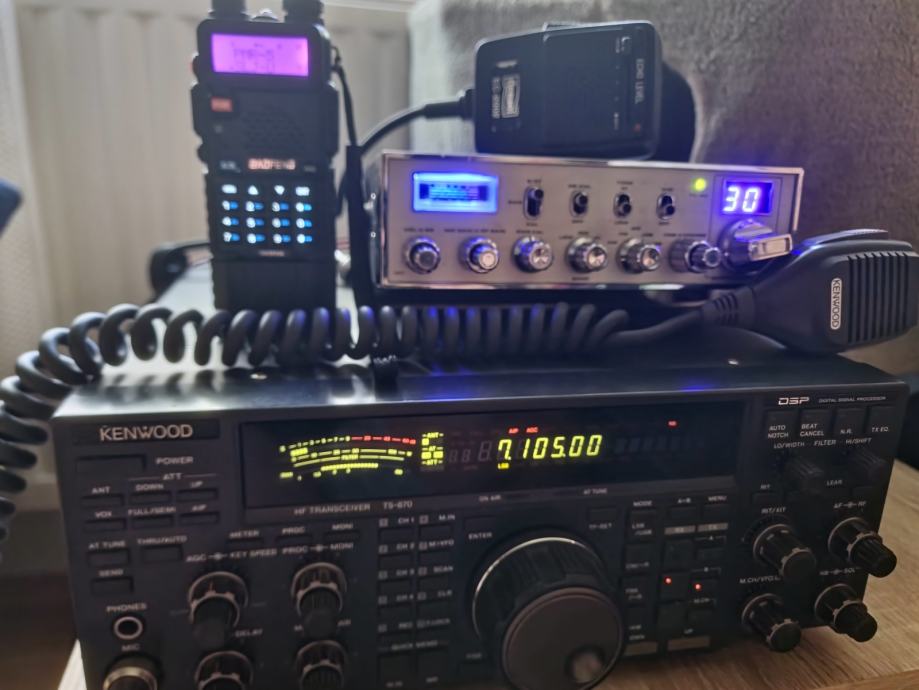

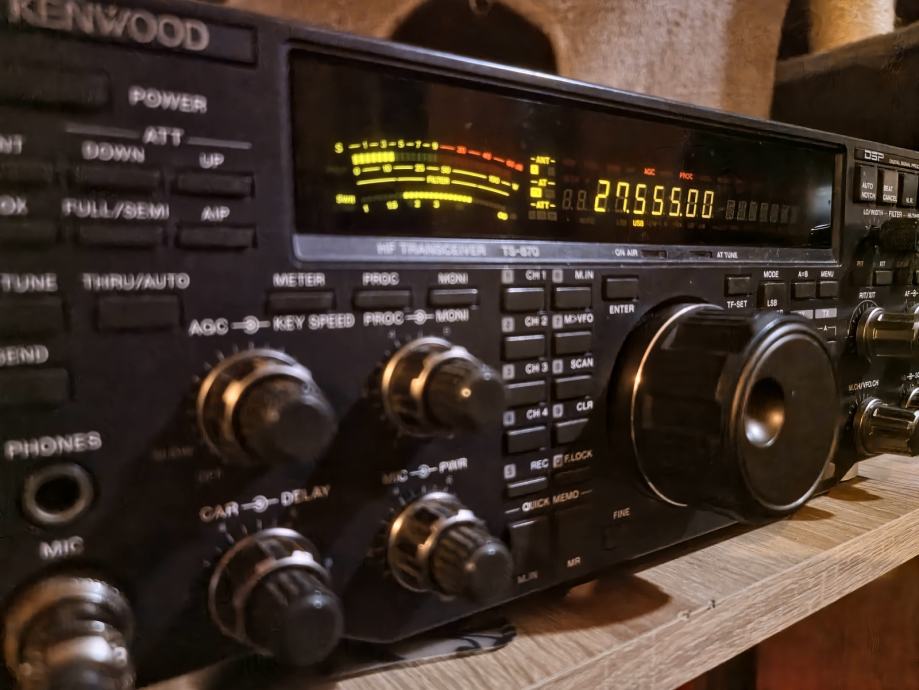

Kenwood TS 870
- Cijena
- 650 €
+ zaštita kupca 26,00 €
+ dostava 4,90 €
Besplatna BOX NOW dostava do 31.12.
U Njuškalo aplikaciji
Više u Uvjetima promotivne akcije
Kupuj uz PayProtect od provjerenih prodavača uz garanciju povrata novca i sigurnu dostavu. Saznaj više
Šifra oglasa: 47545452
Osnovne informacije
- Lokacija
- Grad Zagreb, Gornja Dubrava, Klaka
- Stanje
- rabljeno
Opis oglasa
Na prodaju je stanica iz naslova.
Moguća zamjena za drugu KV stanicu tipa FT991, IC7300 ili slično sa ugrađenim AT uz moju nadoplatu po dogovoru.
Po dogovoru mogu uz stanicu dati EFHW antenu.
Uz nadoplatu mogu dati i ispravljač (trafo, stabiliziran, 30A, 0-30V)
100W
Otvorena i na 27mhz (CB)
Kenwood TS-870
SPECIFICATIONS
GENERAL
Type: Amateur HF transceiver
Frequency range: TX: 10-160 m + WARC
RX: 0.1-30 MHz
Tuning steps: 1 / 10 / 100 Hz
1 / 5 / 10 / 100 / 500 KHz
1 MHz
Frequency stability: ±10 ppm @ -10 to +50°C (14 to 122°F)
±0.5 ppm with optional SO-2
Mode: AM / FM / SSB / CW / FSK
Channels / memory management: 99 regular
1 scan limit pair
5 quick memory
RAM storage with lithium battery backup
Repeater shift / offset: No dedicated. Use VFO A/B split instead
Power supply: 13.8 VDC ±15% (6-pin Molex)
Current drain / power consumption:
RX: 2 A
TX: Max 20.5 A
Antenna impedance / connector: 50 ohm (20-150 ohm with ATU) / Two SO-239
Dimensions (W*H*D): 330*120*334 mm (13*4.72*13.1")
Weight: 11.5 Kg (25 lb)
Other features: CTCSS/PL. Built-in memory keyer and ATU. IF-DSP.
RECEIVER SECTION
Receiver system: Quadruple conversion superheterodyne
1st IF: 73.05 MHz
2nd IF: 8.83 MHz
3rd IF: 455 KHz
4th IF: 11.308 KHz
Sensitivity: SSB/CW/FSK:
0.1-0.5 MHz:
Moguća zamjena za drugu KV stanicu tipa FT991, IC7300 ili slično sa ugrađenim AT uz moju nadoplatu po dogovoru.
Po dogovoru mogu uz stanicu dati EFHW antenu.
Uz nadoplatu mogu dati i ispravljač (trafo, stabiliziran, 30A, 0-30V)
100W
Otvorena i na 27mhz (CB)
Kenwood TS-870
SPECIFICATIONS
GENERAL
Type: Amateur HF transceiver
Frequency range: TX: 10-160 m + WARC
RX: 0.1-30 MHz
Tuning steps: 1 / 10 / 100 Hz
1 / 5 / 10 / 100 / 500 KHz
1 MHz
Frequency stability: ±10 ppm @ -10 to +50°C (14 to 122°F)
±0.5 ppm with optional SO-2
Mode: AM / FM / SSB / CW / FSK
Channels / memory management: 99 regular
1 scan limit pair
5 quick memory
RAM storage with lithium battery backup
Repeater shift / offset: No dedicated. Use VFO A/B split instead
Power supply: 13.8 VDC ±15% (6-pin Molex)
Current drain / power consumption:
RX: 2 A
TX: Max 20.5 A
Antenna impedance / connector: 50 ohm (20-150 ohm with ATU) / Two SO-239
Dimensions (W*H*D): 330*120*334 mm (13*4.72*13.1")
Weight: 11.5 Kg (25 lb)
Other features: CTCSS/PL. Built-in memory keyer and ATU. IF-DSP.
RECEIVER SECTION
Receiver system: Quadruple conversion superheterodyne
1st IF: 73.05 MHz
2nd IF: 8.83 MHz
3rd IF: 455 KHz
4th IF: 11.308 KHz
Sensitivity: SSB/CW/FSK:
0.1-0.5 MHz:
