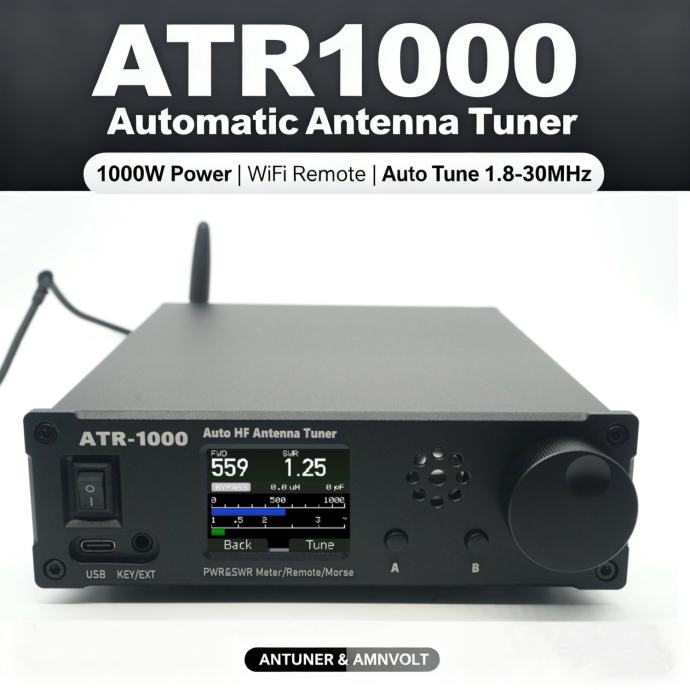

Automatski Antena Tuner - ATR-1000

Automatic Antenna Tuner - ATR-1000
novo, isprobano - 240 EUR

Specification:
Frequency range: 1.8-30 MHz
Maximum power: SSB/CW 1000W; FM/AM/FT8 300W
Important: Please strictly abide by the power limit. Over-power use may cause permanent damage to the equipment
Tuning power: 1-20W (5-10W is recommended)
Operating voltage: 11-15V DC (12V is recommended)
Note: Please use a power adapter that meets the specifications. Excessive voltage may damage the equipment
Standby current: 0.2A
Full-power current: approximately 1A
Display screen: 1.8-inch TFT color screen
Speaker power: 3W
Wireless function: WiFi 2.4G (supports hotspot/client mode)
Remote control: Web control (local area network/Internet)
Morse Exercise: Supports single/double paddle keys
ADC accuracy: 16 bits

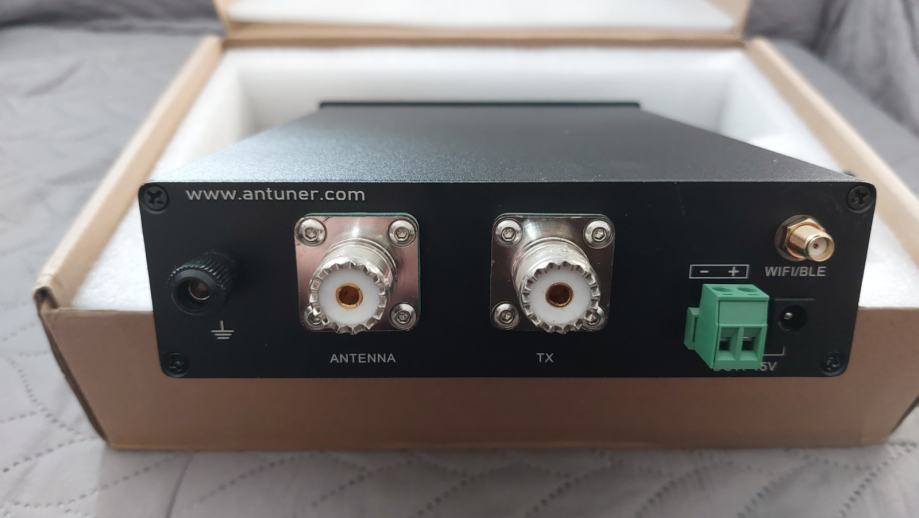

Interfaces: ANTENNA antenna interface, TX radio interface, ground post, DC voltage interface -1 (KF2EDGRC 5.08 quick-release interface), DC power interface -2 (DC 5.5-2.1), USB-C, 3.5mm KEY/EXT
Dimensions: 230 x 150 x 50 mm
Weight: 1.3 kg

Features:
1. Compact antenna tuner at kilowatt level:
Portable and compact kilowatt tuner, with dimensions of 230 x 150 x 50 mm and a weight of only 1.3kg.

2. Intelligent remote control, safe and convenient operation:
It is equipped with a built-in WiFi module and supports remote control via web page. The power and standing wave can be viewed in real time through a mobile phone or computer in hotspot, local area network or Internet mode, and parameters can be remotely tuned and set.
Important: When operating at high power, using remote control can effectively ensure personal safety.

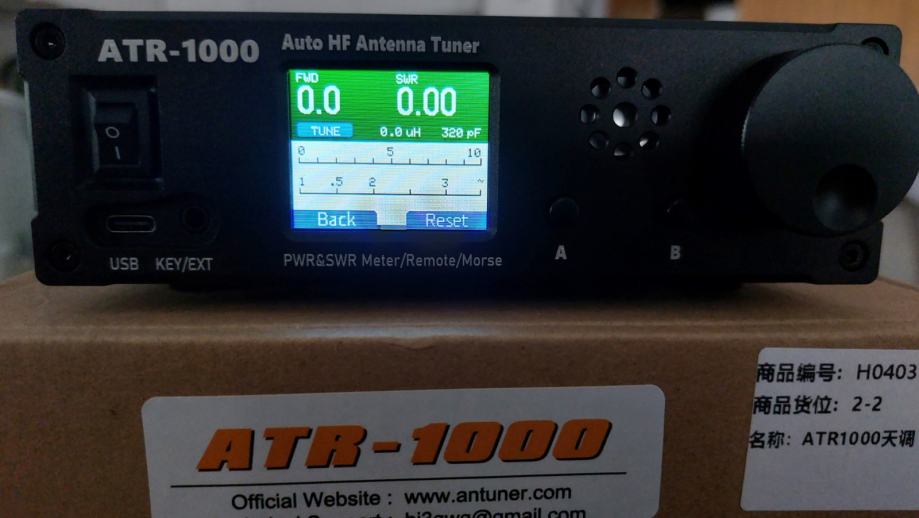

3. Built-in standing wave meter and power meter for high-precision real-time monitoring:
It can not only be used as a weather meter but also as a power and standing wave meter. Supports the display of standing wave values, forward power and reverse power. It features customizable 10W/100W/1000W calibration Settings.
Safety Reminder: In the non-tuned state, the power meter mode supports a maximum instantaneous power display of 1500W SSB, but continuous transmission for a long time is not allowed.

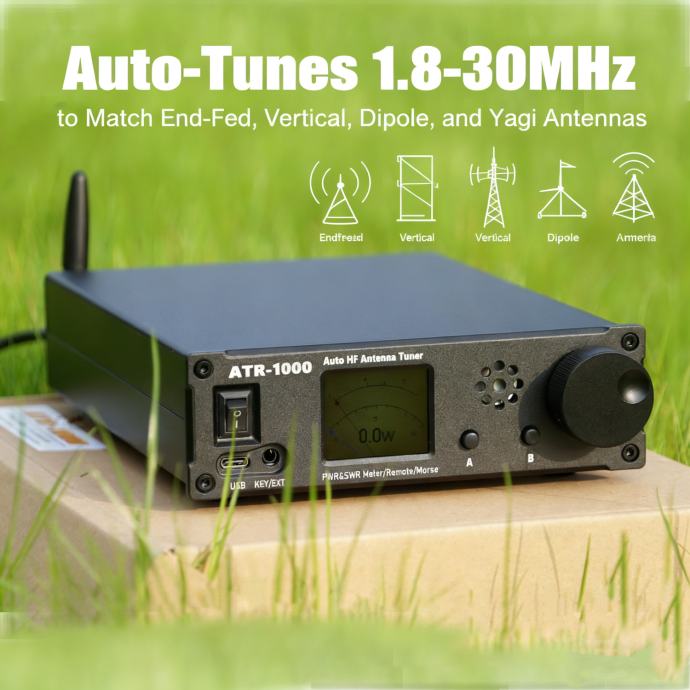

4. Full-band automatic tuning, easily match various antennas:
Supports the full shortwave frequency band of 1.8-30MHz, can be automatically tuned, and is suitable for various antenna types such as end-feed, vertical, inverted V, and Yagi.

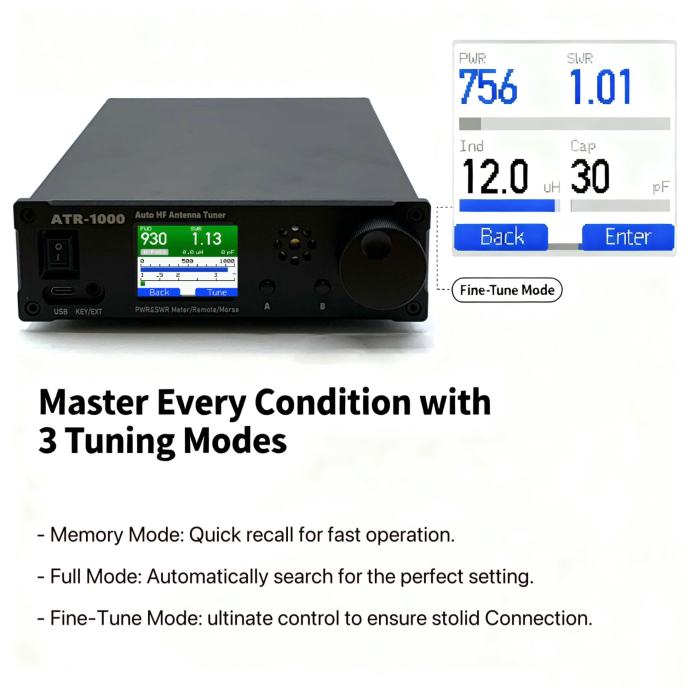

5. Three intelligent tuning modes:
Memory mode: Quick invocation of stored parameters;
Full mode: Comprehensive search for the best matching point;
Fine-tuning mode: Perform fine adjustments at high power to ensure communication effectiveness.

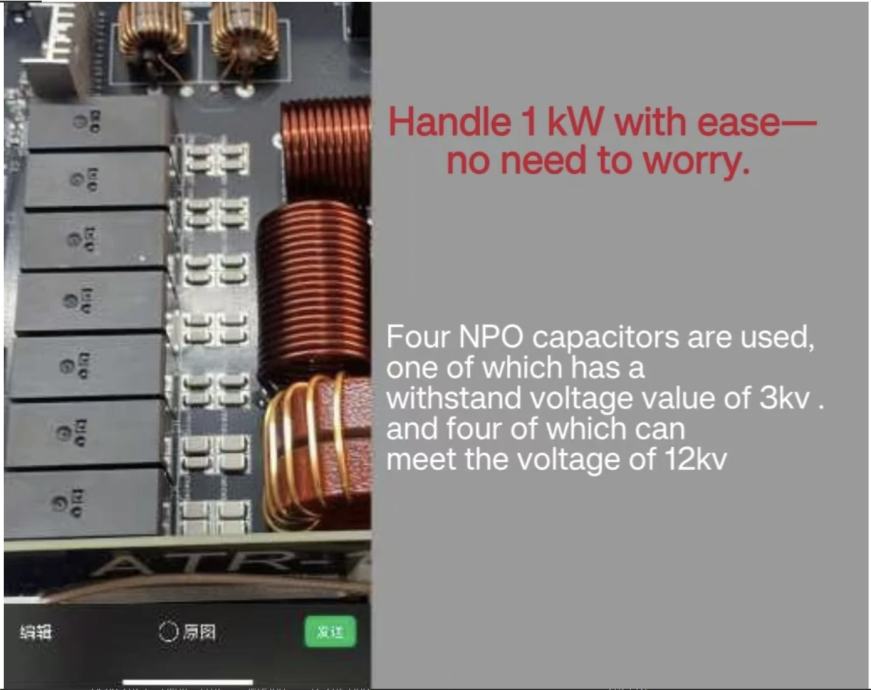

6. Professional-grade high-power load:
The maximum power supported is 1000W in SSB/CW mode and 300W in FM/AM/FT8 mode.
Note: Do not use beyond the rated power. The actual applicable power may vary due to factors such as the usage environment, antenna and frequency. When using for a long time, please consider ventilation or intermittent operation.

7. Built-in CW practice function:
It is equipped with a built-in Morse code practice device, supports external 3.5mm headphone jack specification hole single/dual propeller keys, allows customization of code speed and pitch, and comes with code dictionary query.

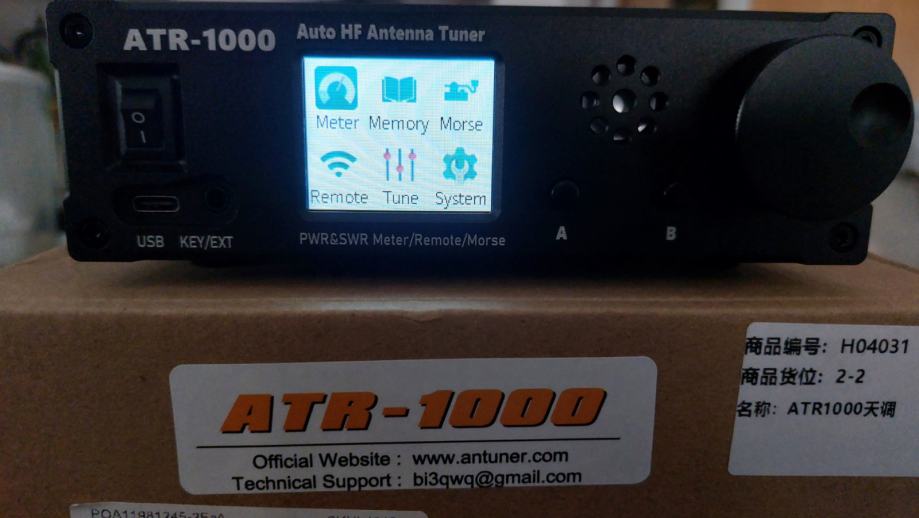

8. Intuitive and user-friendly operation experience:

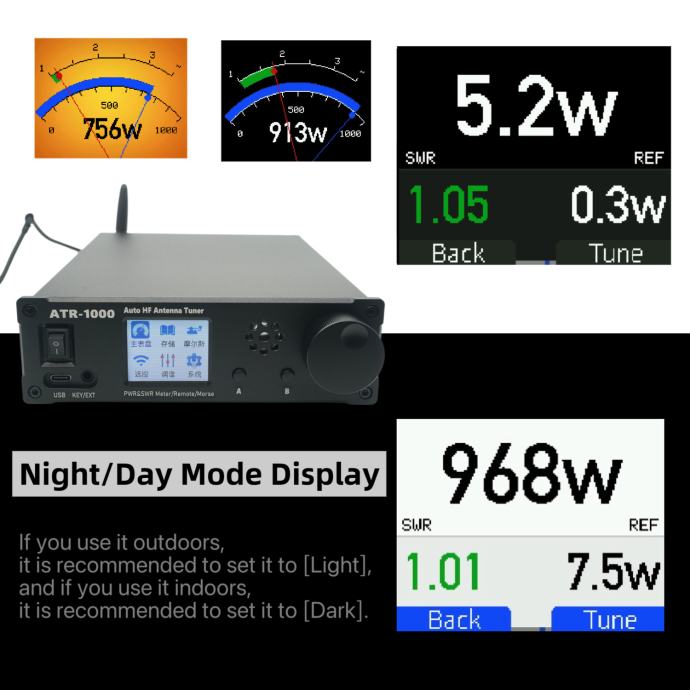

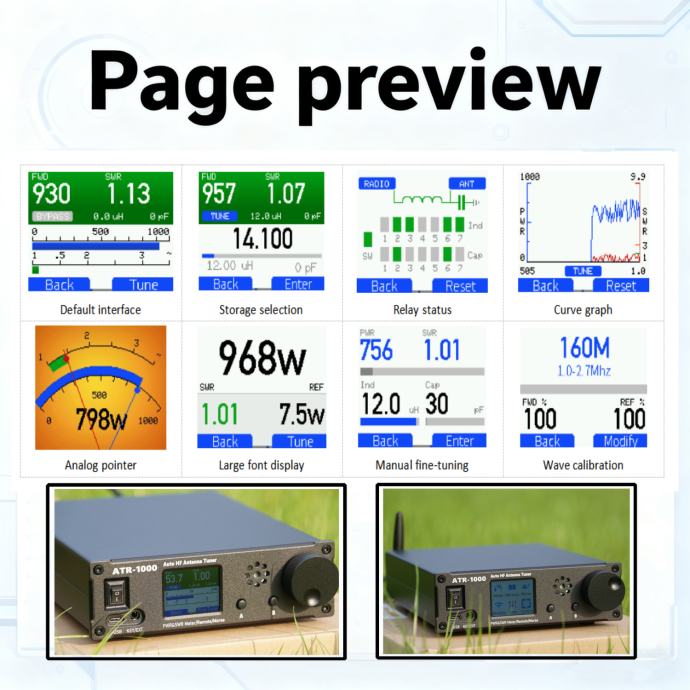

Equipped with a 1.8-inch TFT color screen, it features an English interface and offers multiple display themes. It can store multiple sets of tuning parameters, facilitating rapid frequency switching.

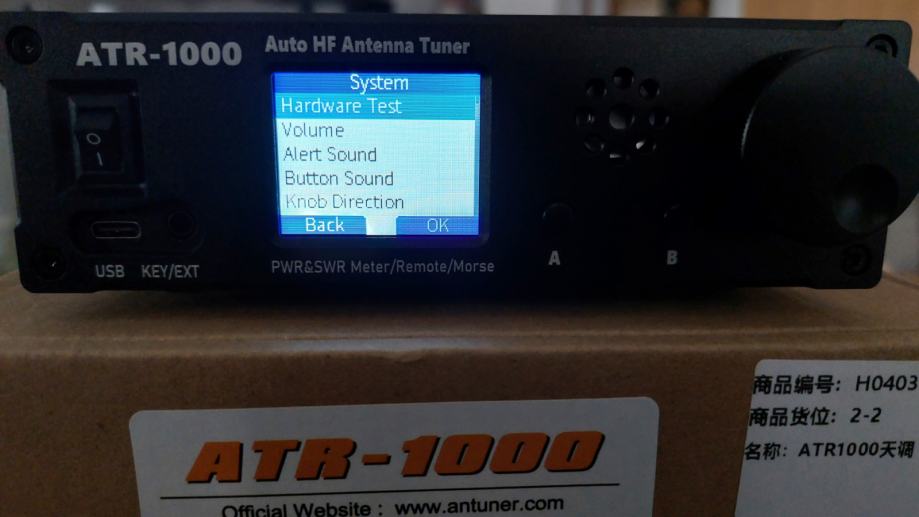

9. Built-in ATOS antenna tuner operating System:
Supports multiple advanced Settings, suitable for advanced users to deeply customize. More rich system functions will be released along the official development plan route, such as linkage control with radio stations, network Morse practice, network radio, etc.

10. Supports firmware upgrade:
Supports USB-Type-C for system firmware upgrade, and also supports WIFI Internet OTA firmware upgrade.

Video: https://www.youtube.com/watch?v=EVjYfqohsq0
