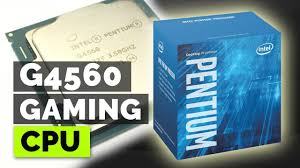

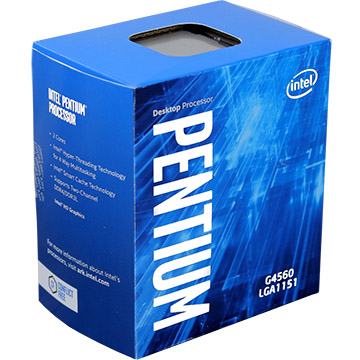

Intel® Pentium® Processor G4560, socket 1151, LGA 1151, BOX , retail

prodajem procesor

Intel® Pentium® Processor G4560, socket 1151, LGA 1151, BOX , retail, Intel cooler

spec

ARK | Compare Intel® Products
Intel® Pentium® Processor G4560 (3M Cache- 3.50 GHz)

Essentials
Product Collection,Intel® Pentium® Processor G Series
Code Name,Products formerly Kaby Lake
Vertical Segment,Desktop
Processor Number,G4560
Status,Discontinued
Launch Date,Q1'17
Lithography,14 nm

CPU Specifications
Total Cores,2
Total Threads,4
Processor Base Frequency,3.50 GHz
Cache,3 MB
Bus Speed,8 GT/s
# of QPI Links,0
TDP,54 W

Supplemental Information
Embedded Options Available,No
Datasheet,View now

Memory Specifications
Max Memory Size (dependent on memory type),64 GB
Memory Types,DDR4-2133/2400 | DDR3L-1333/1600 @ 1.35V
Max # of Memory Channels,2
ECC Memory Supported ‡,Yes

Processor Graphics
Processor Graphics ‡,Intel® HD Graphics 610
Graphics Base Frequency,350 MHz
Graphics Max Dynamic Frequency,1.05 GHz
Graphics Video Max Memory,64 GB
4K Support,Yes | at 60Hz
Max Resolution (HDMI)‡,4096x2304@24Hz
Max Resolution (DP)‡,4096x2304@60Hz
Max Resolution (eDP - Integrated Flat Panel)‡,4096x2304@60Hz
DirectX* Support,12
OpenGL* Support,4.4
Intel® Quick Sync Video,Yes
Intel® InTru™ 3D Technology,Yes
Intel® Clear Video HD Technology,Yes
Intel® Clear Video Technology,Yes
# of Displays Supported ‡,3
Device ID,0x5902

Expansion Options
Scalability,1S Only
PCI Express Revision,3.0
PCI Express Configurations ‡,Up to 1x16 | 2x8 | 1x8+2x4
Max # of PCI Express Lanes,16

Package Specifications
Sockets Supported,FCLGA1151
Max CPU Configuration,1
Thermal Solution Specification,PCG 2015C (65W)
TJUNCTION,100°C
Package Size,37.5mm x 37.5mm

Advanced Technologies
Intel® Optane™ Memory Supported ‡,No
Intel® Turbo Boost Technology ‡,No
Intel® Hyper-Threading Technology ‡,Yes
Intel® Transactional Synchronization Extensions,No
Intel® 64 ‡,Yes
Instruction Set,64-bit
Instruction Set Extensions,Intel® SSE4.1 | Intel® SSE4.2
Idle States,Yes
Enhanced Intel SpeedStep® Technology,Yes
Thermal Monitoring Technologies,Yes
Intel® Identity Protection Technology ‡,Yes

Security & Reliability
Intel® AES New Instructions,Yes
Secure Key,Yes
Intel® Software Guard Extensions (Intel® SGX),Yes with Intel® ME
Intel® Memory Protection Extensions (Intel® MPX),Yes
Intel® OS Guard,Yes
Intel® Trusted Execution Technology ‡,No
Execute Disable Bit ‡,Yes
Intel® Boot Guard,Yes
Intel® Stable IT Platform Program (SIPP),No
Intel® Virtualization Technology (VT-x) ‡,Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡,Yes
Intel® VT-x with Extended Page Tables (EPT) ‡,Yes

tags: 1151, LGA1151 LGA 1151 , H110, B250,
