Roland rezači folija (Cutteri)

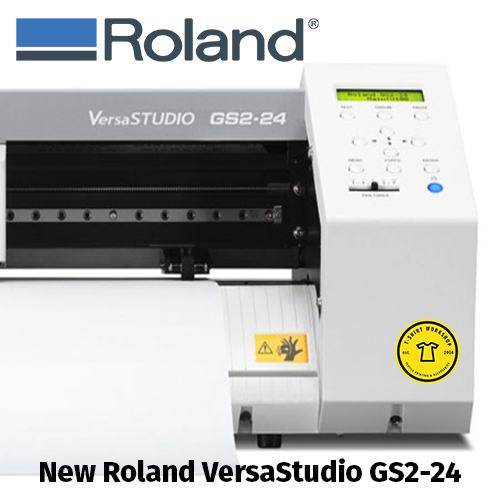

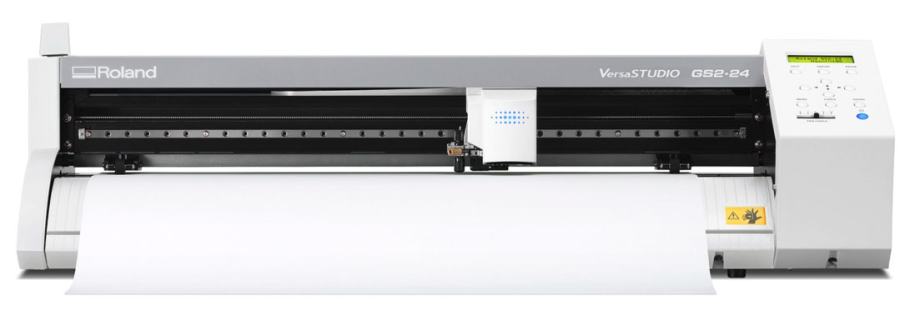

Roland VersaStudio GS2-24 rezač folije. Roland GS2-24 je potpuno redizajnirani rezač folije iz segmenta desktop verzije strojeva za rezanje raznih vrsta folija i drugih materijala. Kompletno novo kućište i držač nožića omogućuju GS2-24 rezaču bolju stabilnost i jači pritisak na materijal koji se izrezuje, te ujedno omogućuje rezanje debljih folija i materijala. Novo dizajnirani displej, poboljšano izrezivanje sitnijih detalja, povećana i poboljšana brzina rezanja od 10-850 mm/sec te preciznost rezanja na većim brzinama. Novi Roland GS2-24 dolazi sa poboljšanim pritiskom na aplikaciju od 30-500 grama (gf) što je 39,5% više od svojog prethodnika Gs-24 rezača, što znači da novi GS2-24 može rezati vrlo krute i čvršće materijale poput magnetne folije te ima mogućnost overlap rezanja za čak 10x. Crop Mark Recognition, ili poboljšano konturno izrezivanje očitavanjem zadanim markerima.

Roland GS2-24
Uz ovaj Roland dolazi novi CutStudio software, upotpunosti dizajniran za Rolandove rezače folija, omogućiti će vam da u samom softweru mjenjate veličinu, rotirate i zrcalite svoju grafiku. CutStudio podržava BMP, JPG, STX, AI, i EPS file format, te se može rezati direktno iz Adobe Illustrator ili Corel Draw-a. Također reže True Type fontove bez potrebe za outline linijom ili napustom.

Specifikaciju Roland GS2-24 preuzmite ovdje
Brošuru Roland GS2 24 preuzmite ovdje
User manual preuzmite ovdje
VersaSTUDIO GS2-24

Drive system Digital control servo motor
Cutting mechanism Media-moving method
Acceptable
material size Width 50 – 700 mm (1.97 in. – 27.5 in.)
Length Roll material: no restriction
Flat material: 100 mm (3.94 in.) or more
Maximum cutting area 584 mm (Width) × 25,000 mm (Length) (22.9 in. × 984 in.)
Usable tools • CAMM-1 series blade (ZEC-U5032 / U5022 / U5025 / U3017)
• Flat Bed blade (ZEC-U1715 / U3050 / U3075 / U3100)
• Window film blade（ZEC-U5010)
Cutting speed 10 – 850 mm/s (0.39 – 33.4 in./s)
Blade force 30 – 500 gf
Mechanical resolution 0.0125 mm/step (0.49 mil./step)
Software resolution 0.025 mm/step (0.98 mil./step)
Distance accuracy*1 Error of less than ±0.2% of distance traveled or 0.1 mm (3.94 mil.), whichever is greater
Repeatability *1, *2 0.1 mm (3.9 mil) or less
Alignment accuracy for cutting printed material *1, *3 ±1 mm (±39.4 mil.) or less for movement distance of 210 mm (8.3 in.) or less in material-feed direction and movement distance of 170 mm (6.7 in.) or less in width direction (Does not take influence of printer and material into account)
Connectivity • Ethernet (automatic switching between 10BASE-T and 100BASE-TX)
• USB 2.0 (FULL SPEED compliant)
Replot memory 2 MB (buffer size: 8 MB)
Command system CAMM-GLⅢ
Power supply Dedicated AC adapter
Input: 100 – 240 Vac, 50/60 Hz
Output: 24 Vdc 2.7 A
Rated current 1.0 A
Power consumption Approx. 24 W
Acoustic noise level During operation 70 dB (A) or less
During standby 40 dB (A) or less
Outer dimensions 860 mm (Width) × 319 mm (Depth) × 235 mm (Height) (33.9 in. × 12.6 in. × 9.3 in.)
Weight 13.5 kg (30 lb.)
Environment Temperature 5 – 40 °C (41 to 104 °F)
Humidity 20 – 80 %RH (no condensation)
Included items Power cord, AC adapter, Blade, Blade holder, Roller base, USB cable, Alignment tool, Manuals
