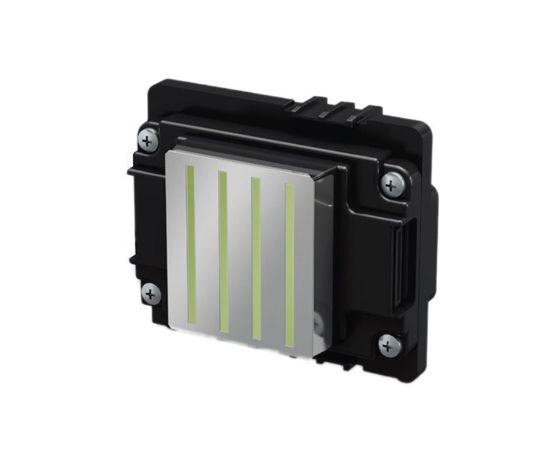

Epson I3200-A1 Water Printhead - I3200-A1 HD

Epson I3200-A1 HD je isplativ model širine 1,33 inča koji pruža veću razlučivost mlaznica od postojećeg I3200-A1 s do 1200 mlaznica po inču. Ova ispisna glava je prikladna za tinte na bazi vode.
SKU: I3200-A1HD
Broj dijela proizvođača: I3200-A1HD
Dostupnost: Isporuka za 21-25 dana.

Description
The Epson I3200-A1 Water is a cost-effective 1.33 inch-wide providing higher nozzle resolution than the existing I3200-A1 with up to 1200 nozzles per inch. This printhead is suitable for water based inks.

Structurally, the Epson I3200-A1 and Epson I3200-A1 HD prinheads are the same heads, both with 8 rows of 400 nozzles.

But the two heads are absolutely NOT interchangeable, each printer can only run the type of head for which it was designed.

- The Epson I3200 has support for 4 colours, so there are 4 inputs (nipples) on the manifold to which the dampers can be connected, and each colour is emitted by a pair of nozzle rows.

- The Epson i3200 HD has support for 8 colours, so there are 8 inputs (nipples) on the manifold to which the dampers can be connected, and each colour is emitted by a single nozzle row.

The following items are expressly excluded from warranty coverage:
defects related, in any way, to the use of non-original inks
clogged, missing or deviated nozzles
defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
defects related to improper loading of media
all other defects, failures or damage not considered manufacturing defects
defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
defects that are merely cosmetic in nature.
Specifications :

Ink Type : Aqueous
Type : PrecisionCore MicroTFP printhead

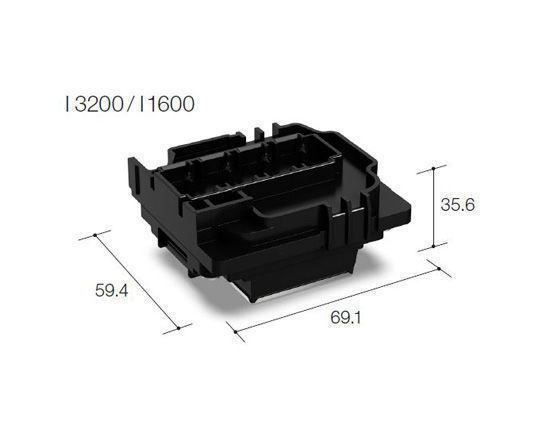

Width x Depth x Height: 69.1 x 59.4 x 35.6 mm
Weight : 78g
Number of nozzle : 3200
Nozzle pitch/nozzle row : 1/300 inch
Nozzle rows: 8 rows
Nozzle Resolution : 300 npi/row, 600 npi/2 rows, 1200 npi/4 rows
Max. number of colour inks : 8 colours
Effective print width : 33.8 mm (1.33 inches)
Droplet ejection performance :
Binary : 6 plat 43.2 kHz
3 levels grey scale : 6.3, 12.3 pl at 21.6 kHz
4 levels grey scale 3.8, 6.1, 9.4 pl at 21.6 kHz
Viscosity range : 2.2-3.8 mPa·s
This printhead carries a manufacturer warranty.
Country of origin : Japan
Printer compatibility
Yintech DPM440MKYintech DPM560MKYintech DPM660MK Gaole GL330Gaole GL330CGaole GL440Gaole GL440C
