Epson i1600-U1 UV Printhead - i1600-U1 Original Novo

Novo iz veleprodaje

Epson i1600-U1 UV is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with 600dpi high-density resolution. This printhead is suitable for UV inks. It is unlocked.
SKU: I1600-U1
Manufacturer part number: I1600-U1
Availability: Ships in 6 -10 days.
Manufacturer: Epson

Description
Epson i1600-U1 UV is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with 600dpi high-density resolution. This printhead is suitable for UV inks. It is unlocked.

The following items are expressly excluded from warranty coverage:
defects related, in any way, to the use of non-original inks
clogged, missing or deviated nozzles
defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
defects related to improper loading of media
all other defects, failures or damage not considered manufacturing defects
defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
defects that are merely cosmetic in nature.
Specifications :

Ink Type : UV/Eco Solvent
Type : PrecisionCore MicroTFP printhead

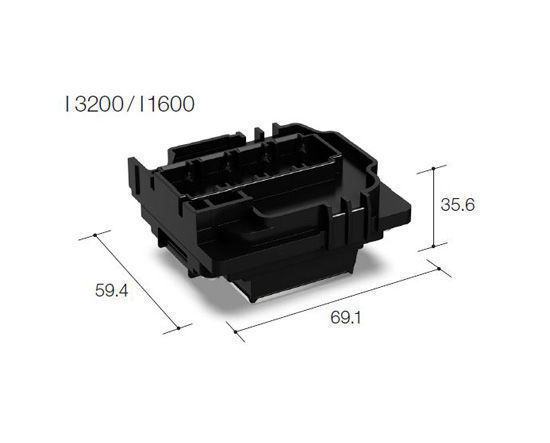

Width x Depth x Height: 69.1 x 59.4 x 35.6 mm
Weight : 82g
Number of nozzle : 1600
Nozzle pitch/nozzle row : 1/300 inch
Nozzle rows: 4 rows
Nozzle Resolution : 300 noi/row 600 npi/2 rows
Max. number of colour inks : 4 colours
Effective print width : 33.8 mm (1.33 inches)
Droplet ejection performance :
Binary : 5 plat 43.2 kHz
3 levels grey scale : 6, 12.5 pl at 21.6 kHz
4 levels grey scale 3.8, 6.2, 9.3 pl at 21.6 kHz
Viscosity range : 5-7 mPa·s
This printhead carries a manufacturer warranty.
Country of origin : Japan
