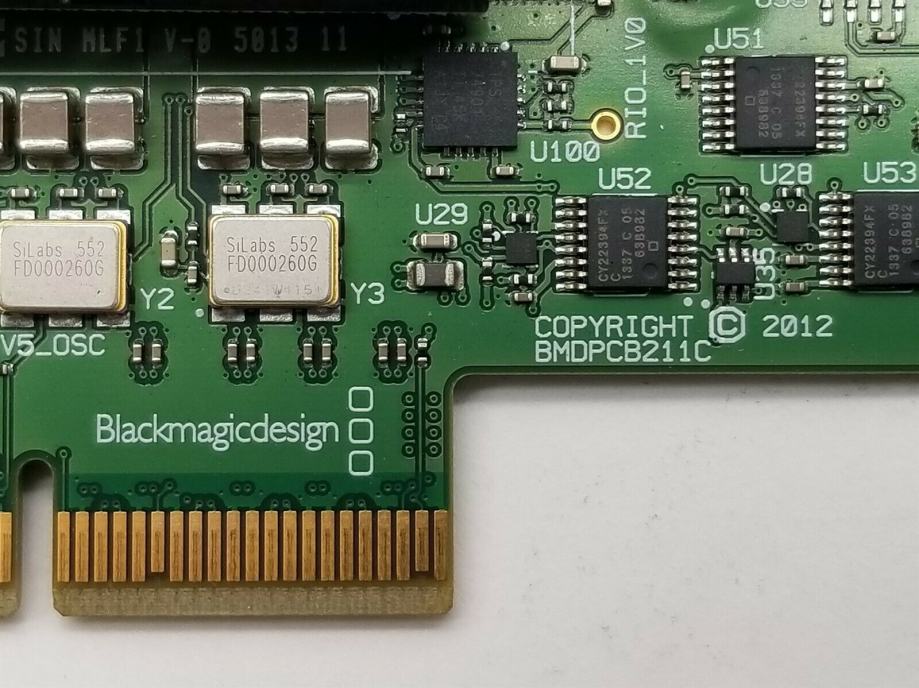

BlackMagic Design Decklink 4K Extreme, pro Capture / Playback Card

BlackMagic Design Decklink 4K Extreme, professional Capture / Playback Card

Profi video I/O interface kartica za usnimavanje vanjskih video izvora do 4K rezolucije.

Koštala svojevremeno ko transplantacija organa.
Sad ju pak možeš ubost za siću, te napokon svoju Classic Magma Stars VHS kolekciju prebaciti u raskoš digitalne domene.

Ili radit na nekom filmskom projektu like a pro.
"Cijelu noć sam usnimavao telecine mastere s digitalne Bete" je garantirano dobar ulet.
Just imagine the possibilities ™

U nastavku slijedi dosadni tehnički bla/kenj/truć s internetova:

DeckLink 4K Extreme features a high performance design for working in the highest film quality! Get 4 times the resolution of 1080 HD with full Ultra HD 4K capture and playback using 6G-SDI and HDMI 4K support. DeckLink 4K Extreme includes single and dual channel SDI connections for both regular 2D and 3D stereoscopic workflows as well as full resolution color RGB 4:4:4 capture and playback. Includes dual link 6G-SDI, HDMI 3D/4K and analog component, composite, S-video connections. Work in SD, HD and Ultra HD 4K. Also includes AES and analog balanced audio, 16 channel SDI audio, genlock, deck control, broadcast quality up, down and cross conversion, plus built in SD/HD internal keyer.

SDI Video Input
2 x 10-bit SD/HD/2K/4K and 2D/3D switchable. Supports 3Gb/s and 6Gb/s single link and dual link.

SDI Video Output
2 x 10-bit SD/HD/2K/4K and 2D/3D switchable. Supports 3Gb/s and 6Gb/s single link and dual link.

Analog Video Input
1 x Component YUV on 3 BNCs switchable to S-Video or Composite. Component supports HD and SD.

Analog Video Output
1 x Component YUV on 3 BNCs switchable to S-Video and Composite. Component supports HD and SD.

HDMI Video Input
1 x HDMI type A connector including 3D frame packing support and Ultra HD support.
HDMI Video Output
1 x HDMI type A connector including 3D frame packing support and Ultra HD support.

SDI Audio Input
2 Channels of professional balanced analog audio via XLR connectors.

Audio Output
2 Channels of professional balanced analog audio via XLR connectors.

AES/EBU Audio Input
2 Channels unbalanced with sample rate converter.

AES/EBU Audio Output
2 Channels unbalanced.
SDI Audio Input
16 Channels embedded in SD/HD/2K/4K.

SDI Audio Output
16 Channels embedded in SD/HD/2K/4K.

HDMI Audio Input
8 Channels embedded in SD/HD/4K.

HDMI Audio Output
8 Channels embedded in SD/HD/4K.

Sync Input
Black burst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD format, 2K or 4K format

Device Control
Sony compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control.

Computer Interface
PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCIe
Fakat si uporan nerd ak si čitao do ovdje.
I like you.
