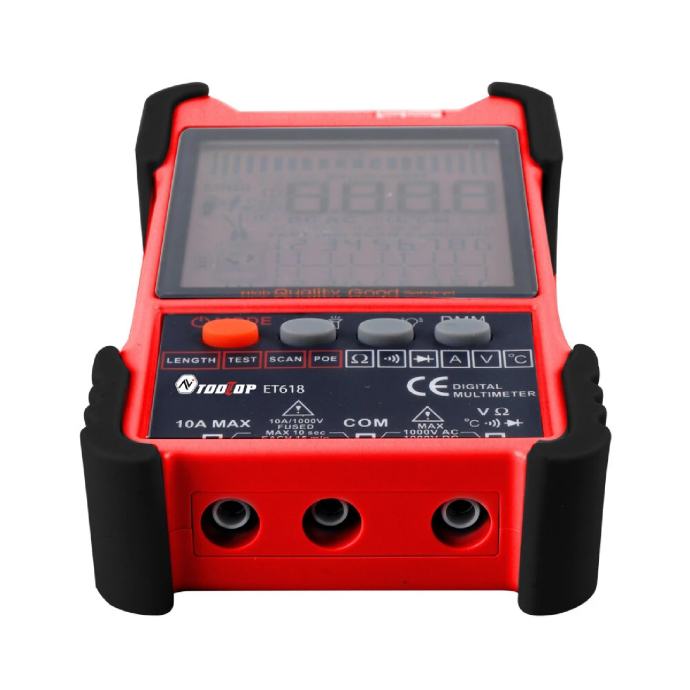

ET618 mrezni kabel tester / multimetar POE, duljina kabela itd

ET618 mrezni kabel tester / multimetar POE, duljina kabela itd

Dolazi u prikladnoj torbici za nosenje.


S ovim uređajem možete pronaći kvarove - prekide u kablovima, također u više-žilnim kablovima možete pronaći odgovarajuću žicu.
Kabel tracker se sastoji od odašiljača i prijemnika.
Set je pogodan za ispitivanja na svim tipovima kablova - vodiča struje.
Pogodan je za ispitati telefonskih linija, komunikacijskih mrežnih kablova ...

Description:


This meter combines with the cable tracing cable length measuring and multimeter functions The advantage of this meter is the long tracing distance clear sound signals rapid and precise cable length measurement and accurate multimeter.

The meter is good tools for laboratories factories, radio lover network installer and technician. It can real time measuring network cable length short circuit and circuit break.

The cable tracing function can quickly and efficiently find out the target cable in large number of cables This function can be used in telephone systems computer networks BNC cables and other metallic network cables.

Our digital tracing apply the newest digital noise free technology It give a good experience to users

The meter is essential equipment for computer networking telecom cabling BNC cabling and other metallic cabling projects.


Features:


- Network cable tester + multimete 2 in 1

- 400M/500M network cable length measure

- Analog/digital/POE line checking

- 60V withstand voltage anti-burning

- Noiseless vibration line tracker(Only ET618)

- Large digital display screen

- Built-in lithium battery charging

- Switch pairing and port flashing

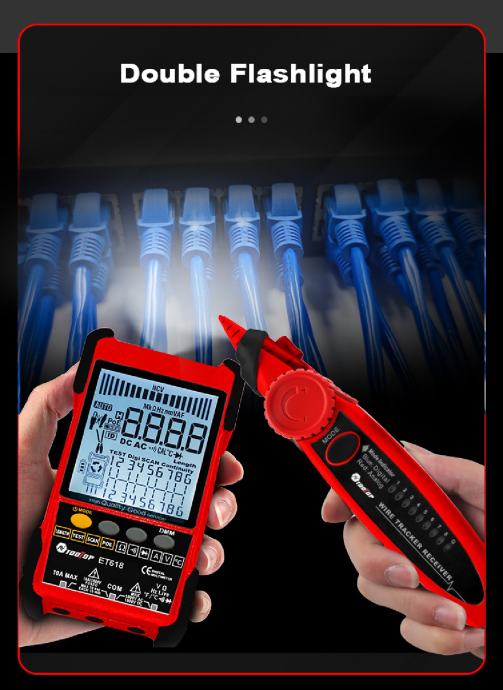

- Flashlight

- Auto power off


Specification:


Model

ET616

ET618

Analogue Tracing

√

√

Continuity

√

Multimeter function

Switch Tracing w PoE

√

√

Cable Mapping

√

√

Switch indicators flashing

√

√

Noisy Free Digital Tracing

Digital

Digital /Vibration

Voltage Testing

Identify some issues on a circuit

AC DC Voltage

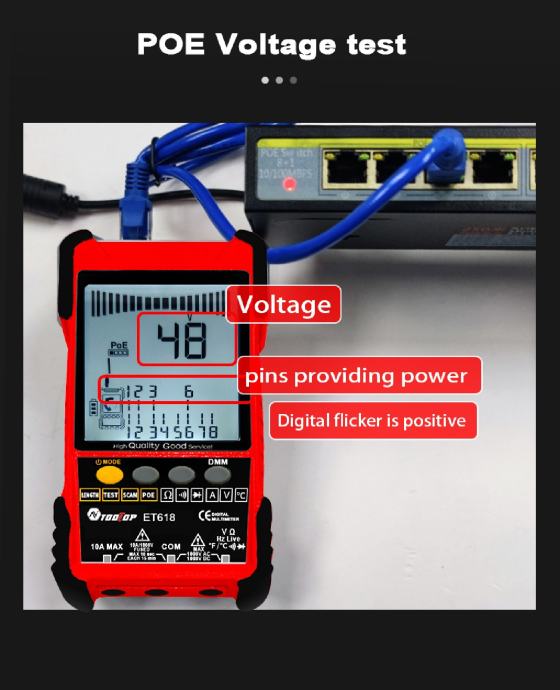

PoE Voltage Measuring

Voltage Polarity

Voltage Polarity

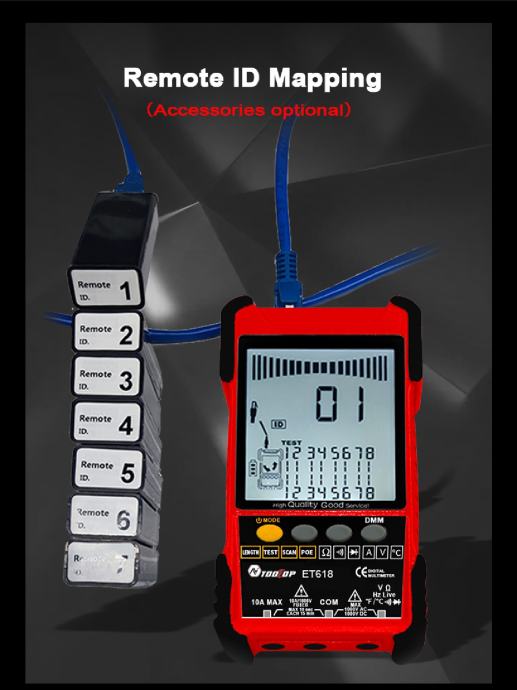

Remote ID Mapping

Optional

Optional

Analogue Bargraph

√

√

NCV Detection

√

√


Other Functions

Main Body flashlight multimeter input jack indicator LCD

display white flashlight analogue tracing sound adjustable

digital tracing sensitivity adjustable low battery indicator white backlight energy saving tracing distance 3km analogue tracing signal selectable

Difference

Multimeter Functions

/

√

Diode

/

√

DC Voltage

/

400mV ~1000V±(0.8%+3)

AC Voltage

/

4V~400V±(1.5%+5)

DC Current

/

1.0A~10.0A±(1.2%+4)

AC Current

/

1.0A ~10.0A±(2.0%+5)

Resistance

/

200Ω ~20MΩ±(2%+6)

Continuity

/

< 50Ω buzzer beeps

Temperature k type

/

-20~1000°C±(2.0%+15)

Network Cable Length Measure

400M

500M

BNC Cable Length Measure

√

√

Network Cable Short Open Circuit test

√

√

Powered by

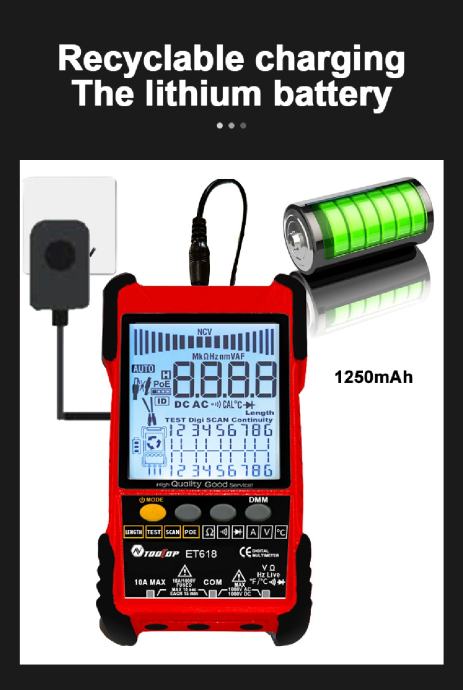

Main Body Bulit-in 1250mAH rechargeable Lithium Battery/Receiver 9V Battery


Accessories

Gift Box, Manual, Carrying

Bag, RJ45 Cable, Alligator Clip cable

Gift Box, Manual, Carrying

Bag, RJ45 Cable, Testleads,

,k type Temperature Probe


Pacake included:


1 x Transmissor

1 x Receiver

1 x Alligator Clip cable

1 x RJ45 Cable

1 x USB Transformer

1 x Carrying Bag

1 x Multimeter Accessories (Testleads and k type temperature probe)

1 x User Manual
