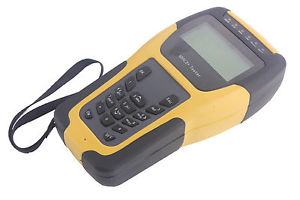

VDSL TESTER ST332 anexB (acterna)

- VDSL Tester ST332 (acterna) mjeri VDSL, ADSL2+ standard anex B .
- maximala i trenutna u downloadu i uploadu, margina, gušenje, crc, fec, hec , grafikon
- uređaj možete koristiti i kao ispitnu slušalicu, odlazni i dolazni pozivi,
- DMM test mjeri istosmjerni i izmjenični napon parice, detektira pots 53V, isdn 96V, pcm 177V
- Indikator potsa, kod spajanja na paricu pali se lampica pots ukoliko postoji napajanje bez odabira testa u postavkama
- mogućnost pinga
- mogućnost spajanja na računalo za ispis mjernih rezultata


1) Test objects: ADSL2+; ADSL;ADSL2;READSL
2) Multifunction: Physical layer test; Modem emulation ; PPPoE dial ; DMM test; Browse IP address information; Determine telephone line faults (line break or mix)
3) Judge the quality of service
4) Data memory capacity: 50 records
5) LCD display
6) Menu operation
7) Simple, portable and money-saved
Main Functions

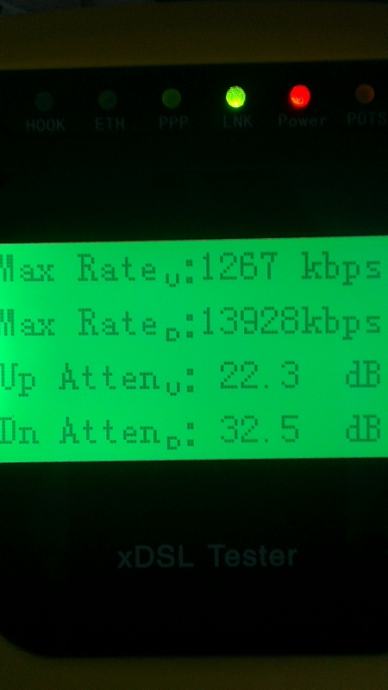

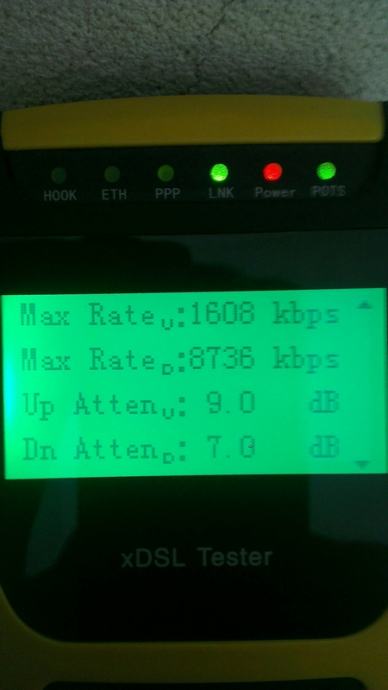

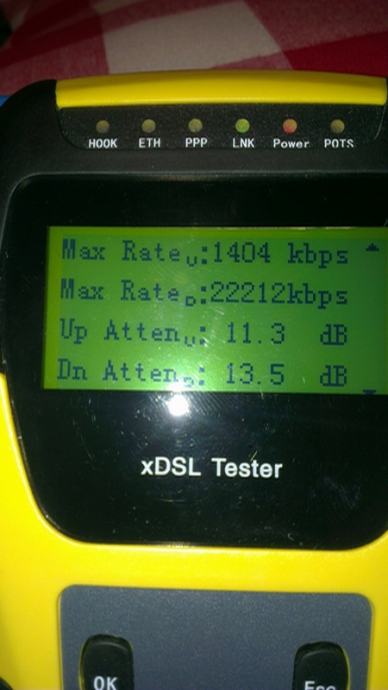

1) Physical layer test (Current and max rate, channel rate, attenuation, noise margin, output power, error test and so on)
2) Modem Emulation( Emulate the user Modem completely)
PPPoE/PPPoA dial & Revise PPPoE/PPPoA dial properties, user name and password
3) DMM Test
4) Browse IP address information
5) Determine telephone line faults(break or mix)
6) Data memory capacity: 50 records
7) Bit/map display
8) Backlight function
9) Shut off automatically

Technical Specifications
ADSL2+

Standards ITU G.992.1（G.dmt）ITU G.992.2（G.lite）ITU G.994.1（G.hs）ANSI T1.413 issue #2，ITU G.992.5（ADSL2+）Annex B
Up channel rate
0~1.2Mbps
Down channel rate 0~24Mbps
Up/Down attenuation
0~63.5dB
Up/Down noise margin
0~32dB
Output power
0~31.5dBm

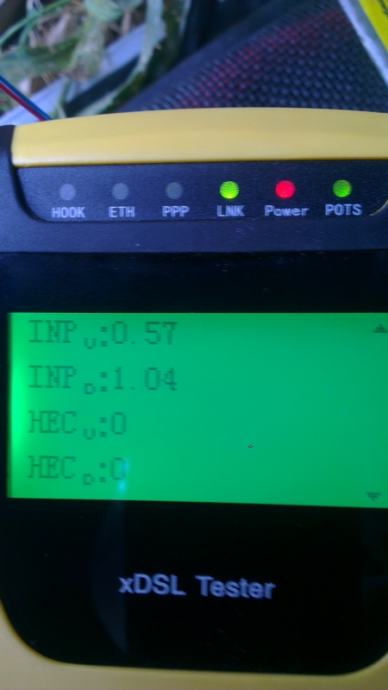

Error test
CRC, FEC, HEC, NCD, LOS





JAMSTVO 12 mjeseci
