Yamaha MG12/4

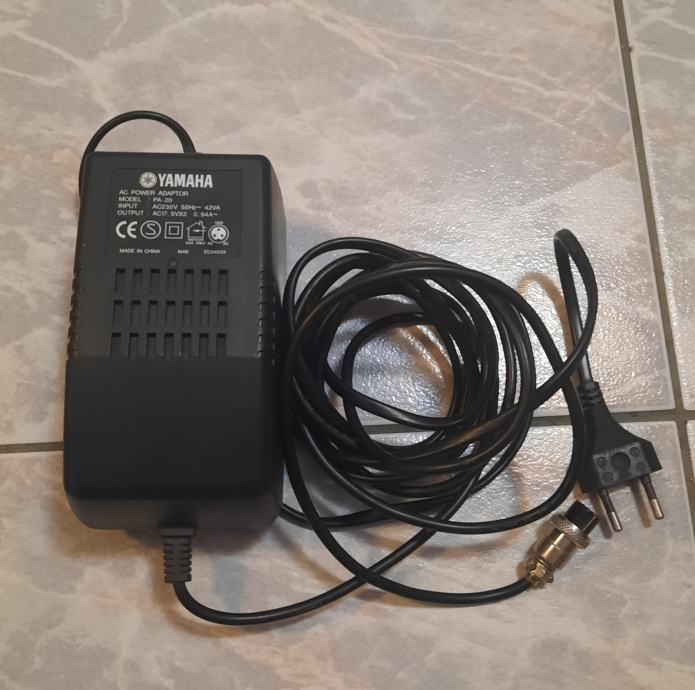

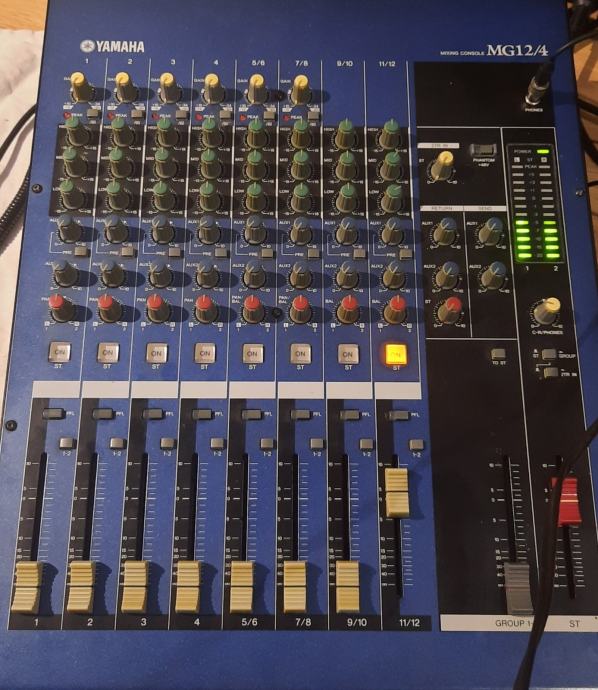

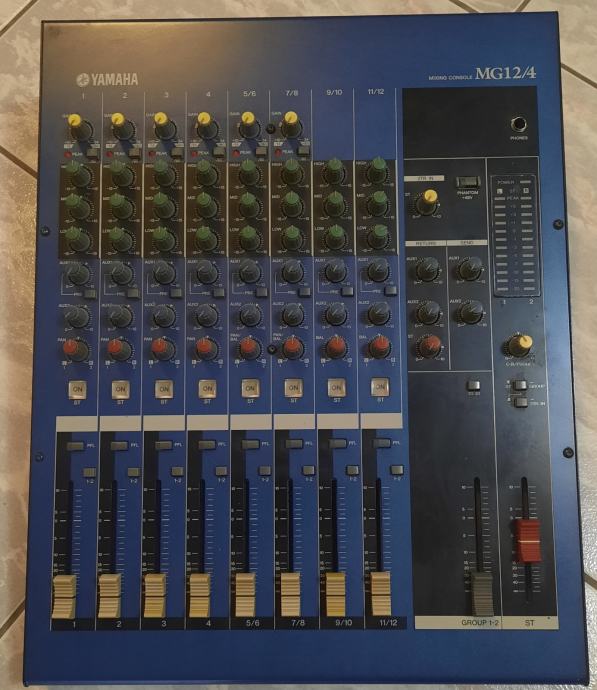

Prodajem audio miksera/miksetu Yamaha MG12/4, dolazi s adapterom.

Osobna primopredaja ili slanje dostavnom službom.

Kontakt: 091/781/7541

SPECIFIKACIJE
-----------------------------------------------

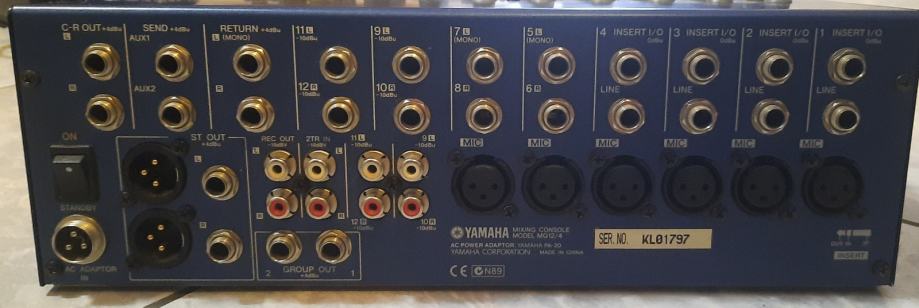

Total # Of Inputs: 12 – Total Inputs
Mic/Line Inputs: 6 – Mic Inputs: Balanced 3-pin XLR
12 – Line Inputs: Balanced 1/4″ TRS Phone
Stereo Line Inputs:
3 – Stereo Line Inputs: (L/R) Balanced 1/4″ TRS Phone, channels 7/8, 9/10 and 11/12
*channels 9/10 & 11/12 feature both TRS Phone and RCA Phono connections
In-Line Inputs/Returns: No
AUX Sends: 2 – L/R Stereo 1/4″ TRS Phone connections
AUX Returns: 2 – L/R Stereo 1/4″ TRS Phone connections
Inserts: 1/4″ TRS Phone all mono channels
BUS (Group) Outputs:
Stereo Group Bus: (2) 1/4″ TRS Phone
*4 Bus output when used in conjunction with main stereo output
Main Outputs: Stereo Outputs: L/R 1/4″ TRS Phone & L/R XLR 3-pin balanced
ALT I/O: REC Outputs: L/R RCA Outputs
Monitor Outputs: C/R Outputs: L/R 1/4″ TRS Phone
EQ Section:
CH & ST High Pass Filter: 80Hz 12dB/octave
Mono Channel EQ -15dB (max):
High: 10kHz (shelving)
Mid: 2.5kHz (peaking)
Low: 100Hz (shelving)
Stereo Channel EQ -15dB (max):
High: 10kHz (shelving)
Mid: 2.5kHz (peaking)
Low: 100Hz (shelving)
Solo/Mute: Mute & PFL Solo – all input channels
Channel Level Control: Faders
Trim/Gain Control:
Sealed Rotary Potentiometers (POTS)
Gain Range:
CH IN MIC: -60 to -16, 3k ohms actual
CH IN LINE: -34 to 10, 10k ohms actual
ST CH MIC: -60 to -16, 3k ohms actual
ST CH LINE: -34 to 10, 10k ohms actual
Phantom Power: +48V
Metering: Stereo Peak LED
Frequency Response: 20 – 20kHz @ +4dB 600ohms (ST Out)
Dynamic Range: not specified by manufacturer
Signal-to-Noise Ratio: -128dB
*20Hz – 20kHz, RS=150 ohms, Input Gain=Maximum, Input Pad=OFF, Input sensitivity -60dB
Total Harmonic Distortion (THD): Less than 0.1%
-----------------------------------------------
