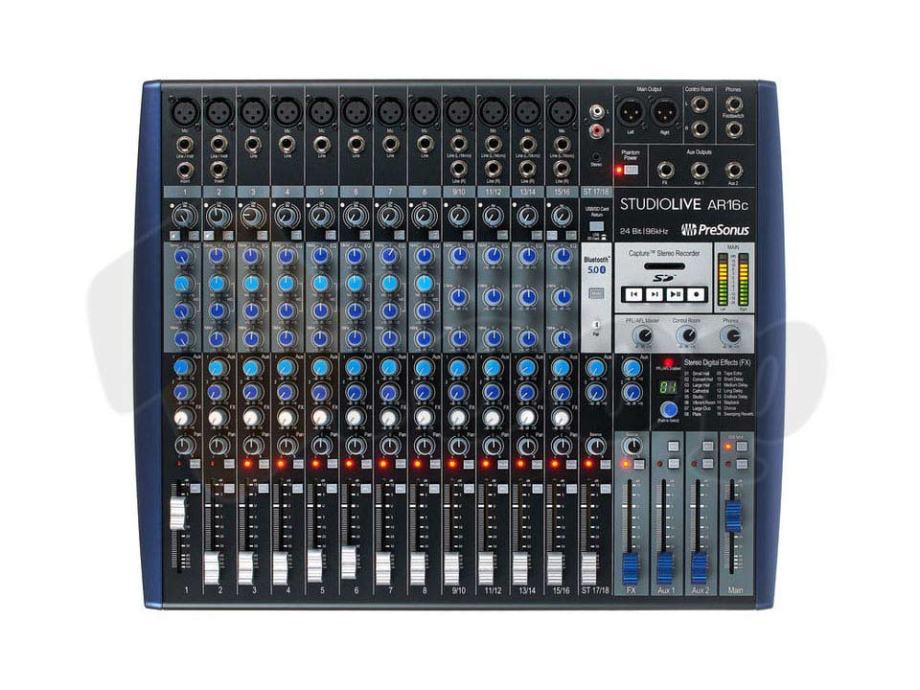

PreSonus Studiolive AR16c digitalni mikser (NOVO,36 rata,besp.dostava)

StudioLive AR16c je PreSonusov hibridni digitalni / analogni mikser koji je kao stvoren za današnje kreativce. Ovaj mikser je dovoljno kompaktan da se može ponijeti na put, ali nudi širok raspon mogućnosti ulaznih priključaka kako bi odgovarao svim potrebama izvođača. Ima mnoštvo funkcija kao što su 12 mikrofonskih pretpojačala, ugrađeni efekti, stereo snimanje na SD karticu i stereo super kanal koji vam omogućuje potpunu kontrolu nad vašim zvukom. Kada ga upotrebljavate kao audio sučelje, ovaj impresivni mikser priključi se na vaše računalo putem USB-C kabela koji dolazi s mikserom. U tom slučaju možete snimiti svaki od ulaza koji naknadno obrađujete i miksate u softveru za snimanje koji je također uključen u cijenu. Bez obzira miksate li svoj bend uživo ili snimate intervju, AR16c će vas oduševiti svojom atraktivnom cijenom i jednostavnim i intuitivnim rukovanjem.

NOVO! NEKORIŠTENO!

Izložbeni primjerak – stoji izložen na polici u shopu!

Cijena za kartično plaćanje i za zamjene: 820,00 €
Cijena s popustom za gotovinu: 738,00 €

Moguće su zamjene za glazbenu i scensku opremu.

Moguće je plaćanje do 36 rata bez kamata (karticama), čak i direktno putem webshopa www.loop.hr. Kod plaćanja pouzećem i plaćanja po ponudi vrijedi cijena s popustom za gotovinu. Moguće izdavanje R-1 računa.

Proizvod je dostupan odmah u poslovnici Varaždin.

Moguća je i dostava kurirskim službama.

Trošak dostave na Vašu adresu za uračunat je u cijenu proizvoda.

OPIS PROIZVODA

SPECIFIKACIJE:

Computer system requirements:
Below are the minimum computer-system requirements for use with Capture™ and Studio One®.

Mac
macOS® 10.11 or higher (64-bit only)
Intel® Core™ 2 Duo processor (Intel Core i3 or faster recommended)
Windows
Windows® 7 x64 SP1 + platform update, Windows 8.1 x64, Windows 10 x64
Intel Core 2 Duo (Intel Core i3 or faster recommended)
Mac and Windows Systems
4 GB RAM (8 GB or more recommended)
30 GB hard-drive space (Studio One)
Internal or external 7200 RPM storage drive highly recommended
Monitor with 1366×768 resolution (high-dpi monitor recommended)
The minimum system requirements may differ for DAWs other than Studio One®. Please check the requirements for your DAW of choice with its manufacturer.

Note that the speed of your processor, amount of RAM and size and speed of your hard drive will greatly affect the overall performance of your recording system. Also, a more powerful system (faster processor with more RAM) will allow for lower latency (signal delay) than you might experience while monitoring audio signals.

As a commitment to constant improvement, PreSonus Audio Electronics, Inc., reserves the right to change any specification stated herein, at any time, without notification.​​

VST Compatible Logo ASIO Compatible Logo
VST is a registered trademark of Steinberg Media Technologies GmbH
ASIO is a trademark and software of Steinberg Media Technologies GmbH
Technical Specifications
Microphone Preamp
Type XLR Female, Class A XMAX
Maximum Input level (unity gain) +9 dBu ±1.0 dB
Gain Control Range 43 dB (+12 to +55 dB)
Frequency Response to Analog Outputs 20 Hz to 20 kHz, +0.5/-1.5 dB
Frequency Response to USB (Direct) 20 Hz to 20 kHz, +0.5/- 1.5 dB
S/N Ratio to Outputs (+4 dBu) 94 dB
THD+N (min. gain, A-wtd) < 0.01%
Input Impedance 1 kΩ
EIN (+55 dB gain, 150Ω input, 20 Hz-22 kHz, A-wtd) Mono Channels: < 128 dBu
Common Mode Rejection Ratio (1 kHz, +55 dB gain) 65 dB
Phantom Power +48V, ±3V, Global
Note: All Channel Inputs sum through Mic preamp
Instrument Inputs
Type ¼” TS Female, Unbalanced, Hi-Z
Maximum Input Level (min. gain, 1 kHz@0.5% THD+N) +9 dBu ±1.0 dB
Gain Control Range 43 dB, ±1 dB (+12 to +55 dB)
Frequency Response to Analog Outputs 20 Hz to 20 kHz, +0.5/-1.5 dB
Frequency Response to USB (Direct) 20 Hz to 20 kHz, +0.5/-1.5 dB
Dynamic Range (min. gain, A-wtd) > 105 dB
Dynamic Range (mid. Gain, unwtd) > 108 dB
THD+N (1 kHz, -1 dBFS, A-wtd) < 0.01%
THD+N (1 kHz, -1 dBFS, unwtd) < 0.01%
Input Impedance > 1 MΩ
Note: All Channel Inputs sum through Mic preamp
Line Inputs
Type ¼” TRS Female, Balanced
Maximum Input Level (min. gain, 1 kHz@0.5% THD+N) +26 dBu ±1.0 dB
Gain Control Range Mono Channels: 40 dB, ±1 dB (-5 to +35 dB)
Stereo Channels: 0 dB or +10 dB (+10 dB Boost)

Frequency Response to Analog Outputs 20 Hz to 20 kHz, +0.5/-1.5 dB
Frequency Response to USB (Direct) 20 Hz to 20 kHz, +0.5/-1.5 dB
S/N Ratio to Analog Outputs (+4 dBu) 85 dB
THD+N (1 kHz, -1 dBFS, A-wtd) < 0.01%
Input Impedance (Balanced) 10 kΩ
Note: All Channel Inputs sum through Mic preamp
Main, Control Room, Monitor, and FX Outputs
Type (Main Outputs) XLR Male, Impedance Balanced
Type (Control Room, Monitor, FX Outputs) ¼” TRS Female, Balanced
Rated Output Level (Main Outputs) +24 dBu, ±1.0 dB
Rated Outputs Level (Control Room, Monitor, FX Outputs) +18 dBu
Frequency Response 20 Hz to 20 kHz, +0.5/-1.5 dB
Dynamic Range (A-wtd) > 108 dB
THD+N (Bandwidth 20 Hz – 20 kHz, -1 dBFS, unwtd) < 0.01%
Output Impedance 100 Ω
Headphone Output
Type ¼” TRS Female, Stereo, Unbalanced
Maximum Output Level 150 mW/channel @ 60 Ω
Frequency Response 20 Hz to 20 kHz, +0.5/-1.5 dB
Dynamic Range (A-wtd) > 103 dB
THD+N (Bandwidth 20 Hz – 20 kHz, -1 dBFS, unwtd) < 0.01%
System Crosstalk
Input to Output (Ref = +4dBu, 20 Hz to 20 kHz, unwtd) -90 dBu
Adjacent Channels (Ref = +4 dBu, 20 Hz to 20 kHz, unwtd) -85 dBu
Signal Level LED
Signal -30 dBFS (pre-EQ)
Clip -3.0 dB before clip (pre- or post-EQ)
Channel EQ
Low Cut 100 Hz, -18 dB/Octave
High Shelving ±15 dB @ 10 kHz
Mid Peaking (Mono Channels) ±15 dB @ 140 Hz to 3.5 kHz (variable)
Mid Peaking (Stereo Channels) ±15 dB @ 2.5 kHz
Mid-Band Q Boost: 1.0, Cut: 2.5
Low Shelving ±15 dB @ 100 Hz
Digital Audio
Host Interface USB 2.0
ADC Dynamic Range (Component) 114 dB
ADC Dynamic Range (Measured: A-wtd, 48 kHz) 105 dB
DAC Dynamic Range (Component) 114 dB
DAC Dynamic Range (Measured: A-wtd, 48 kHz) 105 dB
Signal-to-Noise (a-weighted) -96 dB
Bit Depth 24-bit
Internally Supported Sample Rates 44.1, 48, 88.2, 96 kHz
Jitter < 80 ps RMS (20 Hz – 20 kHz)
Jitter Attenuation > 60 dB (1 ns in => 1 ps out)
SD Recorder
Supported Media Format FAT16 formatted SD™ card, FAT32 formatted SDHC™ card
Media Storage Capacity SD card: 2 GB; SDHC card: 32 GB
Recording File Format Stereo WAV
Playback File Formats Stereo WAV, MP3 (96-320 kbs, 32 / 44.1 / 48 kHz)
Sampling Rate (WAV) 44.1 kHz
Bit Depth Recording: 24-bit
Playback: 16- or 24-bit

Power/Environmental
Connector IEC
Input Voltage Range 90 to 240 VAC
Recommended Ambient Operating Temperature 0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit
Physical
Height 3.5” (89 mm)
Width (Chassis only) 18.9” (480 mm)
Depth 15.6” (397 mm)
Weight 14.1 lbs (6.4 kg)
