RACK MIKSETA MARANTZ PRO MIX 12

Prodaje se nova zapakirana Rack Mikseta Marantz Pro Mix 12

Kontakt:
M: 098 713 086
E: nenobil@gmail.com

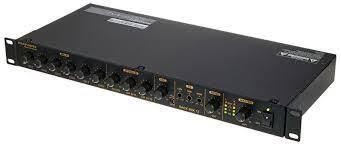

Ugradbeni 12-kanalni mikser koji može riješiti bezbrojne audio izazove.
Sadrži 6 mic / line kombiniranih ulaza (HDHQ™ Denon-Marantz proprietary mic pre’s)
svaki s izmjenjivim fantomskim napajanjem i 6 dodatnih line ulaza

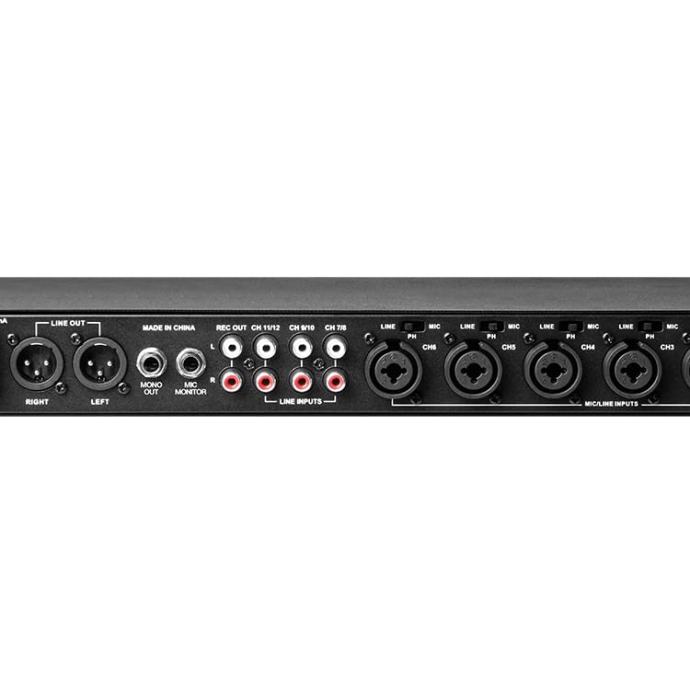

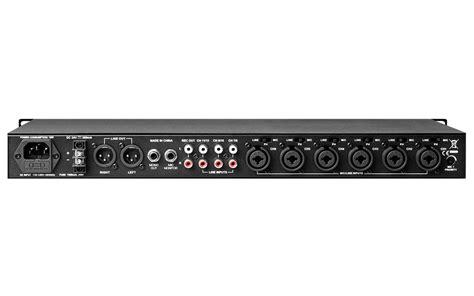

6 balansirana Mic/Line XLR ulazai, 2 balansirana XLR izlaza, 6,3 mm mono i mic monitor izlaz.
¼ inčni ( 6,3 mm) mikro nadzorni port koji se može koristiti za nadzor signala mikrofona.
3x RCA Chinch stereo ulazi za povezivanje s nebalansiranim ulaznim signalima zvuka.

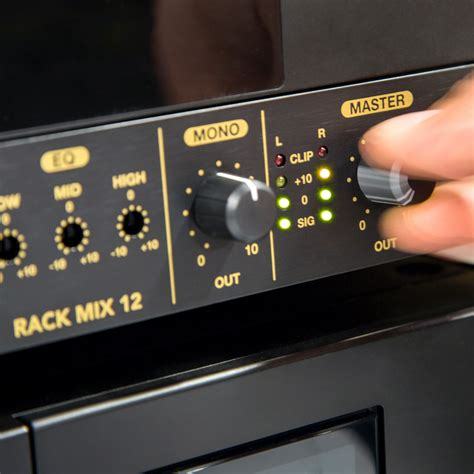

Rack Mix 12 osigurava individualnu kontrolu nivoa za sve ulaze uz kontrolu nivoa za mono izlaz i port master kontrole.
Zaokruživanje značajki je 3-nivoski ekvilizator i kontrolirani prioritet za Mic / Line 1.

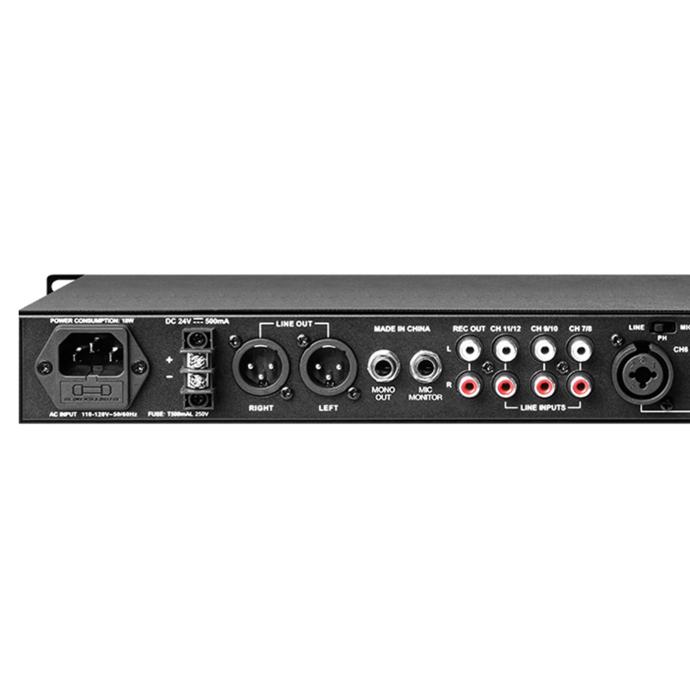

Može se napajati iz standardnog izmjeničnog napona 220V ili 24V istosmjernog izvora napajanja,
što ga čini upotrebljivim u raznim primjenama: hoteli, učionice, turistički autobusi, kafići, restorani, bine, itd

Microphone Input - 6 Balanced XLR Connectors (Channels 1–6)
Frequency Response: 20 Hz - 22 kHz
THD+N: < 0.03% @ 1 kHz
Sensitivity: -40 dBu
Maximum Input: -19 dBu
Maximum Voltage Gain (Mic Input to Rec Out): 50 dB
Maximum Voltage Gain (Mic Input to Line Out, Mic Out & Mono Out): 60 dB
Signal-to-Noise Ratio: > 103 dB
Phantom Power: 18–21 V, switch control

Line Inputs - 6 Balanced XLR Connectors (Channels 1–6)
Frequency Response: 20 Hz - 22 kHz
THD+N: < 0.03% @ 1 kHz
Sensitivity: 0 dBu
Maximum Input: +21 dBu
Maximum Voltage Gain (Mic Input to Rec Out): 10 dB
Maximum Voltage Gain (Mic Input to Line Out, Mic Out & Mono Out): 20 dB
Signal-to-Noise Ratio: > 103 dB

Line Inputs - Stereo Balanced RCA Connectors (Channels 7/8-11/12)
Frequency Response: 20 Hz - 22 kHz
THD+N: < 0.03% @ 1 kHz
Sensitivity: +10 dBu
Maximum Input: +21 dBu
Maximum Voltage Gain (Line Input to Line Out): 10dB
Maximum Voltage Gain (Line Input to Rec Out): 0dB
Maximum Voltage Gain (Line Input to Mono Out): 4dB
Signal-to-Noise Ratio: > 103 dB


Impedance
Mic/Line Input: 1.4 kΩ
Line Input: > 10 kΩ
All Outputs: 120 Ω

Equalizer
High: +15 dB @ 12 kHz
Mid: +12 dB @ 2.5 kHz
Low: +15 dB @ 80 Hz

Crosstalk
Input to Output: < -82 dB @ 1 kHz
Adjacent Inputs (Channels 1–6): < -70 dB @ 1 kHz
Adjacent Inputs (Channels 7/8–11/12): < -68 dB @ 1 kHz

Main Mix Output
Line Output: 0 dBu (+2 dBu), balanced
Mic Output, Mono Output: 0 dBu (+2 dBu), unbalanced
Maximum Output: +21 dBu balanced/unbalanced, 1/4” (6.35 mm) jacks
Noise (Bus): < -83 dB @ 20 Hz – 22 kHz

General
Power connection: IEC
Input Voltage: 100V~, 110-120V~, 50/60Hz; 220-240V~, 50/60Hz or DC24V
Dimensions: (W x D x H): 19.0” x 7.7” x 1.7” (483 x 195 x 44 mm)
Weight: 6.4 lbs (2.9 kg)
