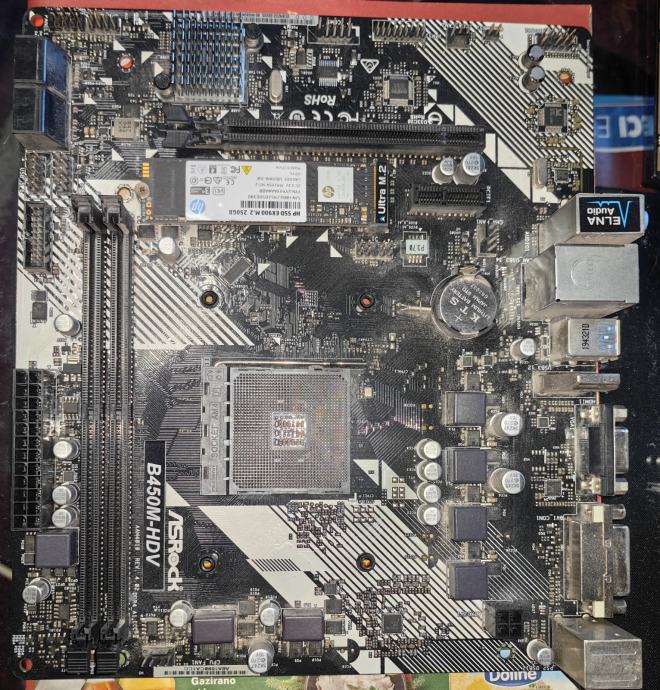

Matična B450M-HDV

Supports AMD AM4 Socket Ryzen 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
- 6 Power Phase design
- Supports CPU up to 105W
Chipset
- AMD Promontory B450
Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Vermeer) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
- AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
- AMD Ryzen series APUs (Cezanne) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
- AMD Ryzen series APUs (Renoir) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
- AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory
- AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
- AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory
Graphics
- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
- DirectX 12, Pixel Shader 5.0
Audio
- 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
- Supports Surge Protection
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Slots
AMD Ryzen series CPUs (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge and Pinnacle Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)
AMD Ryzen series CPUs (Picasso, Raven Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)
AMD Athlon series CPUs
- 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)
- 1 x PCI Express 2.0 x1 Slot
Storage
- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Vermeer, Matisse, Cezanne, Renoir, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s)
Connector
- 1 x COM Port Header
- 1 x TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)
- 2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 4 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
