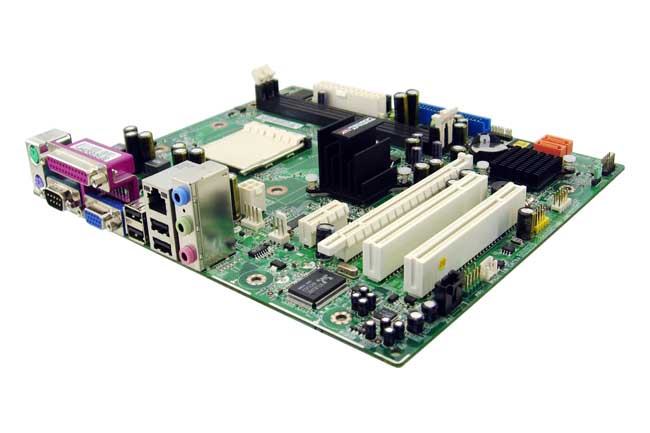

HP ms-7297 ver 2.1 Socket AM2

HP ms-7297 ver 2.1 Socket AM2

30Dana Garancije!

CPU
Intel Socket AM2 – Support Processor Type:
AMD Athlon 64 X2 Dual-Core, Athlon 64, Sempron
Chipset
North Bridge

ATI RS485
South Bridge

ATI SB600v
Video

ATI Radeon X300
Memory

2 * 240-pin DDR2 DIMM slots Supports
DDR2 677/533 non-ECC, un-buffered memory (Max 2GB)
Expansion Slots

1 * PCI Express x16
1 * PCI Express x1
2 * PCI
Storage
4 * SATA 3Gb/s connectors
Audio
Realtek ALC861 – High Definition
Ethernet
Realtek RTL8100C – 10/100Mb/s
USB
Embedded 8 * USB 2.0
Special Features
* CPU Smart Fan Function
* System Fan Fail Check
Rear Panel
4 x USB 2.0 ports
1 x VGA port
1 x RJ-45 LAN port
1 x Audio I/O
1 x Serial port
1 x Parallel port
1 x PS/2 green for mouse
1 x PS/2 purple for keyboard

Internal
1 x 4-pin CPU Fan connector
1 x 3-pin Chassis System Fan connectors
1 x 4-pin ATX 12V Power connector
1 x 24-pin ATX Power connector
1 x Floppy Connector
1 x Front Audio header
1 x Front Panel header
1 x USB header
1 x Clear CMOS jumper
1 x Battery socket (3V)
BIOS
Form Factor
Micro-ATX (9.6 x 9.0 inches)

Garancija!


MSI MS-7297 Mainboard Processor Support List:
AMD Sempron Processors:
AMD Sempron 3000, 3200, 3400, 3500, 3600, 3800, LE-1200, LE-1250

AMD Athlon 64 Processors:
Athlon 64 3500, 3800, 4000+

AMD Athlon X2 Dual-Core Processors:
Athlon X2 BE-2300, BE-2350, BE-2400

AMD Athlon 64 X2 Dual-Core Processors:
Athlon 64 X2 3800, 4200, 4400, 4600, 4800, 5000, 5200, 5400, 5600, 6000+
