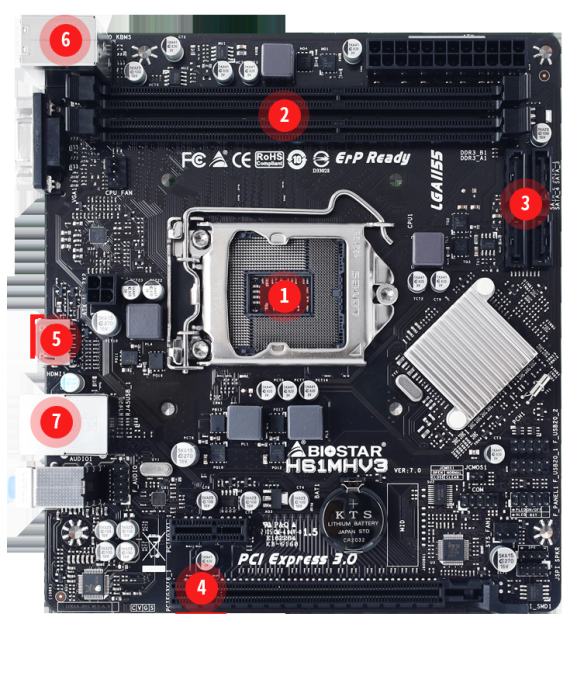

Biostar H61MHV3

Chipset Intel H61
CPU SUPPORT Support Intel Core™ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1155 package
* Please refer to www.biostar.com.tw for CPU support list.
MEMORY Supports Dual Channel DDR3 1066/ 1333/ 1600
2 x DDR3 DIMM Memory Slot, Max. Supports up to 16 GB Memory
Each DIMM supports non-ECC 512MB/ 1/ 2/ 4/ 8 GB DDR3 module
* DDR3 1600 memory module (depending on CPU)
* Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO By CPU model
STORAGE 4 x SATA II (3Gb/s)
LAN Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC ALC897
7.1 Channels, High Definition Audio
USB 8 x USB 2.0 port (4 on rear I/Os and 4 via internal headers)
EXPANSION SLOT 1 x PCIe 2.0 x1
1 x PCIe 3.0 x16 Slot (x16 mode, depending on CPU)
REAR I/O 1 x PS/2 Keyboard / Mouse
1 x VGA Port
1 x HDMI Port
4 x USB 2.0 Ports
1 x LAN port
3 x Audio Jack
INTERNAL I/O 4 x SATA II (3Gb/s)
2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSION Micro ATX Form Factor Dimension: 17cm x 19.1cm ( W x L )
OS SUPPORT Supports Windows 7/ 8/ 8.1/ 10
※Biostar reserves the right to add or remove support for any OS with or without notice.
BUNDLE SOFTWARE BIO-Remote2
ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
FEATURES BIO-FLASHER
Supports Charger Booster
