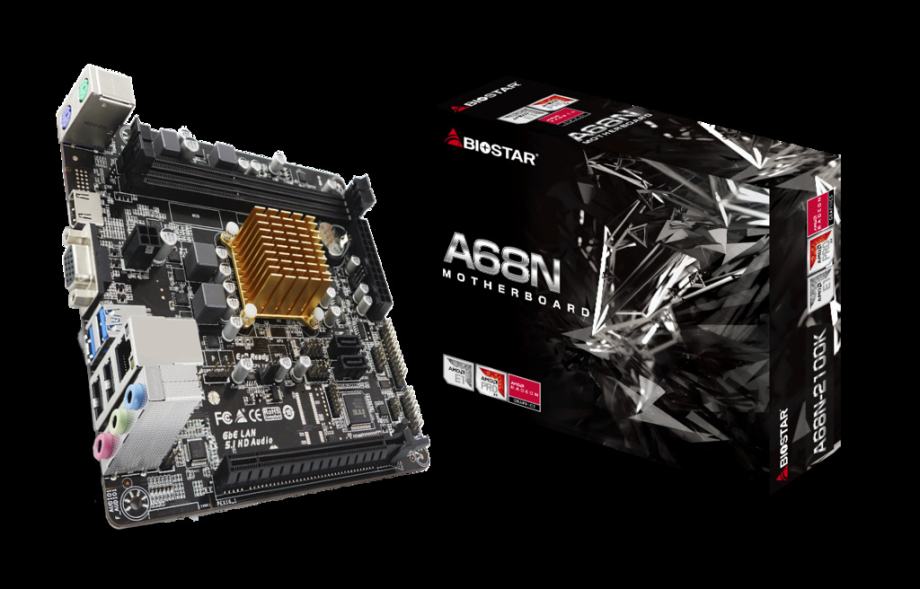

Biostar A68N-2100K

Chipset AMD Beema
CPU AMD E1-6010 Processor
(Dual core 1.35GHz)
MEMORY Supports Single Channel DDR3 & DDR3L 800/1066/1333 (1.25V)
2 x DDR3 & DDR3L DIMM Memory Slots
Max. Supports up to 16GB Memory
Each DIMM supports non-ECC 512MB/ 1/ 2/ 4/ 8 GB DDR3 & DDR3L module
※Please refer to www.biostar.com.tw for Memory support list
INTEGRATED VIDEO AMD Radeon™ R2 Graphics
Supports HDCP
STORAGE 2 x SATA III Connectors (6Gb/s) : Supports AHCI
LAN Realtek RTL8111H - 10/100/1000Mb/s Controller
AUDIO CODEC ALC887 / ALC897
7.1 Channels, High Definition Audio
USB 2 x USB 3.2 Gen1 Port (2 on rear I/Os)
6 x USB 2.0 Port (2 on rear I/Os and 4 via internal header)
EXPANSION SLOT 1 x PCI-E 2.0 x16 Slot (x4)
REAR I/O 1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.2 Gen1 Ports
2 x USB 2.0 Port
1 x HDMI Port
1 x VGA Port
1 x LAN Port
3 x Audio Jacks
INTERNAL I/O 2 x USB 2.0 Header (each header support 2 USB 2.0 ports)
2 x SATA III Connectors (6Gb/s)
1 x Front Audio Header
1 x Front Panel Header
1 x S/PDIF-Out Header
1 x CPU Fan Connector
1 x System Fan Connector
1 x TPM Header
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
1 x Clear CMOS Header
1 x COM Port Header
1 x Printer Port Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
DIMENSION Mini ITX Form Factor Dimension: 17 cm x 17 cm ( W x L )
OS SUPPORT Supports Windows 7 /8.1 /10
※Biostar reserves the right to add or remove support for any OS with or without notice.
BUNDLE SOFTWARE BullGuard
Smart Speed LAN
