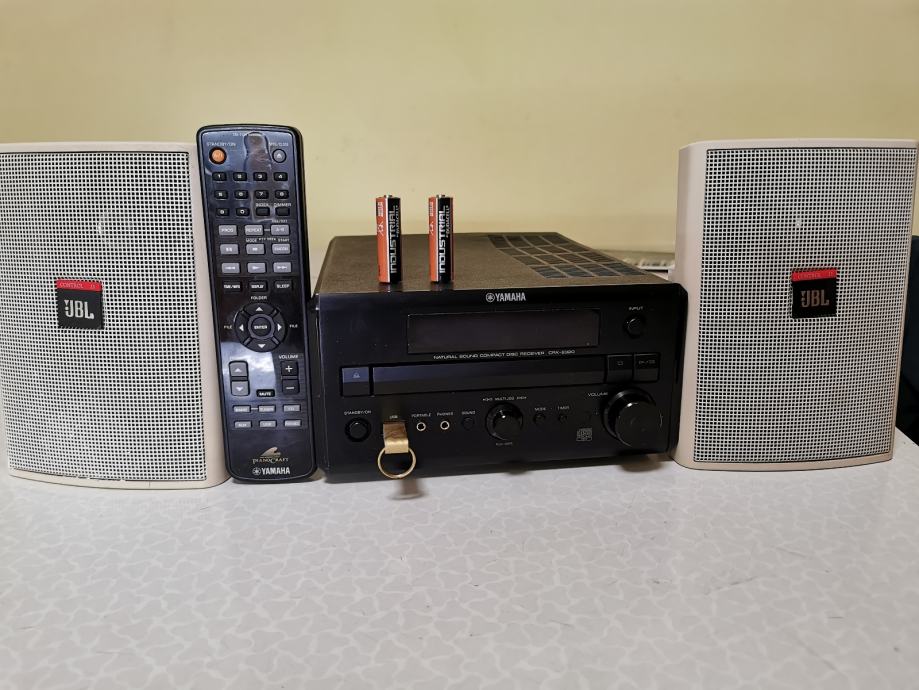

YAMAHA CRX 320 + JBL CONTROL 23

YAMAHA CRX 320 + JBL CONTROL 23

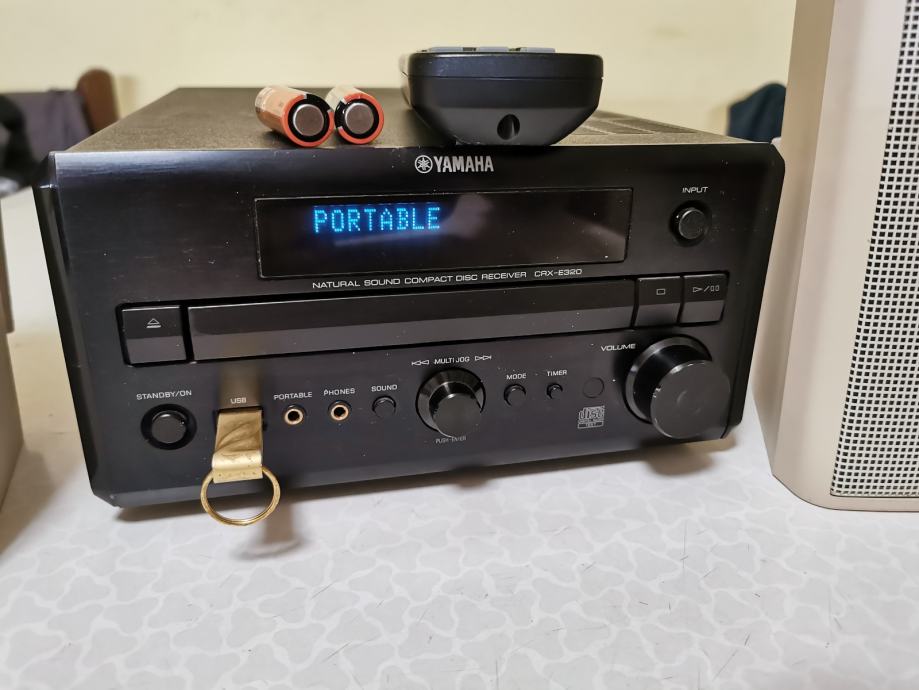

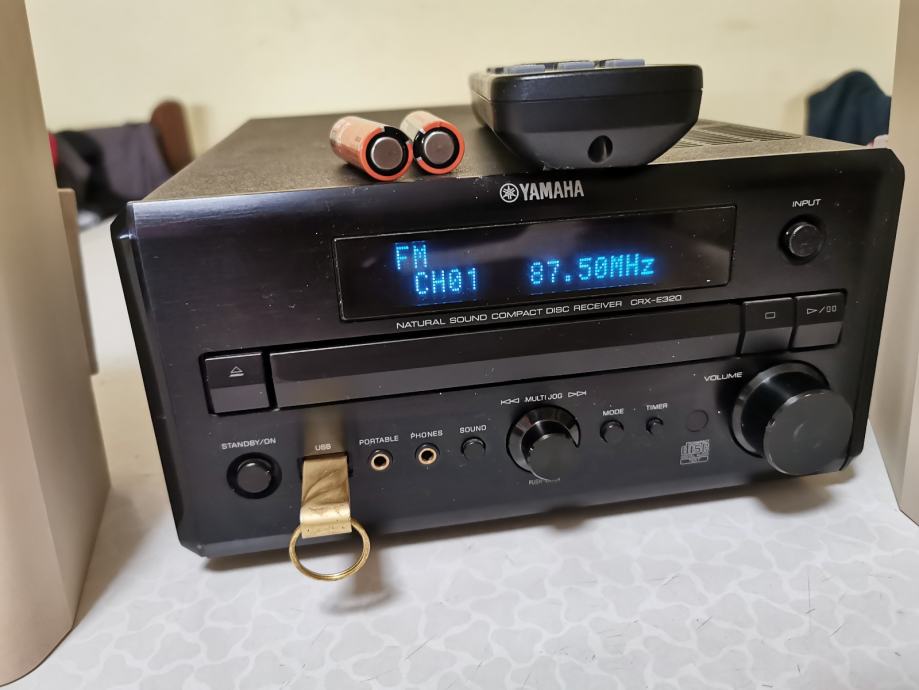

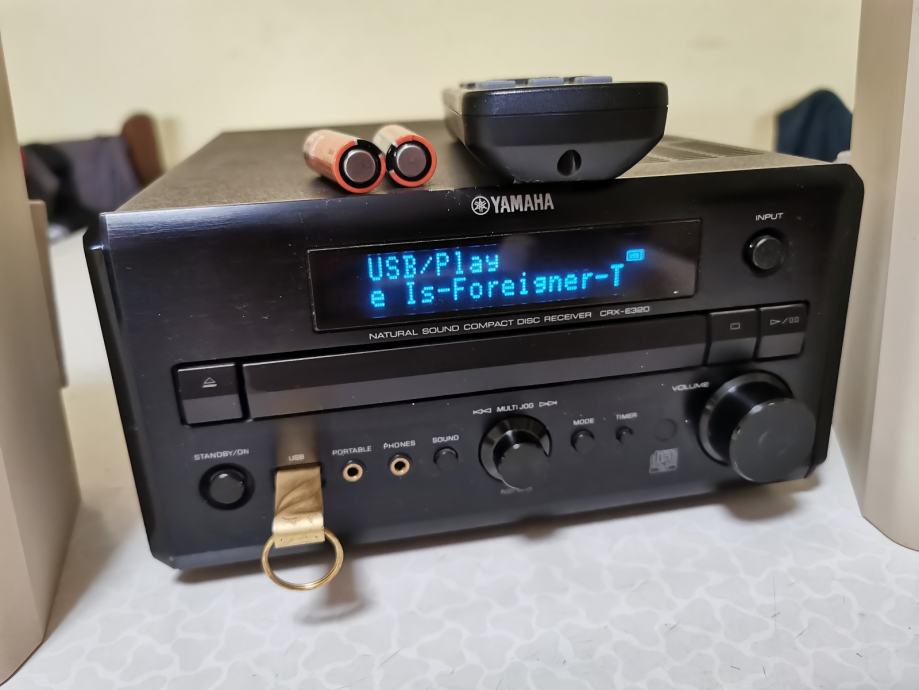

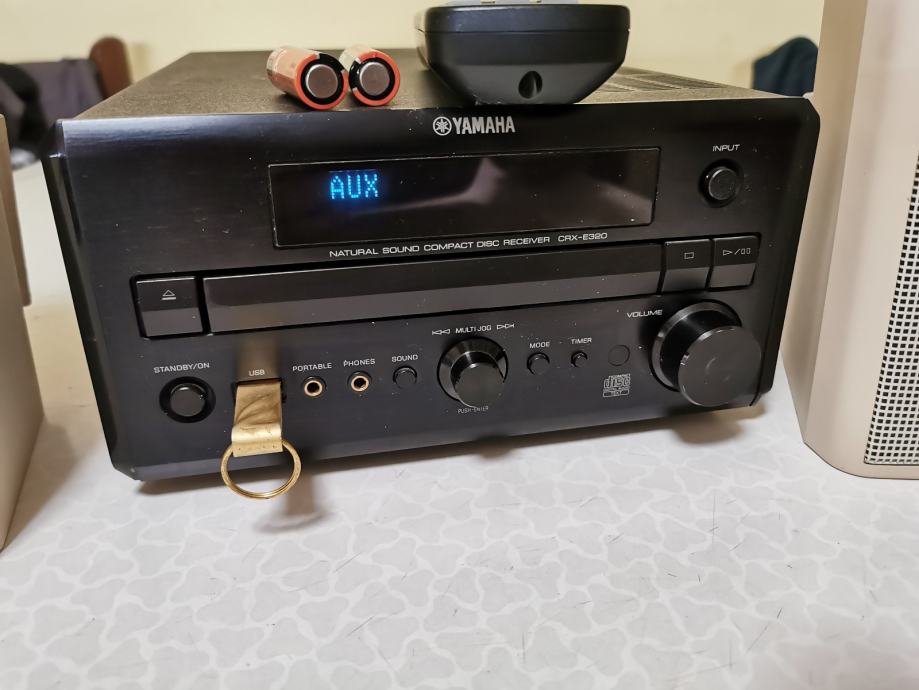

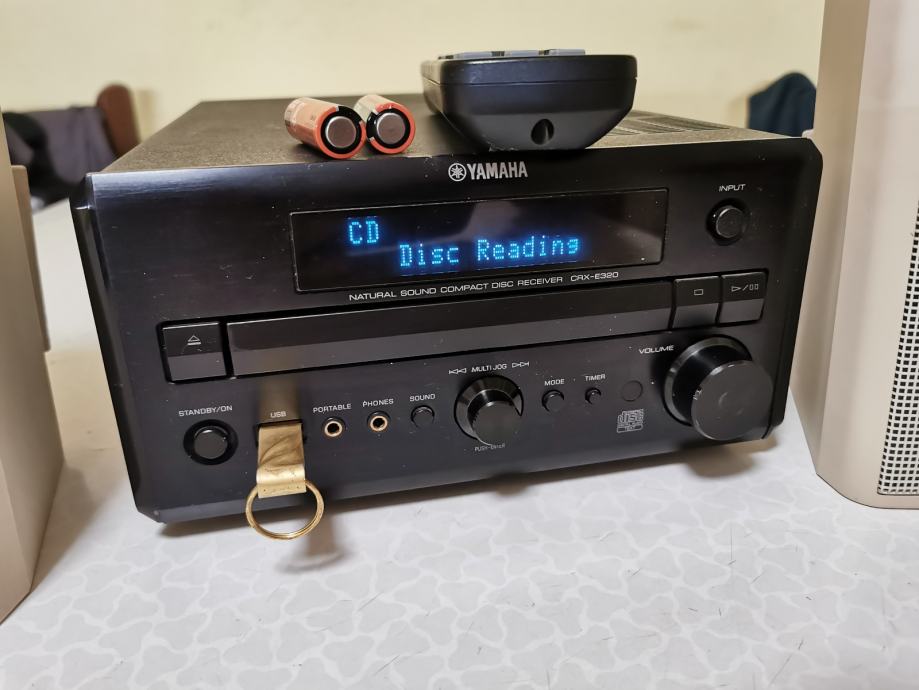

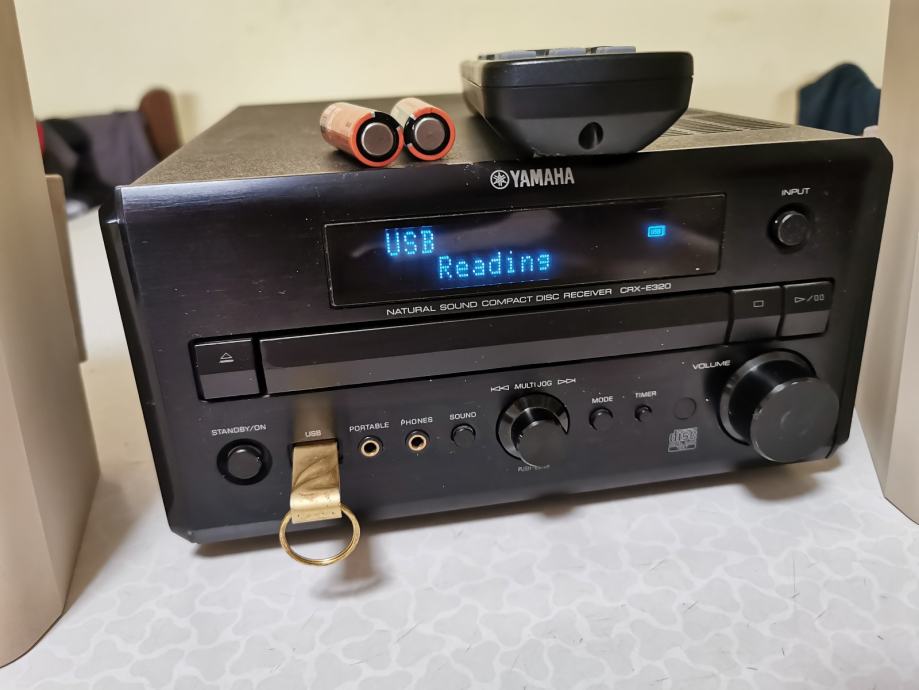

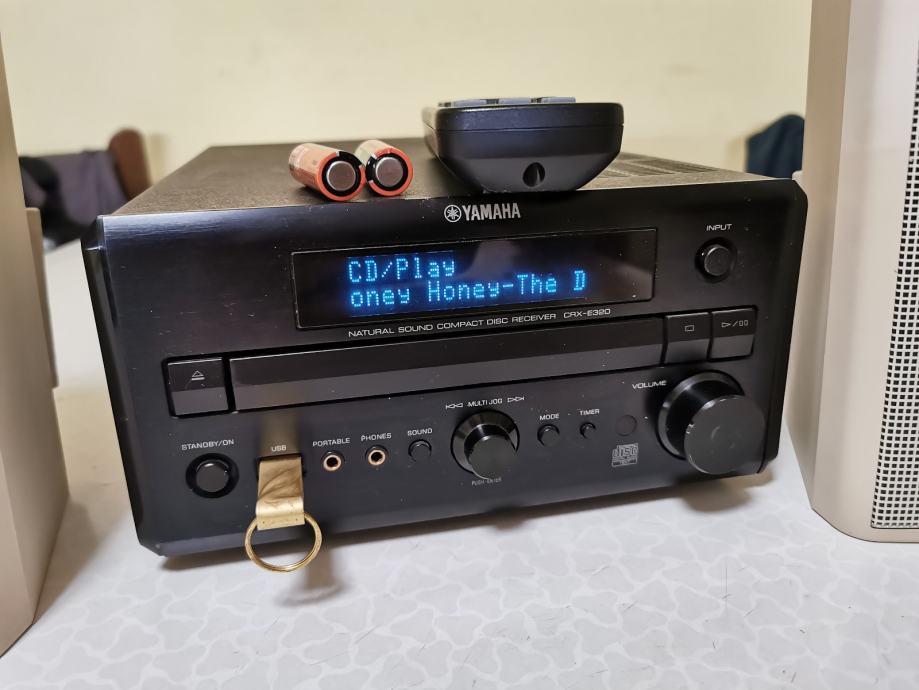

Yamaha CRX-E 320
specifikacija
MCR-E320
HiFi System
Center Unit Signal-to-Noise Ratio (1 kHz) 100 dB
Output Power/Channel (6 ohms, 1 kHz, 10% THD) 30 W + 30 W
Dimensions (W x H x D) 215 x 113 x 308 mm
Weight 3. 1 kg

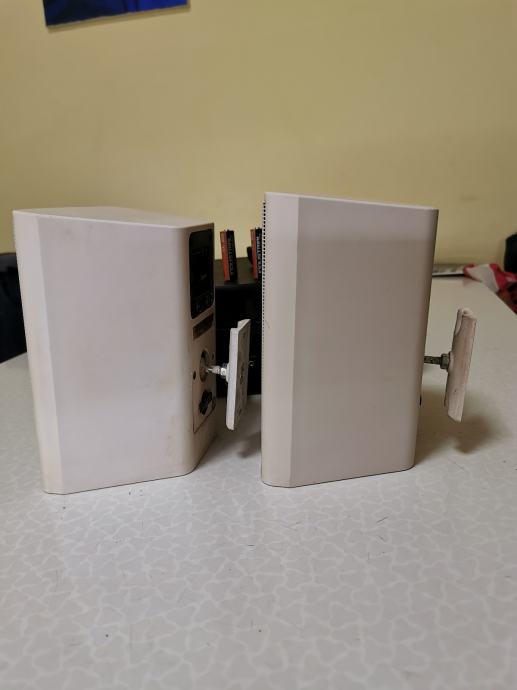

JBL CONTROL 23
High Output Two-Way Mid/High Frequency Loudspeaker
The Control® 23 is the most compact of JBL Professional’s Control Contractor Series indoor/outdoor loudspeakers making it a perfect choice for patios, foyers, retail or other applications where foreground/ background music and paging are required, with minimum aesthetic impact.

Features
Components: 3.5 in Polypropylene coated woofer, .5 in Titanium coated horn loaded tweeter.
Built-in InvisiBall® mounting hardware*.
Weather resistant enclosure and transducers.
Readily paintable to match decor.
90° x 90° high frequency horn.
Overload Protection Circuitry.
Sensitivity: 86 dB SPL, 1 W, 1m
*Patents pending worldwide
Downloads
Version Language Size Uploaded
file type icon Control Contractor Brochure en 1.71 MB Dec 2025
file type icon Control 23 Spec Sheet en 698 KB Dec 2025
file type icon Control Contractor Surface Mount Owners Manual en 1.96 MB Dec 2025
Specifications
file type icon Control 23 Spec Sheet 698 KB Oct 2020
Manuals
file type icon JBL Installed Sound Configuration Guide 160 KB Oct 2020
file type icon Control Contractor Series FAQ 65 KB Oct 2019
Brochures
file type icon Control Contractor Brochure (2025) en 23 MB Aug 2025
CAD Drawings
file type icon Utility Systems 110 KB Oct 2019
file type icon Control and Control Contractor Series 2.36 MB Oct 2019
Compliances
file type icon JBL Control Series Passive Speakers DoC 179 KB Dec 2019
file type icon Control Contractor Series Declaration of Conformity 131 KB Oct 2019
Software
Windows download icon Distributed System Design (DSD) 3.9 612 KB Nov 2025
Simulation Data
file type icon Ease SPK/DLL Files - Full JBL Pro Line 21 MB May 2024
Install Guides
file type icon Guide to Business Music 52.4 KB Oct 2020
file type icon Subwoofer - Satellite Application Guide 5.12 MB Oct 2020
file type icon Attaching Control Contractor Speakers to Stands 76.4 KB Nov 2019
file type icon Invisiball™ Installation Instructions 227 KB Sep 2019
file type icon Control Contractor Weather Resistance Testing 37.6 KB Oct 2020
file type icon InvisiBall Threading Specifications 27.4 KB Sep 2019
file type icon MTC-PC2 & MTC-PC3 Installation 58.7 KB Apr 2025
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Parts & Service
Part Lists
Authorized Service Partner Assets
Specifications
Frequency Range 85 Hz to 22 kHz (-10 dB)
Power Capacity 50 W Continuous Program Power; 25 W Continuous Pink Noise
Sensitivity 86 dB SPL, 1W, 1m
Directivity Factor (Q) 4.8 dB
Directivity Index (DI) 6.8 dB
Nominal Impedance 8 ohms
Crossover Frequency 3.5 kHz
LF Driver 88 mm (3.5 in) Polypropylene cone w/ WeatherEdge
HF Driver 13 mm (.5 in) Titanium coated polycarbonate
Enclosure Material THIPS (High Impact Polystyrene)
Overload Protection Full-Range power limiting to protect network and transducers

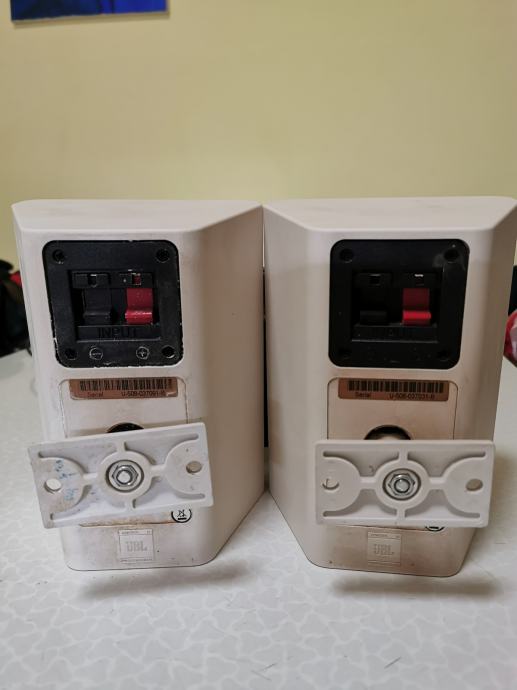

Terminations Spring terminals, accepts banana plug
Environmental Conforms to Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splashproof rating
Dimensions (H x W x D) 193 x 140 x 111 mm (7.6 x 5.5 x 4.4 in)
Net Weight (each) 1.8 kg (4 lb)
Shipping Weight (pair) 4.1 kg (9 lb)


Sve ispravno
Dostavu plaća kupac
Info-098 723 450
