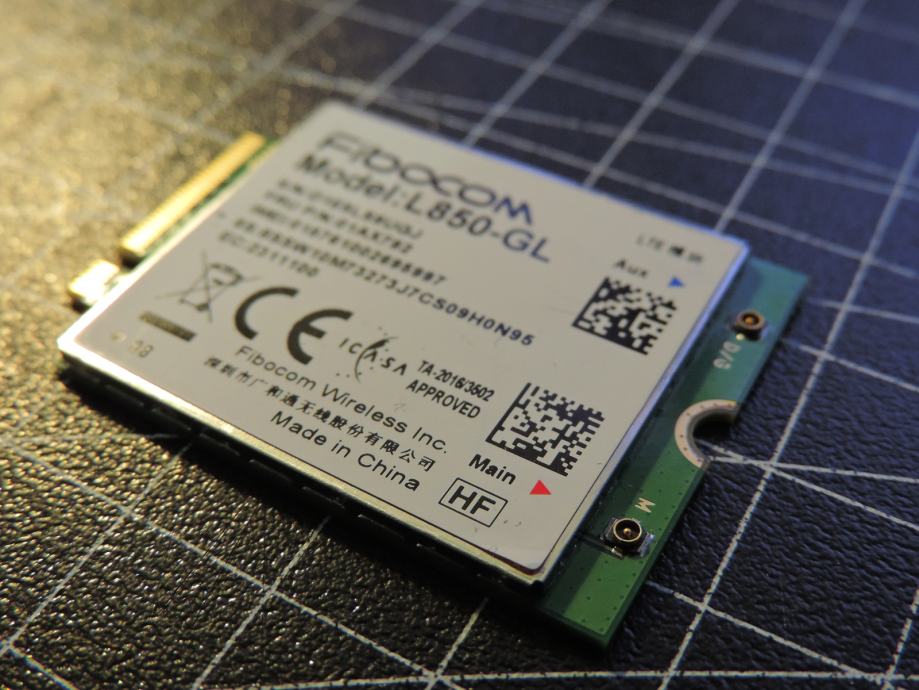

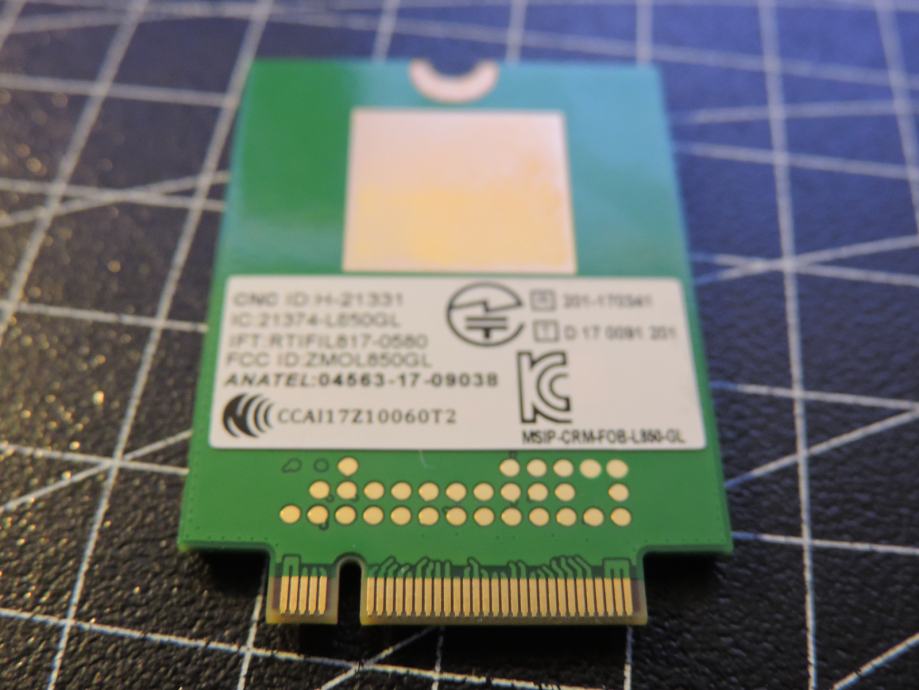

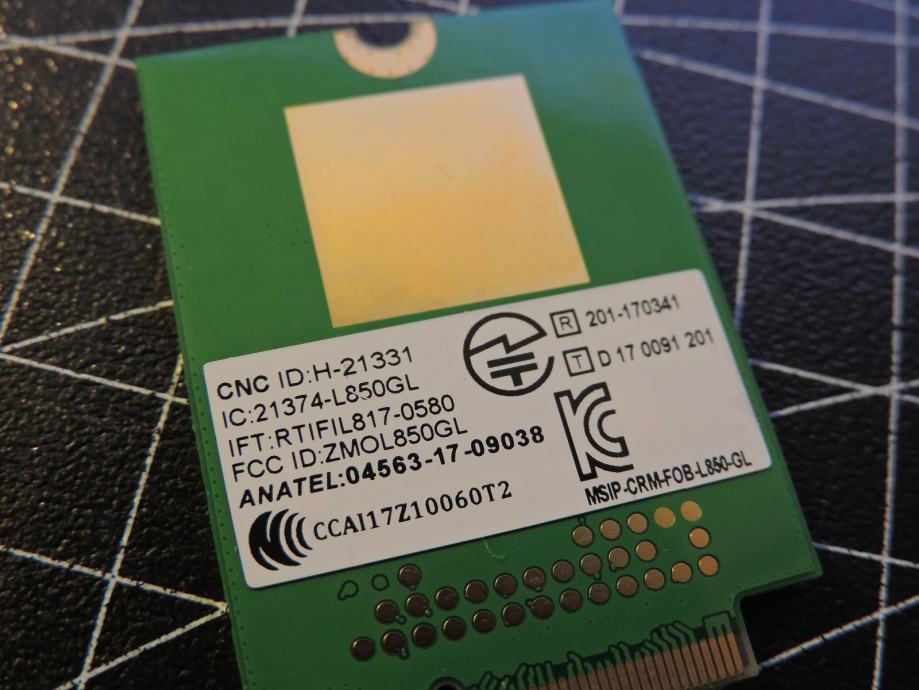

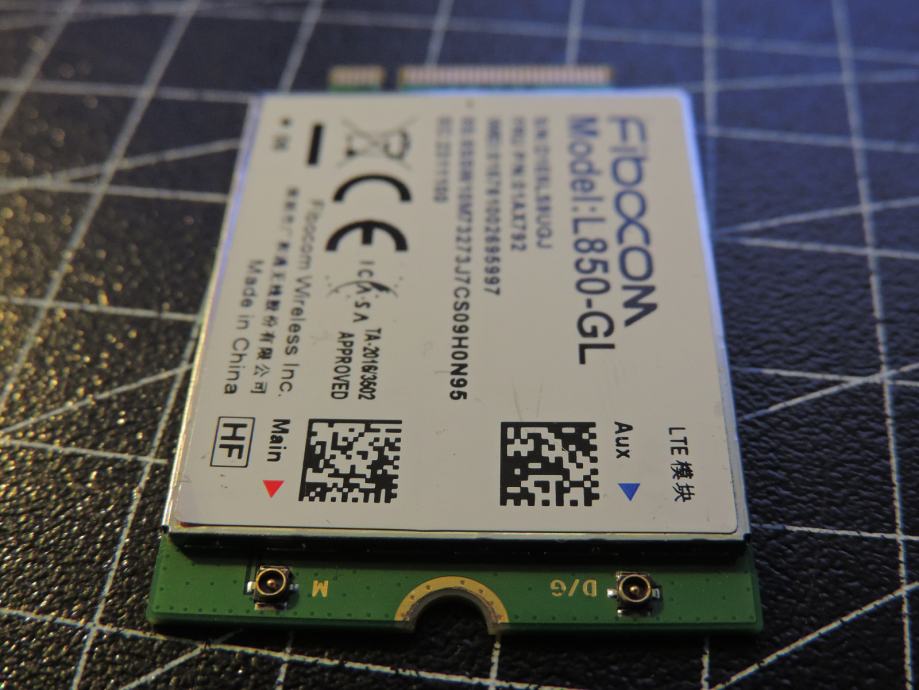

LENOVO 01AX792 Fibocom L850-GL M.2 WWAN 4G LTE Cat4 Modem + GPS GNSS

Na prodaju polovni, malo korišteni, 4G LTE modem za prijenosna računala i unutarnju ugradnju. Priključuje se na slot M.2 (NGFF Interface) označen i kao WWAN te koristi instalirane antene od laptopa. Izvađen je iz LENOVO T480s prijenosnika no može se ugraditi u sva ostala računala koja imaju SIM card čitač i slobodan WWAN M.2 Socket 2 (B key) slot, OSIM HP računala koja koriste samo module sa HP firmware-om.

Testiran, podržava sve operatere i radi bez ikakvih problema. Jednostavna instalacija, windows 10/11 automatski instalira drivere (nisam testirao sa ostalim sistemima).

*** LENOVO FRU 01AX792 / LENOVO PN D1E5LS9UGJ ***
FIBOCOM Wireless - L850-GL 4G LTE M.2 Modem
CHIPSET INTEL XMM 7360
DOWNLOAD 450Mbps
UPLOAD 50Mbps

KOMPATIBILAN SA SLIJEDEĆIM LENOVO RAČUNALIMA:
THINKPAD-X280-TYPE-20KF-20KE
THINKPAD-X1-CARBON-6TH-GEN-TYPE-20KH-20KG
THINKPAD-T480-TYPE-20L5-20L6
THINKPAD-T480S-TYPE-20L7-20L8
THINKPAD-T580-TYPE-20L9-20LA
THINKPAD-P52S-TYPE-20LB-20LC
THINKPAD-X1-YOGA-3RD-GEN-TYPE-20LD-20LE-20LF-20LG
THINKPAD-X380-YOGA
THINKPAD-L480-TYPE-20LS-20LT
THINKPAD-L580-TYPE-20LW-20LX
THINKPAD-P52-TYPE-20M9-20MA
THINKPAD-A485-TYPE-20MU-20MV
THINKPAD-A285-TYPE-20MW-20MX

Unlocked Ready for use with global services. No contract required.

Može se preuzeti / pogledati u Splitu, šaljem dostavnom službom po vašem izboru.
Prihvaćam plaćanje pouzećem / Uplatu na račun / PayPal / KeksPay ili PayProtect.

■ EMAIL iespekphone@gmail.com ■ WHATS / VIBER 091 798-1836 ■

SPECS
* Technology: LTE Cat 9/HSPA+/UMTS
* Interface Connector: M.2
* Chipset/Platform: Intel XMM 7360 LTE modem
* IO Interface: I2C, GPIO, SIM
* RF Connector: U.FL
* Operating System Support: Windows/Linux
* Support Frequency Bands
- 4G FDD Band 1,2,3 4 5,7,8,11,12,13,17,18,19,20,21,26,28/29,30,66
- 4G TDD Band 38,39,40,41
- 3G: Band 1,2,4,5,8
* Temperature (operating): -10 to +55C (normal), -20 to +70C (extended), -40 to +85C (storage)
* Power Supply: 3.135-4.4 VDC
* Dimensions: 1.65" x 1.2" x 0.1"
* Carrier Approvals: Global
* EMC Approvals: FCC, IC, PTCRB, GCF
