IDIS-(DIRECT IP) NVR

Prodajem mjesec dana korišten IDIS IP NVR,
Može se napajati sa 12v (2A) ili 48v (1A),

Uključuje 2TB Hard WD Purple Surveillance

Pregled preko weba/mobitela/aplikacije


Ukratko:
• Total incoming throughput 84Mbps
• Up to 120ips Full HD real-time recording
• Up to 120ips live display
• Easy to install, set-up, and play with DirectIP cameras
• Built-in 4 channel PoE switch
• Expandable up to 36TB using eSATA storage
• Supports one click network configuration through FEN service
• Supports third-party cameras (Axis, Panasonic, ONVIF)




Detalji:
VIDEO
Video Inputs 4 IP channels
Max. Incoming Throughput 84Mbps
Supported Camera DirectIP™, AXIS, PANASONIC, ONVIF™
Video Outputs 1 HDMI, 1 VGA
Display Resolution 1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200
Display Speed Up to 120ips
Digital Zoom x2 ~ x12

RECORDING
Max. Throughput 32Mbps, 120ips@Full HD
Recording Resolution Up to 8MP (Depending on IP Camera)
Compression H.264
Recording Mode Time-Lapse, Event, Pre-Event, Panic
Trigger Events Alarm in, Audio detection, Motion detection, Trip-zone, Tampering, Video loss

PLAYBACK
Performance 4ch Full HD synchronous playback
Search Mode Time-lapse, Event log,Thumbnail, Motion, Text-in
Digital Zoom x2 ~ x12

STORAGE
HDD SATA x2, eSATA x1,(Up to 4TB capacity for each disk)
Total Capacity 24TB=4TB x (2 1×4)

NETWORK
Client Connection Gigabit Ethernet(Client) x1
Video in Connection Fast Ethernet(IP Camera) x4
Transmission Speed 20Mbps / 50Mbps(BRP Mode)
Camera Power PoE(IEEE 802.3at class 4) supported 4 ports, 50W
Remote Data Export IDIS Player, AVI, JPG
Event Notification Email (attach clip (.cbf) .MP4), Callback to Remote S/W, Push notification (IDIS Mobile), SNS (Twitter)
Two-way Audio yes
Client Viewer IDIS Center, IDIS Mobile, IDIS Web, IDIS Solution Suite

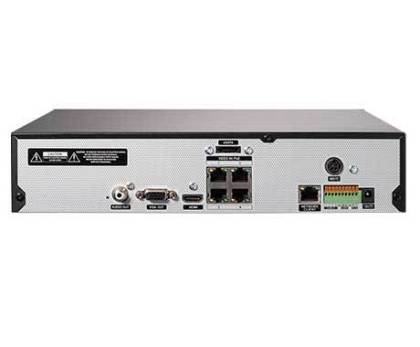

INTERFACE
Audio In/ Out Local(NVR) : – / 1RCA 1HDMI
IP Camera : 4 / 4 (Depending on IP Camera)
Alarm In / Out Local(NVR) : 4 / 1
IP Camera : 4 / 4 (Depending on IP Camera)
Alarm Reset In –
Serial Interface RS232 (Terminal Block)
USB USB 2.0 x 1, USB 3.0 x 1
User Interface Mouse, IR Remote Control, Network Remote Keyboard

GENERAL
Operating System Embedded Linux

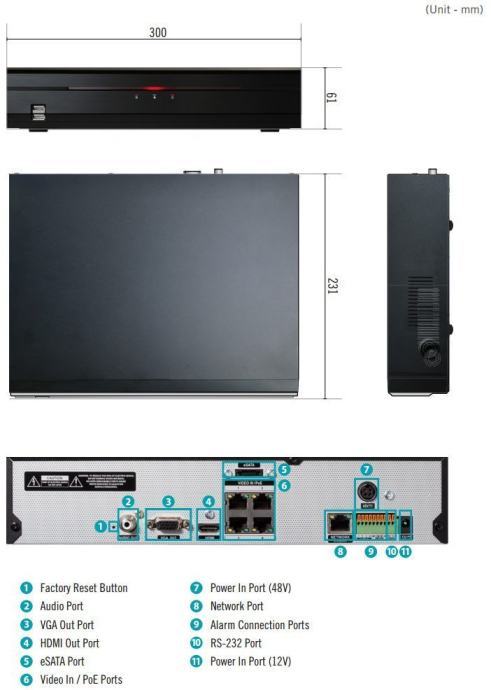

UNIT Dimensions (W x H x D) 300mm x 62mm x 231 mm (11.8″ x 2.4″ x 9.1″)
Unit Weight 2.3kg (5.1lb) (with 1 HDD)
Working Temperature 0°C to 40°C (32℉ ~ 104℉)
Operating Humidity 0% ~ 90%
Power Input DC 12V 2.1A (for NVR), DC48V 1.0A(for PSE)
Power Consumption 25.2W (for NVR), Max. 52W (for PSE)
Approvals FCC, CE, KC, PSE
