Kvalitetni vintage tuner

Prodajem ovaj lijepi vintage tuner.
U odličnom je stanju i radi savršeno.
Cijene i podatci uređaja su u nastavku.

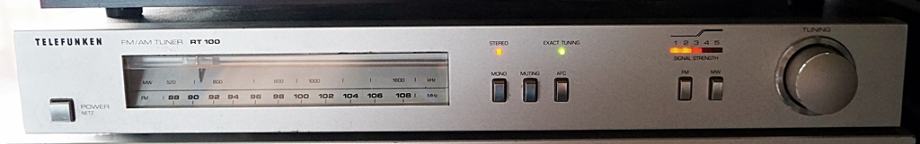

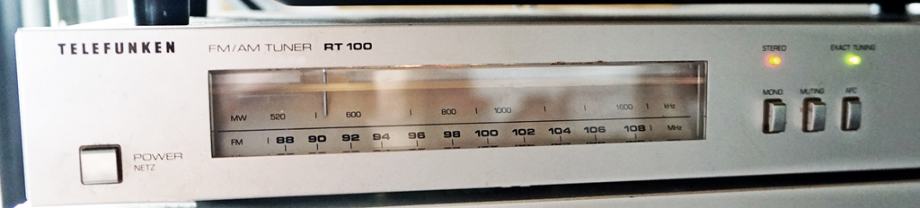

1. Telefunken FM/AM Analog Tuner model: T-100
------------------------------------------------
- Dosta cijenjeni analogni vintage tuner među HiFi poznavateljima. Poznato je da su analogni tuneri što se tiče boje i prirodnosti zvuka bolji od digitalaca (bar to kažu „znalci“). Na Vama je da ocijenite. Tuner je u odličnom estetskom stanju, skala nigdje ne zapinje i osvjetljenje skale radi.
------------------------

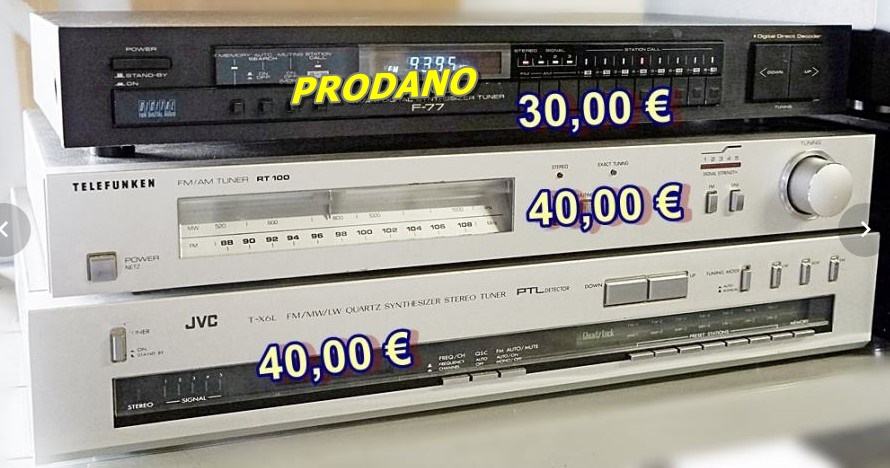

- CIJENA 30,00€
------------------------

Ukoliko želite vrhunski tuner u svakom smislu, ovo je uređaj za Vas!


Telefunken T-100 Analog Tuner – Specifications:
------------------------------------------------

Start of Sale: 1981
General Description:
This is the simplest tuner from the silver series, if you don't count the midi-stype MT2. Nothing super fancy, but it works, and it can nowadays be had for very few money...

Features
UKW/MW, variable capacitor tuning, LED signal strength indicator, exact tuning indicator, mono switch, AFC (switchable), muting (switchable)

Connectors

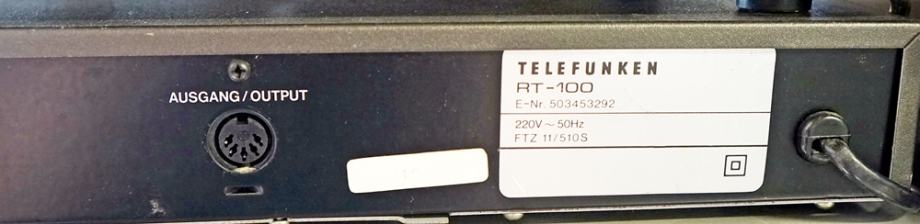

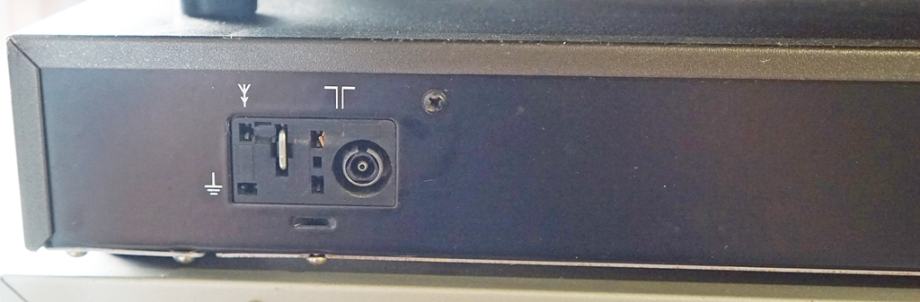

AF Output (DIN), Antenna (75 Ohms asymmetric 240 Ohms symmetric AM/FM)

Technical Data (taken from the user's manual)

FM Receiver
-----------------
Wave Band: 87.5 - 108 MHz
Circuits: 12, 4 adjustable
Sensitivity: 60 dB
Carrier Signal Suppr.: >60 dB
Frequency Response: 22 Hz - 15.0 kHz
Distortion Factor: 66 dB mono
S/N Ratio: >62 dB stereo
>66 dB mono
Range of Strength Display: 1 µV - 2 mV
Stereo Threshold: ~5 µV at 75 Ohms

AM Receiver
-----------------
Sensitivity: 10 µV at 600 kHz
(at 1 kHz 30% Modulation)
Wave Band: MW 520 - 1610 kHz
Circuits: 5, 2 adjustable
Intermediate Frequency: 460 kHz
IF Bandwidth: 4.2 kHz
Voltage Ratio: 53 dB at U = 10 mV,
1 kHz, 30% Modulation
Range of Strength Display: 20 µV - 50 mV

General
Components: 4 Integrated Circuits
15 Transistors
12 Diodes, 7 LEDs
Mains Connection: 220/110 V
Fuses: 1 x T 630 mA
1 x T 315 mA
1 x T 100 mA
Dimensions: 435 x 56 x 250 mm
Weight: ~ 3.5 kg
