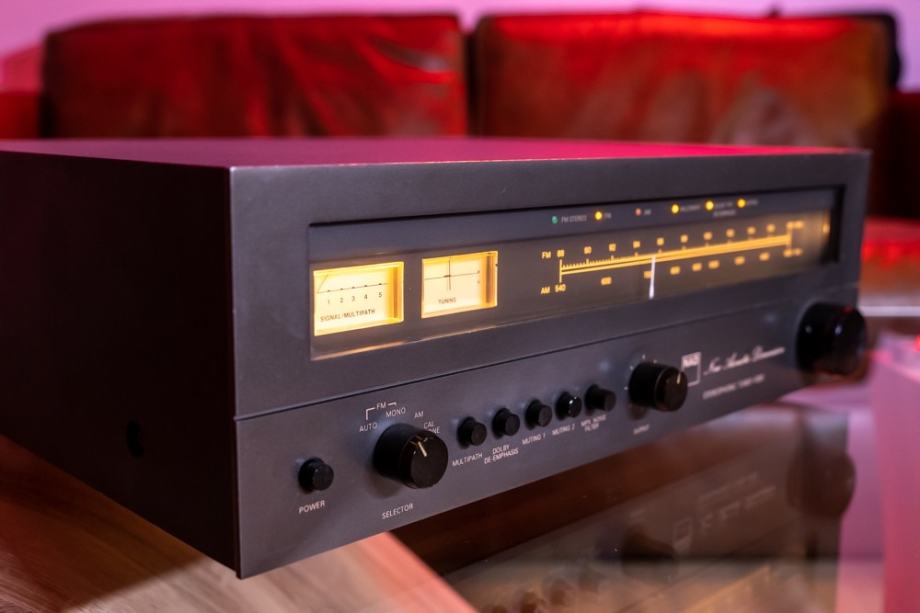

Nad 4080 High End Vintage tuner
- Cijena
- 300 €
+ zaštita kupca 12,00 €
+ dostava 4,90 €
Sigurna kupovina uz PayProtect
Dostava diljem Hrvatske
Kupuj uz PayProtect od provjerenih prodavača uz garanciju povrata novca i sigurnu dostavu. Saznaj više
Šifra oglasa: 37174469
Osnovne informacije
- Lokacija
- Grad Zagreb, Trnje, Trnje
- Stanje
- rabljeno
Opis oglasa
Prodaja vlastite kolekcije
Front Panel Controls
Power Switch
Selector FM/FM Mono/AM/Calibration
Mulitpath
Dolby FM Equalization
Muting 1
Muting 2
MPX Noise Filter
Output
Tuning Knob
Tuning Dial
LED Indicators
Tuning Meter
Signal/Multipath Meter
Back Panel
AM Antenna
FM Antenna 300 ohm or 75 ohm
FM Deemphasis
Outputs fixed or variable
Detector outputs/external oscilloscope
Adapter Outputs - Dolby Decoder
FM Tuner Section
Input Sensitivity 30 dB quieting 1.8uV/10.3dBf
Input Sensitivity 50 dB S/N Stereo 35uV/36.1 dBf
Signal to Noise Ratio Mono/Stereo 74dB/70dB
De-emphasis Accuracy re 75u. sec +/- 0.3 dB
Frequency Response 30 - 15 kHz +/- 0.5 dB
Channel Separation at 1kHz - 40dB
Selectivity, alternate channel - 70dB
AM Supression at 45 &65 dBf - 65dB
Capture Ratio at 45 &65 dBf - 1.0dB
Image Rejection - 70dB
I. F. Rejection - 80dB
SCA Rejection - 70dB
Pilot Signal Suppression - 55dB
THD at 100% Modulation Mono/Stereo 0.2%/0.3%
AM Tuner Section
Usable sensitivity - 300uV
Selectivity - 30dB
Image Rejection - 55 dB
I. F. Rejection - 45dB
Dimensions
Width x Height 19.3 x 5.9 x 14 inches ( 49 x 15 x 35,5 cm )
Net Weight 20 Pounds. ( 9 kg )
Navedena cijena je konačna a zamjena me ne interesira, hvala
