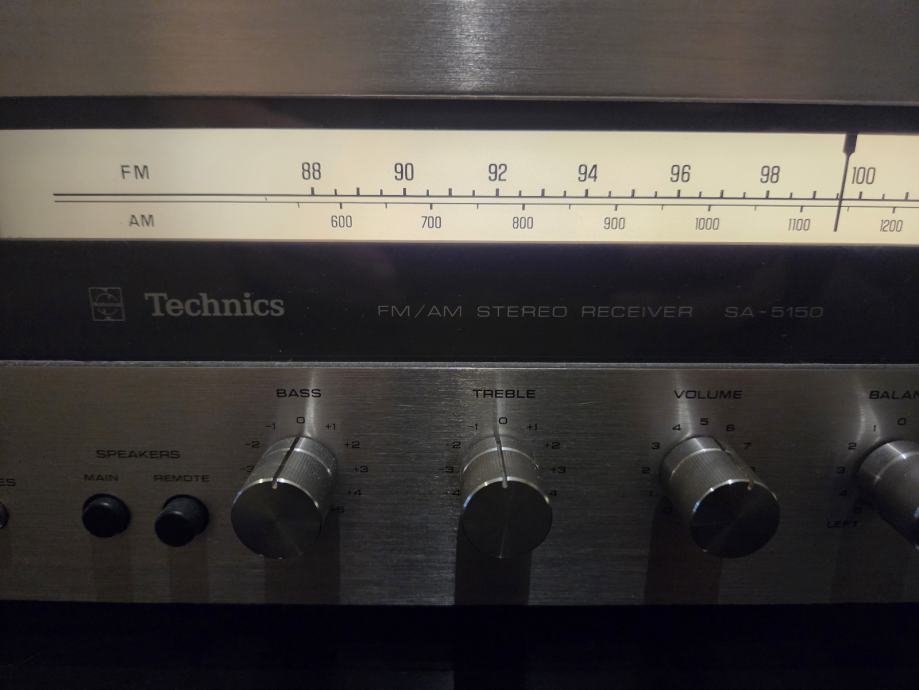

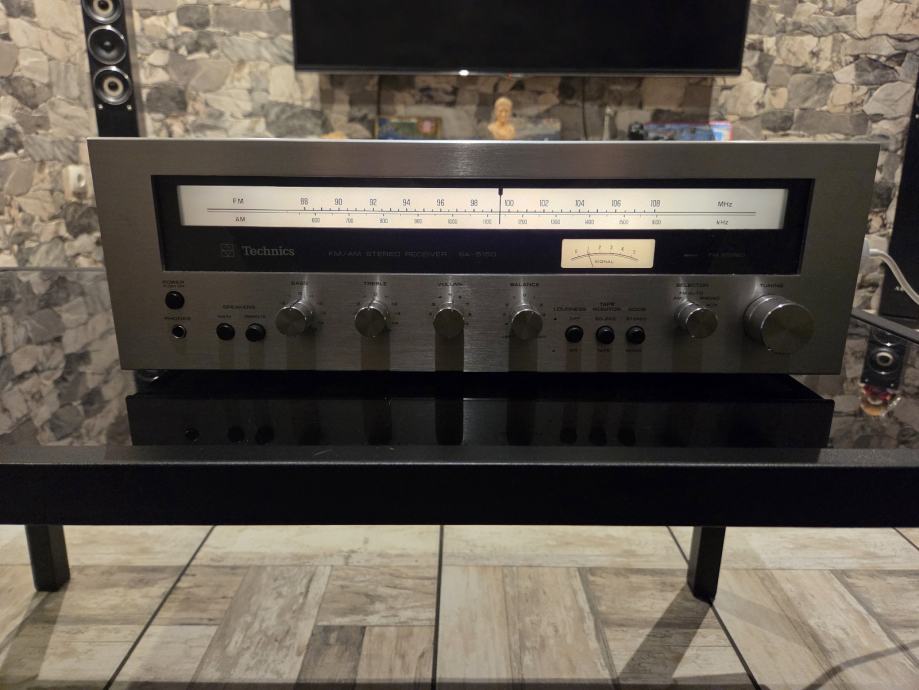

Technics SA 5150

Prodajem navedeni receiver u super očuvanom i ispravnom stanju. Cijena je 150 eura.
General

Manufacturer: Technics
Model: SA 5150
Years of manufacture: 1975 - 1977
Made in: Japan
Color: silver, housing veneered or black
Remote control: no
Power consumption:
Dimensions: 420 x 140 x 355 mm (WxHxD).
Weight: 7.4 kg
Original price approx.: 798 DM

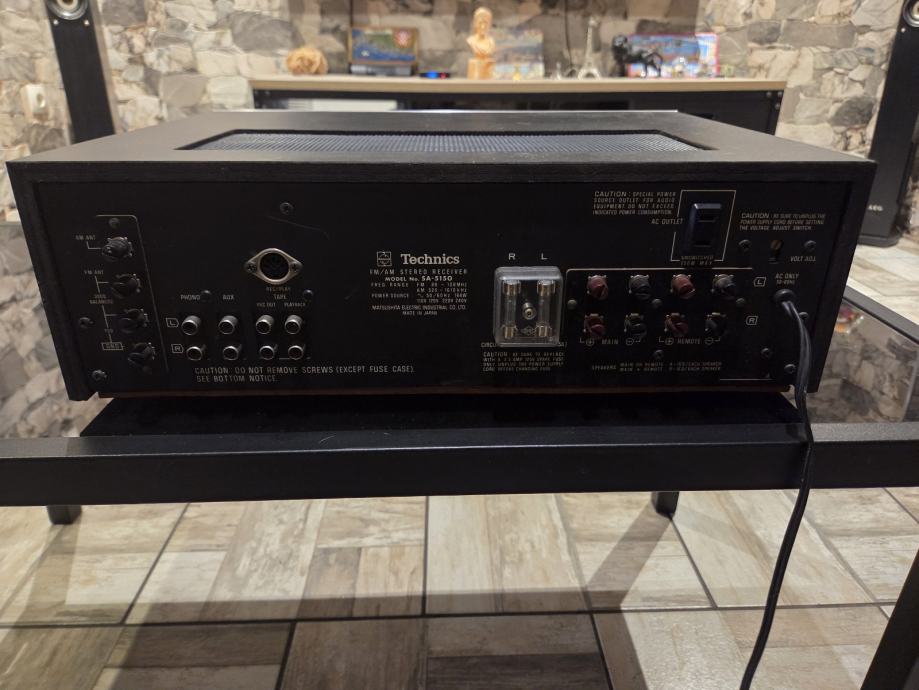

Connections

Number of inputs:
Phono: 2 mV / 50 kOhm
Aux: 180 mV / 40 kOhm

Tape Play 1, 2: 180 mV / 40 kOhm
Antenna (75/300 Ohm)
Number of outputs:
Band Out 1: 180 mV
Band Out 2: 150 mV
Headphones (6,3mm jack)
Loudspeaker

Technical Data

Amplifier

Continuous power
8 Ohm: 2x 17 W 4 Ohm: 2x 20 W

dynamic power
8 Ohm:
4 Ohm:
Total harmonic distortion: 0.8 %
Attenuation factor: 20
Frequency response: 5 - 35'000 Hz (-3 dB)
Signal to noise ratio:
External voltage spacing: (at rated power).
Phono: 70 dB
Aux: 90 dB

Stereo channel separation:
Tone control:
Bass: 50 Hz, ± 13 dB
Treble: 10 kHz, ± 12 dB

Loudness: yes, 50 Hz, + 10 dB
High Filter: yes, 7 kHz, - 6 dB / octave
Low Filter (Subsonic):
Mute:

Tuner

Reception: FM/MW
Frequencies:
FM: 88 - 108 MHz
MW: 530 - 1605 KHz
Input sensitivity:
FM: 1.9 µV
MW: 30 µV

Frequency response:
FM: 20 - 15,000 Hz (+0.2/-0.8 dB).
Distortion factor:

FM: 0.25% (stereo)
Signal-to-noise ratio:
Signal-to-noise ratio:
FM: 54 dB (stereo)
Channel separation: 40 dB
Selectivity:
FM: 70 dB
MW: 22 dB
Equal wave selection:
FM: 1.8 dB
Spurious wave selection:
Image frequency attenuation:
FM: 53 dB
IF attenuation:

VHF: 70 dB
AM suppression: 60 dB

Special Features

VHF muting
