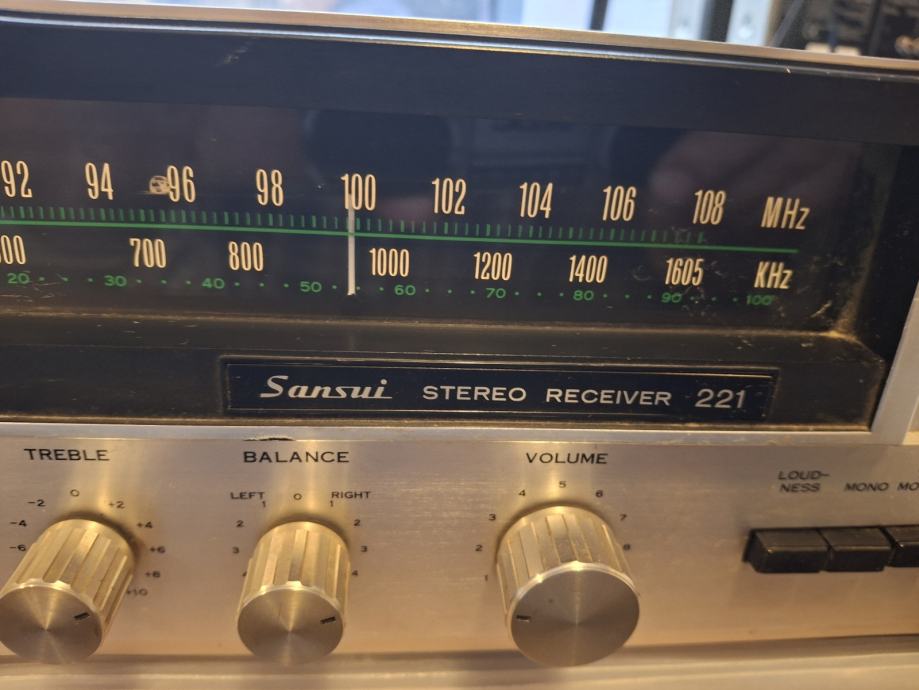

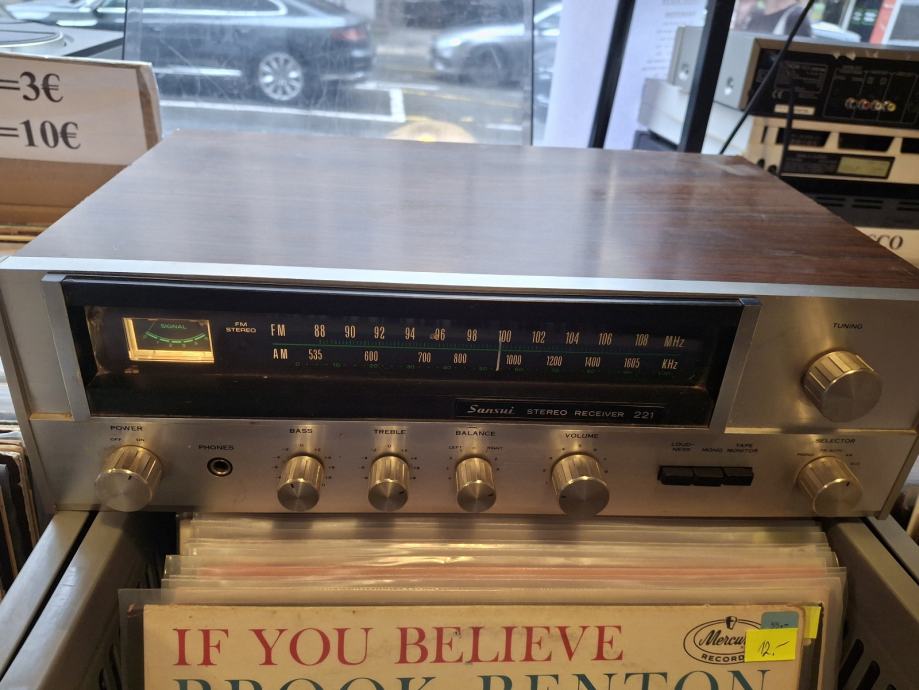

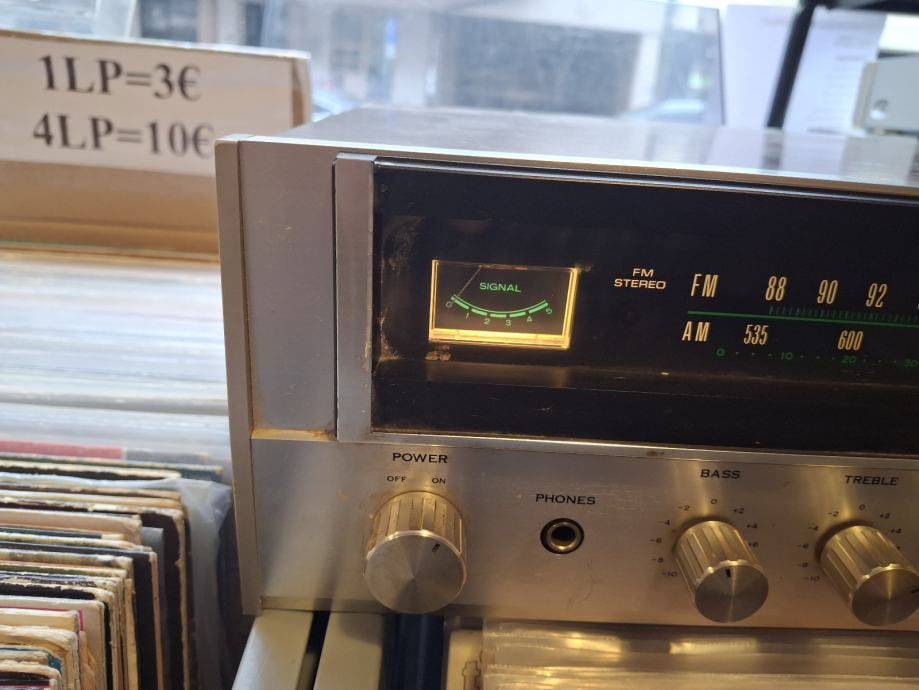

Sansui receiver 221 odličan

Odličan vintage receiver, mali ali močan, u solidnom ispravnom stanju.
Sansui 221

Namespaces

Page

Discussion

Page actions

View source

History

More

Data

General

Manufacturer: Sansui

Model: 221

Year of manufacture: 1974 - 1976

Made in: Japan

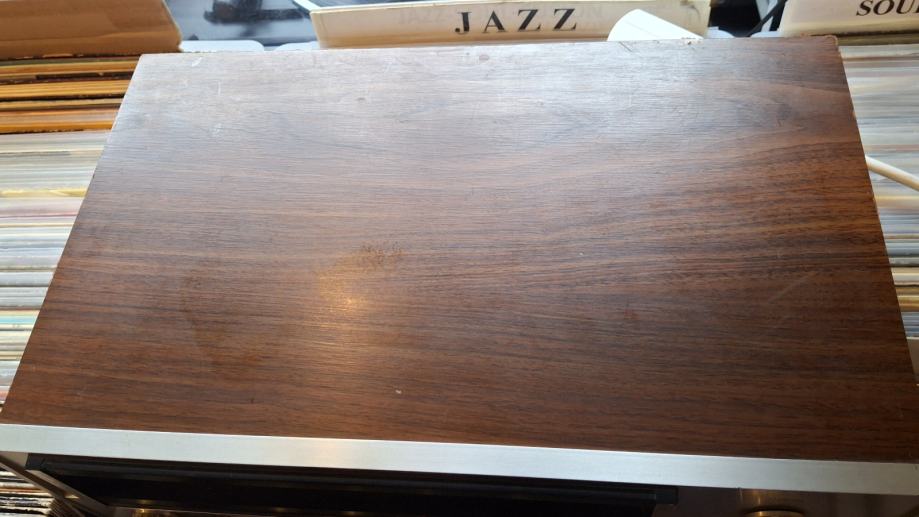

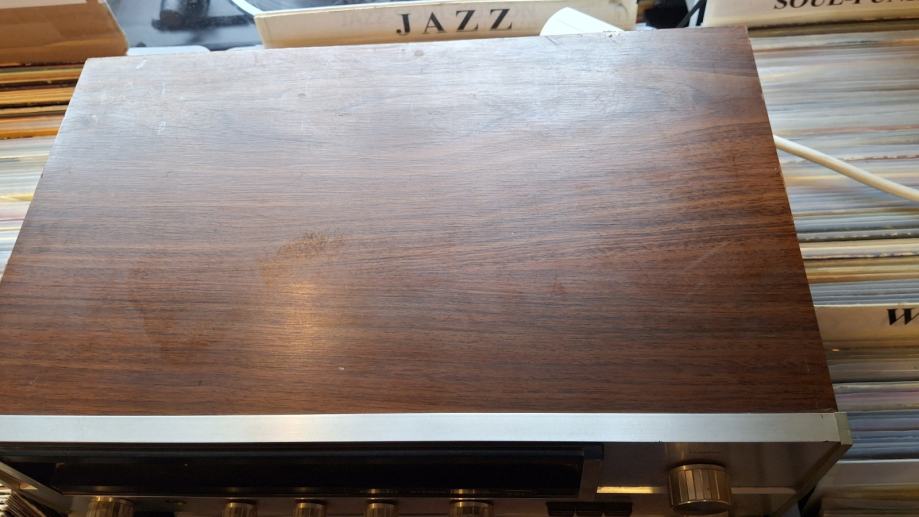

Color: Silver, housing wood

Remote control: -

Power consumption: 75 W max.

Dimensions: 424 x 125 x 266 mm

Weight: 5.3 kg

Original price approx.: 595 DM

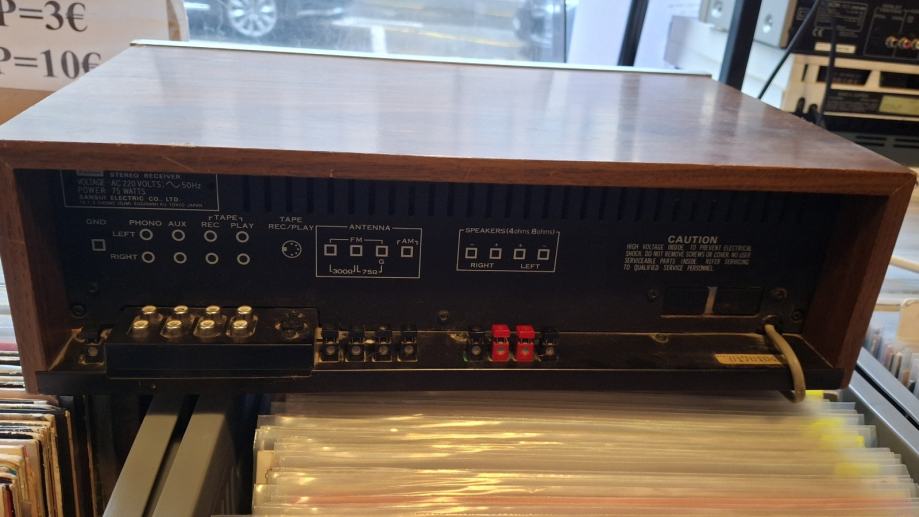

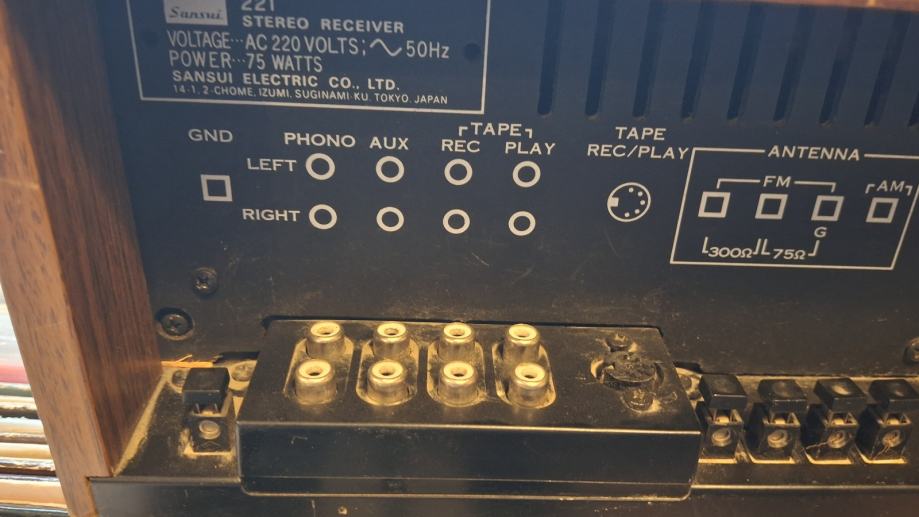

Connections

Number of inputs:

Phono MM: 2.5 mV / 50 kOhm, 120 mV max.

AUX: 150 mV / 50 kOhm

Tape Play: 150 mV / 50 kOhm

Tape Play DIN: 150 mV / 50 kOhm Antenna MW Antenna VHF 300 Ohm Balanced

Antenna FM 75 Ohm Unbalanced

Number of outputs:

Tape Rec: 150 mV

Tape Rec DIN: 30 mV

Headphones (6.3 mm jack, front)

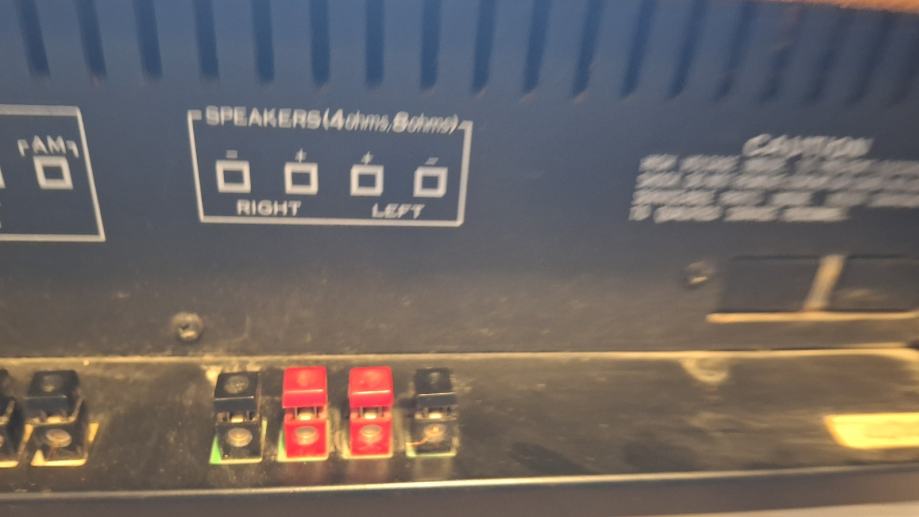

1 pair of loudspeakers


Technical Data

Amplifier

Continuous power

8 Ohm: 2 x 4 W (20 Hz - 20 kHz), 2x 4 W (1 kHz)

4 Ohm:

Dynamic power

8 Ohm: 9 W

4 Ohm: 10 W

Total harmonic distortion: 1.0

Attenuation factor: 30 at 8 Ohm

Frequency response: 40 Hz - 20 kHz

Signal-to-noise ratio:

Phono MM: 70 dB

High level: 80 dB

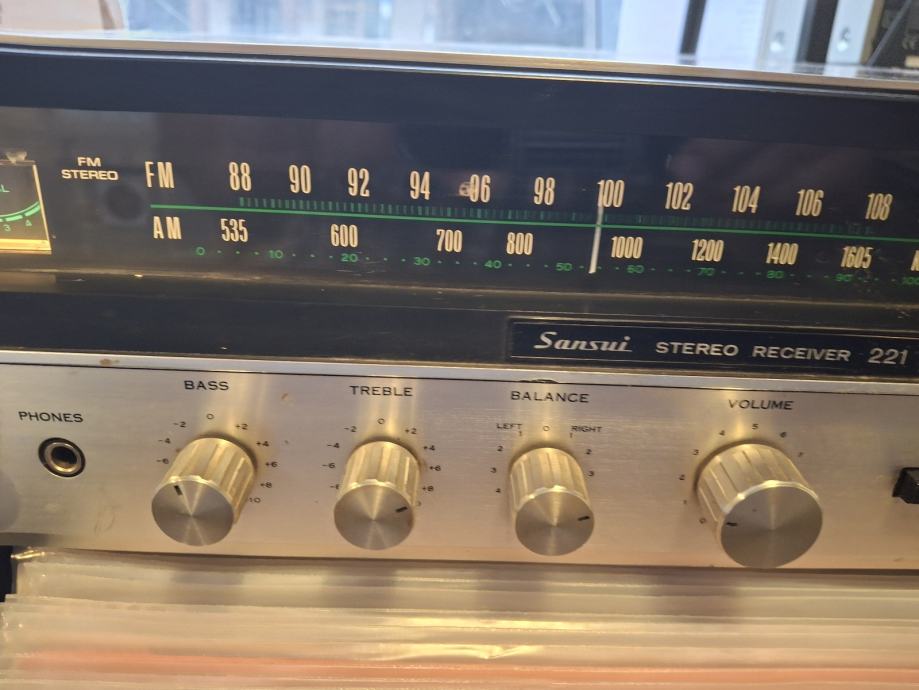

Tone control:

Bass: ± 12 dB at 50 Hz

Treble: ± 10 dB at 10 kHz

Loudness: + 10 dB at 100 Hz, + 8 dB at 10 kHz

High Filter:

Low Filter (Subsonic):

Mute:


Tuner

Reception: FM, MW

Frequencies:

FM: 87.5 - 108 MHz

MW: 525 - 1,605 kHz

Frequency response: 30 - 15,000 Hz, + 0.5 dB, - 3 dB

Input sensitivity:

FM: 2.5 µV (IHF).

MW:

Distortion factor:

FM: 0.8 % (mono), 1.0 % (stereo).

Signal-to-noise ratio:

FM: 65 dB (stereo)

Channel separation:

FM: 35 dB (at 1 kHz).

Selectivity:

FM: 60 dB

Equal wave selection:

FM: 1.5 dB

Spurious wave selection:

FM: 70 dB

Image frequency attenuation:

VHF: 50 dB

IF attenuation:

FM: 70 dB
