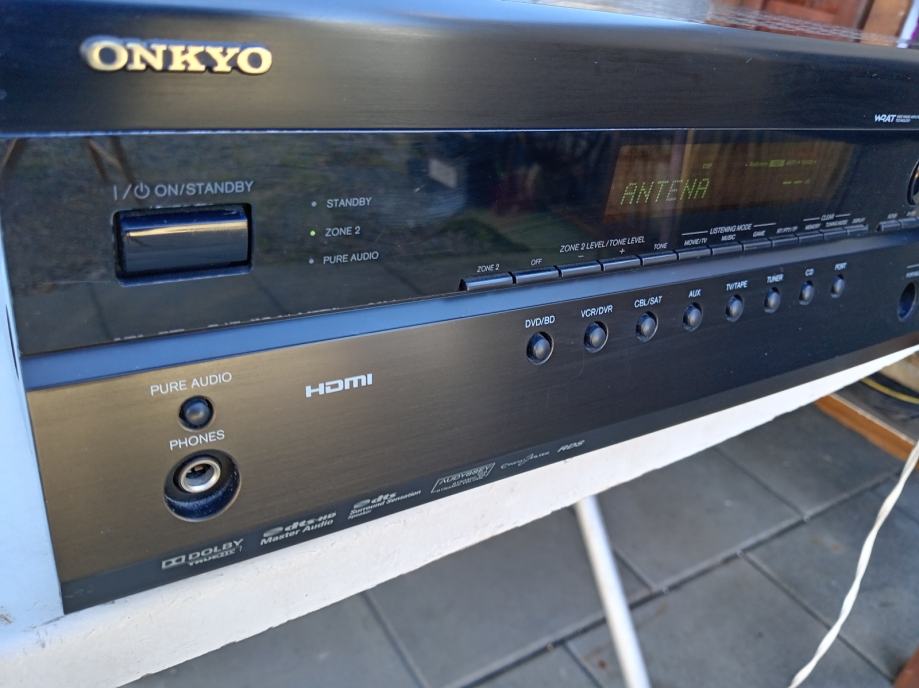

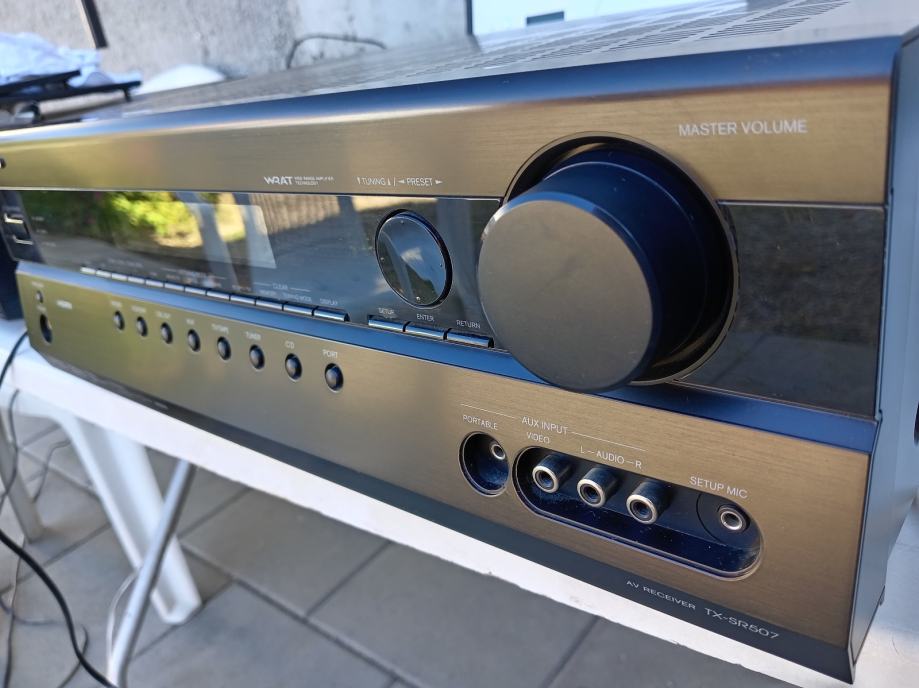

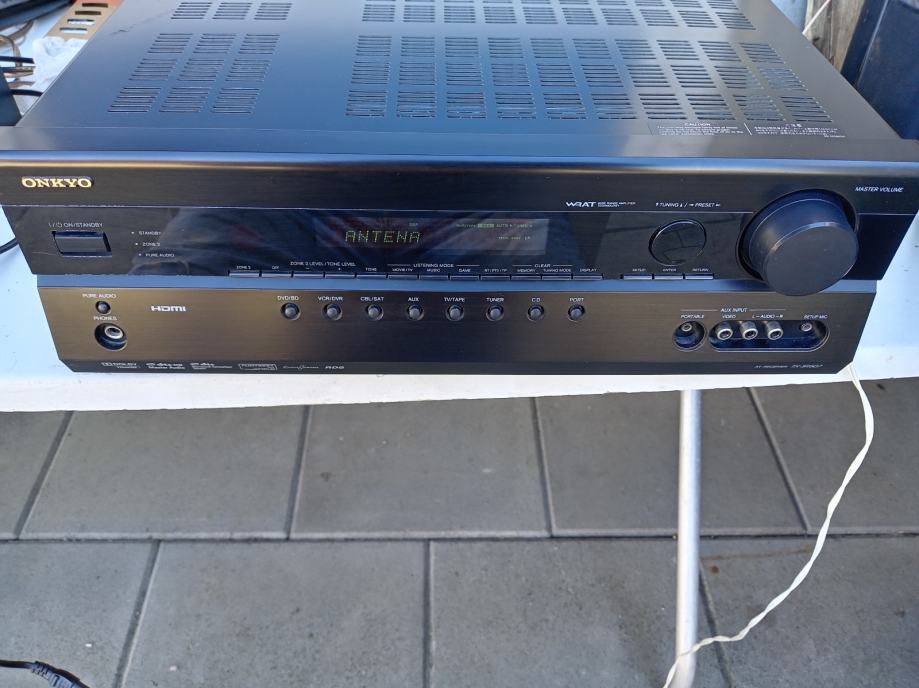

ONKYO TX SR 507

Receiver u top stanju, kao nov
Sve radi savršeno

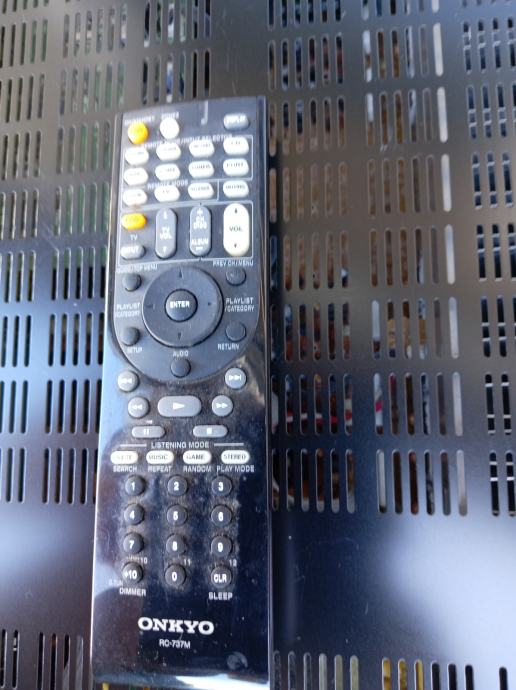

Original daljinski

Cijena 140€
Bez zamjena
Info 095 9033 698

Data

General

Manufacturer: Onkyo

Model: TX-SR507

Years of manufacture: 2009

Made in: Japan

Color: black / silver

Remote control: Yes

Power consumption: 380W

Dimensions W/H/D: 435 / 152 / 325 MM

Weight: 9,7 Kg

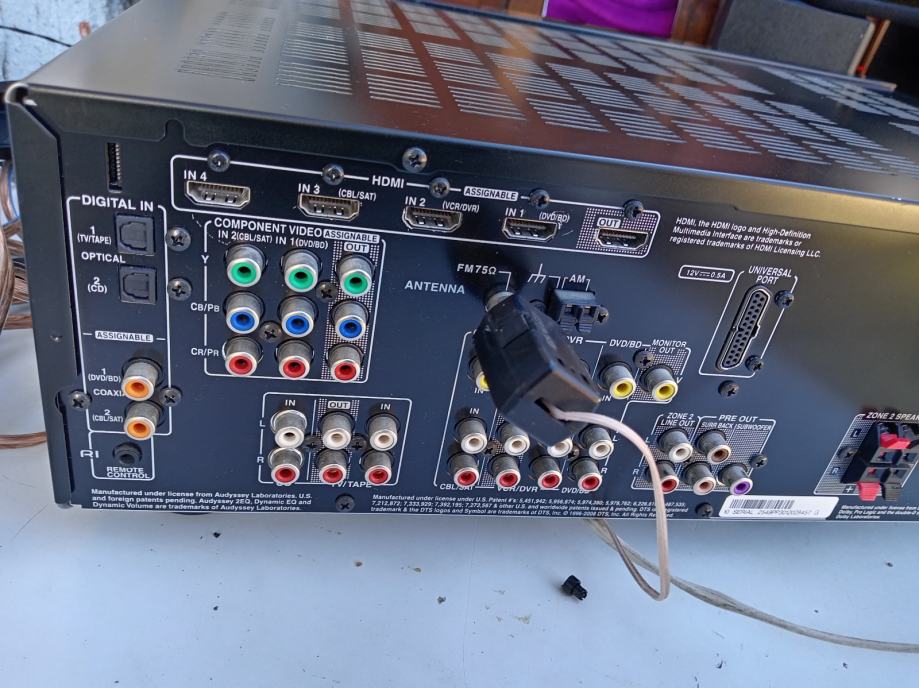

Connections

Number of inputs:

HDMI 4

Digital 2 optical, 2 coaxial

Number of outputs:

HDMI 1

Rec out ( Tape, Video 2 ) 200 mV / 2.2 kOhm

Pre out ( Subwoofer ) 1 V / 2,2 kOhm


Technical data

Audio/Video

Channels: 5.1

TV standard:

HDMI™ version 1.3a with support for Deep Color™, x.v. Color™, LipSync, Dolby TrueHD, DTS-HD Master Audio, DVD-Audio, Super Audio CD and CEC.

HDMI audio and video signal processing (1080p; 4 inputs, 1 output).

HDMI switching capability suitable for HDTV

A/D converter:

D/A converter:

Power (at distortion).

Stereo: 130 W into 6 Ohm ( IEC )

Front: 130 W into 6 ohms ( IEC )

Center: 130 W into 6 ohms ( IEC )

Rear: 130 W into 6 Ohm ( IEC ) Surround Back:

Total harmonic distortion: 0.08 %

Attenuation factor: 60 into 8 Ohm ( Front )

Frequency response: 20 Hz - 100 kHz

Signal-to-noise ratio:

Stereo Channel Separation:

Tone control:

Bass: +/- 10 dB at 50 Hz

Treble: +/- 10 dB at 10 kHz

Loudness:

High Filter:

Low Filter (Subsonic):

Mute: Yes

Direct/Line-Straight:

Time Correction:

Bass Management: (adjustable crossover frequency 40/50/60/80/100/120/150/200 Hz )

Delay adjustment (Lip Sync up to 100 ms in steps of 20 ms ):

DSP programs: 7 DSP sound fields.


Sound Formats

Decoder for DTS-HD Master Audio™, DTS-HD High Resolution Audio™, DTS-HD Express, Dolby® TrueHD and Dolby® Digital Plus.

Tuner

Reception: FM/MW; optional DAB+ via Universal Port.

Frequencies:

FM : 87.5 - 108.0 Mhz

MW : 522 - 1611 kHz

Frequency response: 30 Hz - 15 kHz, +/- 1.0 dB

Input sensitivity: 1.0 µV / 2.0 µV ( mono / stereo )

Distortion factor: 0.2 % / 0.3 % ( mono / stereo )

Signal-to-noise ratio:

Channel separation: 45 dB / 1 kHz // 30 dB / 100 Hz - 10 kHz

selectivity: 50 dB ( DIN )

Co-wave selection: 2.0 dB

Spurious wave selection:

Image frequency attenuation: 85 dB

IF attenuation: 90 dB

AM suppression: 50 dB

Output level:

RDS: Yes

Station memory: 40


Special Features

Audyssey 2EQ™ for correction of room acoustics problems.

Audyssey Dynamic Volume™ for optimal adjustment of volume and dynamic range

Decoder for DTS-HD Master Audio™, DTS-HD High Resolution Audio™, DTS-HD Express, Dolby® TrueHD and Dolby® Digital Plus.

HDMI™ version 1.3a with support for Deep Color™, x.v. Color™, LipSync, Dolby TrueHD, DTS-HD Master Audio, DVD-Audio, Super Audio CD, and CEC

HDMI audio and video signal processing (1080p; 4 inputs, 1 output).9
