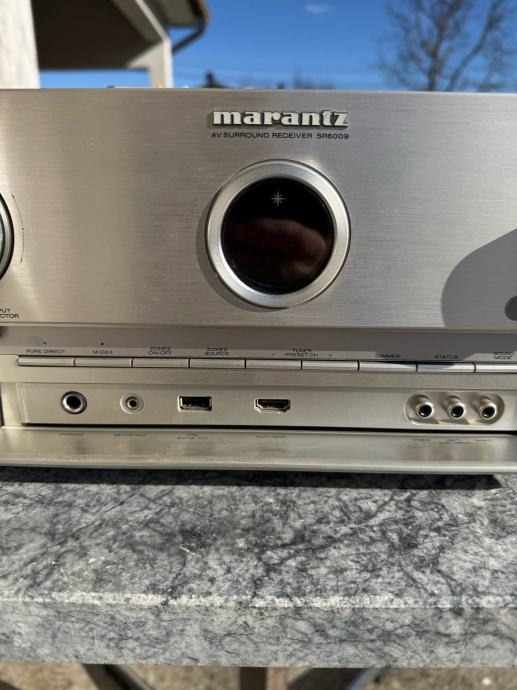

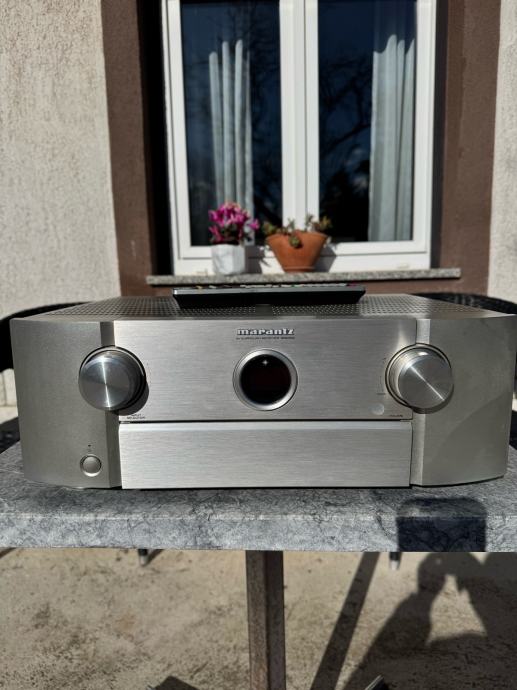

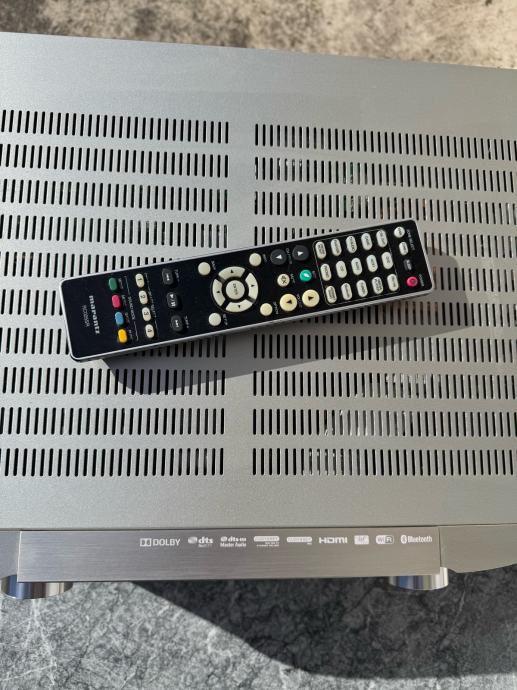

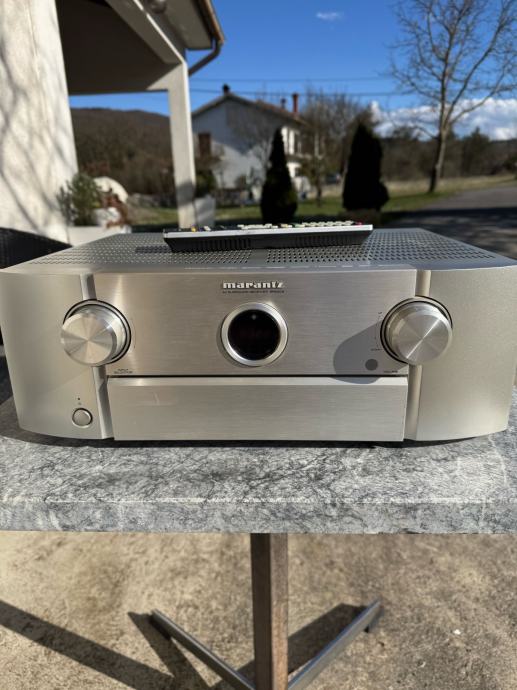

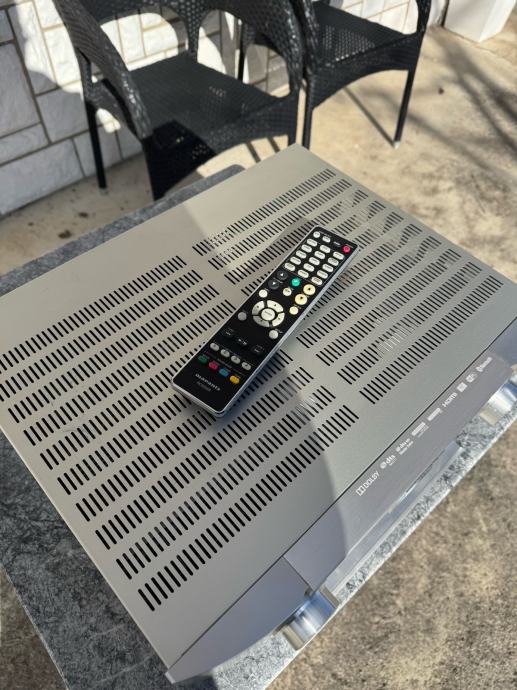

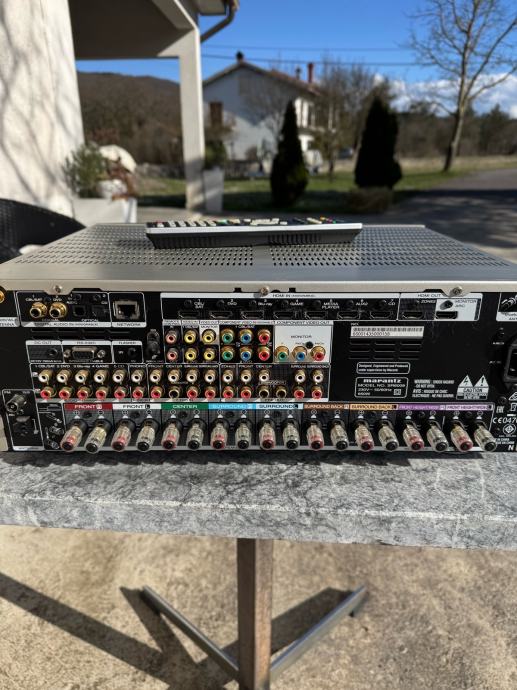

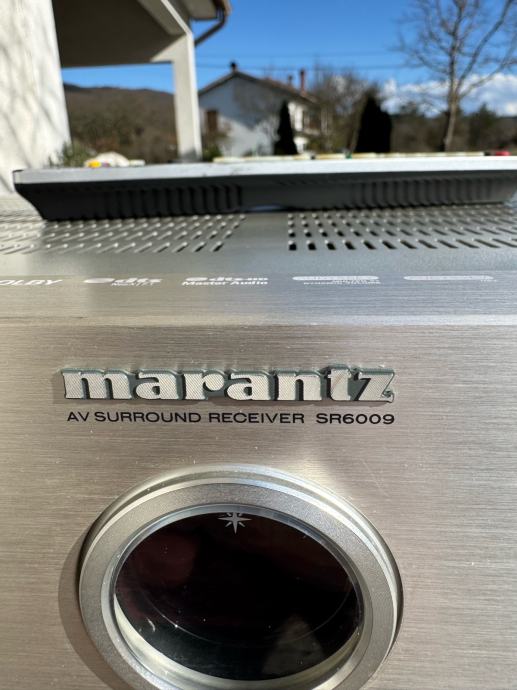

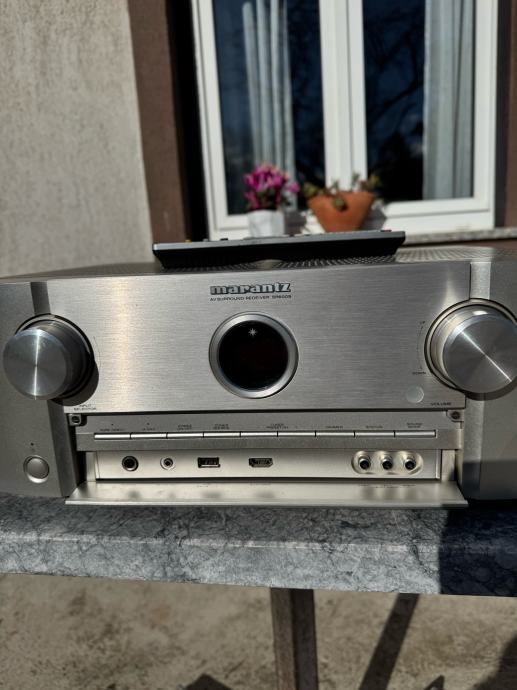

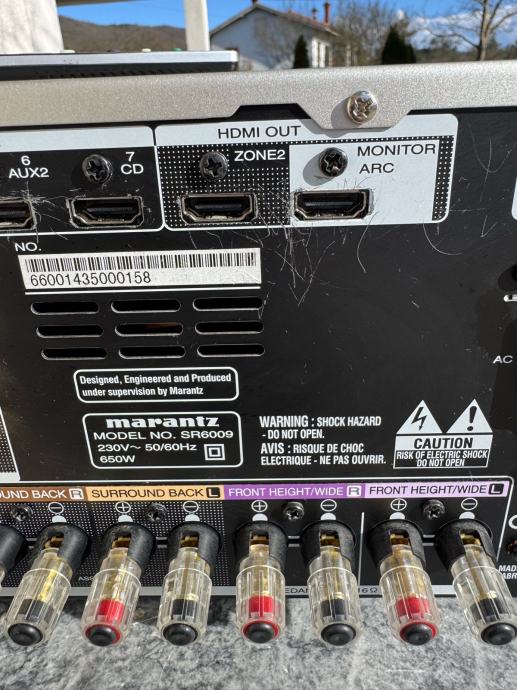

Marantz SR 6009 receiver

Marantz SR 6009 av receiver, visoka klasa,prodajem jer je višak!
cijena 450€
mob.:098483086
https://manuals.marantz.com/SR6009/EU/EN/GFNFSYbsjxinov.php


Specifications
Audio section

Power amplifier


Rated out­put:


Front:

110 W + 110 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.)

150 W + 150 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)

Cen­ter:

110 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08% T.H.D.)

150 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)

Sur­round:

110 W + 110 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.)

150 W + 150 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)

Sur­round back / Front height/wide:

110 W + 110 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.08 % T.H.D.)

150 W + 150 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.)

Out­put con­nec­tors:


4 – 16 Ω/ohms

Analog


Input sen­si­tiv­ity/Input im­ped­ance:


200 mV/47 kΩ/kohms

Fre­quency re­sponse:


10 Hz – 100 kHz — +1, –3 dB (Di­rect mode)

S/N:


100 dB (IHF–A weighted, Di­rect mode)

Dis­tor­tion:


0.005 % (20 Hz – 20 kHz) (Di­rect mode)

Rated out­put:


1.2 V

Digital


D/A out­put:


Rated out­put — 2 V (at 0 dB play­back)

Total har­monic dis­tor­tion — 0.008 % (1 kHz, at 0 dB)

S/N ratio — 102 dB

Dy­namic range — 100 dB

Dig­i­tal input:


For­mat — Dig­i­tal audio in­ter­face

Phono equalizer


Input sen­si­tiv­ity:


2.5 mV

RIAA de­vi­a­tion:


±1 dB (20 Hz to 20 kHz)

S/N:


74 dB (IHF-A)

Dis­tor­tion fac­tor:


0.03 % (1 kHz, 3 V)
Video section

Standard video connectors


Input/out­put level and im­ped­ance:


1 Vp-p, 75 Ω/ohms

Fre­quency re­sponse:


5 Hz – 10 MHz — 0, –3 dB

Color component video connector


Input/out­put level and im­ped­ance:


Y sig­nal — 1 Vp-p, 75 Ω/ohms

PB / CB sig­nal — 0.7 Vp-p, 75 Ω/ohms

PR / CR sig­nal — 0.7 Vp-p, 75 Ω/ohms

Fre­quency re­sponse:


5 Hz – 60 MHz — 0, –3 dB

Tuner section


[FM]


[AM]




(Note: μV at 75 Ω/ohms, 0 dBf = 1 x 10 –15 W)


Re­cep­tion fre­quency range:


87.5 MHz – 108.0 MHz


522 kHz – 1611 kHz

Ef­fec­tive sen­si­tiv­ity:


1.2 μV (12.8 dBf)


18 μV

50 dB sen­si­tiv­ity:


MONO ― 2.8 μV (20.2 dBf)


S/N ratio:


MONO ― 70 dB (IHF–A weighted, Di­rect mode)

STEREO ― 67 dB (IHF–A weighted, Di­rect mode)

Dis­tor­tion:


MONO ― 0.7 % (1 kHz)

STEREO ― 1.0 % (1 kHz)
Wireless LAN section


Net­work type (wire­less LAN stan­dard):


Con­form­ing to Wi-Fi®∗1

Se­cu­rity:


WEP 64 bit, WEP 128 bit

WPA/WPA2-PSK (AES)

WPA/WPA2-PSK (TKIP)

Radio fre­quency:


2.4 GHz

No. of chan­nels:


1 – 13 ch

The Wi-Fi® CERTIFIED Logo and the Wi-Fi CERTIFIED On-Product Logo are registered trademarks of the Wi-Fi Alliance.
Bluetooth section


Com­mu­ni­ca­tions sys­tem:


Blue­tooth Ver­sion 2.1 + EDR (En­hanced Data Rate)

Trans­mis­sion power:


Max­i­mum 2.5 mW (Class 2)

Max­i­mum com­mu­ni­ca­tion range:


Ap­prox. 10 m in line of sight∗2

Fre­quency band:


2.4 GHz band

Mod­u­la­tion scheme:


FHSS (Fre­quency-Hop­ping Spread Spec­trum)

Sup­ported pro­files:


A2DP (Ad­vanced Audio Dis­tri­b­u­tion Pro­file) 1.2

AVRCP (Audio Video Re­mote Con­trol Pro­file) 1.4

Cor­re­spond­ing codec:


SBC, AAC

Trans­mis­sion range (A2DP):


20 Hz - 20,000 Hz

The actual communication range varies depending on the influence of such factors as obstructions between devices, electromagnetic waves from microwave ovens, static electricity, cordless phones, reception sensitivity, antenna performance, operating system, application software etc.
General


Power sup­ply:


AC 230 V, 50/60 Hz

Power con­sump­tion:


650 W

Power con­sump­tion in standby mode:


0.2 W

Power con­sump­tion in CEC standby mode:


0.5 W

Power con­sump­tion in net­work standby mode:


2.7 W
