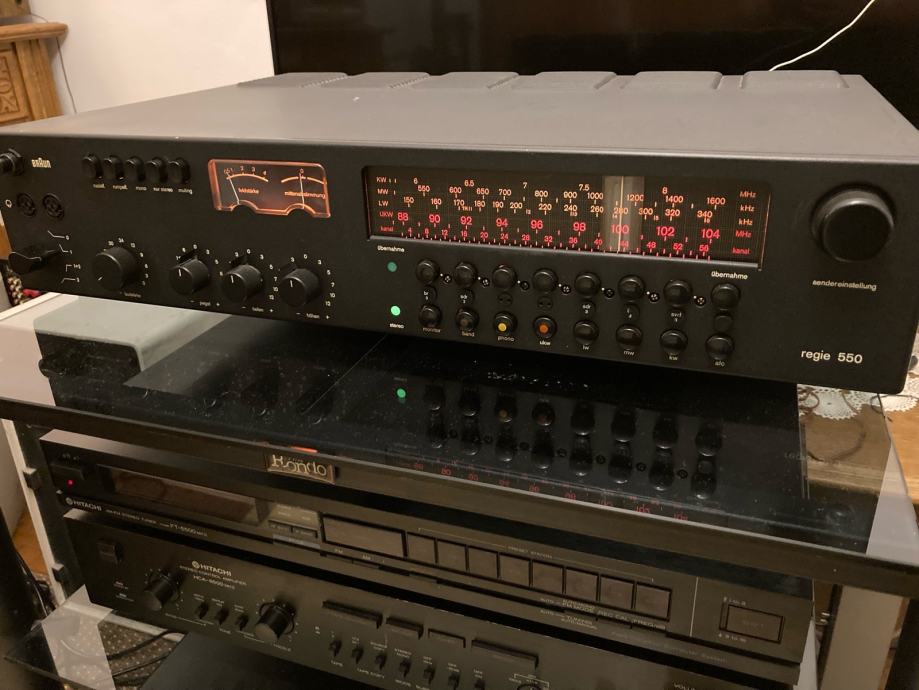

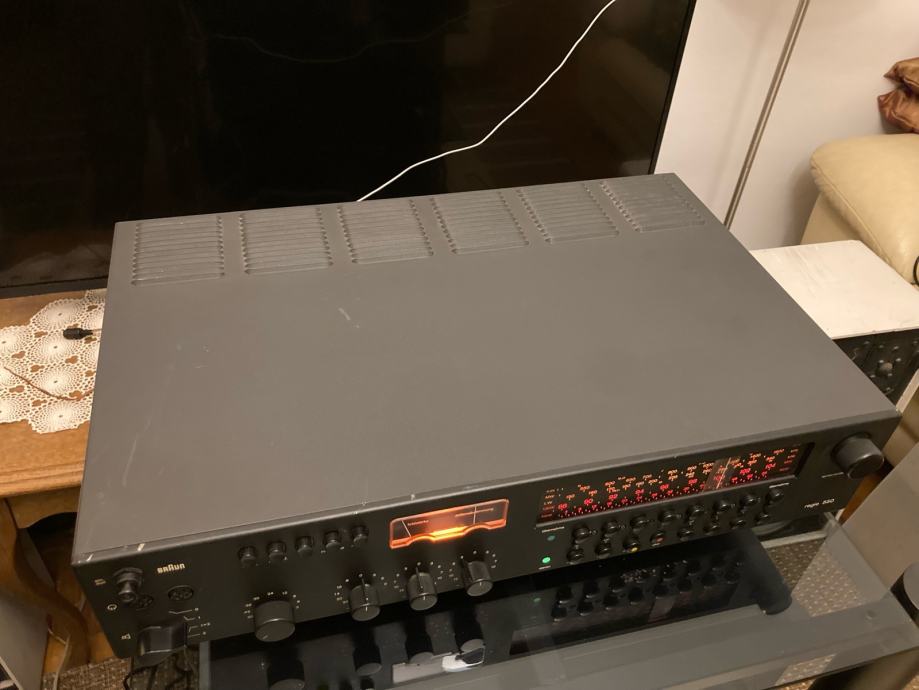

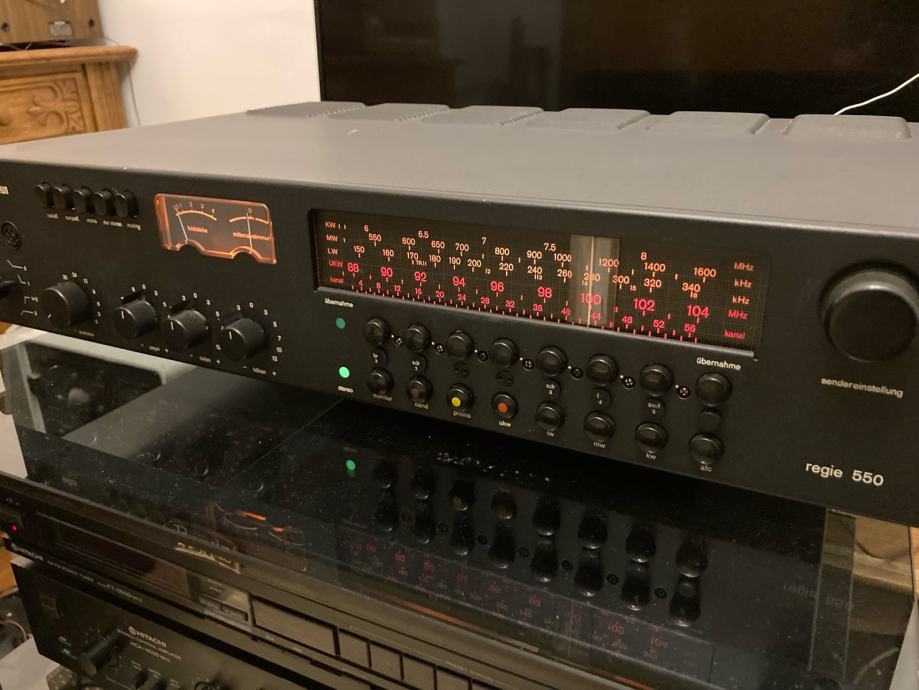

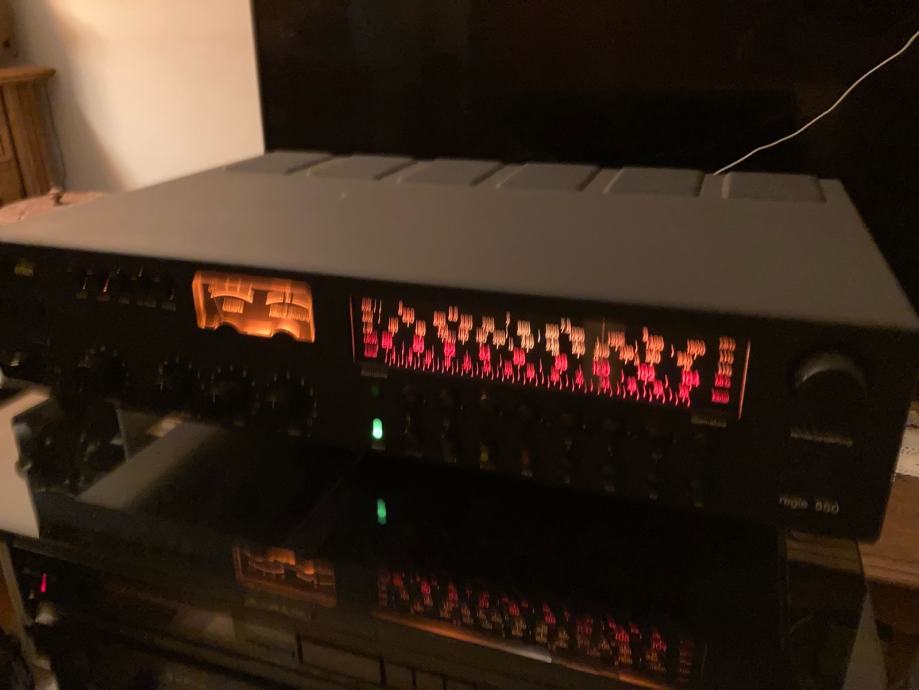

Braun Regie 550 High End Receiver Top of The Line

Najači receiver iz Serije 1976/78 god

Nevjerojatno dobrog zvuka , mislim da se mnogi razvikani receiveri mogu sakriti uz ovaj Braun

Braun Regie 550
HiFi Stereo Receiver (1976-78)

add a review add a review

Braun Regie 550

Specifications
Tuning range: FM, MW, LW, SW

Power output: 70 watts per channel into 4Ω (stereo)

Frequency response: 10Hz to 35kHz

Total harmonic distortion: 0.1%

Input sensitivity: 2mV (MM), 330mV (line)

Signal to noise ratio: 60dB (MM), 80dB (line)

Speaker load impedance: 4Ω to 16Ω

Semiconductors: 79 x transistors, 3 x IC, 51 x diodes

Dimensions: 500 x 110 x 320mm

Weight: 14kg

Year: 1976

Number of Transistors
79
Semiconductors
Main principle
Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits
7 AM circuit(s) 14 FM circuit(s)
Wave bands
Broadcast, Long Wave, Short Wave plus FM or UHF.

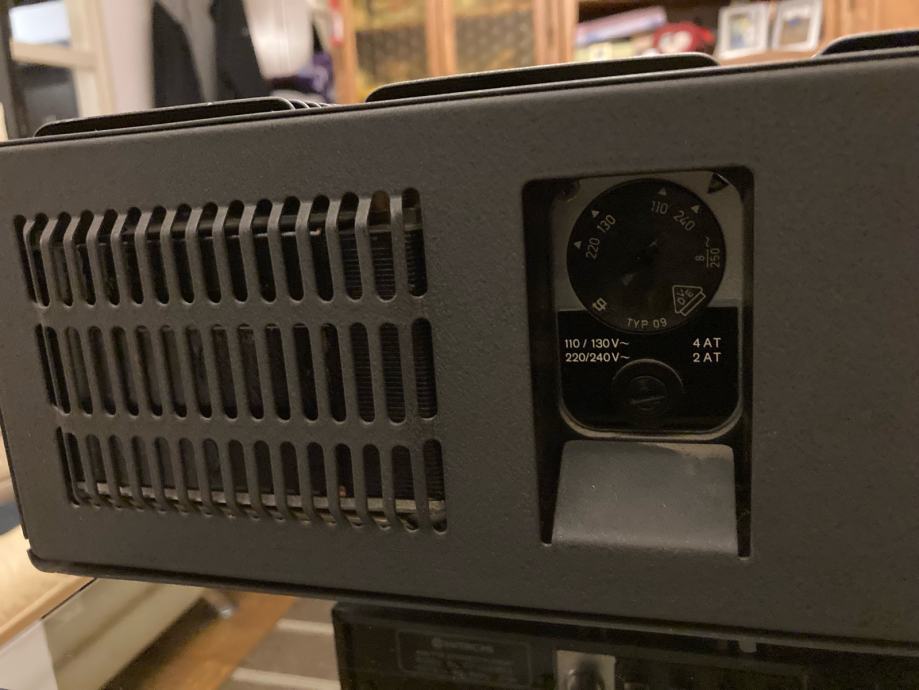

Power type and voltage
Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker
- This model requires external speaker(s).
Power out
140 W (unknown quality)
Material
Metal case
from Radiomuseum.org
Model: Regie 550 CEV550 - Braun; Frankfurt
Shape
Book-shelf unit.
Dimensions (WHD)
500 x 110 x 320 mm / 19.7 x 4.3 x 12.6 inch
Notes
Stereo-NF-Verstärker mit 2 x 70 Watt Sinus- und 2 x 100 Watt Musikleistung. Leistungsbandbreite 10 bis 35 000 Hz. 7 programmierbare Festsendertasten.
Net weight (2.2 lb = 1 kg)
14 kg / 30 lb 13.4 oz (30.837 lb)
Price in first year of sale
1,900.00 DM
