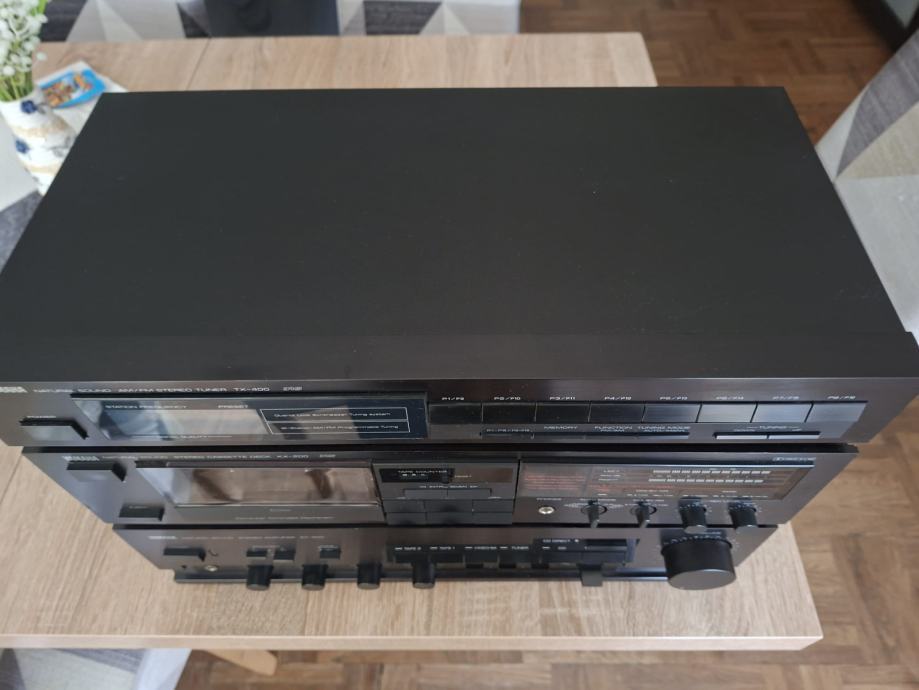

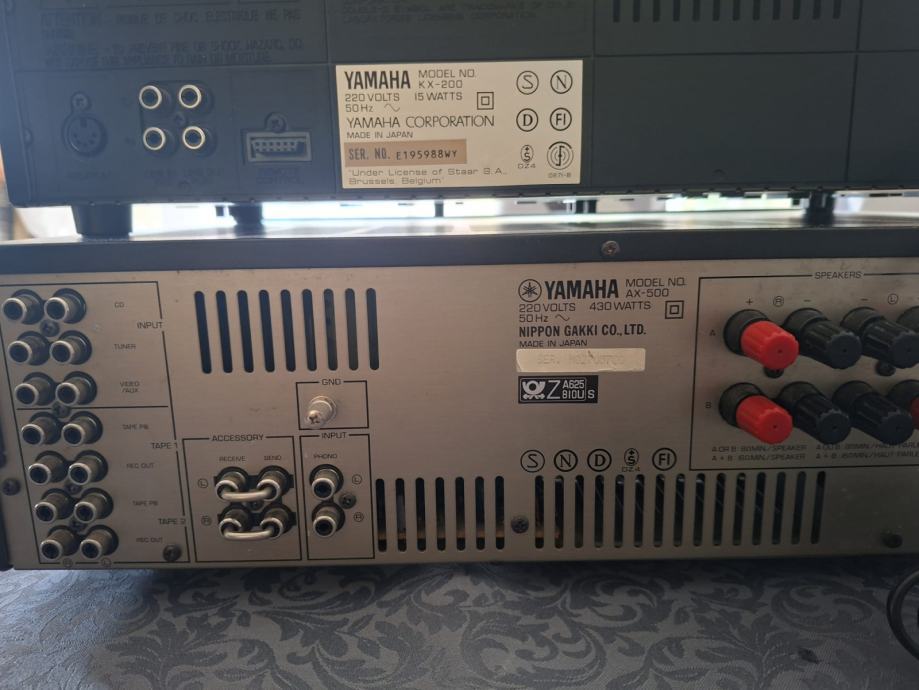

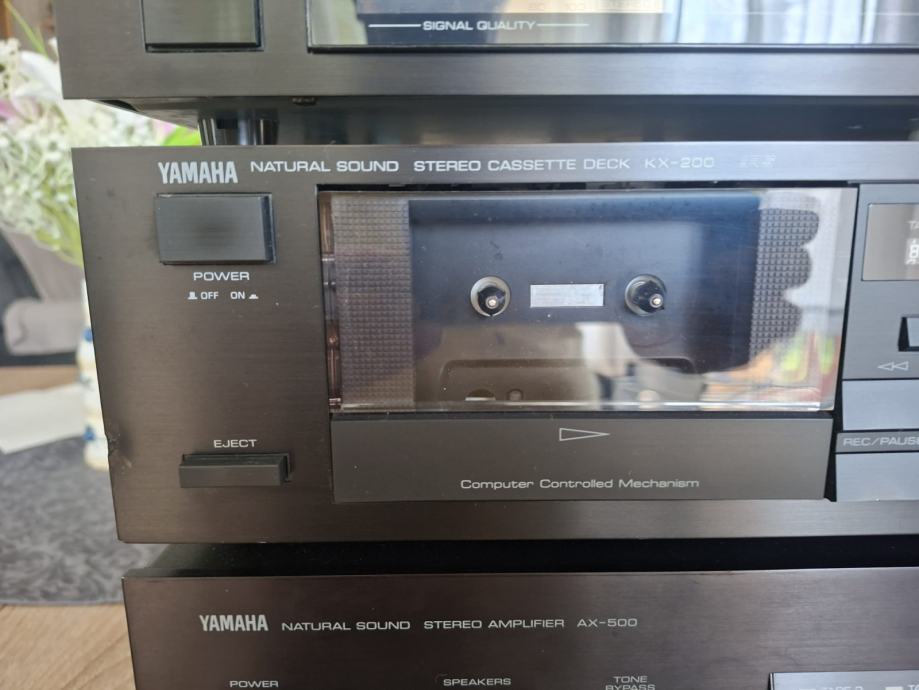

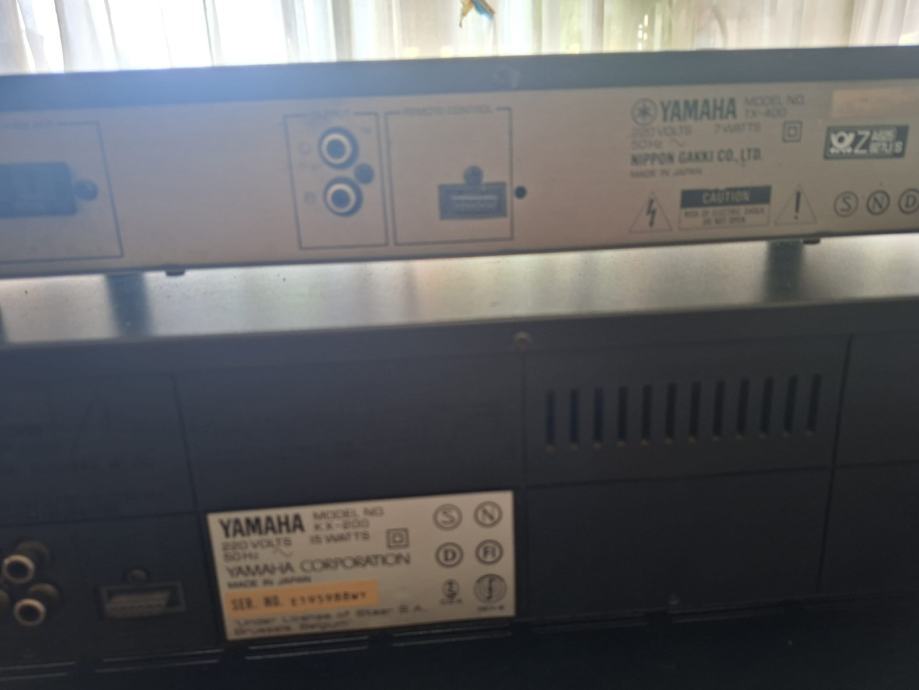

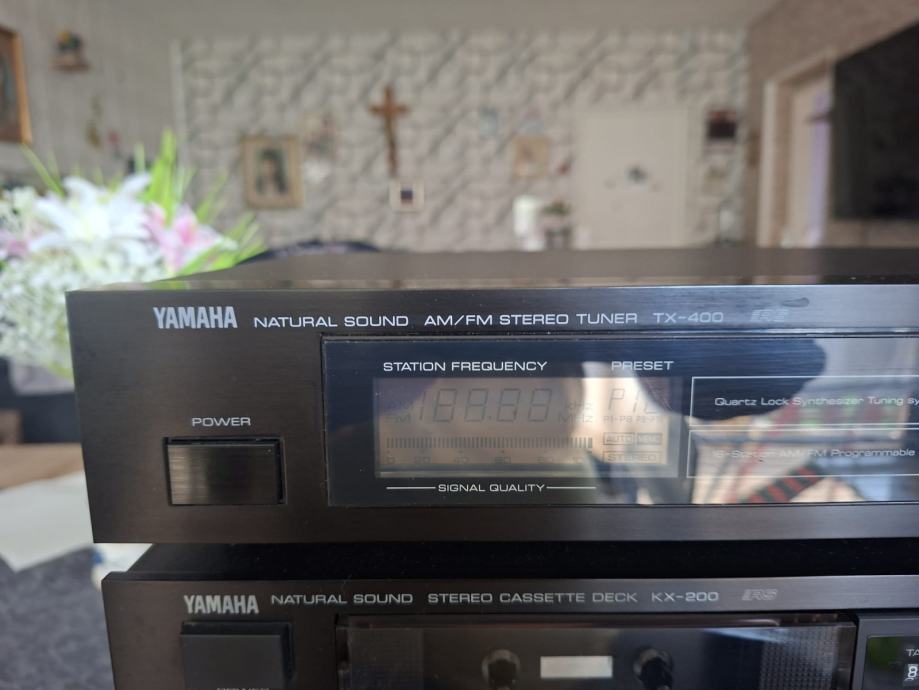

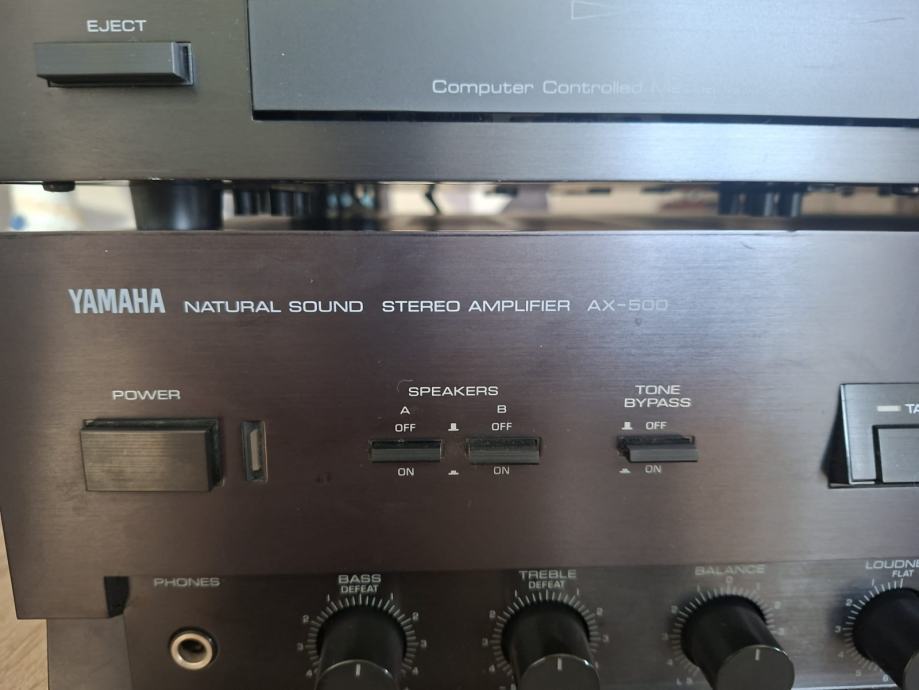

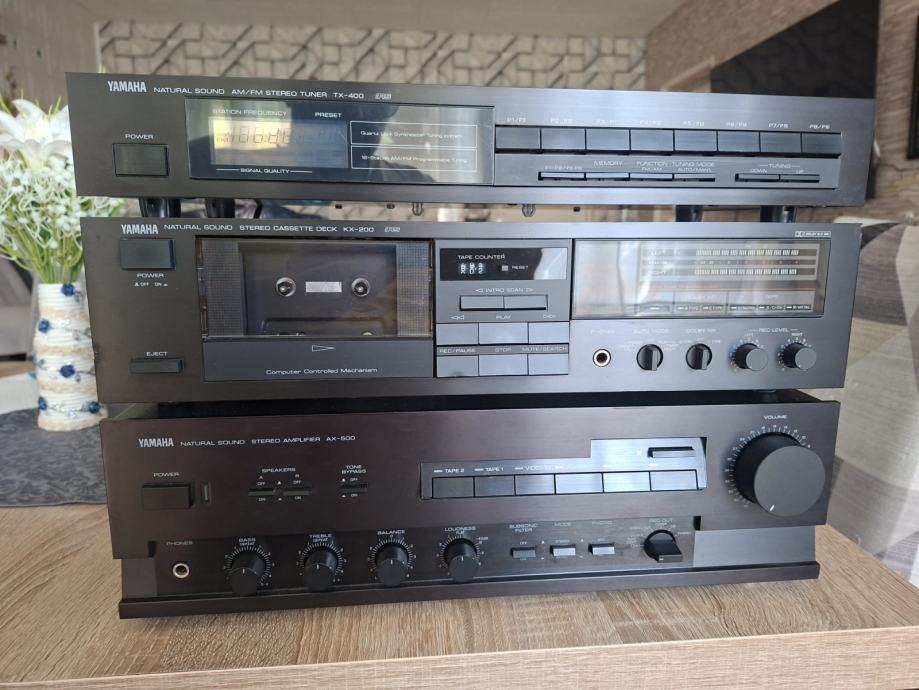

Yamaha set AX 500 pojačlo,TX 400 tuner,KX 200 deck sve radi savršeno.

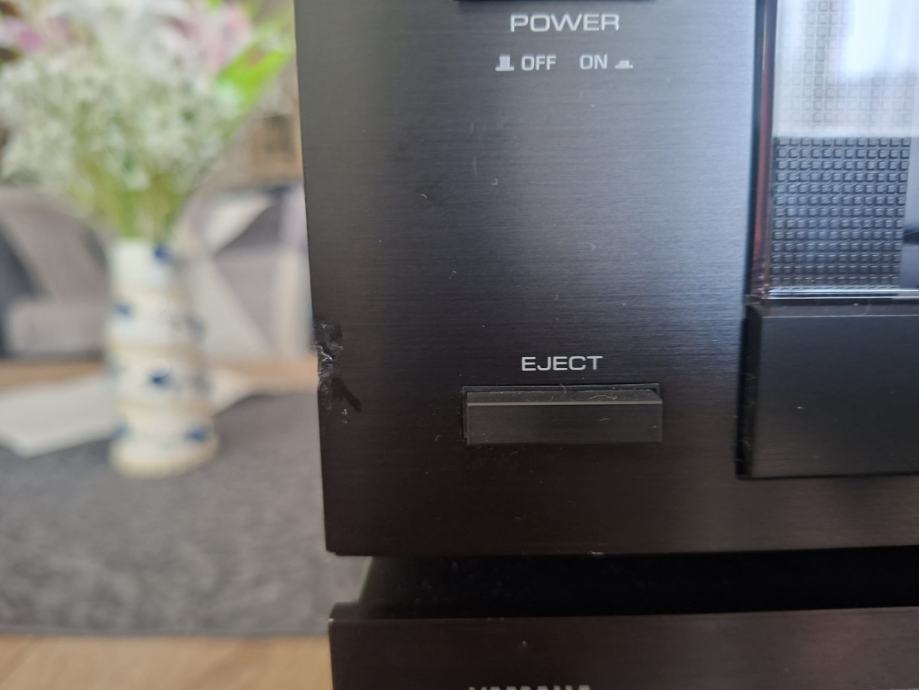

Vintage Yamaha set,radno savršeno,kazić servisiran-ima malu ogrebotinu u donjem lijevom čošku(kome to smeta ili ak ko misli skidati cijenu i dobiti za šalicu kave) samo osobno preuzimanje nakon probe i pregleda,plačenje SOLARNO,ne dopisivam se i ne odgovaram na poruke onaj koga zanima bu cimnul kontakt br u inbox i ja zovem,spec.su na Netu pa nek vam nebu teško tam ih potražiti,zahvaljujem na razumjevanju

General
• Manufacturer: Yamaha
• Model: AX-500
• Years of manufacture: 1986-1988
• Type: Integrated amplifier
• Remote control: no
• Power consumption: 430 watts (UK/Australia and Europe model), 220 watts (general model)
• Dimensions: 435 mm × 139 mm × 332 mm (W × H × D)
• Weight: 7.7 kg
• Colour: silver, black
• Connections
• Number of inputs:
o Phono MM/MC, Tuner, 2 × Tape, Aux, CD.
• Number of outputs:
o 2 × speakers, 2 × rec-out, headphones.

Technical Data
• Continuous power (at distortion factor)
o 8 ohms: 2 × 85 watts at 0.01
o 4 Ohm: 2 × 120 Watt according to DIN
• Dynamic power
o 8 Ohm: 2 × 140 Watt
o 4 Ohm: 2 × 200 Watt
o 2 Ohm: 2 × 230 Watt
• Total harmonic distortion: 0,003 %
• Attenuation factor: 50
• Input (Sensitivity/Impedance)
o Phono MM 2.5 mV/47 KOhm, MC 160 µV / 220 Ohm
o Tuner, CD, Aux, Tape: 150 mV / 47 kOhm
• Output (level / impedance)
Rec-Out 150 mV / 470 Ohm
•
o Headphone 0,75 V / 270 Ohm
• Frequency response: 10-50,000 Hz
• Tone control:
o Bass: ±10 dB at 20 Hz
o Treble: ±10 dB at 20,000 Hz
• Loudness: adjustable
• Subsonic: 15 Hz / 12 dB, switchable
• Mute: no
• Direct/Line-Straight: CD-Direct, tone control switchable
• Ripple distance (short-circuited): 100 dB
• Stereo channel separation: 50 dB
• Signal-to-noise ratio: 80 dB
