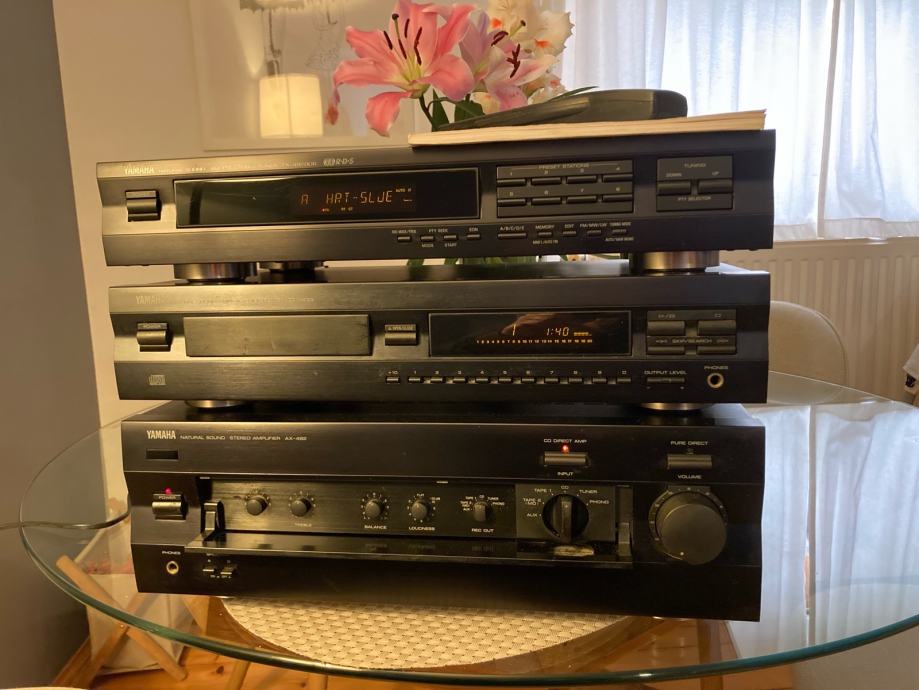

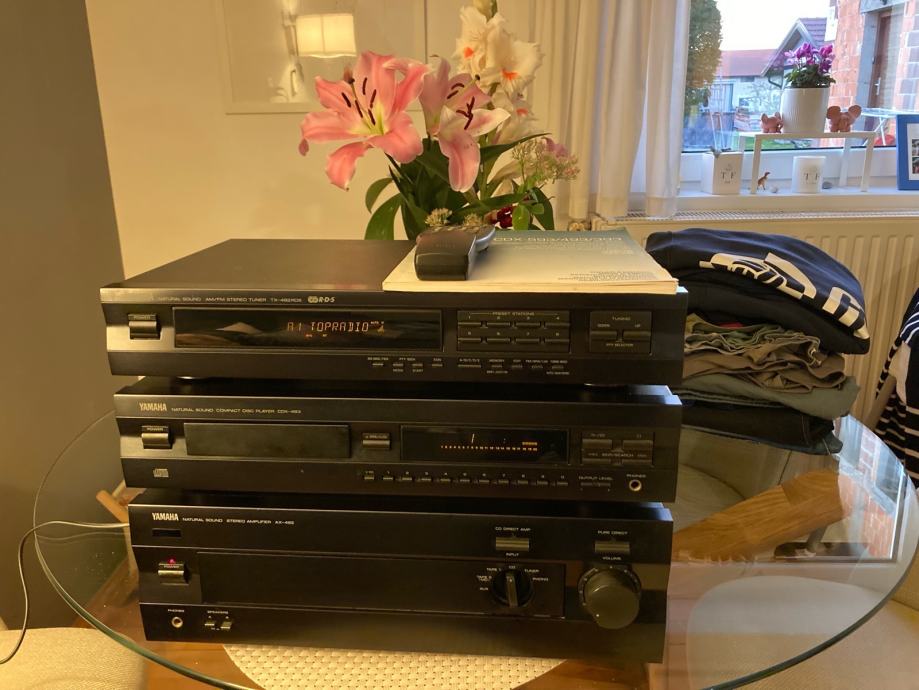

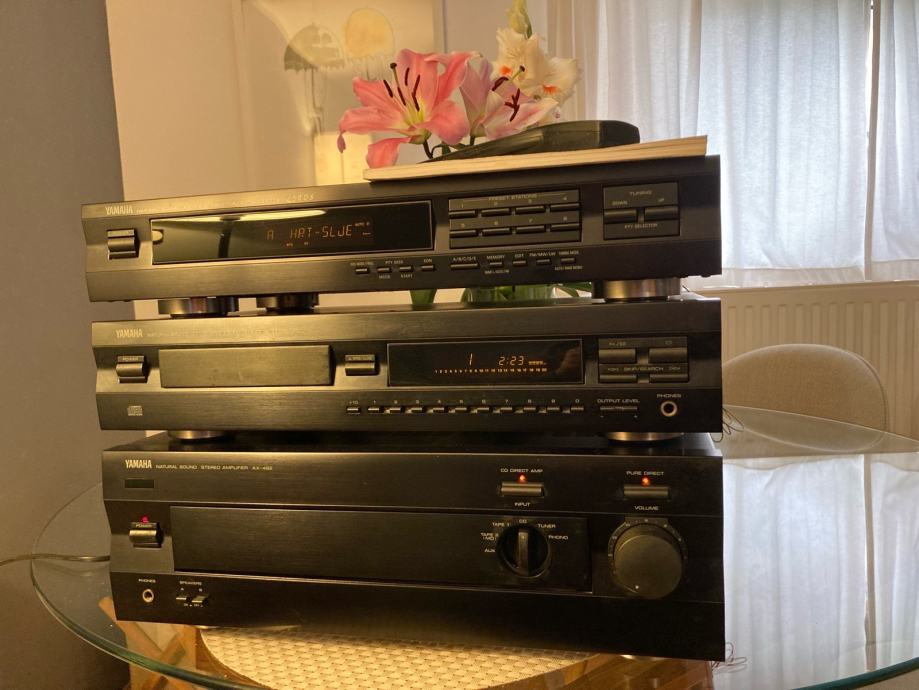

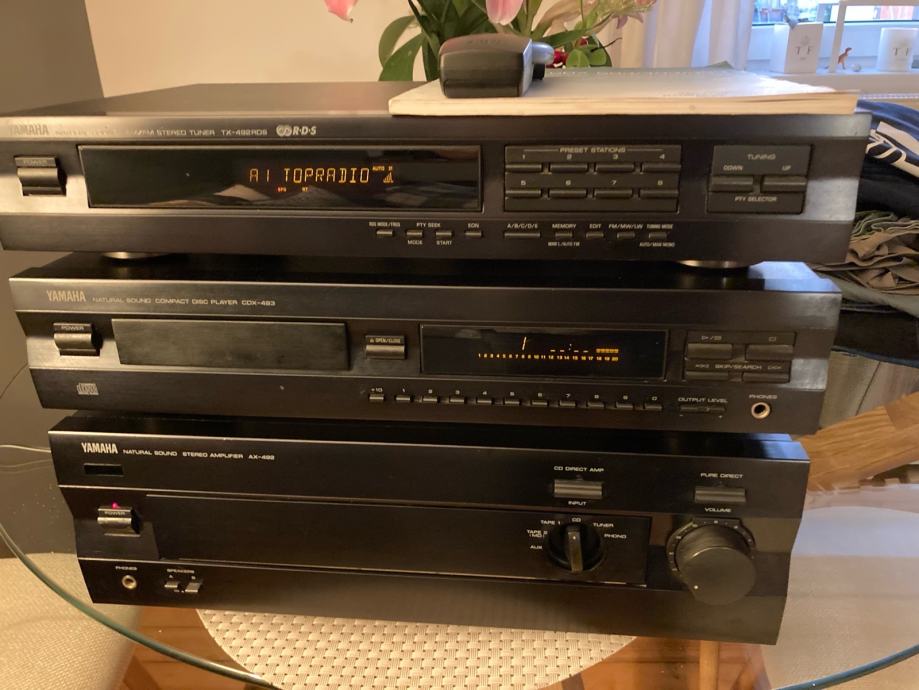

Yamaha set Amp AX 492 , Tuner TX 492 , CD player CDX 493 + daljinac

No Pay Protect , samo pozivi na 0989389909

Kvalitetan Hi-Fi sistem iz 90-ih

Molim bez zamjena

Cijena je navedena

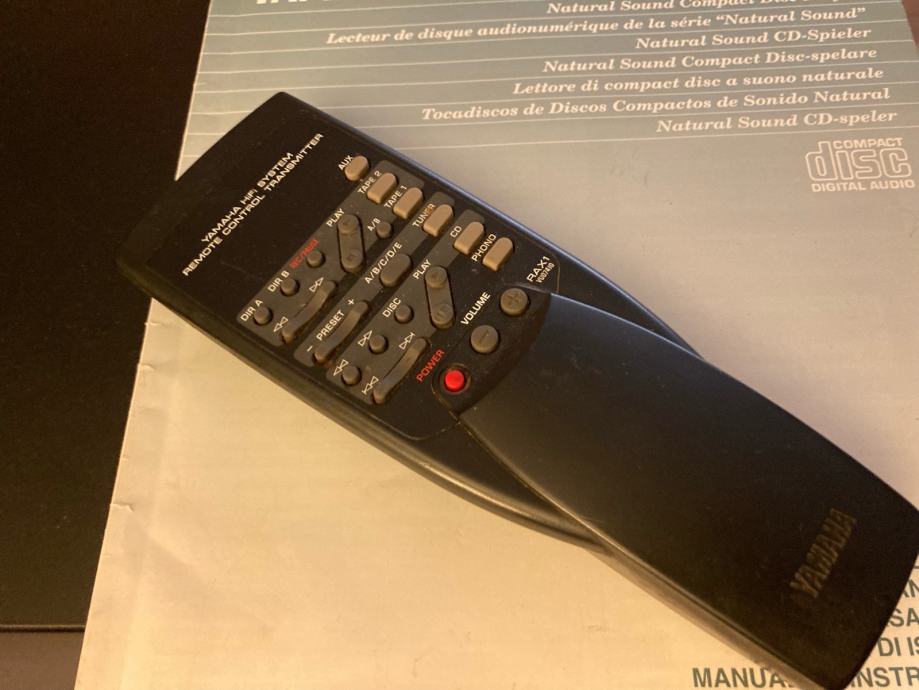

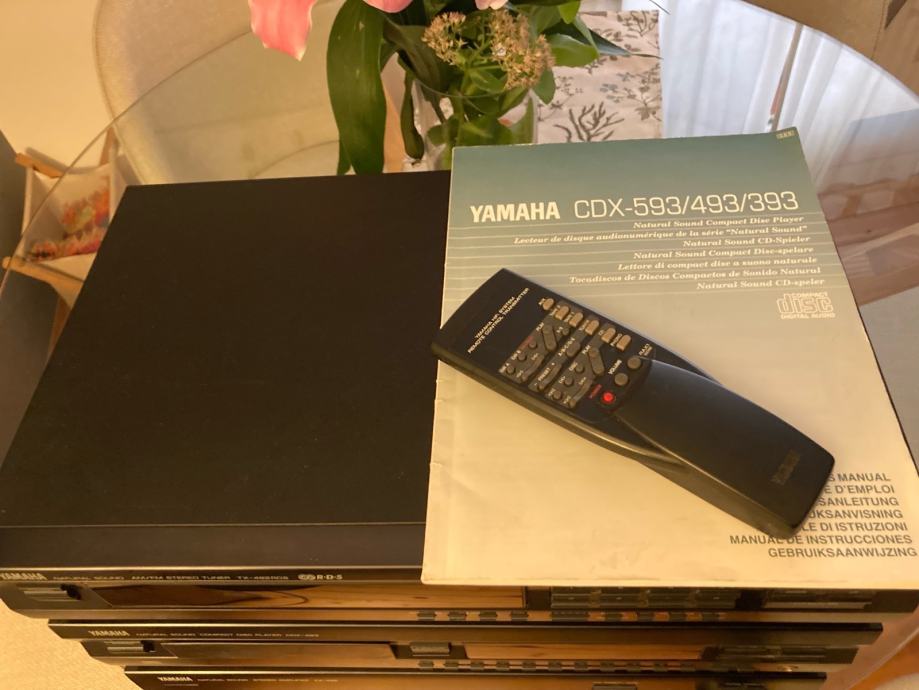

Upute od CD playera prisutne kao i original daljinac koji podržava sve tri komponente

Mogućnost slušanja uz najavu

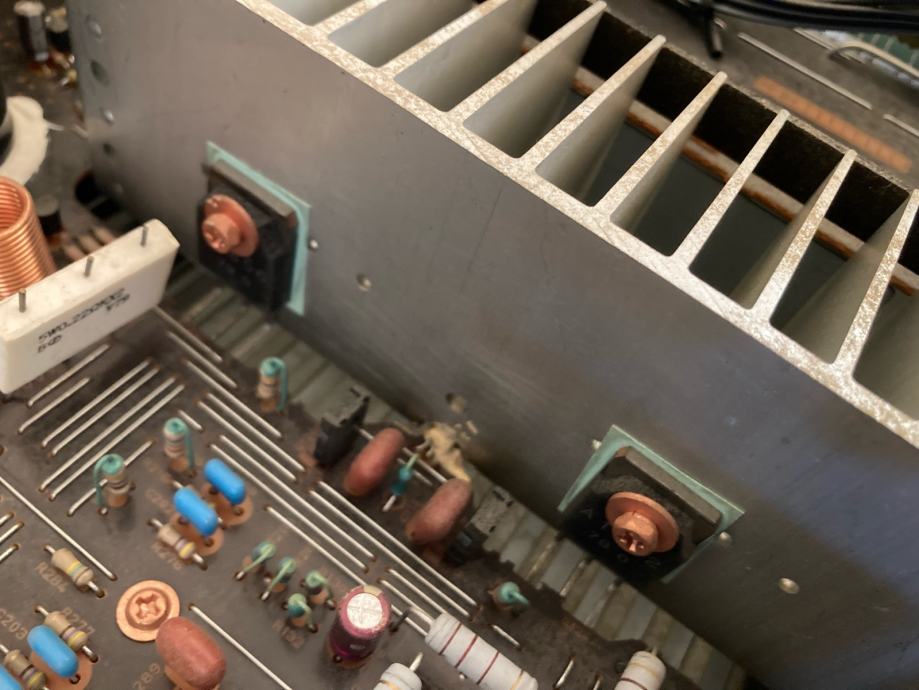

Probrane komponente poput Elna , Nichichon , Alps , Sanken izlazni tranzistori

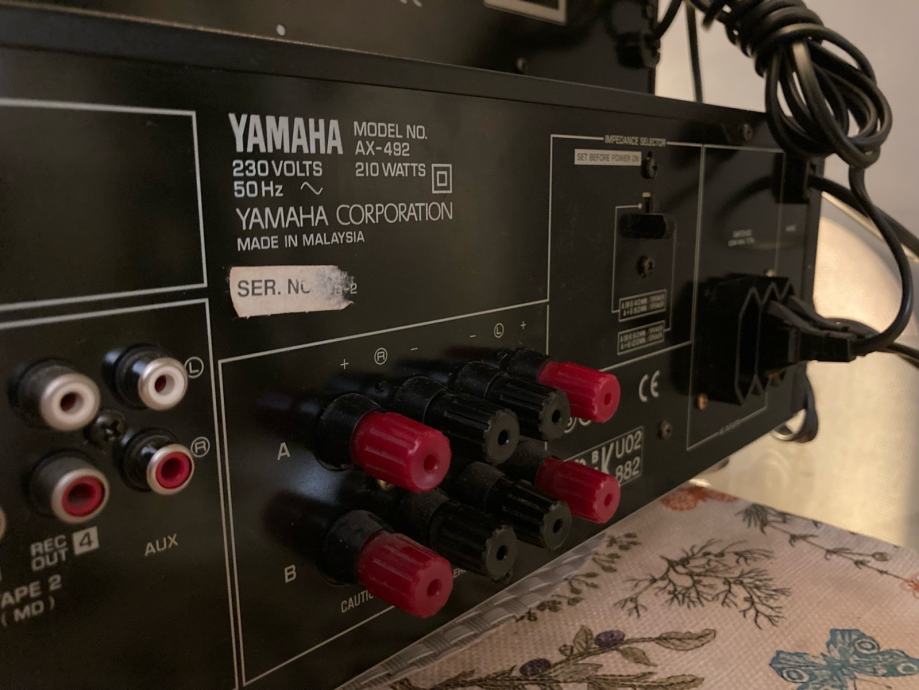

Yamaha AX-492
NamespacesPageDiscussionPage actionsView sourceHistoryMore
Data
General

Manufacturer: Yamaha
Model: AX-492
Type: Integrated amplifier
Years of manufacture: 1997 - 2000
Manufactured in:
Color: Black, Titanium
Remote control: yes
Power consumption: 210 W
Dimensions: 435 × 151 × 391 mm (W×H×D)
Weight: 9.6 kg
Original price approx.: 500 DM

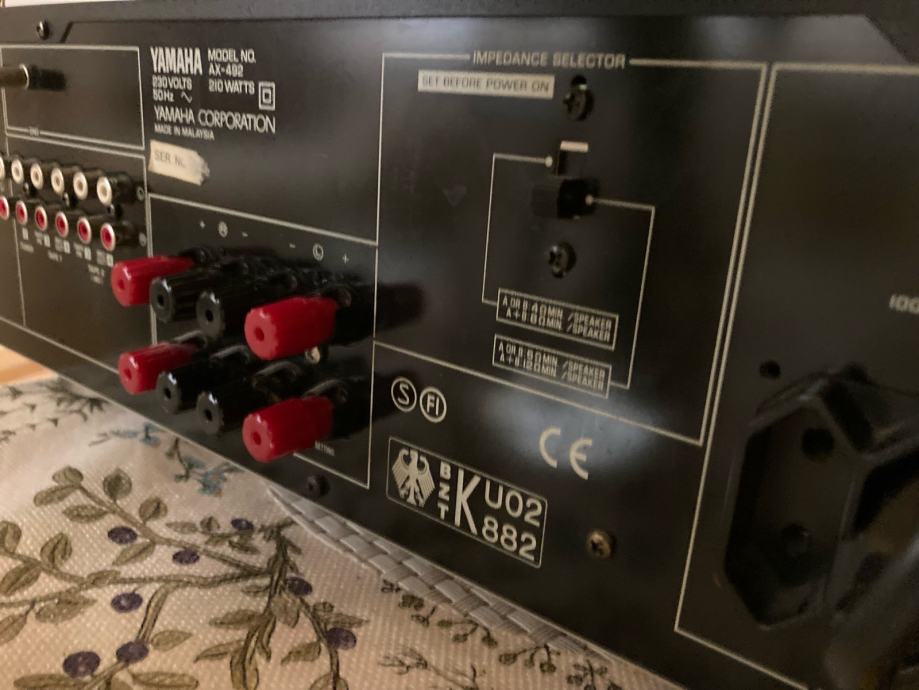

Connections

Number of inputs:
Phono MM 2.5 mV / 47 kOhm
CD, Tuner, AUX, 2 × Tape 150 mV / 47 kOhm
Number of outputs:
2 × Loudspeaker
2 × Rec-Out 150 mV / 600 Ohm
Headphones 0.3 V / 680 Ohm

Technical Data

Continuous power (at distortion)
8 Ohm: 2 × 85 Watts at 0.015
4 Ohm: 2 × 120 Watt (DIN)
Dynamic power
8 Ohm: 2 × 130 Watt
4 Ohm: 2 × 185 Watt
Total harmonic distortion: 0.008 %
Attenuation factor: 240
Frequency response: 10-50,000 Hz
Signal-to-noise ratio: 110 dB
Stereo channel separation: 65 dB
Tone control:
Bass: ±10 dB at 20 Hz
Treble: ±10 dB at 20,000 Hz

Loudness: adjustable
High Filter: no
Low Filter (Subsonic): no
Mute: no
Direct/Line-Straight: CD-Direct and Pure-Direct

Special Features

Record Selector

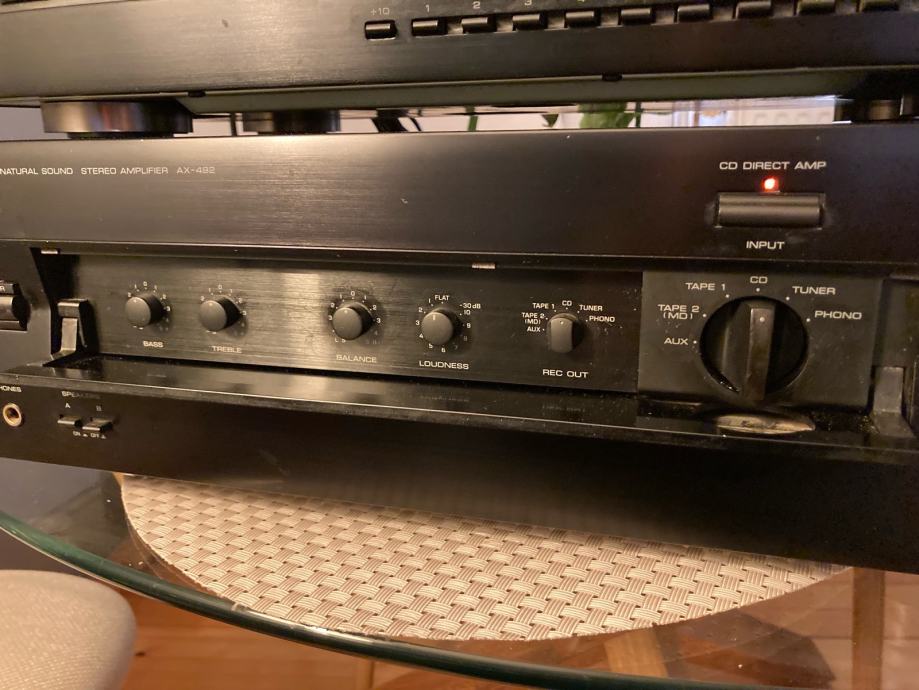

Secondary controls under cover flap
