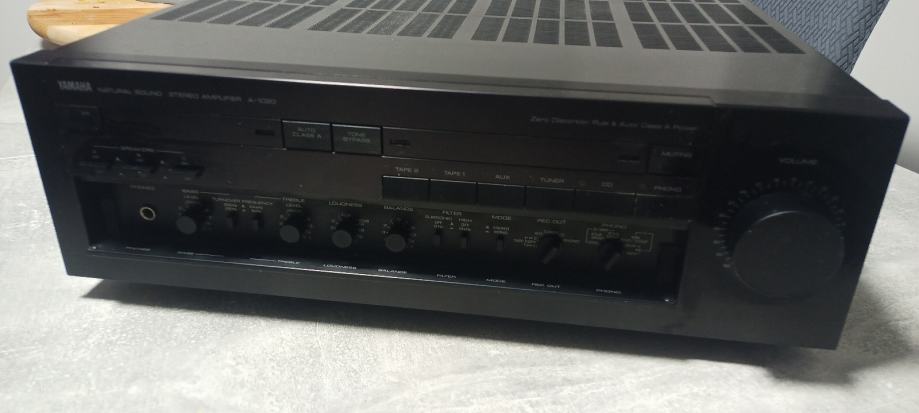

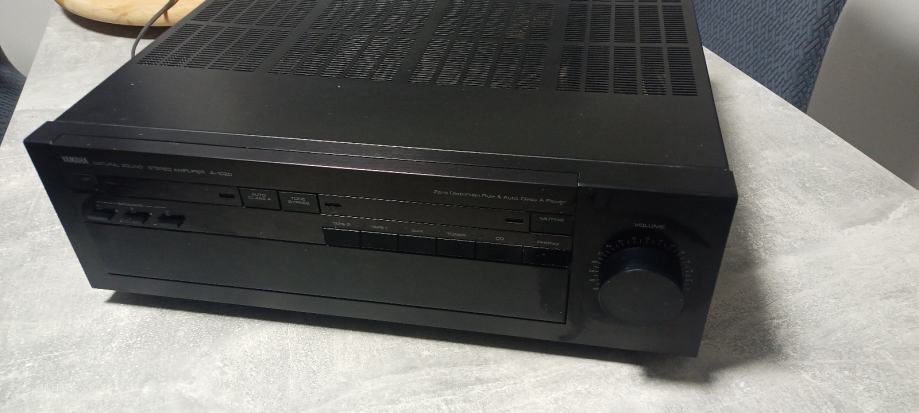

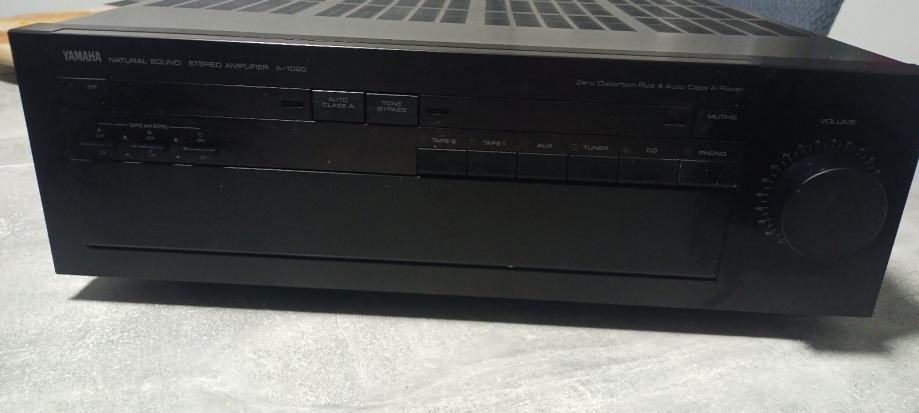

Yamaha A-1020

Odlicno pojacalo, moguca proba! Radi perfektno!!

Power consumption: 580 watts

The Yamaha A-1020 features Auto class A power output, Zero distortion rate amplification in power an eq stages, extended roll off equalizer and pure current dam, direct mc cartridge connection and selectable cartridge impedance, tone bypass switch, rec out, continuously variable loudness control and three-pair speaker support.


Specs:

Connections

Number of inputs:
1x Phono MM/MC, 1x Phono MM, Tuner, 2x Tape, Aux, CD.
Number of outputs:
3x Speaker, 2x Rec-Out, Headphone

Technical Data

Continuous power (at distortion factor)
8 Ohm: 2x 125 Watt (0,005 %)
4 Ohm: 2x 169 Watt (1 %)
Dynamic power
8 Ohm:
4 Ohm:
Total harmonic distortion: 0.003%
Attenuation factor: 45
Input (Sensitivity/Impedance)
list here
Output (Level/Impedance)
Rec-Out 150mV/470 Ohm

Headphone 0,91V/8 Ohm
Frequency response: 10 - 50000 Hz
Tone control:
Bass: ±10dB at 20Hz
Treble: ±10dB at 20000Hz

Loudness: adjustable
Subsonic: 15 Hz 12 dB/oct., switchable
Mute: Yes
Direct/Line-Straight: tone control can be switched off
Ripple (short-circuited): 106 dB
Stereo channel separation: 65 dB
Signal-to-noise ratio:

Special Features

Record selector
Mono/Stereo switchable
Auto-Class A switchable
Peak frequencies of the tone controls switchable between 125 and 500 Hz resp. 2500 and 8000 Hz
High filter 10000 Hz 12 dB/oct. switchable
Cover for secondary controls



Power output: 125 watts per channel into 8Ω (stereo)

Frequency response: 20Hz to 20kHz

Total harmonic distortion: 0.005%

Damping factor: 45

Input sensitivity: 0.16mV (MC), 2.5mV (MM), 150mV (line)

Signal to noise ratio: 80dB (MC), 94dB (MM), 106dB (line)

Channel separation: 70dB (MM), 65dB (line)

Output: 150mV (line)

Dimensions: 435 x 147 x 422mm

Weight: 11.5kg
