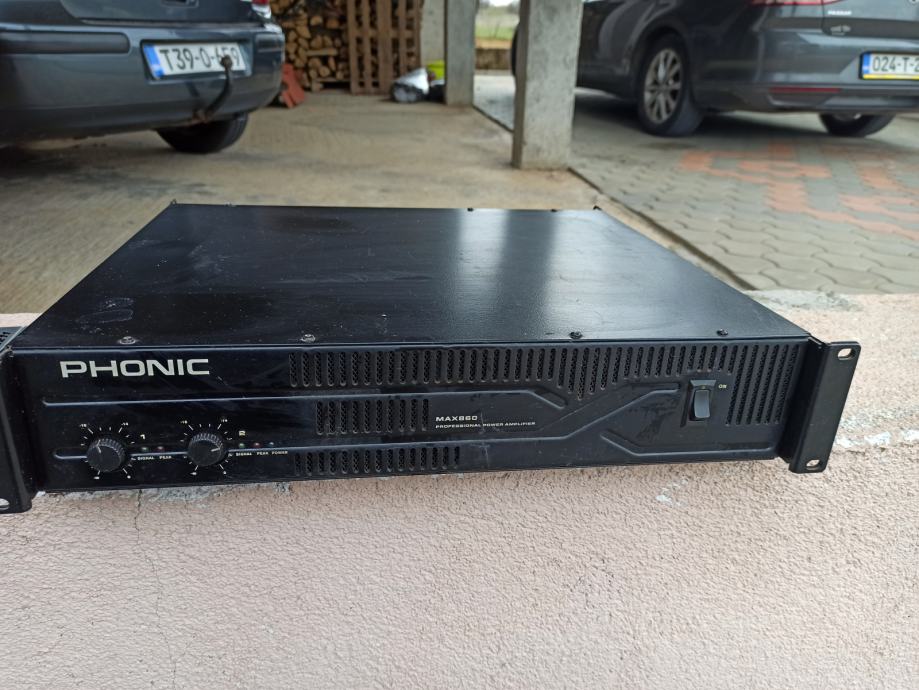

Phonic max 860

Prodajem navedeno pojačalo jako malo korišteno.
Opis:

Phonic's MAX 860 power amplifier provides 300 watts of power at 4 ohms -- ideal for medium sized venues, clubs, churches, etc. Phonic entry level power amplifiers maintain a solid performance at an affordable price. The MAX series amplifiers provide a range of different power options and features, and are rich in added features. Input to the MAX amps is achieved via an XLR and a phone jack, and output can be achieved through either Speakon connectors or traditional binding posts. MAX 860 features ground switches, user defeatable clip limiters, selectable high pass filters, and the option to choose between stereo, parallel and bridged operating modes, making the MAX series amplifiers ideal for real world, large scale application.

Features
Output power: 300W @ 4 ohm

Professional quality performance

High-current toroidal transformers for greater power and low noise

Independent user-defeatable peak limiters reduce distortion

Selectable high-pass filter at 30Hz or 50Hz

XLR and 1/4 in. TRS input jacks

Binding post and Speakon outputs

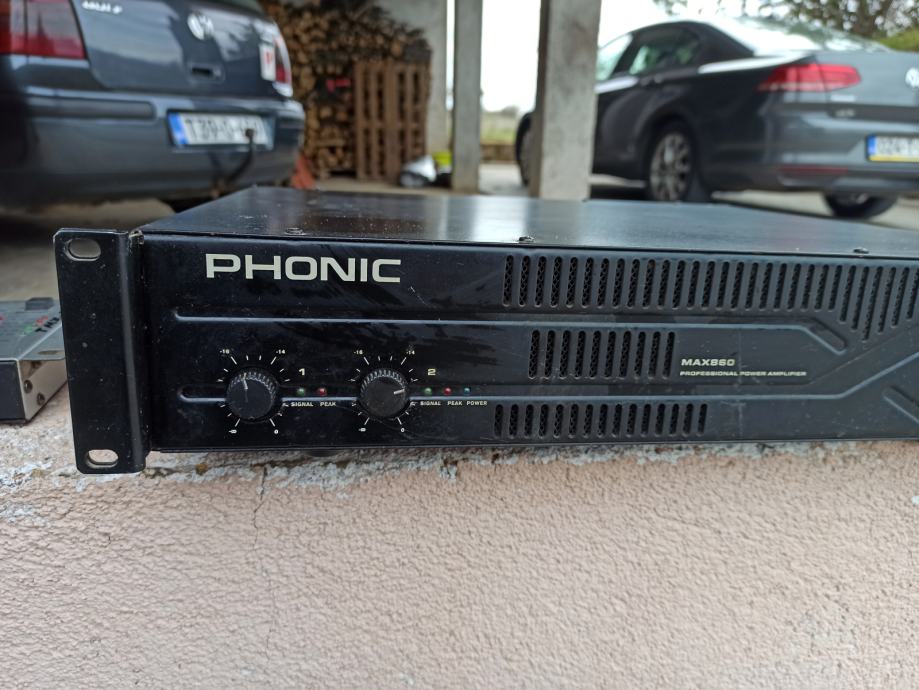

Front mounted gain controls for easy access

Signal and Peak LED indicators to monitor performance

Short circuit, thermal, subsonic, RF protection, output DC offset, power on/off muting

Specifikacija :
Stereo mode: 200W at 8 ohms, EIA 1kHz 0.1% THD

Stereo mode: 300W at 4 ohms, EIA 1kHz 0.1% THD

Stereo mode: 480W at 2 ohms, EIA 1kHz 1% THD

Bridged mono mode: 600W at 8 ohms, EIA 1kHz 0.1% THD

Bridged mono mode: 880W at 4 ohms, EIA 1kHz 1% THD

Output circuitry: class H

Input sensitivity @ 8 ohms: 1.23V (+4 dBu)

Distortion (SMPTE-IM): 300 @ 8 ohms

Frequency response: 20Hz-20kHz, +0/-1dB; -3dB points: 5Hz-50kHz

Input impedance: 20 kilohm balanced, 10 kilohm unbalanced

Cooling: continuous variable-speed fan, front-to-rear air flow

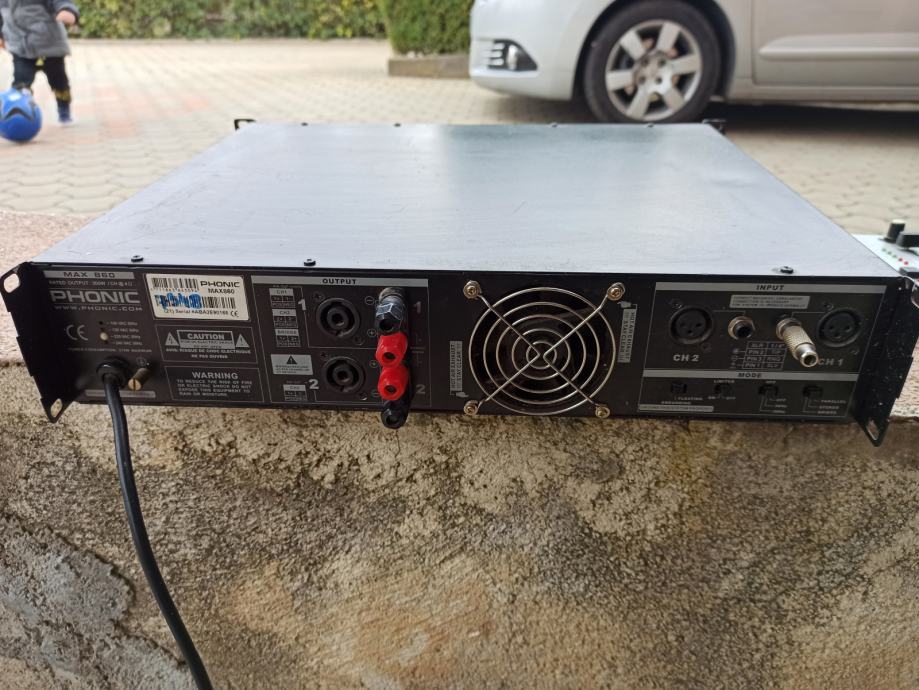

Connectors (each channel): XLR & 1/4 in. TRS input, Speakon and binding post output

Indicators: blue LED power, green LED signal, red LED peak

Front panel controls: channel 1&2 gain knobs with 41 detents

Rear panel: slide switches for limiter on/off, operation mode

Protection circuitry: short circuit, thermal, subsonic, RF protection, output DC offset, power on/off muting

Gain: 32x (30 dB)

Power consumption: 600W

Power requirement: 100~120VAC
