NAD D3045 60 W RMS na 8 ohm, DAC, BT aptX HD, PHONO, HDMI ARC

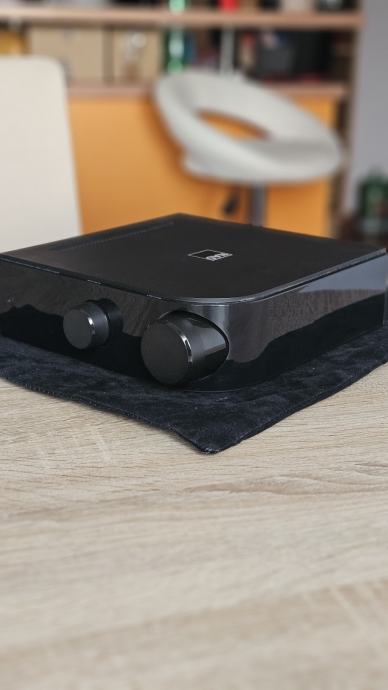

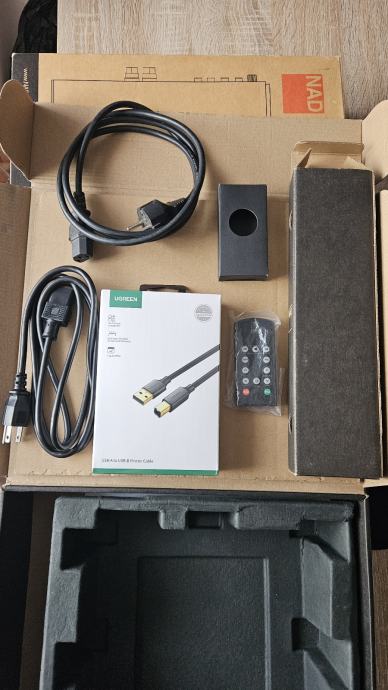

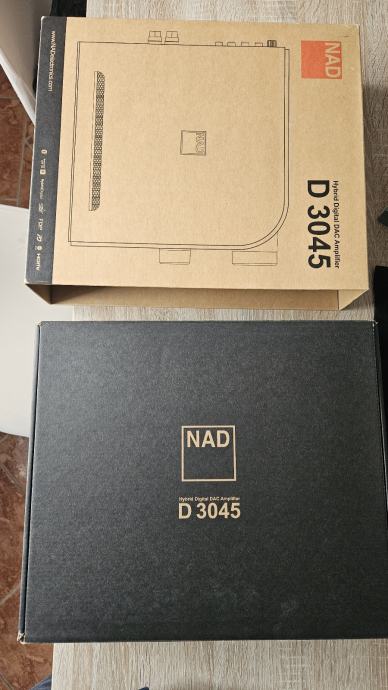

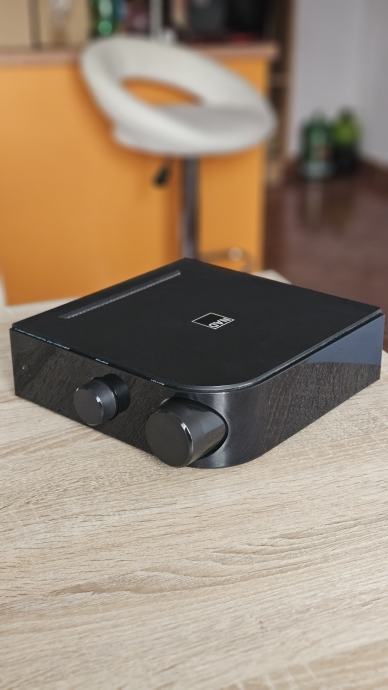

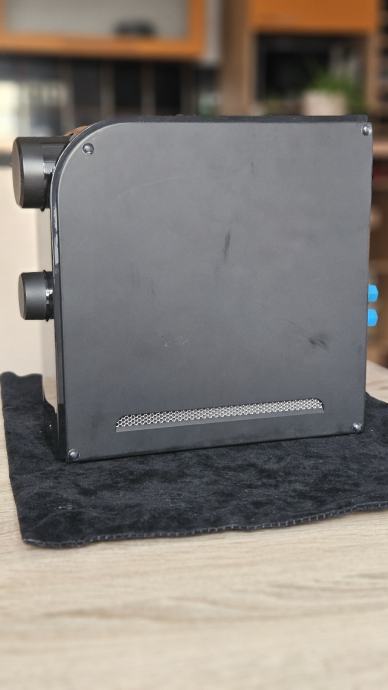

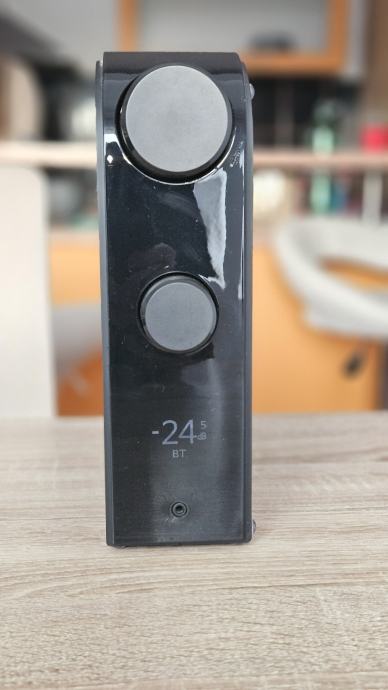

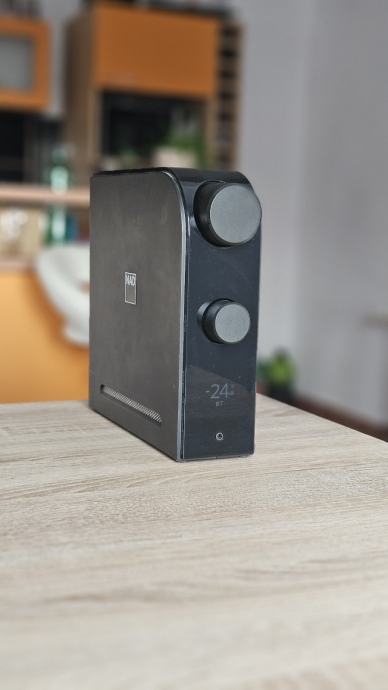

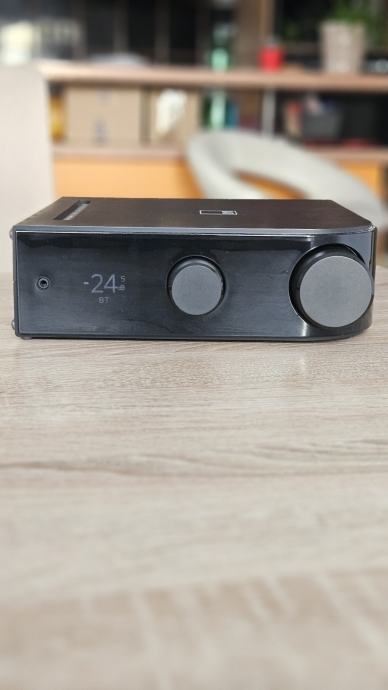

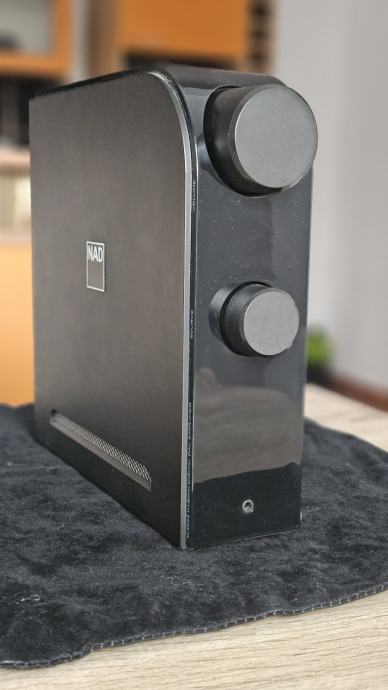

Prodaje se NAD D3045 hibridno DAC pojačalo. 60 W RMS na 8 ohm. Može stajati okomito ili vodoravno, ovisno o položaju, ekran se također mjenja iz vodoravnog u okomiti položaj. Stavljen je najnoviji firmware i verzija bluetootha. Dolazi sa naponskim kabelom, daljinskim, kompletnom ambalažom. Jako je kompaktnih dimenzija a zbog vertikalnog položaja se može odlično uklopiti i u desktop setup.

NAPOMENA: Bluetooth nekada radi a nekada ne! Sve ostalo radi normalno.

Cijena novoga je 800 €.

Ne znam koliko je pojačalo staro, nemam račun.

Mogu se namijestiti rezne frekvencije na 120, 80, 60 i 40 Hz, što je dosta zanimljivo ako ga planirate koristiti u kombinaciji sa aktivnim subwooferom.

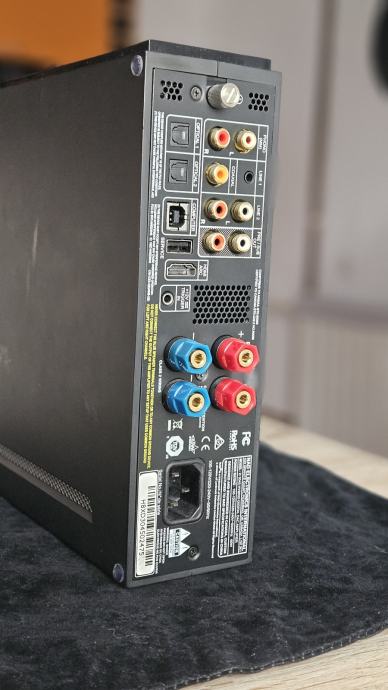

USB-B
Bluetooth by Qualcomm aptX HD
HDMI ARC
Audio input 1 (3.5mm)
Audio input 2 (RCA)
COAXIAL
OPTICAL 1
OPTICAL 2
PHONO
SUB/PRE OUT


PREAMPLIFIER SECTION LINE INPUT/PRE OUT
THD (20Hz – 20kHz)
100dB (IHF, A-weighted, ref. 500mV out, unity gain)
Channel separation
>85dB (1kHz)
>80dB (10kHz)
Input impedance (R and C)
47kohms + 220pF
Maximum input signal
>5.5Vrms (ref. 0.1% THD)
Output impedance
400 Ohms
Input sensitivity
82mV (ref. 500mV out, Volume maximum)
Frequency response
±0.2dB (20Hz – 20kHz)
Maximum voltage output – IHF load
>4V (ref. 0.1% THD)

PHONO INPUT / PRE OUT
THD (20Hz – 20kHz)
82dB (200 Ohm source, A-weighted, ref. 500mV out)
>76dB (MM cartridge source, IHF; A-weighted, ref. 500mV out)
Input sensitivity
1.35mV (ref. 500mV out, Volume maximum)
Maximum input signal at 1kHz
>90mVrms (ref. 0.1% THD)
Frequency response
±0.3dB (20Hz – 20kHz)

LINE INPUT / HEADPHONE OUT
THD (20Hz – 20kHz)
90dB (32 Ohm load; A-weighted, ref. 500mV out, unity gain)
Frequency response
±0.3dB (20Hz – 20kHz)
Output impedance 2 Ohms
Maximum headphone output – 32 Ohm load 80W (at 1kHz 4 Ohms 0.1% THD)
IHF dynamic power
8 Ohms : 80W
4 Ohms : 150W
2 Ohms : 200W
Peak output current
>18A (in 1 Ohm, 1ms)
Damping factor
>300 (ref. 8 Ohms, 20Hz to 6.5kHz)
Frequency response
±0.3dB (20Hz – 20kHz)
Channel separation
>75dB (1kHz)
>70dB (10kHz)
Input sensitivity
260mV (for 30W in 4 Ohms)
Supports bit rate/sample rate
up to 24 bit/192kHz (digital source)
up to 24 bit/384kHz (computer source)
Standby power
