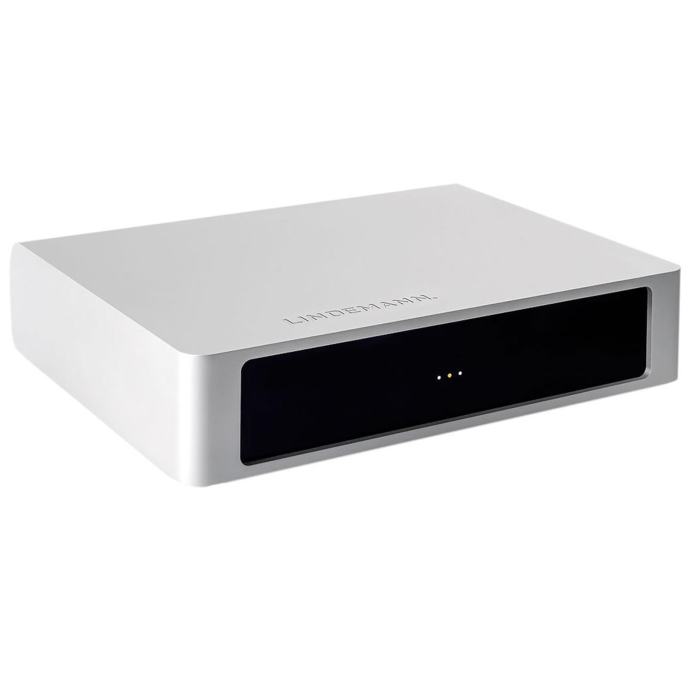

Lindemann power 1000

Prosaje se pojacalo Lindemann power 1000

DESIGNED IN GERMANY.

Technical specifications

Please note: The values in brackets apply to the POWER 1000!

General

Mains connection: 90-240 V, 50-60 Hz
Power consumption: 0,5 W stand-by, 16 (26) W operation, 650 (1200) W max.
Dimensions (W x H x D): 280 x 220 x 63 mm
Weight: 2,9 (3,4) kg

Power amps

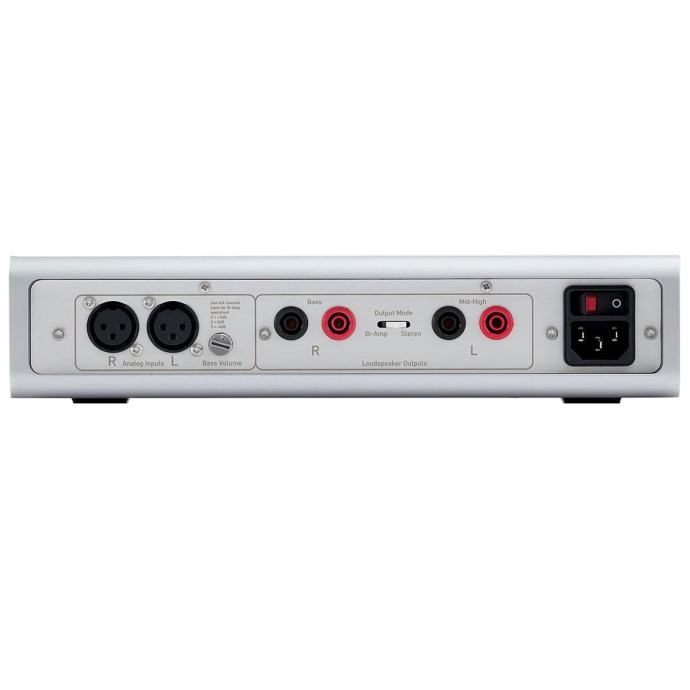

XLR Inputs: balanced, analog line-level inputs
Input voltage for full modulation: 1,68 V (2,38 V)
Input impendance: 20 kOhms
Speaker outputs: banana plugs (4 mm)
Speaker impendance range: 4 – 8 Ohms
Output power: 2 x 250 W @ 4 Ohms (2 x 500 W @ 4 Ohms)
Gain: 26 dB
THD: < 0,003%
Frequency response: 1 Hz – 50 kHz (-3 dB)
Signal-to-noise ration: > 110 dB

Automatic switch-on

Switch-on treshold: ca. 0,2 mV balanced
Switch-on delay: ca. 2-3 seconds
Switch-off time: ca. 60 minutes

Protection circuits

DC at output: Amplifier switches off. The display lights up red continuously. The unit must be disconnected from the mains for 10 seconds and restarted.
Overtemperature: Amplifier flashes red. Cause: Overload, insufficient convection cooling, room temperature too high. If the temperature continues to rise, the amplifier is switched off, until the unit has cooled down.
Current limiting: Amplifier switches off the signal. Switching threshold output current: 17.5 A (27 A).
