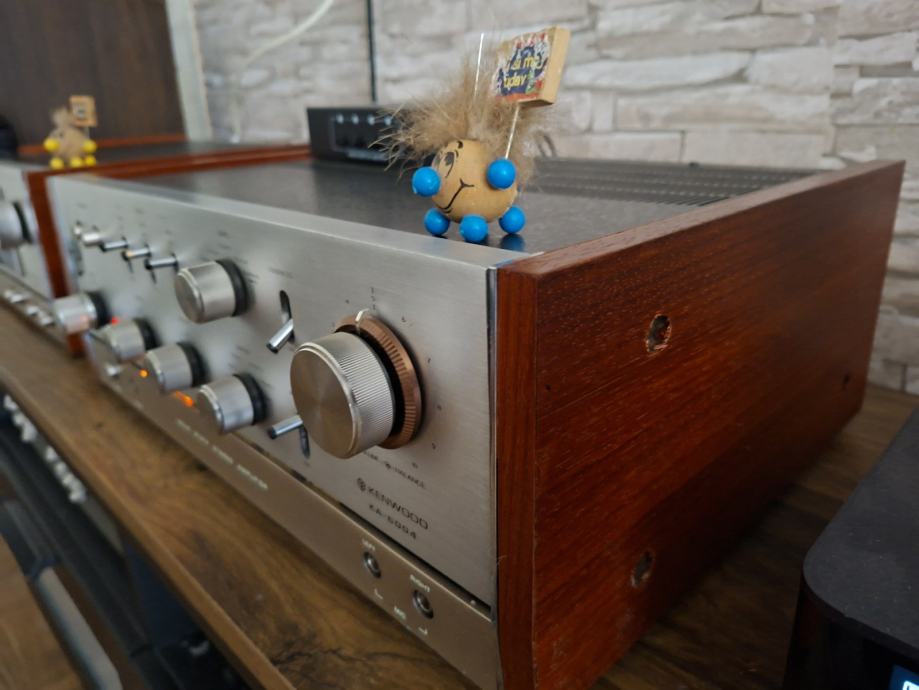

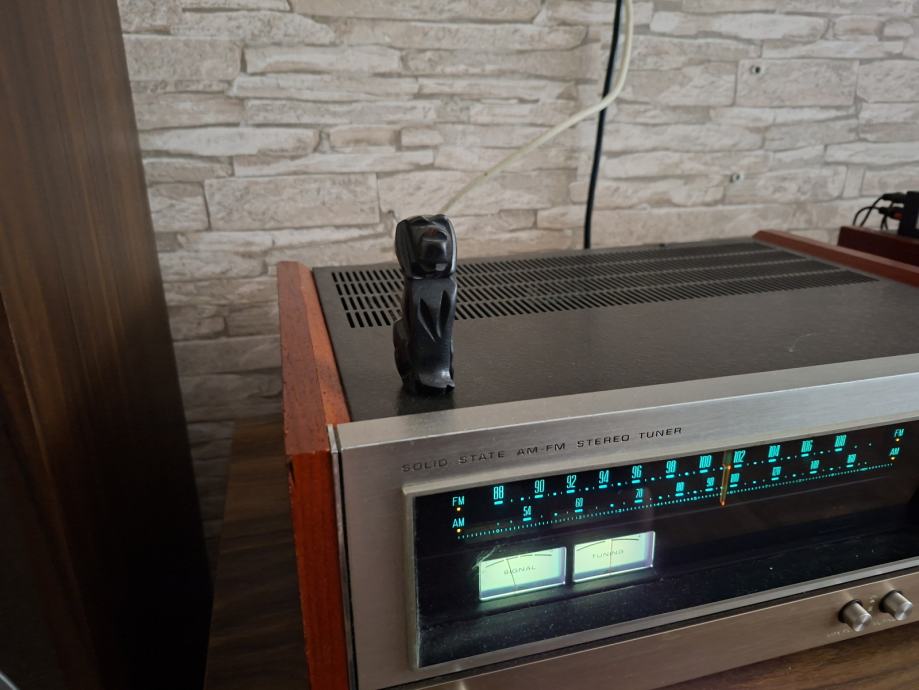

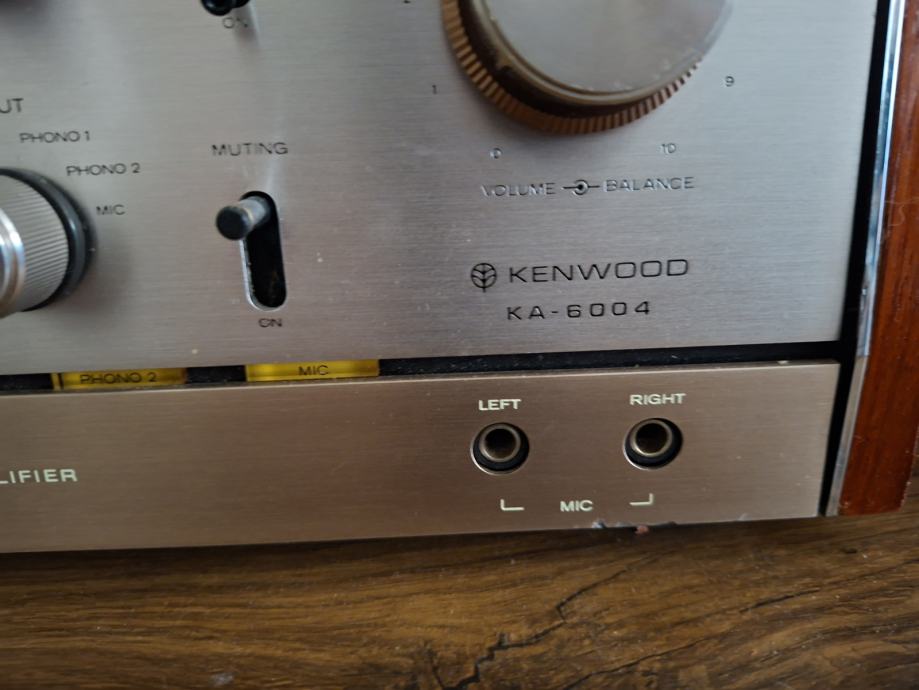

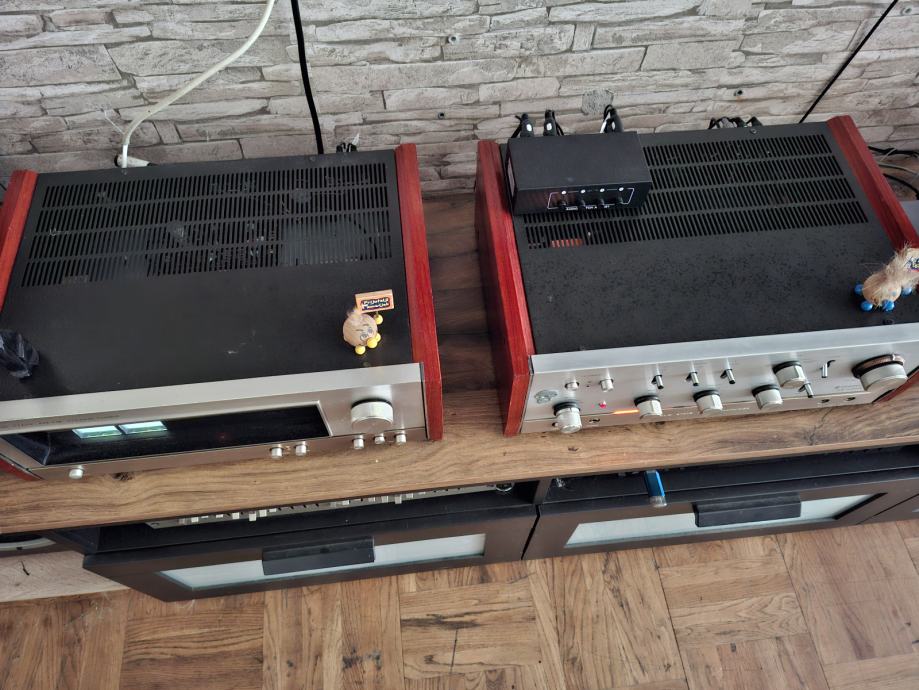

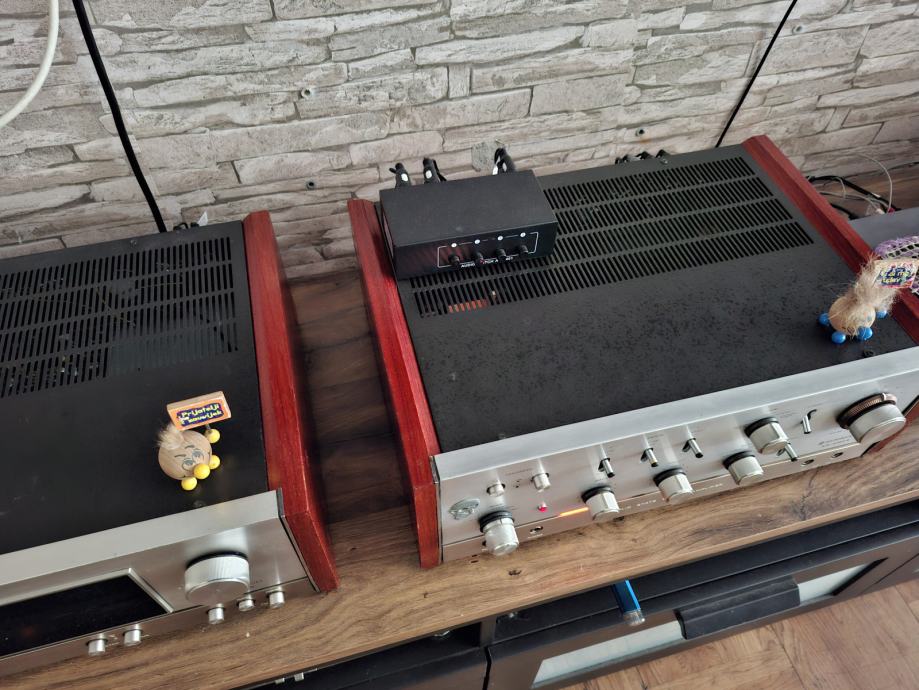

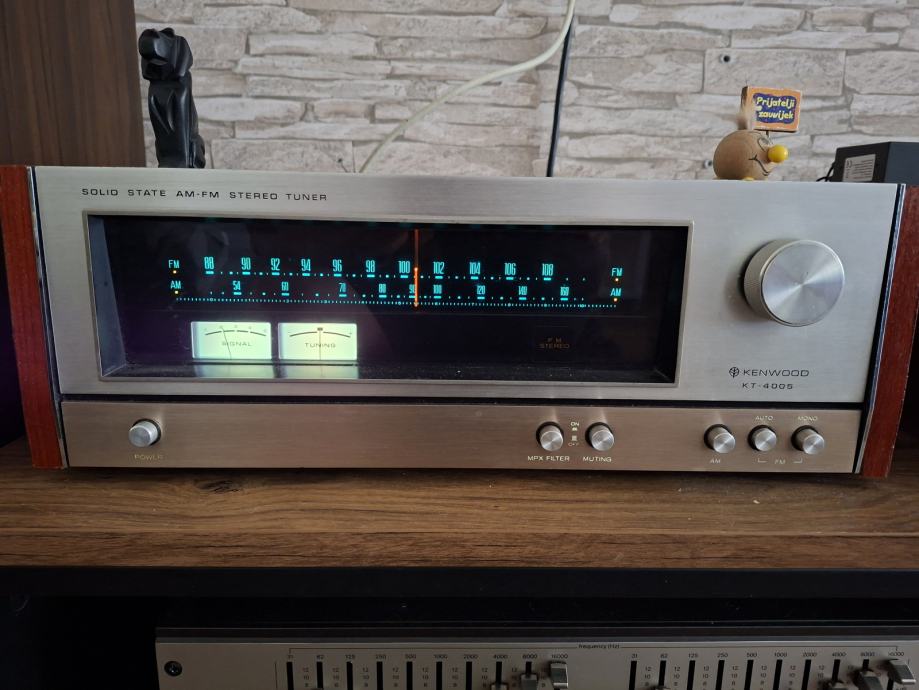

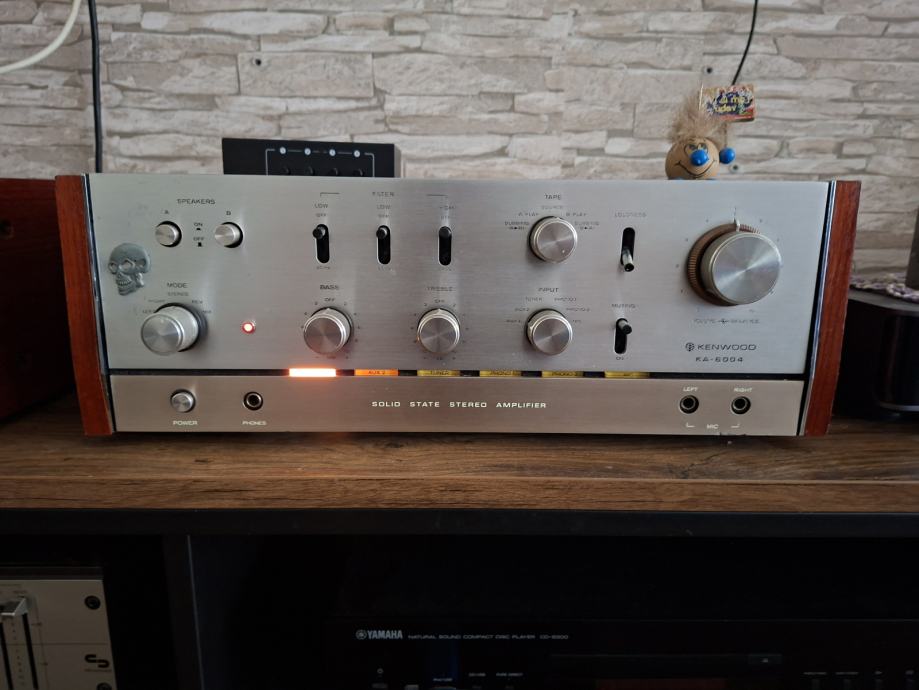

KENWOOD KA 6004 i KT 4005 Vintage set-samo u kompletu

KENWOOD KA 6004 i KT 4005 Vintage set kak se vidi estetski s obzirom da je iz 1972g 10/10,funkcionalno bezprijekoran,daske sa strane na novo furnirane,sve šljaka kao prvog dana,za ljubitelje pravog vintage zvuka,zamjene me ne hićeju osim ako je nakaj iz tog doba i u ovakvom psiho-fizičkom stanju,cijena BETON,ne šaljem,ne dostavljam i ne natipkavam se,koga zanima br u inbox i ja bum nazval i razgovaramo kak ljudi,zahvaljujem na razumjevanju.

• Manufacturer: Kenwood
• Model: KA-6004
• Type: Integrated amplifier
• Years of manufacture: 1972 - 1976
• Made in: Japan
• Color: Silver, wood side panels
• Type: Amplifier
• Power consumption: 235 W at full output, 15 W without signal
• Dimensions (WxHxD): 435 x 153 x 300 mm
• Weight: 11,5 Kg
• Original price approx.: 69'800 Yen (Japan, 1972), 1'198 DM

Connections
• Number of inputs:
o Input sensitivity:
o Phono 1 MM: 2.5mV, 50 kOhm, 200 mV max.
o Phono 2 MM: 2.5mV, 50 kOhm, max. 200 mV
o Microphone: 3mV, 50 kOhm
o Tuner: 200mV, 100 kOhm
o AUX 1, 2: 200mV, 100 kOhm
o Tape Play A, B: 200mV, 100 kOhm
o Main In: 1 V, 50 kOhm
• Number of Outputs:
o Outputs:
o Tape Rec: 150mV, 100 Ohm
DIN: 30mV, 50 Ohm
•
o Pre-Out: 1 V, 100 Ohm
o Headphones: 4 - 16 Ohm
o Connections for 2 pairs of speakers

Technical Data
• Continuous power (at distortion)
o 8 Ohm: 2x40W (RMS, 20Hz...20Khz, 0.08% THD), 2x 43W (8 Ohm, 1Khz)
o 4 Ohm: 2x57W
• dynamic power
o 8 Ohm: 130 W
o 4 Ohm: 220 W
• Total harmonic distortion: 0.3% THD at 8 Ohm
• Attenuation factor: 32 at 8 Ohm
• Frequency response: 20 - 50000 Hz, - 2dB
• Power bandwidth: 10 - 50000 Hz
• Signal to noise ratio: 110 dB
o Phono 1,2: 68 dB
o Microphone: 70 dB
o Tuner: 75 dB
o AUX 1, 2: 75 dB
o Tape Play A, B: 75 dB
• Tone control
o Bass: ± 10dB at 100Hz
Treble: ± 10dB at 10Khz
• Loudness: +8dB at 100Hz, +3dB at 10kHz
• High Filter: +6dB/oct. at 7kHz
• Low Filter 1: +12dB/oct. at 40Hz
• Low Filter 2: +12dB/oct. at 80Hz
• Muting: 0 dB, - 20 dB

Special Features
• Pre- and power amplifier separable
• Mono / Stereo switch
