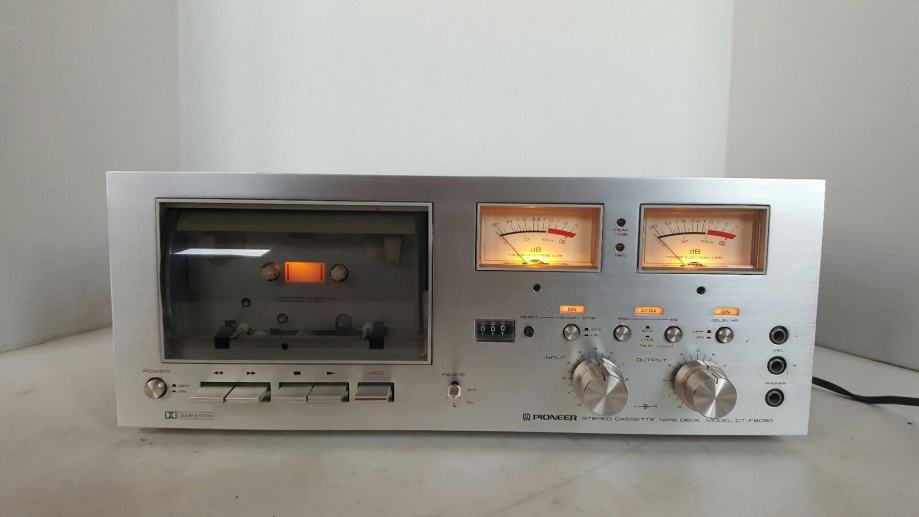

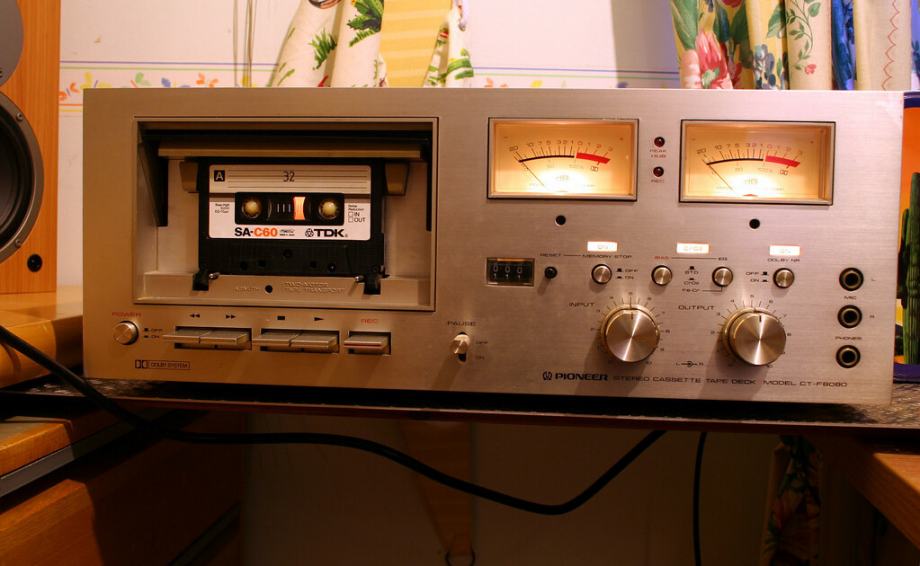

Pioneer CT F 8080 Vintage High End Cassette Deck

Zvati isključivo na : 0989389909

U stanju novog , napravljen servis remenja

Cijena je Konačna , hvala

Pioneer CT-F8080
Stereo Tape Cassette Recorder (1976-78)

add a review add a review

Pioneer CT-F8080

Description
The Pioneer CT-F8080 features a fast and easy front panel operation, achieved through carefully apportioned control layout and Pioneer's original vertical cassette transport system. Simple stand up cassette loading makes handling effortless.

Tape motion during record and playback is regulated by a superbly stable DC servo controlled motor, while a high torque mechanical governor equipped motor drives fast forward and rewind.

Precision design and finishing of the capstan, belt large size flywheel and tape take-up mechanism assure outstanding performance in terms of flutter and stability.

The CT-F8080 direct change system allows any mode (record, play, fast forward, rewind) to be selected without alternating with the stop switch.

Operating convenience becomes additionally increased, while tape is protected from undue stress.

Specifications
Type: 2-head, single compact cassette deck

Track System: 4-track, 2-channel stereo

Tape Speed: 4.75 cm/s

Heads: 1 x record/playback, 1 x erase

Motor: 1 x playback/record, 1 x fast wind

Tape Type: type I, FeCr, CrO2

Noise Reduction: B

Frequency Response: 20Hz to 17kHz (Cr02 tape)

Signal to Noise Ratio: 63dB (dolby B)

Wow and Flutter: 0.07%

Total Harmonic Distortion: 1.5%

Input: 60mV (line), 0.2mV (mic)

Output: 0.45V (line)

Semiconductors: 63 x transistors, 41 x diodes, 4 x FET,

Dimensions: 420 x 165 x 349mm

Weight: 11.8kg

Year: 1977
