Audiomat Tempo 2.6 high end DAC, zamjena mobitel, Lundahl, PCM 1794

Zamjena za Android mobitel u rangu 200-400 Eura (tipa XIAOMI 14T, Samsung Galaxy A56) cijevi 6EM7

Prodajem Audiomat Tempo 2.6, high end DAC, zvukovno u klasi do 5000 Eura, Lundahl transformatori na digitalnim ulazima,
odvojeno napajanje sa dva trafa u posebnom kučištu, 163,030 µF u napajanju od kojih

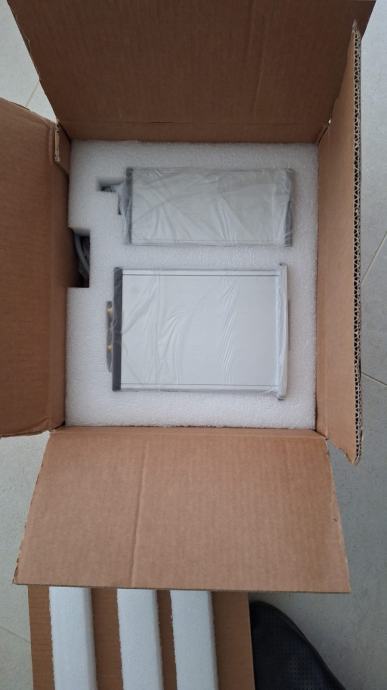

je 30 µF SCR polypropylene na kritičnom mjestu. Orginal kutija, papiri, stanje 10/10.
Cijena novog bila 2980 Eura, novi model samo as AKM chipom dođe 4500 Eura.
Model koji prodajem je 2013 poslije su samo dodali USB ulaz koji nije ni približno
dobar kao AES/EBU i SPDIF. Bez zamjena. Slike DAC-a koji se prodaje. Zamjena isključivo NOS ECC 81 (jedna tipa CV6091 AV2900 GEC)
https://www.mutine.com/Resources/Banc_Audiomat_Tempo_26_SI_2010_Fr.pdf

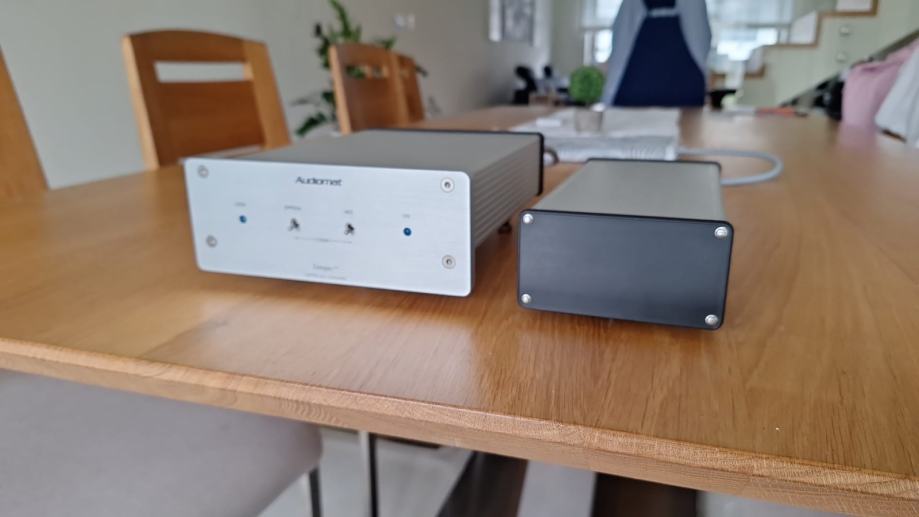

Audiomat Tempo 2.6 DAC with separate power supply.

Technical data Tempo 2.6
Digital inputs XLR, RCA,
TOSlink
Digital audio receiver CS 8416
Digital filter DF 1704
Digital/analog converter PCM 1794,
24bit/192kHz
RCA analogue output
Output voltage 2.7V
Class A output stage
Analog filter, passive 7th order

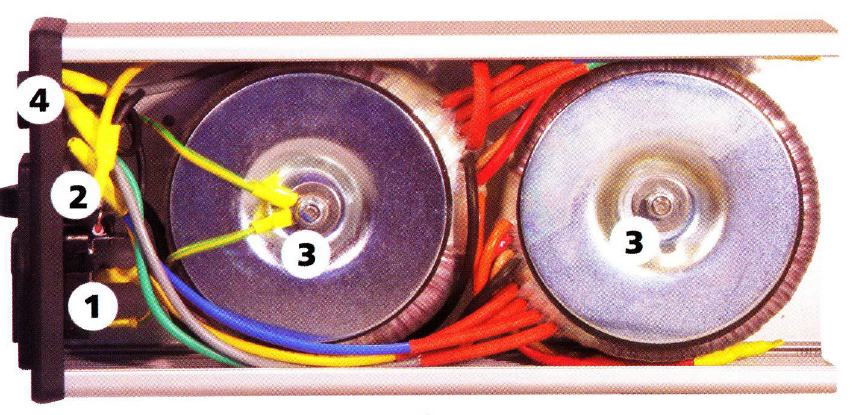

Power supply:
Toroidal transformer 2x100 VA
Capacity 163,030 µF of which SCR polypropylene 30 µF
Fuse 2A
Housing D/A converter:
Front panel aluminum 10 mm
Chassis and cover aluminum 2 mm
Color silver anodized
Feet/cones 3
Dimensions (WxHxD mm) 170x75x230
Weight 2kg
Housing power supply:
Chassis and cover aluminum 2 mm
Color silver anodized
Dimensions (WxHxD mm) 110x60x230
Weight 3kg

• Separate housing for the power supply avoidance of electrical and mechanical interference
• Exclusive use of discreet components in the analog section, none integrated circuits
• Filtering with high quality polypropylene and mica capacitors
• Class A analogue amplification without negative feedback
• No sample rate conversion, all Digital signals from 16bit/44.1kHz to24bit/192kHz is used original format changed
• Low-ESR capacitors in the power supply for low residual ripple supply voltage
• The input signals come through high quality Lundahl transformer
