SONY CDP-215 ODLIČAN CD PLAYER ISPRAVAN SERVUSIRAN

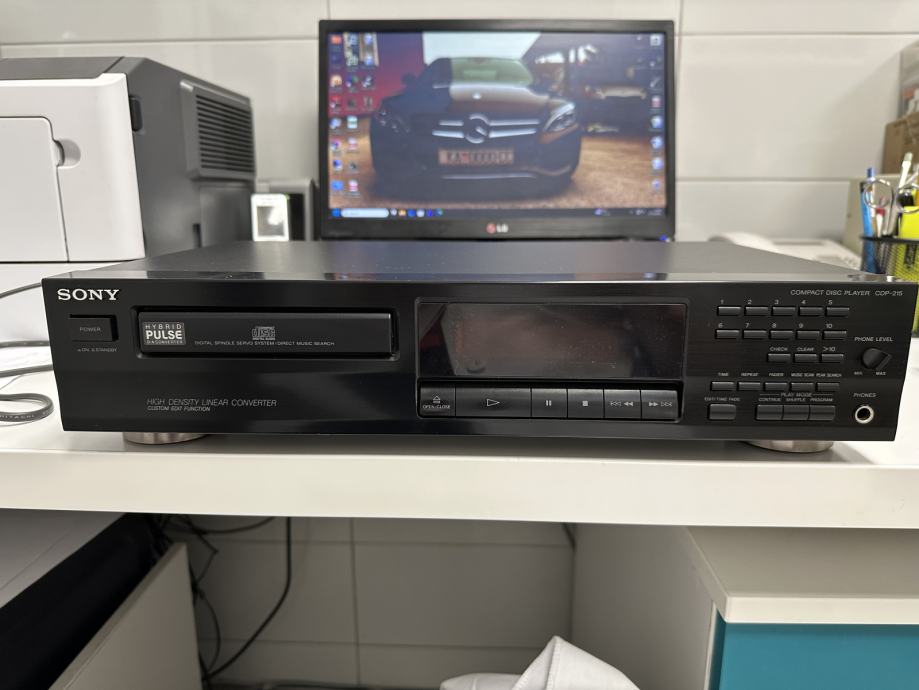

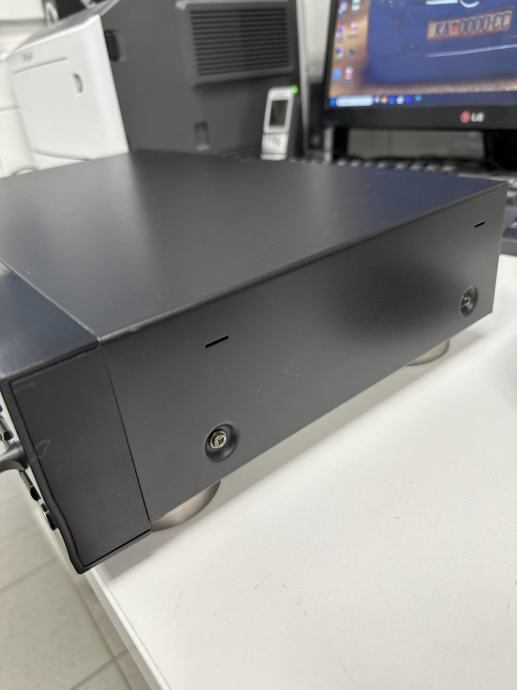

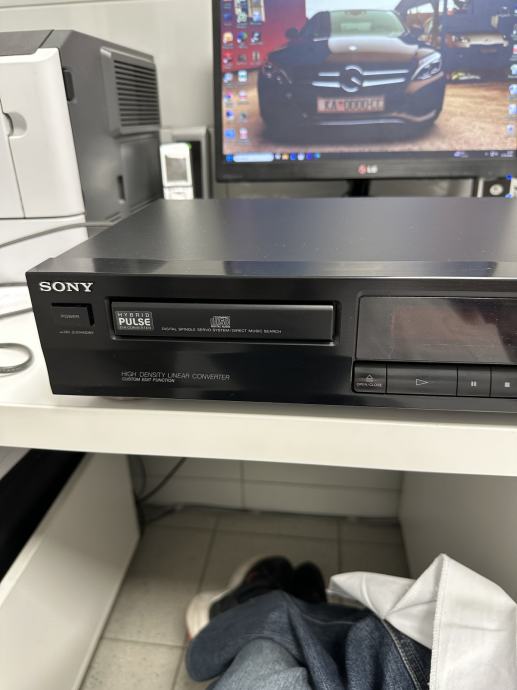

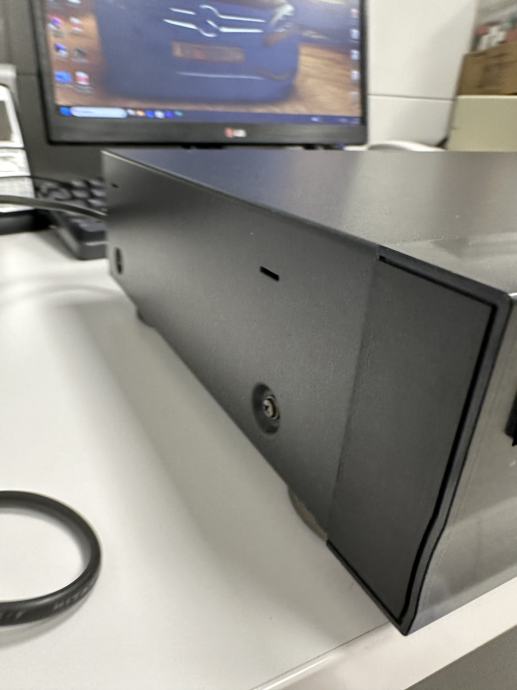

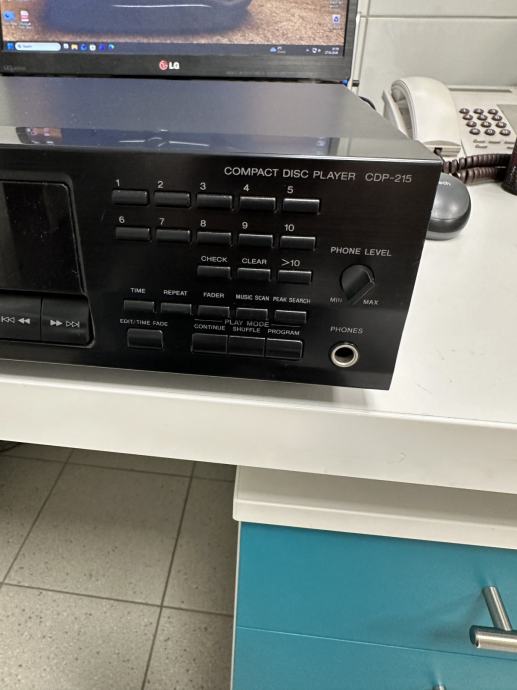

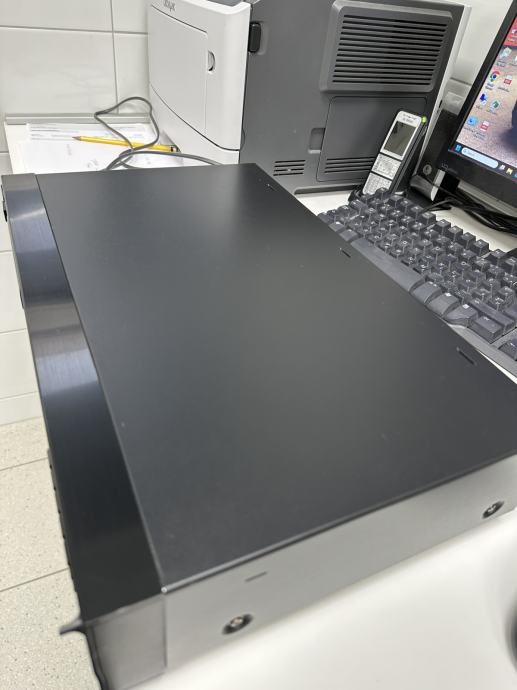

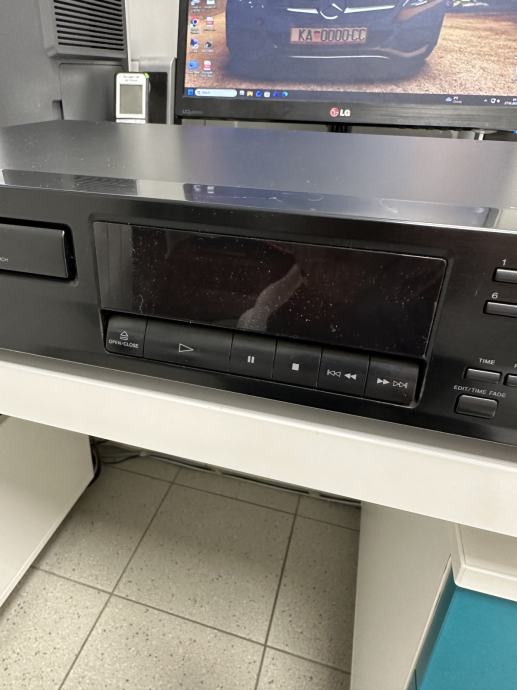

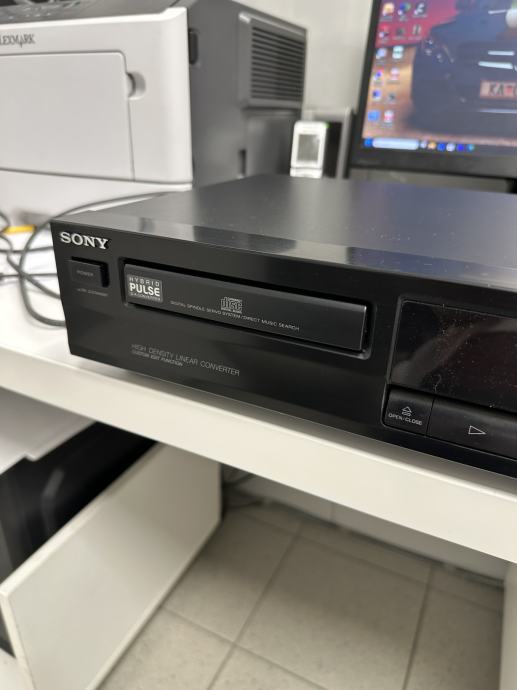

SONY CDP-215 ODLIČAN CD PLAYER ISPRAVAN SERVUSIRAN - PROMIJENJEN RREMEN LADICE I LASER I SVE OČIŠĆENO I PODMAZANO - RADI SAVRŠENO - Main principle
Audio-Amplification
Wave bands
- without
Details
CD-Player, -Writer, MD, MOD (audio); Hi-Fi equipment
Power type and voltage
Alternating Current supply (AC) / 120; 220-230 Volt
Loudspeaker
- For headphones or amp.
Material
Metal case
from Radiomuseum.org
Model: Compact Disc Player CDP-215 - Sony Corporation; Tokyo
Shape
Book-shelf unit.
Dimensions (WHD)
430 x 100 x 295 mm / 16.9 x 3.9 x 11.6 inch
Notes
A stereo hi-fi compact disc player. High Density Linear Converter, Custom Edit Function. With continuous play, Fading In/Out, Shuffle play, Program play, Music Scan, Repeat play, Time Edit, Time Fade and Peak Search. RCA phono Line Out sockets, jack for headphones with volume control.

Specification
Laser (KSS-240A) Semiconductor laser (λ = 780 nm)
Wavelength 780 - 790 nm
Frequency response 2 Hz - 20 kHz ±0.5 dB
Signal to noise ratio More than 100 dB
Dynamic range More than 98 dB
Harmonic distortion Less than 0.0045%
Channel separation More than 95 dB
Outputs
LINE OUT
(Phono jacks) Output level 2V (at 50 kΩ)
Load impedance over 10 kΩ
PHONES
(Stereo phone jack) Output level max 10 mW
Load impedance 32 Ω
Versions/Power requirements
US model / 120V AC 60Hz
AEP model / 220-230V AC 50/60Hz

Power consumption: 10 W

Similar to the Sony CDP-315 Compact Disc Player which additionally has remote control and digital optical output.

Net weight (2.2 lb = 1 kg)
3.2 kg / 7 lb 0.8 oz (7.048 lb)
Mentioned in
-- Original prospect or advert (Sony General catalogue '94)
Literature/Schematics (1)
- - Manufacturers Literature (Service manual CDP-215/315 dated 1994.2)
Literature/Schematics (2)
- - Manufacturers Literature (Operating Instructions CDP-215 CDP-315 dated 1994)
Author
Model page created by Howard Craven. See "Data change" for further contributors.
