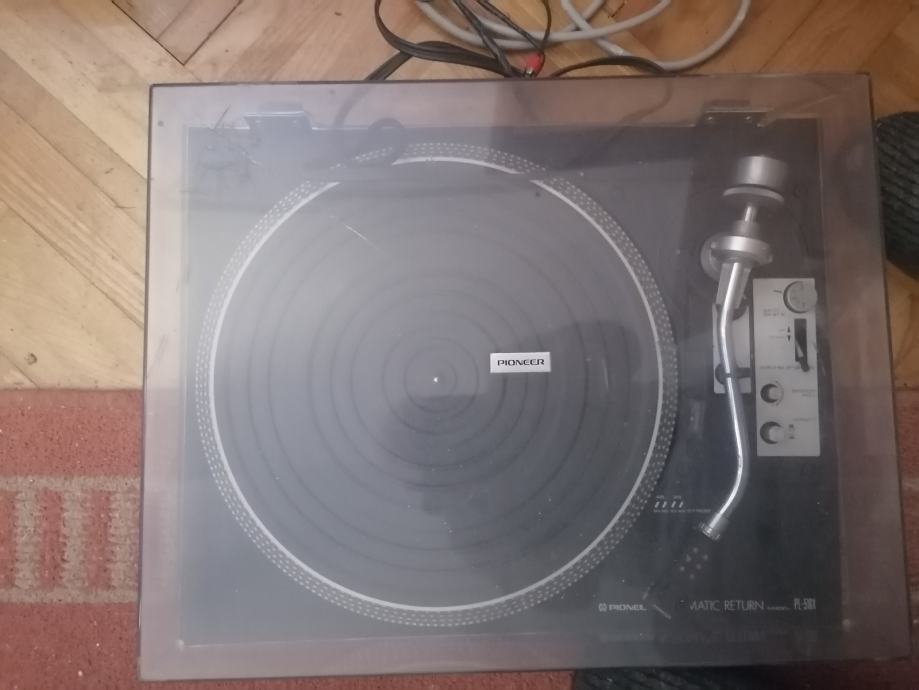

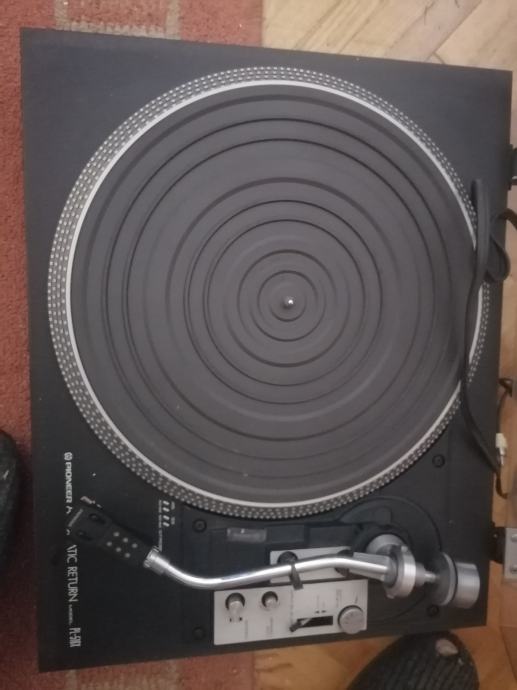

GRAMOFON PIONEER PL516X VRHUNSKI GRAMOFON PRODAJEM

GRAMOFON PIONEER PL516X VRHUNSKI GRAMOFON, TEŽAK 9,2kg , S RUČKA ... PRODAJEM

VIDI SNIMKA O KORIŠTENJU I MOGUĆNOSTIMA OVOG VRHUNSKOG GRAMOFONA : https://youtu.be/8LS5P7SvHNA

STANJE VRHUNSKO - SAČUVAN I MALO KORIŠTEN U AUDIO STUDIU GDJE SE NE PUŠI !!!

SHURE M 70B vrhunska zvučnica i igla IDU UZ GRAMOFON


Pioneer PL-516 X
Description

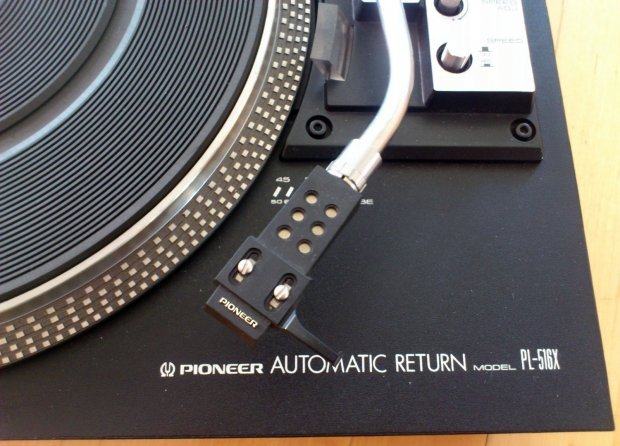

The Pioneer PL-516 X is a 2-speed, belt-driven turntable with auto-return mechanism.

Other features include an anti-skating control, cueing device, fine speed adjuster, strobe light, insulator feet, plug-in type headshell and a 40mm thick particle board cabinet.

Specifications
Type: auto-return turntable

Drive method: belt drive

Motor: FG servo DC motor

Speeds: 33 and 45rpm

Pitch control: +-2%

Wow and flutter: 0.045% WRMS

Signal to noise ratio: 68dB

Platter: 320mm aluminium alloy die-cast

Tonearm: static balance type, pipe arm (s-shaped)

Effective length: 221mm

Overhang: 15.5mm

Usable cartridge weight: 4 to 10g

Dimensions: 440 x 365 x 140mm

Weight: 9.2kg

Downloads
service manual English

X instruction/owners manual English - stavros


Please login or register a free account in the forum to download files


If you have additional documentation please consider donating a copy to our free archive.

NOTE To view PDF files the latest version of the official acrobat reader is required.

Pioneer Belt Drive Turntables
