S.A.M. Titan Silver gray gramofon sa S.A.M. ruckom

Www.SAM-AUDIO.EU

Nalazimo se u Osijeku. Cijena izrazena za gramofon sa jednom ruckom, bez zvucnice.

COMING SOON! CONTACT US FOR RESERVATION!

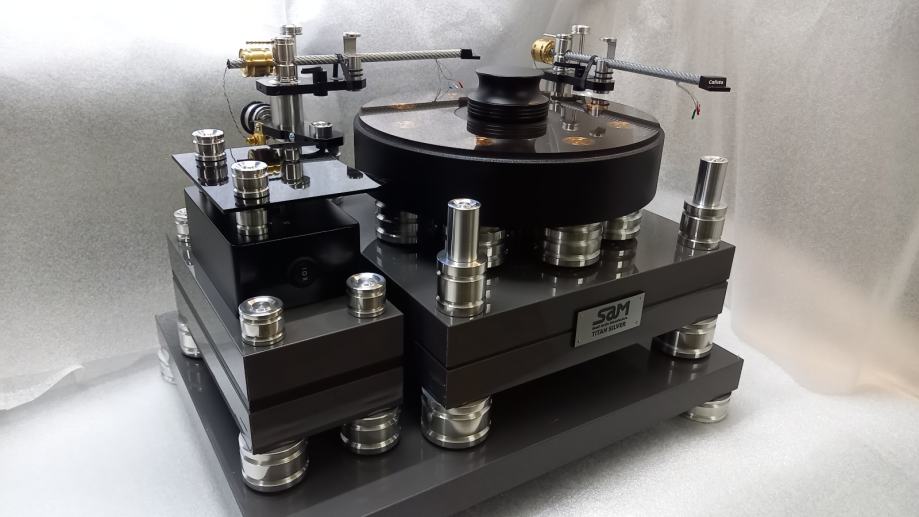

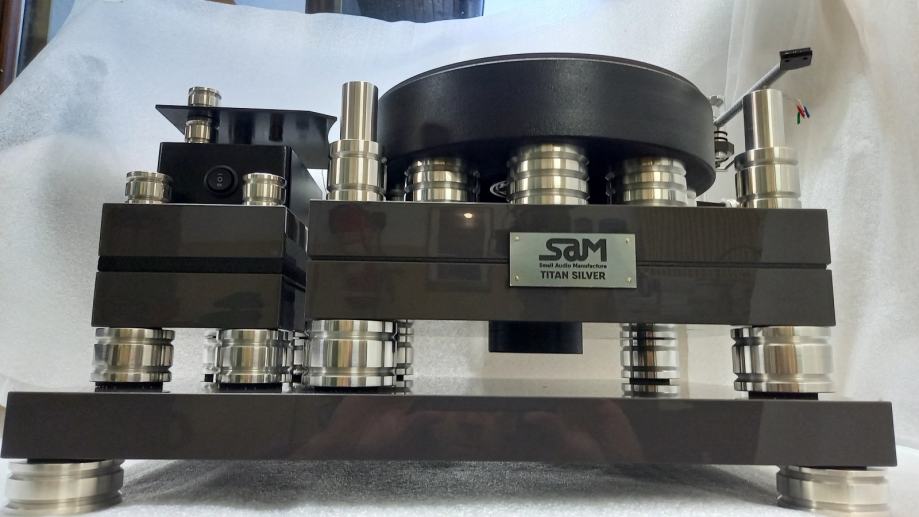

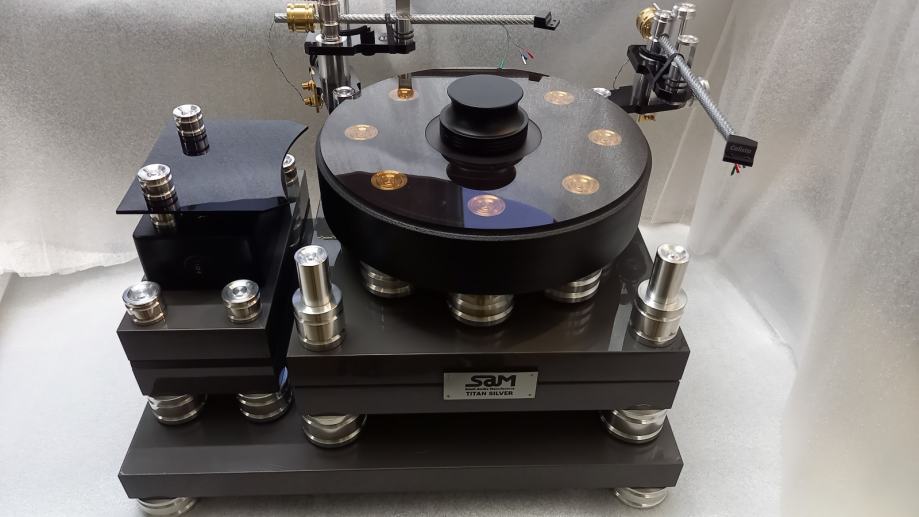

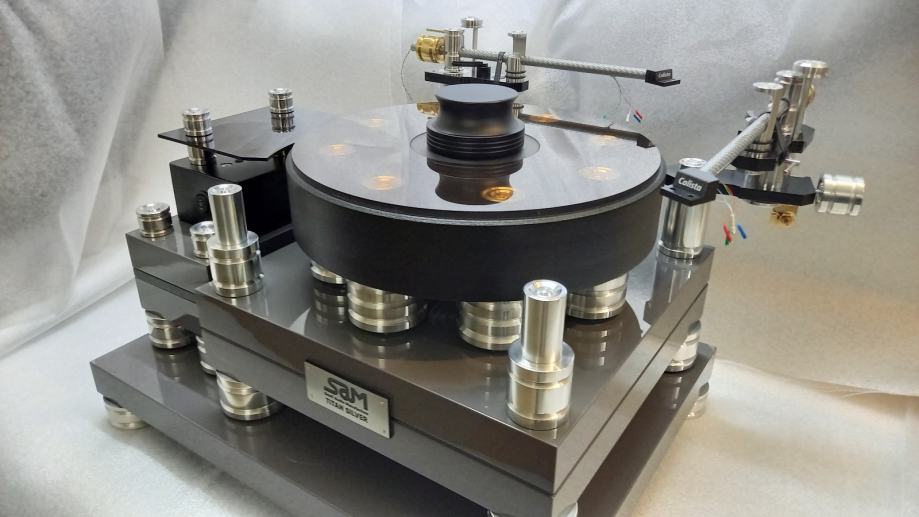

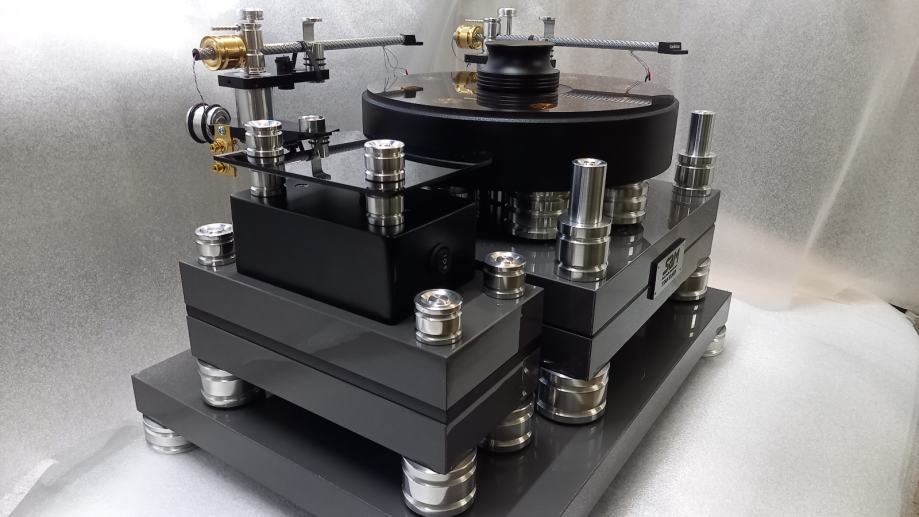

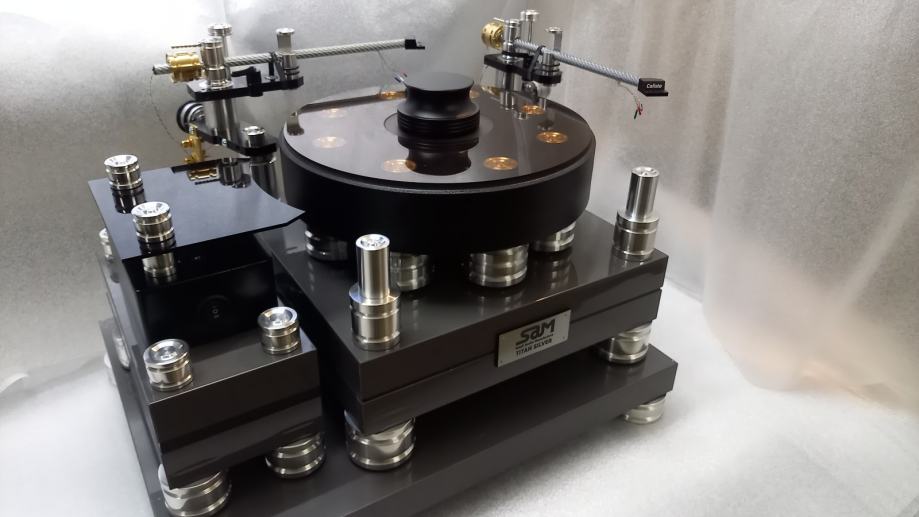

Small Audio Manufacture Titan Silver with S.A.M. carbon or aluminium tonearm.


SAM-AUDIO.EU


ONE ALREADY SOLD ON AUDIOGON, CHECK THE FEEDBACK:


"The quality of this table is just unreal. If this was produced in the US it would easily sell for 2 to 3 times the price. The craftsmanship is top notch. There’s not a single negative thing I could say about it. Thank you again! I will definitely be returning for another."

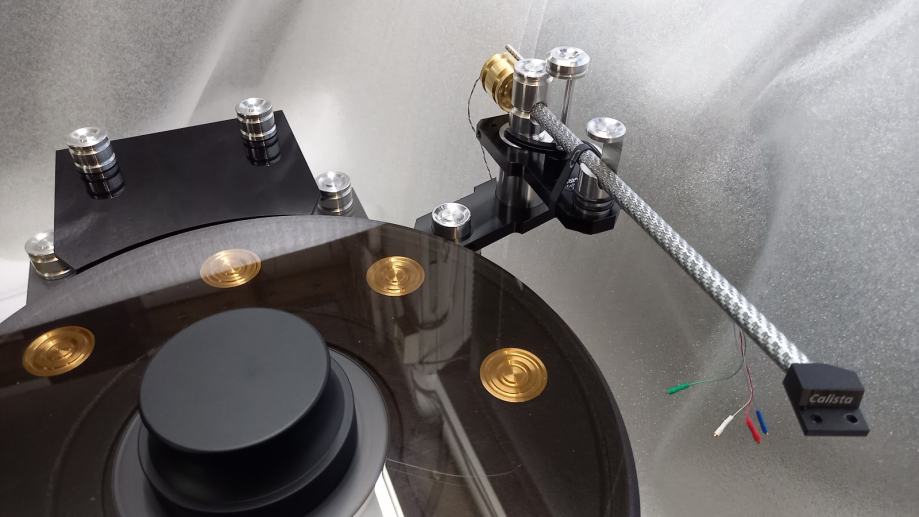

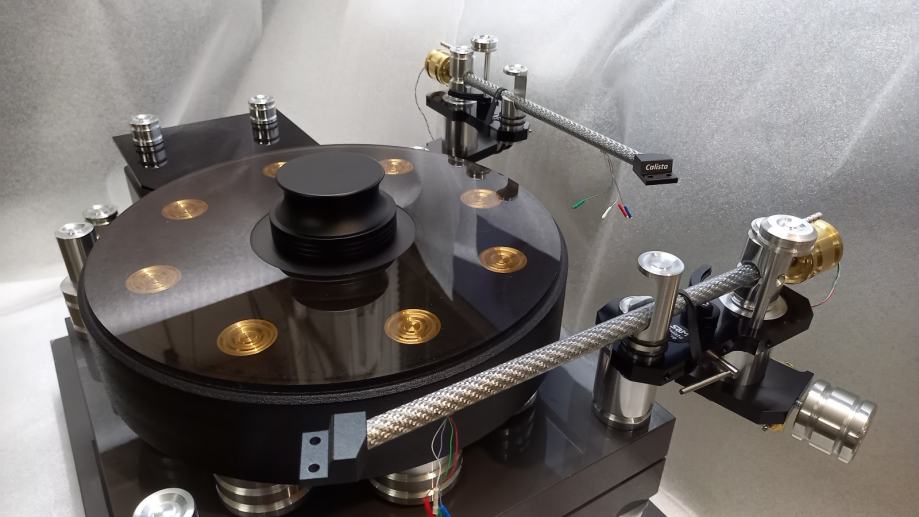

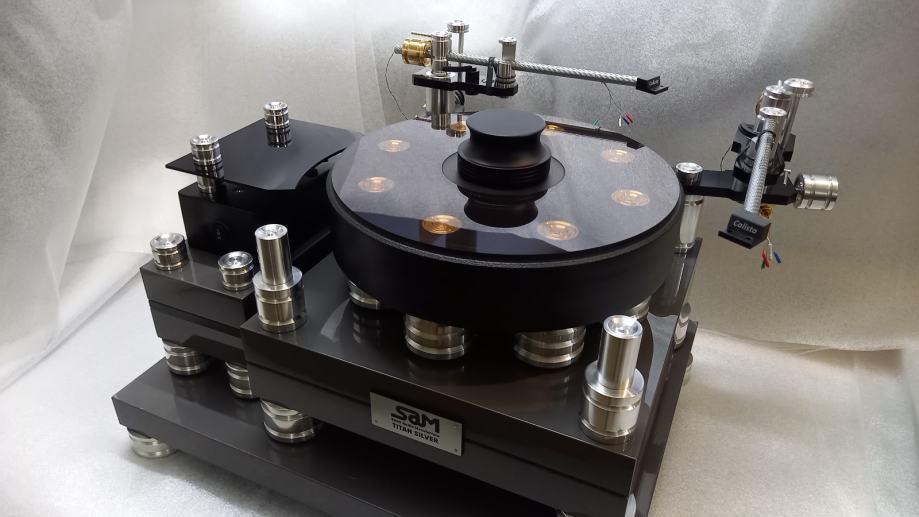

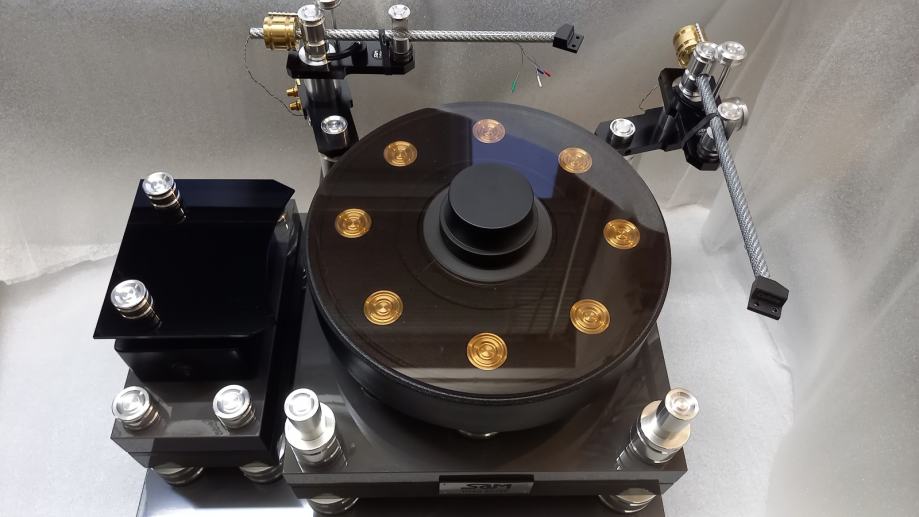

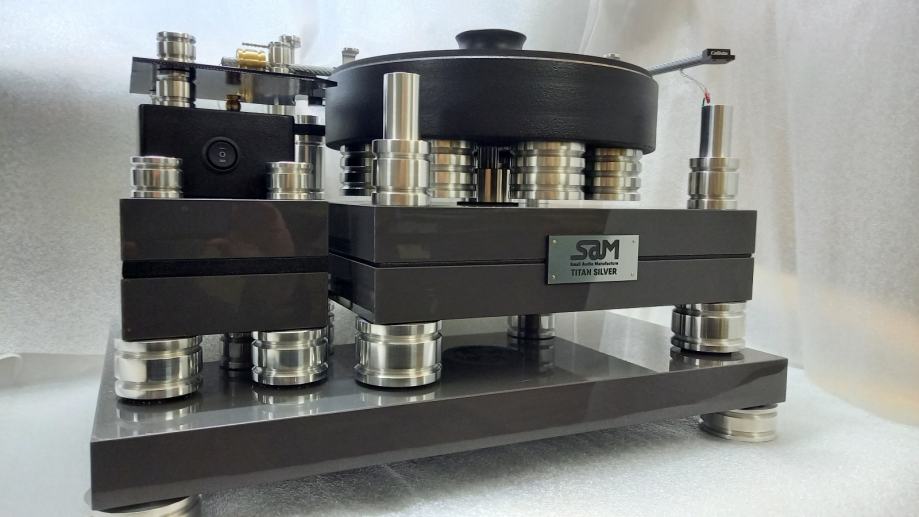

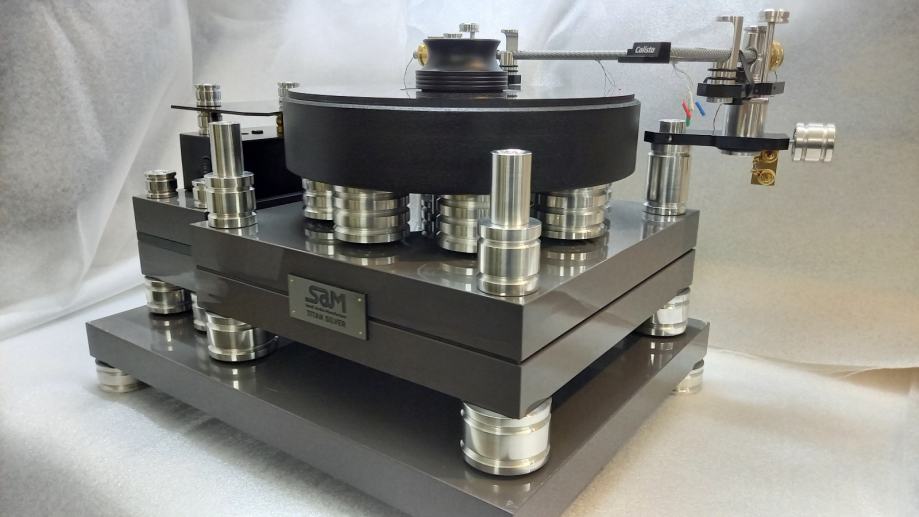

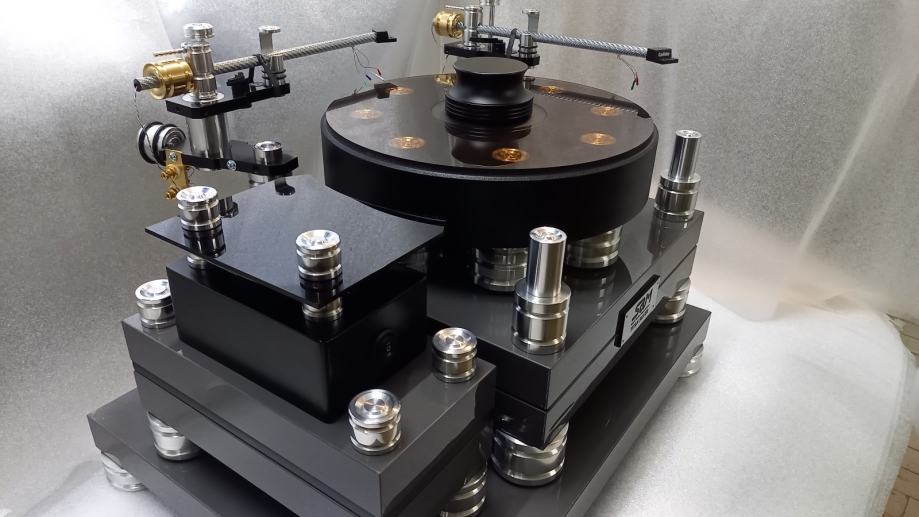

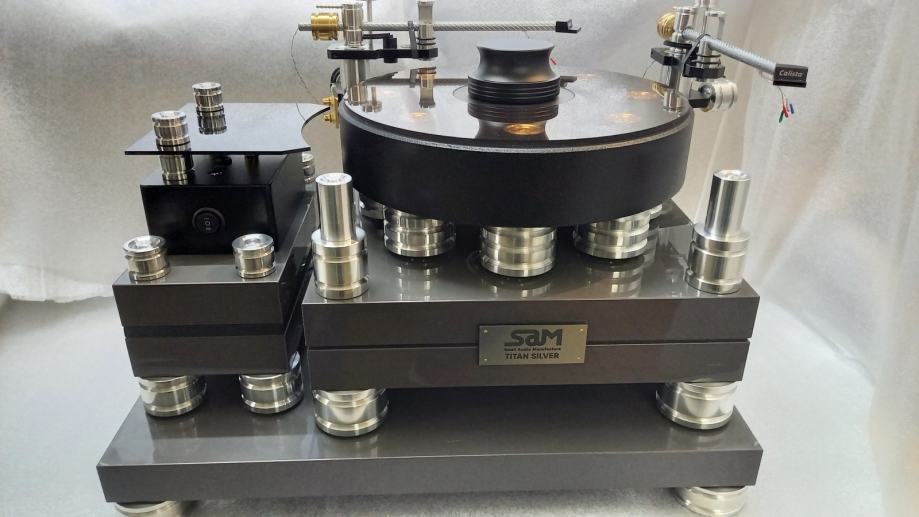

SMALL AUDIO MANUFACTURE TITAN SILVER TURNTABLE WITH SMALL AUDIO MANUFACTURE CALISTA 2 , 10 INCH CARBON UNIPIVOT TONEARM.


TABLE IS MADE OF ALUMINIUM AND WOOD. CCA 33 KILOS OF WEIGHT. MASSIVE TURNTABLE. DRIVE IS DC, SUPPORTS 33.3 AND 45 RPM. DIGITAL SOFTWARE ASSURES A CONSTANT SPEED. ABILITY TO MOUNT UP TO 4 ARMS.


Price with one S.A.M.  arm is 3,000 USD, option with 2 arms is 3,800 USD.


Turntable specs:


Motor base:

weight - cca 12 kg

height - 210 mm

depth - 330 mm

width - 120 mm

material: mdf, steele, aluminium


Platter:

weight - cca 6 kg

thickness - cca 55 mm

material - mdf

diameter - cca 300 mm, fully ballanced

platter's weights (top) - x 8, aluminium, fi 30 mm

platter's weight's (under) - x 8, aluminium, fi 60 mm

main axis - inox, fi 20 mm


Platter's base:

weight - cca 10 kg

dimensions - 330 mm (width), 330 mm (depth), 190 mm (height)

material - mdf, aluminium

tonearms support - up to 4 tonearms, fi 25 mm mounting post

bearings - SKF


Main isolation platform:

weight - 5 kg

dimensions - 500 mm (width), 380 mm (depth), cca 60 mm (height)

material - mdf, aluminium


Total dimensions of the turntable - 500 mm (width), 380 mm (depth), 280 mm (height), plus 50-70 mm with the record clamp and the tonearm.


Total weight - cca 33 kg.

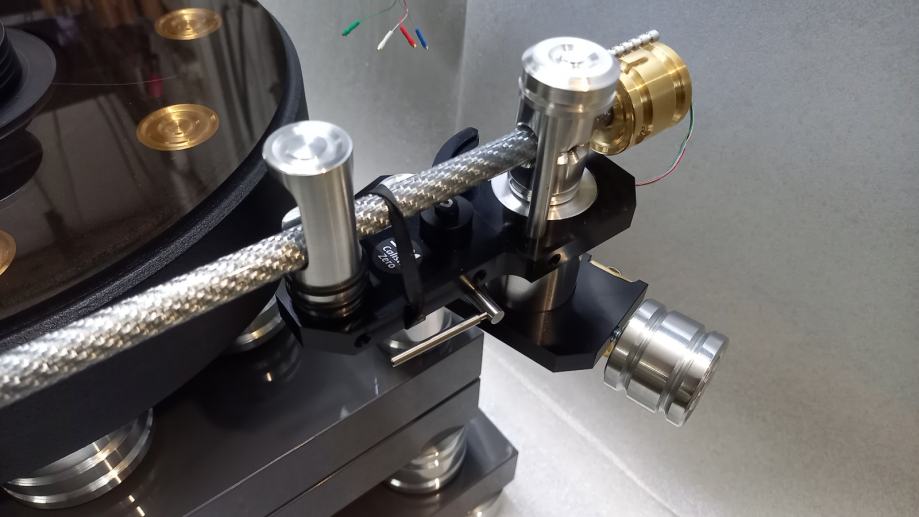

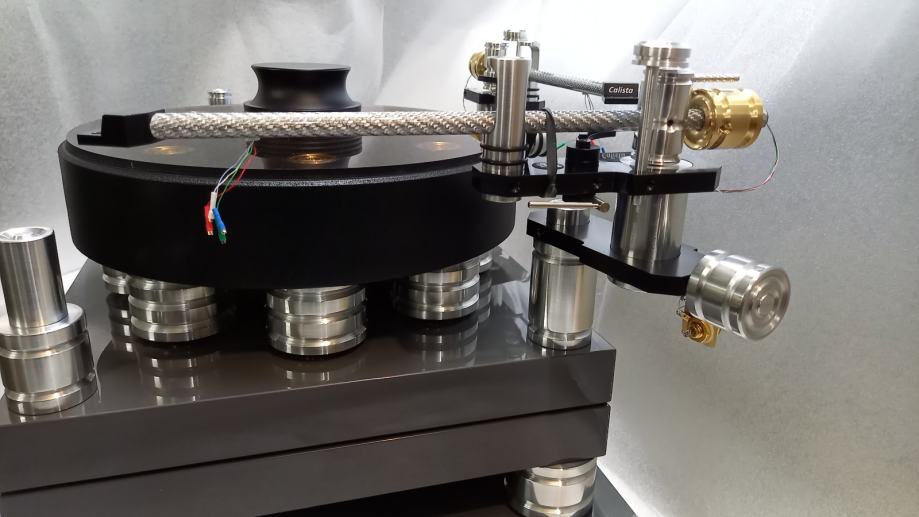

Tonearm specs:


Type: unipivot

Center pivot: 240 mm

Overhang: 15 mm

Sequential error +2 / -1 degree

Regulation of antiskating using the counterweight

Possibility of height adjustment lever

Adjustable VTA

Effective weight: 12 g

Toneram’s category: mid-heavy to heavy type of arms

Material: aluminium and carbon

Lenght: 10 in

Mounting hole: 25mm

Pre-wired

Wires: Oxygen free copper

Suitable: For all kinds of cartridges


RECORD CLAMP, PLEXI MATT, POWER SUPPLY AND A MAIN ISOLATION PLATFORM ALL INCLUDED IN THE PACKAGE.


FOR ANY OTHER INFO  DETAIL OR QUESTION CONTACT US FREELY,


IVAN

SMALL AUDIO MANUFACTURE
