Winora Yakun X10E Bosch 625i Wh 55 Size L

Say goodbye to the Monday blues! With its SUV features, the Winora Yakun X10E is your comfortable car replacement. This versatile trekking e-bike is equally at home on the road or on gravel paths, offering a comfortable setup for all your needs. The new Bosch Performance CX motor, combined with a 600Wh battery, provides efficient and long-lasting support – even when you’re carrying luggage, which can be easily stored on the rear rack or optional front rack. With the reliable 10-speed drivetrain, you’ll always find the perfect gear, and the hydraulic disc brakes ensure full control in any situation. StVZO-compliant features and great value for money complete the Yakun X10E’s package. An e-bike that makes Monday mornings feel like Friday afternoons.
https://www.bicikla.com/trewinora-yakun-x10e-743
Specifikacije

Frame and more
Brand:
Winora
Frame:
Winora aluminium 6061, 27.5"
Frame shape:
66_6
Model name:
Yakun X10E
Total perm. weight:
130
Frame height:
· 44
· 47
· 51
· 54
Fork:
SR Suntour SF23 X1 Boost LO-R, air, 80mm
Dynamo:
via system battery
Mudguard:
Curana Apollo 65, aluminium
Head light:
Trelock Skybeamer 300, 6-24V
Head set:
Glory Wheel ICR-51.9 ZS56
Taillight:
Spanninga Pimento XE Brakelight

Gear shift and brakes
Gear shift:
Shimano Cues RD-U6000 10s, Shadow+, 10 gears, Cues SL-U6000-10R, Rapidfire+
Chain:
Shimano CN-LG500 9-11s, Linkglide
Brakes:
Shimano Deore BR-MT410, 203 mm, aluminium / Shimano Deore BR-MT410, 2 pistons, 180 mm, 180mm
Brake lever:
Shimano BL-MT402, aluminium
Crank arm:
XLC Kies ISIS Cranks 170 mm

Propulsion
Drive unit:
Bosch Performance Line CX, 250W, 25km/h, 85Nm
Charger:
Bosch Charger 4A 230V
Battery:
Bosch PowerTube 600Wh
Battery capacity:
600

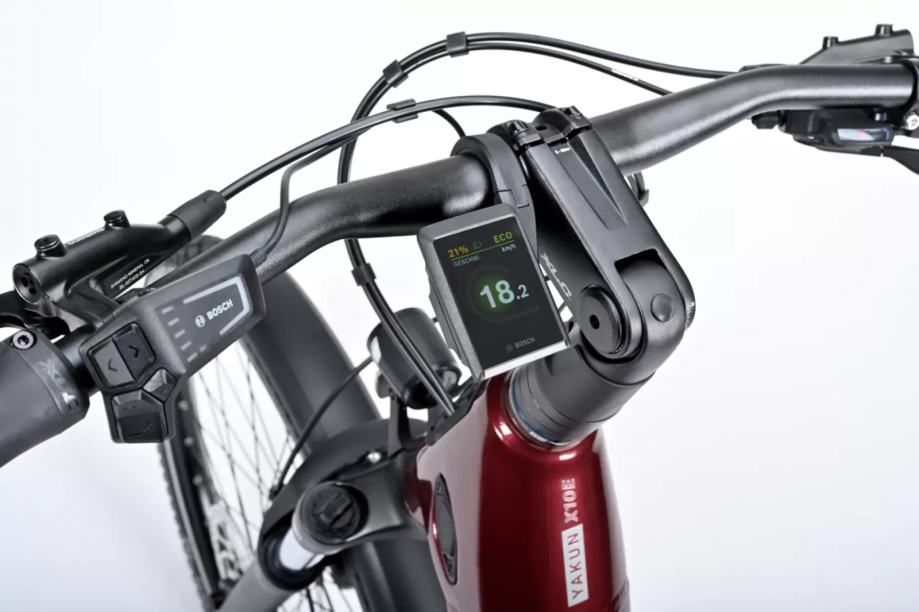

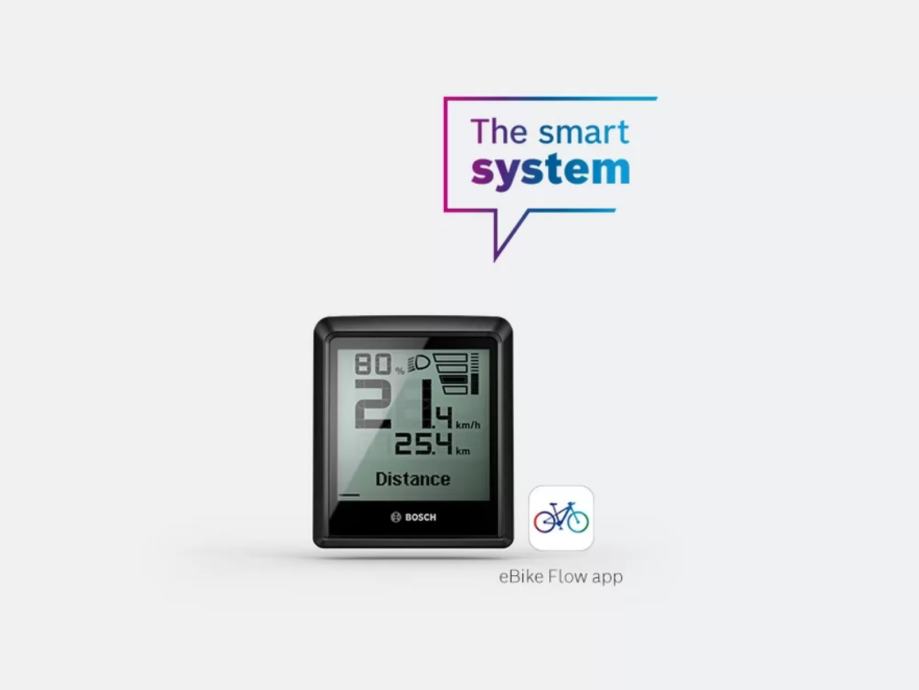

Display:
Bosch Intuvia 100 + LED Remote
Engine manufacturer:
Bosch
Engine torque:
85

Wheels and wheel components
Rims:
Schürmann Yak25 32H with Single Eyelets, eyeleted, Hollow section rim
Carrier:
Easylife System luggage carrier, MIK

Handlebar and saddle
Saddle:
Selle Royal Vivo Ergo
Handlebar:
JD TR28AL, Dia. 31.8 mm, Rise 19 mm
Grips:
Herrmans DD42, Lockable Grips

Geometry
Seat tube length:
440, 470, 510, 540
Seat tube angle:
76
Head tube length:
160, 170, 180, 190
Head tube angle:
69
Chain stay length:
472
Bottom bracket drop:
60
Reach:
455, 457, 465, 475
Seat tube offset:
0
