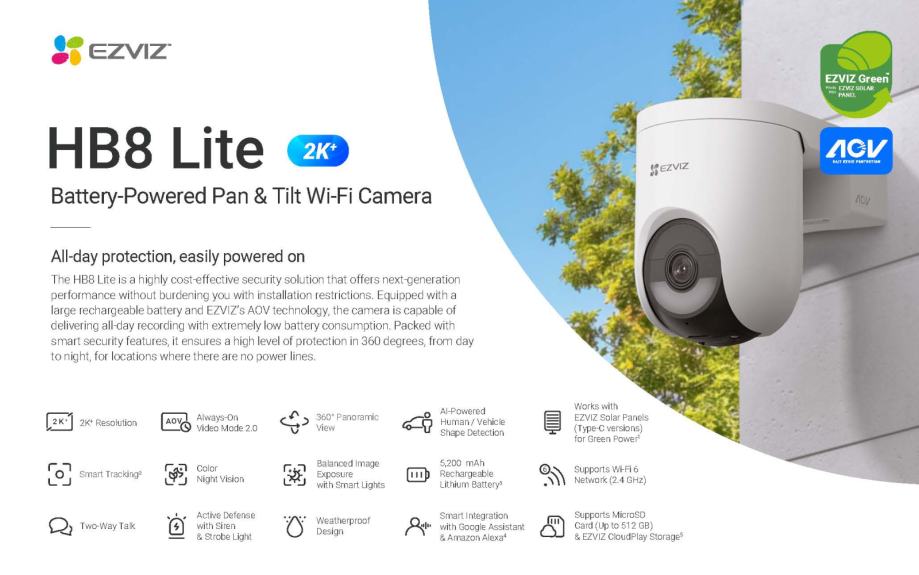

Solarna kamera EZVIZ HB8 Lite + Solar Panel-E **NOVO ZAPAKIRANO**

KAMERA:

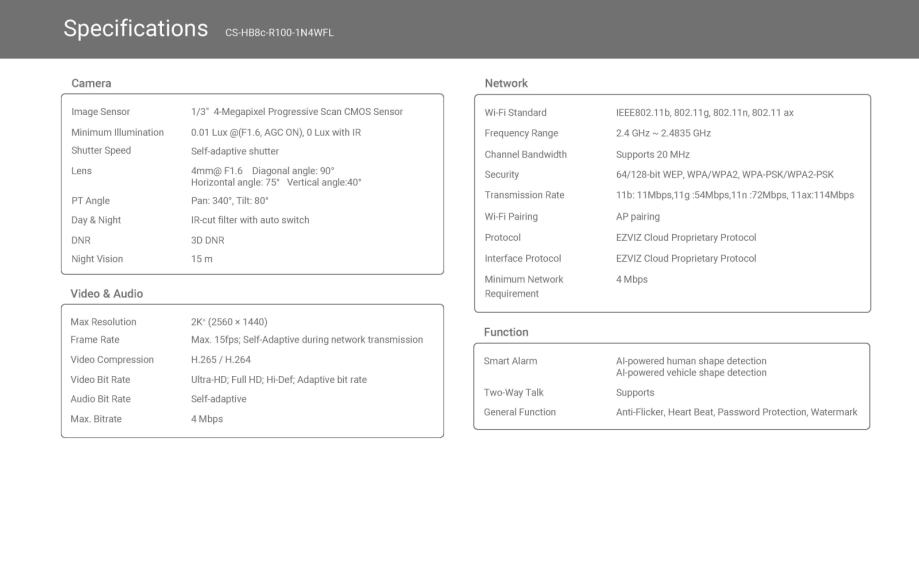

Specifications
Model CS-HB8c-R100-1N4WFL
Camera
Image Sensor 1/3" 4-Megapixel Progressive Scan CMOS Sensor
Minimum Illumination 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR
Shutter Speed Self-adaptive shutter

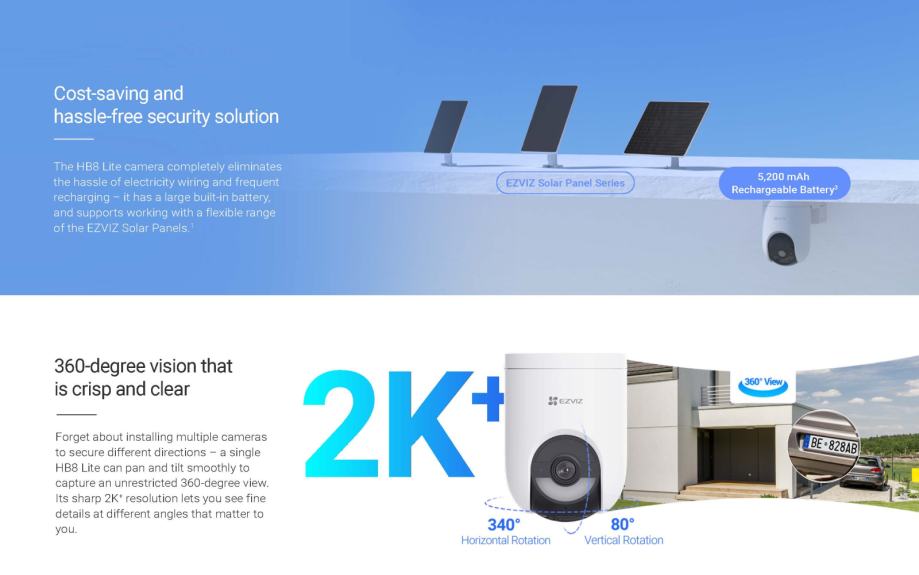

PT Angle Pan: 340°, Tilt: 80°
Lens 4mm@ F1.6 Diagonal angle: 90°, Horizontal angle: 75°, Vertical angle:40°
Day & Night IR-cut filter with auto switch
DNR 3D DNR
Night Vision 15 m
Video & Audio
Max Resolution 2K+ (2560 × 1440)
Frame Rate Max. 15fps; Self-Adaptive during network transmission
Video Compression H.265 / H.264
Video Bit Rate Ultra-HD; Full HD; Hi-Def; Adaptive bit rate
Audio Bit Rate Self-adaptive
Max. Bitrate 4 Mbps
Network
Wi-Fi Standard IEEE802.11b, 802.11g, 802.11n, 802.11 ax
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20 MHz
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate 11b: 11Mbps,11g :54Mbps,11n :72Mbps, 11ax:114Mbps
Wi-Fi Pairing AP pairing
Protocol EZVIZ Cloud Proprietary Protocol
Interface Protocol EZVIZ Cloud Proprietary Protocol
Minimum Network Requirement 4 Mbps
Function
Smart Alarm AI-powered human shape detection, AI-powered vehicle shape detection
Two-Way Talk Supports
General Function Anti-Flicker, Heart Beat, Password Protection, Watermark

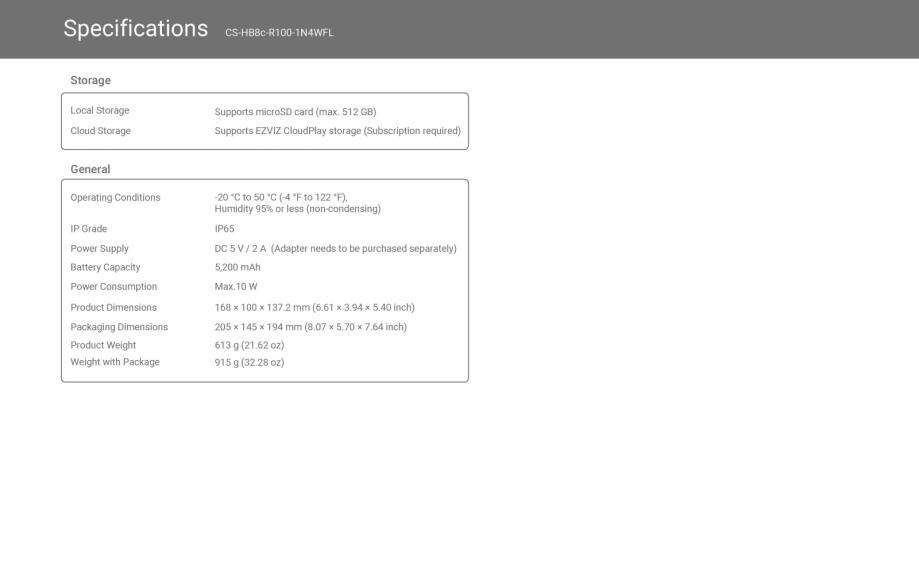

Storage
Local Storage Supports microSD card (max. 512 GB)
Cloud Storage Supports EZVIZ CloudPlay storage (Subscription required)
General
Operating Conditions -20 °C to 50 °C (-4 °F to 122 °F), Humidity 95% or less (non-condensing)
IP Grade IP65
Packaging Dimensions 205 × 145 × 194 mm (8.07 × 5.70 × 7.64 inch)
Battery Capacity 5,200 mAh
Power Consumption Max.10 W
Power Supply DC 5 V / 2 A (Adapter needs to be purchased separately)
Product Dimensions 168 × 100 × 137.2 mm (6.61 × 3.94 × 5.40 inch)
Product Weight 613 g (21.62 oz)
Weight with Package 915 g (32.28 oz)
In the box
In the box - HB8 Lite Camera
- Power Cable
- Drilling Template
- Screw Kit
- Quick Start Guide
- Regulatory Information × 2
Certifications
Certifications CE / REACH / WEEE / RoHS


PANEL:
Specifications
Model CS-CMT-Solar Panel-E

Performance Parameter*

*Data from EZVIZ Lab’s test results under standard testing conditions (STC): 1000W/m2, AM1.5,25℃, (38000-40000 LUX)
Power Voltage 6V ± 5%
Max. Power current 1030 mA ± 5%
Max. Power 6.18 W
Transformation efficiency 21.6%
Operation Temperature

-20°C - 60°C (-4°F - 140°F); Humidity 90% or less (non-condensing)

(The working environment temperature range for battery camera charging should be maintained at 0-45°C )
IP Grade IP65
Mechanical Data
Manufacturing Process Monocrystalline solar cells, PET laminated wood
Product Dimensions 283.7 × 185.7 × 2.4 mm (11.17 × 7.31 × 0.09 inch)
Packaging Dimensions 300 × 202.5 × 78 mm (11.81 × 7.97 × 3.07 inch)
Net Weight 484g (17.07 oz)
With Package 854g (30.12 oz)
In the box
In the box - EZVIZ Solar Panel-E
- Adjustable Mounting Bracket
- Screw Kit
- Drill Template
- Quick Start Guide
Certifications
Certifications CE / FCC / UKCA / WEEE / REACH / RoHS
