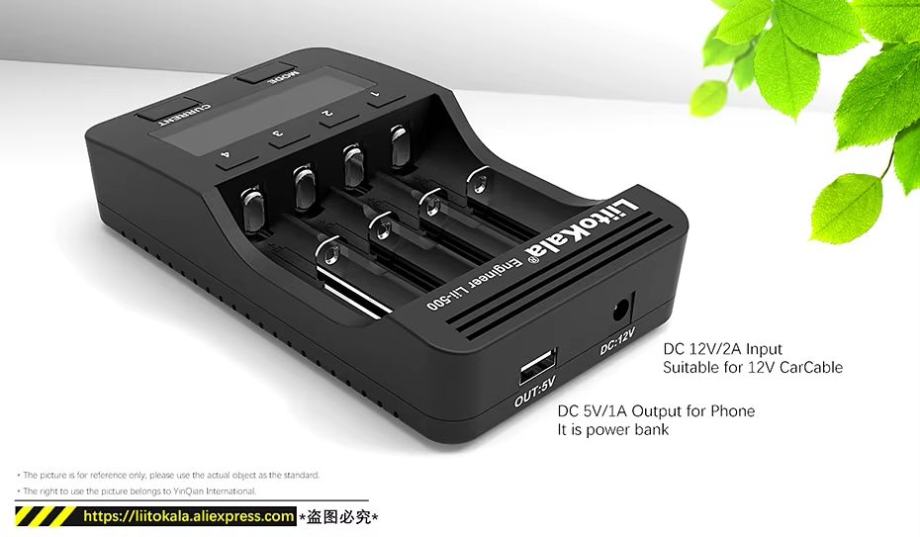

Punjač baterija, LiitoKala NiMh NiCd Li-ion Li ion Liion , 2 modela

- inteligentni punjač za Ni-Mh, Ni-Cd, Li-ion baterije.

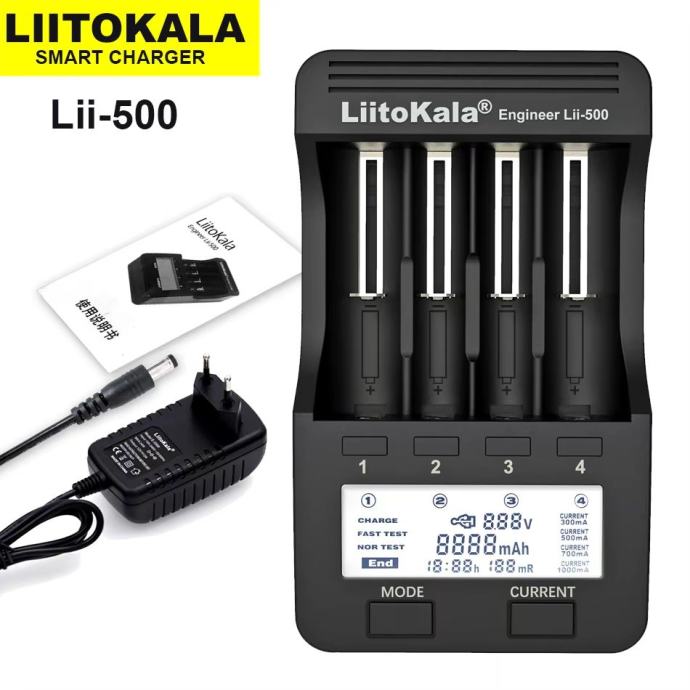

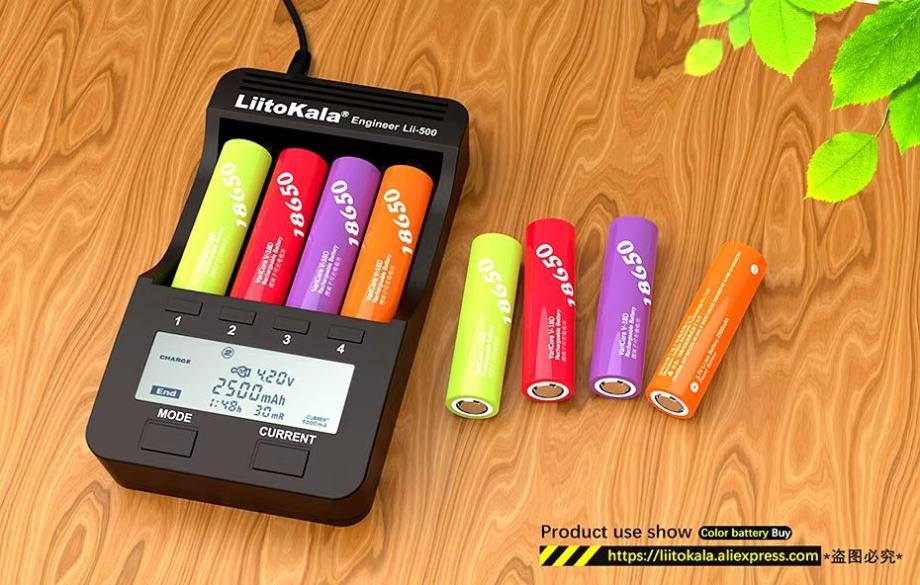

- Model: Lii-500
- podržava Lithium Ion, Ni-MH, Ni-Cd
- Dizajnirano za za AA ( LR6 )i AAA ( LR3 ）NiCd, NiMH ili 3.7V Li-ion rechargeable batteries in size type of 18650, 14500, 16340 (RCR123), 10440, also compatible with 10340, 18650, 26650, 26500 ( printed on the package ) and 17670, 18490, 17500, 17335 ( printed on the product )
- 4 nezavisna kanala,
- mogućnost odabira struje punjenja - 300mA, 500mA, 700 mA, 1000 mA
- testiranje stanja baterije
- može se koristiti i kao Power bank - tako da stavite baterije u njega
- 25 eur

Drugi model:

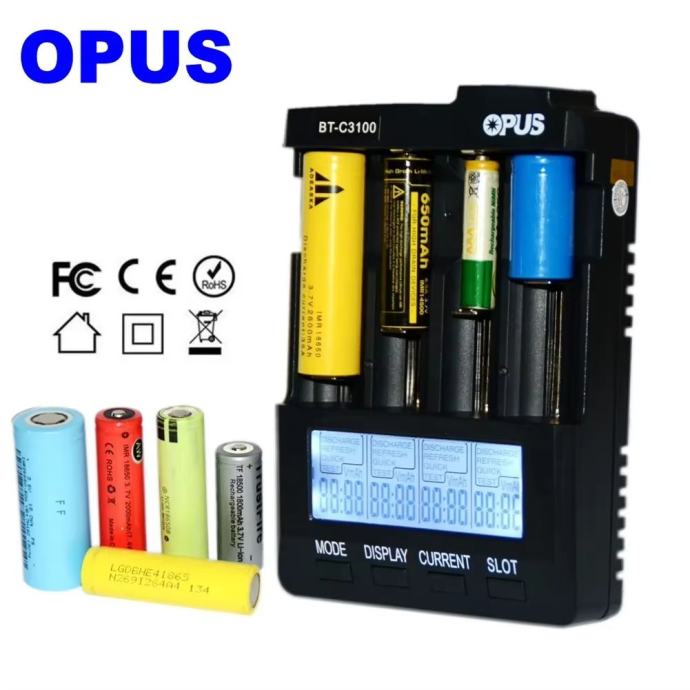

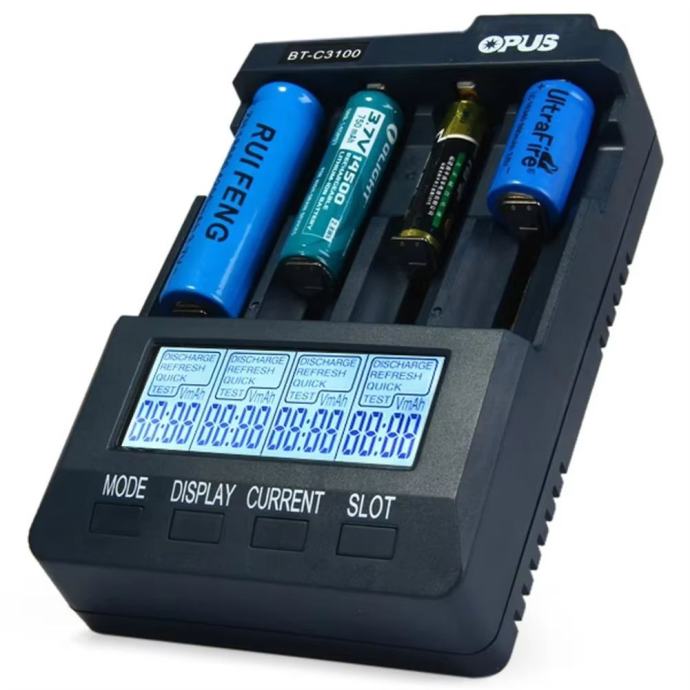

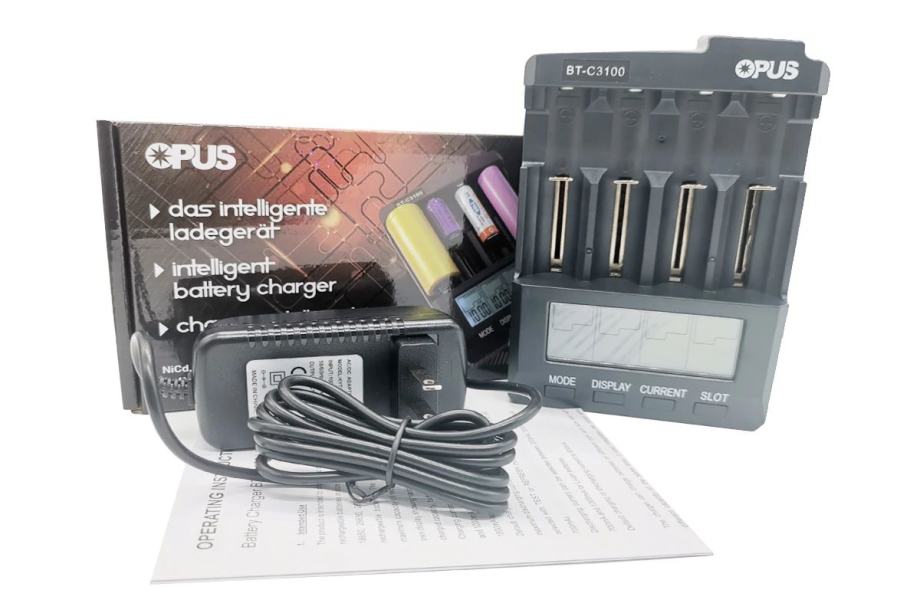

OPUS BT-C3100
- zadnje 3 slike

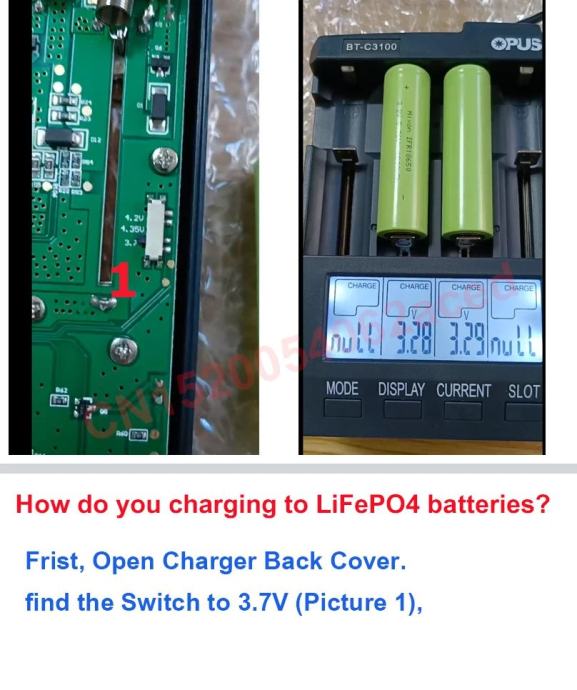

- može puniti i LiFePO4 (potrebno podesiti na prekidaču unutar uređaja)
- 40 eur

Whatsapp i Viber na 098515266
email: 987ksi(et)gmail.com ili kliknite na 'Kontaktirajte oglašivača'

Features:
Various protection functions, overcharge and overdischarge, short circuit, temperature, 0V voltage activation function, intelligent identification of bad battery and reverse battery detection protection.
With 4 kinds of charge current adjustment (300mA/500mA/700mA/1000mA), it can be used to charge different sizes (18650/26650/AA/AAA, etc.) of battery simultaneously.
CHARGE, FAST TEST, NOR TEST 3 modes can work simultaneously, independently set charging, fast capacity detection, normal capacity detection.LCD display screen allows you to see know the parameters of voltage (V), current (mA), time (h), capacity (mAh), and internal resistance (mR).
Portable size, strong and powerful, safe to use, great for daily and travel.

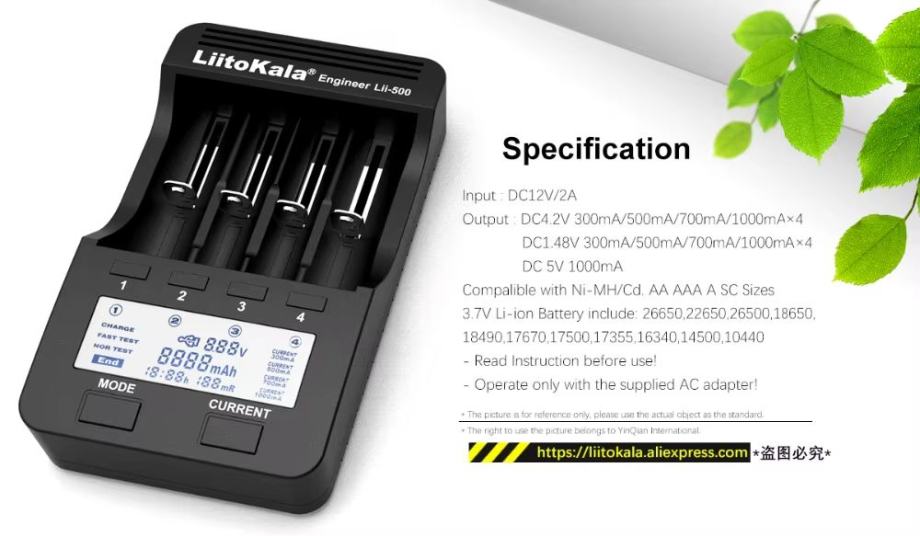

Specifications:
Brand Name: LiitoKala
Model Number: Lii-500
Input Voltage: DC 12V/2.0A
Lithium battery charging current: 4.2V 300mA/500mA/700mA/1000mA
Ni-MH battery charge current: 1.48V 300mA/500mA/700mA/1000mA
Discharge Current: 250mA, 500mA
USB Output: 5V/1A
Compatible with:
3.7V Li-ion Battery including: 26650, 22650, 18650, 18490, 17670, 17500, 17355, 16340, 14500, 10440
Ni-MH/Ni-Cd: AA, AAA, A, SC


Under 4: CHARGE mode, 4 channel work independently, you can select different charging current for charging and Hunchong lithium-ion batteries and nickel-metal hydride batteries.

Under 5: FAST TEST mode, 4 channels can quickly detect the battery capacity, regardless of the lithium-ion batteries and nickel-hydrogen batteries, are working independently. Rapid detection of battery capacity process (1 discharge, 2 full) by the two step

6. NOR TEST mode, the battery capacity is normally detected by the three step process (1 first charged, then discharged 2 and 3 refill), the detection process of the battery capacity;

7.CHARGE and FAST TEST / NOR TEST 3 modes can work simultaneously; independent set charge / fast capacity detection / normal capacity detection;

8. A variety of protection functions: overcharge and over discharge, short circuit, temperature, 0V voltage activation function, (- ΔV & 0ΔV), 1.65V-2.2V can not be charged, intelligent recognition bad battery and reverse-battery detection protection.

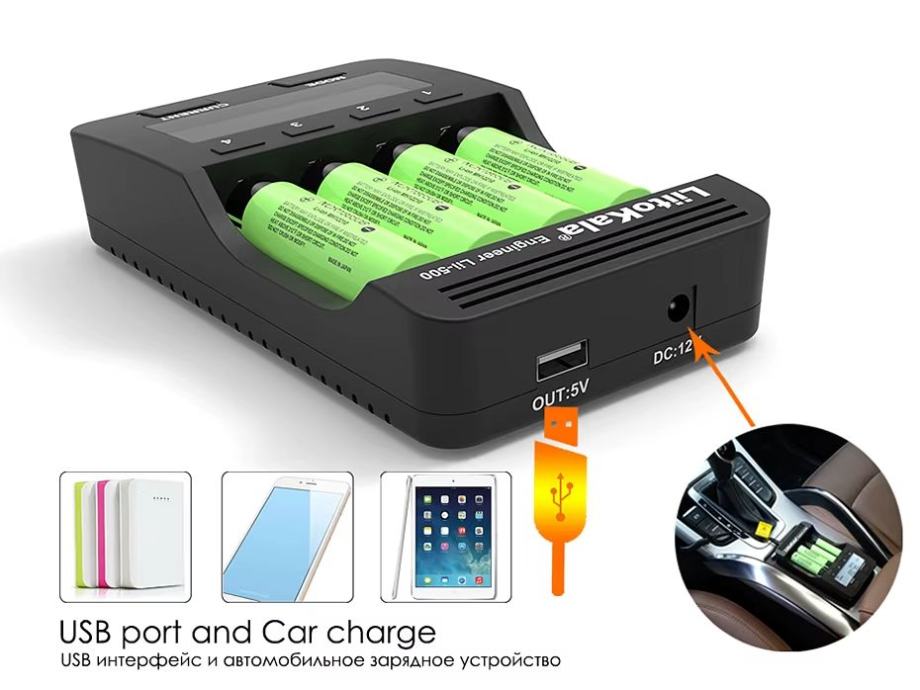

9. with standard 5V / 1000 mA USB output: from 1 to 4 lithium batteries lithium batteries USB output is completed, the product can not be nickel-metal hydride battery with USB output.

10. with a dedicated power adapter: DC Input voltage: 12V / 2A.

Third, the description of the keys

1. The charger has six buttons, mode selection key (MODE), the current selection key (CURREN), and view the data independently selected key (1234), the use of simple and convenient;

2. Hold down the MODE key in any case and held for 3 seconds to change the CHARGE (charge) mode or FAST TEST, NOR TEST (capacity test) mode, then tap again corresponding to the function keys can be changed within 8 seconds, to current, independent, Hunchong, capacity test, the selected function after 8 seconds into the working state, in working condition can tap the (1234) key to view the current (mA) / capacity (mAh) / voltage (V) / time ( h) / resistance (mR) data reference.

Fourth, the mode Description:

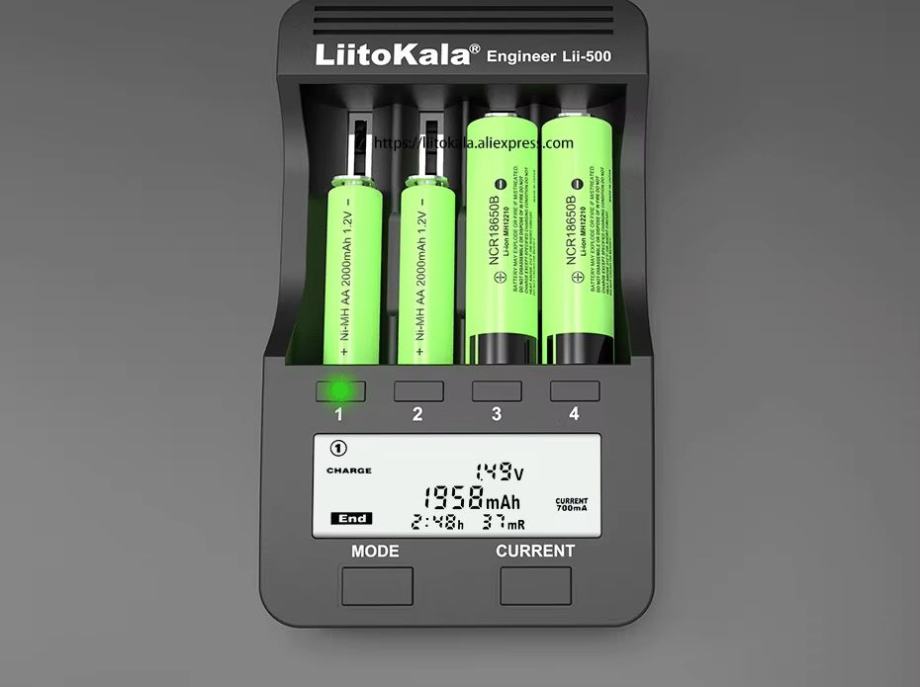

CHARGE (charging mode)
1. When the power is turned charger, the charger all instant full brightness LCD screen, if the battery is not placed in the display Null, if it is a bad battery will also be displayed into the Null;
2. Insert the batteries power charger, the charger in three seconds or so to measure the internal resistance of the battery, after which the system automatically enters charge mode (CHARGE), the charger automatically default charging current is "500mA, in 8 seconds within the current selection by key (CURREN) select 300mA, 500mA, 700mA, 1000mA current charging system lock current that you select will be charged in eight seconds, if within 8 seconds, did not make the set, then the system automatically defaults to 500mA charging current, current and other functions at this time will not be changed, if necessary change, need to change the mode button press from the election;
3. In the charge mode (CHARGE), within 8 seconds to change any of independent charging or different current selection, as well as different battery Hunchong. make a simple, 8 seconds tap the corresponding button battery 1234, press mode button to change the mode, press the current key to changing the current, independent, Hunchong, capacity detection function, selected after 8 seconds into the working state, attention according to the battery capacity size to select the charge current, if not fast charge, we recommend charging 500mA, this is the safest;
4. charging mode, by tapping the keys you can switch to view the 1234 charge capacity (mAh) / charging time (h) / battery internal resistance (mR) / charging current (mA), voltage (V) 5 kinds of units, the battery is fully charged After the show, (end of charge);

II. Capacity detection mode (FAST TEST, NOR TEST) two kinds

(A) FAST TEST (rapid capacity test mode)

1. When the power is turned back into the battery charger, 8 seconds touch (mode key MODE) Select (FAST TEST rapid capacity test mode), then press (current selection key CURREN) to select the current system 8 seconds after the lock of your choice to work. Quick Reference Table a capacity test procedure

Is the first battery is discharged, then the battery is fully charged battery in order to detect and record the battery capacity.

Note that this product capacity test mode, the discharge mode is divided into two kinds, when you select the charge current (300mA, 500mA), the system automatically default discharge current of 250mA, when you select the charge current (700mA, 1000mA) , the system automatically default discharge current of 500mA,

(B) NOR TEST (normal capacity detection mode)

1. NOR TEST mode: is the first battery is full, then the battery discharge discharge capacity to detect and record the battery capacity after the battery is fully automated; capacity detection process with reference to Table II

2. When the power is turned back into the battery charger, 8 seconds touch (mode key MODE), NOR TEST mode is selected, in any mode, press mode button for 2 seconds, you can enter NOR TEST mode;

3. After entering the NOR TEST mode, you can select the current key (CURREN) select 300mA, 500mA, 700mA within 8 seconds, or 1000 mA current, the current system is locked after you select in 8 seconds, if in this 8 the second, did not make the set, then the system will automatically lock 500mA current charging (when selected current is the default charging current is automatically selected when the discharge discharge current 250mA), in which within 8 seconds, Select 700mA or 1000mA current charge, will automatically select the discharge current of 500mA discharge.

4. When the battery is full, the system automatically to discharge, the discharge current to system defaults (select the charging current relationship), and record discharge data to detect the battery capacity, when the screen appears, capacity test mode is finished, At this parameter LCD display is the actual capacity of the battery reference value;.

5. capacity test mode is finished, the charger will be selected current parameters again before charging the battery until full

Za OPUS BT-C4100:
The charger integrates the minus delta voltage for NiCd or NiMh battery charging termination, and for Li-ion batteries charging to 4.2V with pre-selected constant current. ( 3.7 Li-FeO4 and 4.35 type high voltage batteries charging mode can be selected through switch on board )
Easy to read LCD with back light Showing Battery Voltage, Charge / Discharge Current, Charging Time, Battery Capacity etc.
Max charging capacity: Up to 20000mAh
Power adapter: DC 12V, 3.0A ( Output ), 100 - 240V, 50 / 60Hz ( Input )
Charging battery Type:
Ni-MH, NiCd, Lithium Ion,Designed for AA ( LR6 ) and AAA ( LR3 NiCd, NiMH or 3.7V Li-ion rechargeable batteries in size type of 10440, 14500, 16340, 17335, 17500, 18490, 17670, 18650
Highlight:
4.35V charging time can be very long because charging current is regulated in entering the CV stage at 4.12V, which is same as 4.2V type. Now
3.35V charging algorithm is changed to 4.27V.
New fan cover make better protection for cooling fan.
Charging current range ( mA ): 200, 300, 500, 700, 1000, 1500, 2000
Discharge current range ( mA ):200, 300, 500, 700, 1000 ( li-ion cell battery only )
Max. charging capacity: 20000mAh
Voltage deviation: max 0.03V 4.2V
Current deviation: max 5%
Type: Charger
Brand: Opus
Model: BT-C3100 V2.2
Rechargeable Battery Qty: 4
Input Voltage: AC 100~240V 50/60HZ
Output Voltage: DC 12V, 3.0A
LCD Screen: YES
Auto Circuit Detection: YES
Built-in Protected Circuit: YES
Over Voltage Protection: YES
Short-Circuit Protection: YES
Over-Charging Protection: YES
Over-Discharging Protection: YES


Li ion Lion Litij litijum litijumske Lii500 USB
