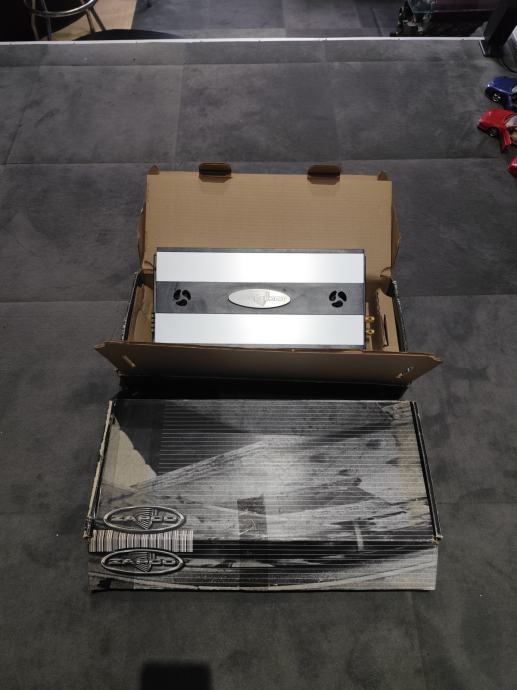

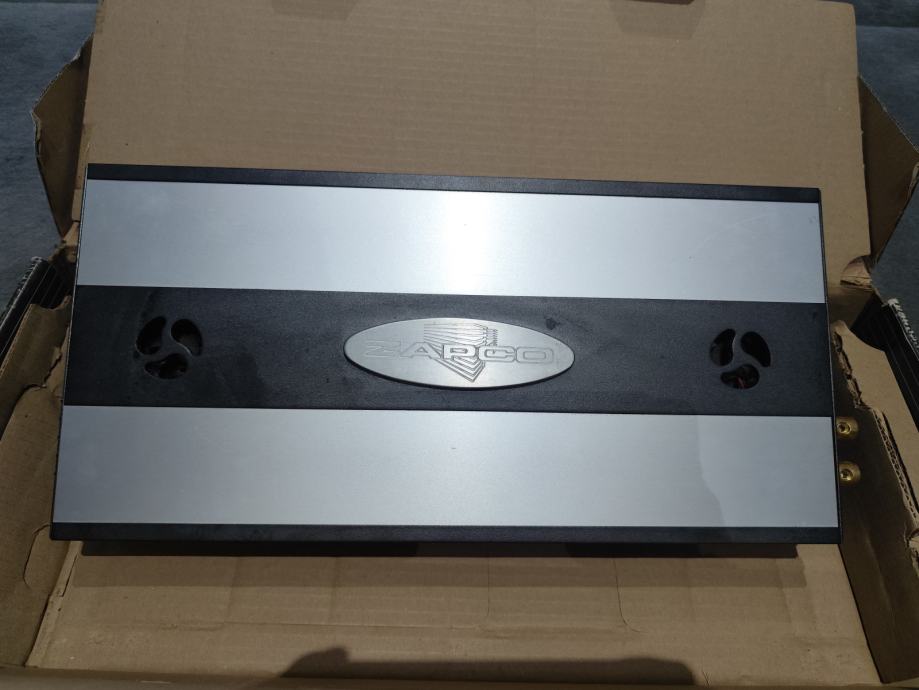

Auto pojačalo Zapco C2k 9.0xd

2 komada na stanju
Cijena je za komad
Technical Description:

2-Channel High Efficient Full Range Class D Amplifier with Tripath Microprocessor Control Technology Over 2000 Watt RMS Power into 2 Ohm or 4 Ohm Configuration
Chassis design allows infinite customization options by replacing slide-in trim panels to personalize any installation
SymbiLink™ Balanced Line Technology provides up to 16 volts of balanced input for the cleanest, quietest signal possible
Dual 1,800 watt power supplies for surges well in
excess of rated output power for SPL use
Three independent output filtering stages allow full
range use as well as bass use in SQ systems
Optical isolation at each stage
ZAPCO DCS microprocessor control for all amplifier
Ultra high speed switching frequency for reduced "footprint"
Adjustable input gain up to 30.5 dB
Adjustable Pre-Clip circuitry enabling the user to set the maximum input which in turn determines the desired output. power. Match RMS speaker power handling for best performance and reliability
Adjustable turn on delay from 1-4 seconds
XD-VFD in-dash display, with wired remote, allows monitoring and control of all functions from drivers position display shows, input voltage, amplifier rail voltage, temperature and output power
Variable, selectable 24dB or 48dB low pass crossover
Pass through output
Four layer PC board with heavy 3 oz copper
Surface Mount Technology w/1% resistors, precision capacitors, and massive ground planes
Switch for use as stereo , single L ch. or R ch. bridge
L+R sum mono for use as a bass amp-
Dual cooling fans allow any mounting position
Specifications:

19.5"L x 8.75"W x 2.375"H
Stereo, 4 ohms: 2 x 300 Watts
Stereo, 2 ohms: 2 x 600 Watts
Stereo, 1 ohm: 2 x 1100 Watts
Bridged, 4 ohms: 1 x 2200 Watts
Bridged, 2 ohms: 1 x 2200 Watts
T.H.D. + Noise: 85dB
Transient Distortion: 20V/uS
Damping Factor: >225 @ 4 ohms
Input Sensitivity: 250mV - 16 Volts
