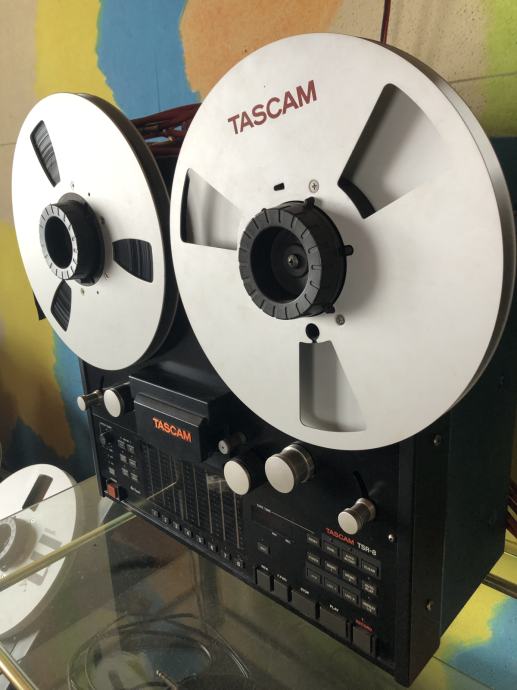

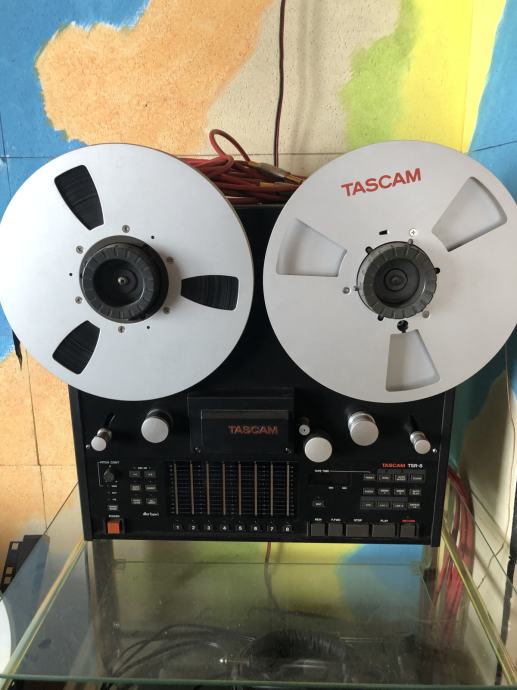

TASCAM TSR-8; 8cha profesionalni reel to reel, magnetofon

Profesionalni studijski Tascam TSR-8, 8cha (kanala) reel to reel, magnetofon, dolazi sa originalnim NAB-ovima, uredan, ispravan i servisiran....
Radi težine uređaja, samo osobno primopredaja !

General

Manufacturer: Tascam / Teac
Model: TSR-8 (with DBX 1)
Type: 1/2-inch, 8-track master reel tape
Years of manufacture: 1989 - 1996
Made in: Japan
Color: Black
Remote control: yes, RC-408
Power consumption: 95 W
Dimensions (WxHxD): 432 x 400 x 202 mm
Weight: 27 kg
Original price approx.: 1'999 £, corresponds to about 5'500 DM
New prices accessories:
Interface SMTPE/EBU Synchronizer: Tascam ES50/51
Interface RS232 Serial Synchronizer Remote control RC-408: 400 DM


Connections

Inputs:
Line unbalanced: 8 inputs - 10 dBV (316 mV), 10 kOhm.
Outputs:
Line unbalanced: 8 outputs - 10 dBV (316 mV), 100 ohms

Specifications

Tape material: 1/2 inch
Track position: 8-track, 8-channel
Max. Reel size: 26.5 cm D (NAB)
Heads: 2, 1x 8-track record / playback head, 1x 8-track erase head
Drive type: 3, 1x Capstan DC servo direct drive, 2x DC winding motors
Tape speeds: 38 cm/s
Speed fine control: ± 12
Synchronization fluctuations: < 0.06 %
Overall frequency response:
at 38 cm/sec: 40 - 20'000 Hz (± 3 dB at 0 dB VU).
Crosstalk attenuation: > 82 dB
Signal-to-noise ratio:
without DBX: 68 dB
with DBX 1: 108 dB
Distortion factor: < 0.8 % 1 kHz
Cancelling frequency: 145 kHz

Special Features

Built-in, switchable DBX type 1 noise suppressor
Standard 19" dimension, brackets included in delivery
Serial & parallel interface for external control
Cueing: Electronically disengageable tape lifters
8-channel LED display (12 LEDs each)
Auto Punch In/Out with Rehearsal Function
Crack-free Punch In/Out
Spot erase
3-point auto locator
Real-time tape counter
Pitch Control +/- 12
