Streaming encoder - decoder H264 H265 Hdmi SRT RTMP NDI demo

Samo testirano,
Livestreaming kamera - HDMi out - facebook, youtube.....svi ostali servisi
primajte Vaš stream, ubacujte grafiku,
Radi sa Vmix, Wowza, Obs....ecoder i decoder
DOSTUPNO ODMAH!!!


Core performance
main chip: Hi3520DV400
CPU: ARM Cortex-A7@1.3GHz 32KB I-Cache, 32KB D-Cache
RAM: 512MB DDR3
Flash: 256MB SPI Nand Flash
input interface
input interface: HDMI 1.4 supports up to 1080P@60fps
Resolution: 1080P, 720P, 1600×1200, 1440×900, 1366×768, 1280×1024, 1024×768, 800×600, 640×480
Encoding format: H.264 Baseline profile
H.264 Main profile
H.264 High profile
H.265 Main profile
MJPEG/JPEG Baseline
Decoding format: H264, H265, MJPEG
Encoding resolution: Main: 1080P, 720P, 360P, Sub: 720P, 360P
Frame rate: 1~60 adjustable
Multiple reference frames: Support SmartP, DualP
Maximum bit rate: 40Mbps
Rate control: CBR/VBR/AVBR/FIXQP/QPMAP
Audio parameters

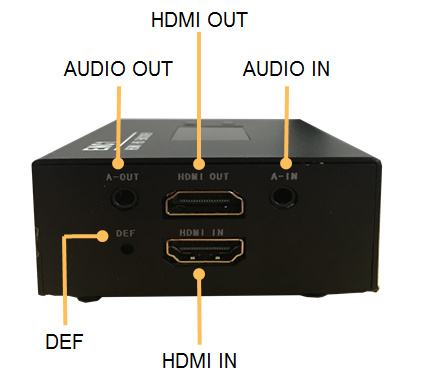

input interface: HDMI, 3.5mm Line-In, audio can be used at the same time
Output Interface: HDMI, 3.5mm Line-Out, audio can be used at the same time
Sampling Rate: 48K, 44.1K, 32K, 16K, 8K
Encoding format: AAC, MP3, MPEG2, PMCA, PMCU
Network parameters

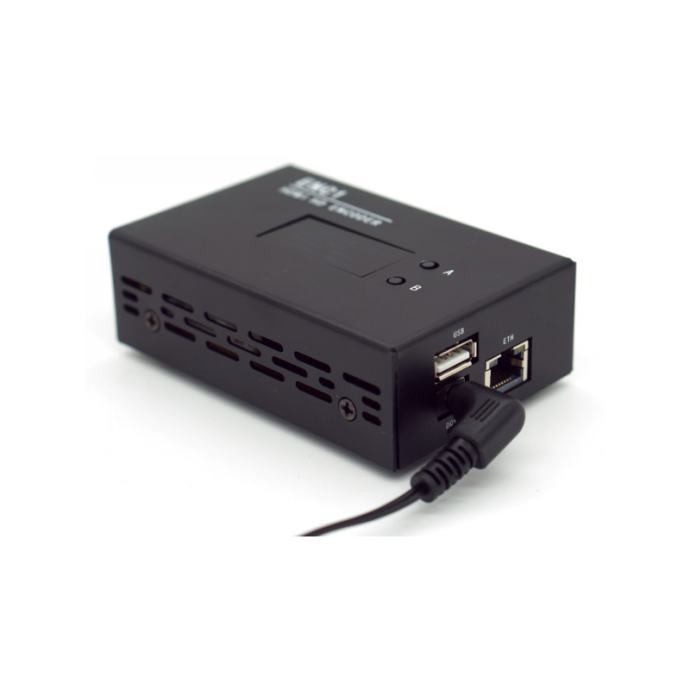

Wired interface: 10/100M/1000M RJ45 network port
Wireless interface: Support USB wifi module, support USB 4G module
Transfer Protocol: SRT, NDI, RTSP, RTMP, RTMPS, HTTP, HLS, UDP, unicast, multicast
ONVIF: stand by
Basic parameters
power supply: DC 12V 1A
Power consumption:
